Strongest 4mm allen wrench? Have multiple stuck skate axles

Notices
Foo Light hearted off-topic chit chat with no general subject.

Strongest 4mm allen wrench? Have multiple stuck skate axles

Old 09-22-21, 08:25 PM
  #1
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts
Strongest 4mm allen wrench? Have multiple stuck skate axles

I was trying to remove the axles from one of my skates and the bolt will literally not turn, in-fact, none of the three bolts will, which is super frustrating. I broke off one allen wrench already and my second one has started to spiral making that pretty worthless

Is there a brand that makes solid hex wrenches? I just need a 4mm. I even tried placing the skate frames in the fridge and alternatively used a space heater to warm the frame and axles up. They use a blue colored threadlocker which is probably the culprit. If it starts to strip will have to find a place to drill it out.

Also taking any ideas to help without the need for drilling
EJ123 is offline
Old 09-22-21, 08:30 PM
  #2
skijor
on by

skijor's Avatar

Join Date: Mar 2006
Location: Wisconsin
Posts: 953

Bikes: Waterford RS-33, Salsa Vaya, Bacchetta Giro 20 ATT

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Liked 600 Times in 375 Posts
Try a hair dryer on the threadlocker.
I assume there's a lots of adjacent plastic...so a heat gun or torch would be a no-go. It's worth a shot. At least it's not red locktite.
skijor is offline
Likes For skijor:
Old 09-22-21, 09:05 PM
  #3
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
Originally Posted by EJ123 View Post
I was trying to remove the axles from one of my skates and the bolt will literally not turn, in-fact, none of the three bolts will, which is super frustrating. I broke off one allen wrench already and my second one has started to spiral making that pretty worthless

Is there a brand that makes solid hex wrenches? I just need a 4mm. I even tried placing the skate frames in the fridge and alternatively used a space heater to warm the frame and axles up. They use a blue colored threadlocker which is probably the culprit. If it starts to strip will have to find a place to drill it out.

Also taking any ideas to help without the need for drilling
you might try a soldering iron transfer heat to each bolt. and, auto stores have ratchet driven allen wrenches. those are stout
thook is offline
Likes For thook:
Old 09-22-21, 09:44 PM
  #4
Hondo Gravel
es ist mir egal

Hondo Gravel's Avatar

Join Date: Jan 2018
Location: Hondo,Texas
Posts: 2,065

Bikes: Too many Motobecanes

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 2355 Post(s)
Liked 2,465 Times in 1,597 Posts
Yup have heated up many stubborn bolts with a simple torch. Slightly softeners the metal just enough to break it lose. And burns out the crud blocking up the threads. Just don’t heat it up too much I know I have done that …
Hondo Gravel is offline
Old 09-22-21, 10:02 PM
  #5
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
maybe one of those butane pencil torches.
thook is offline
Likes For thook:
Old 09-22-21, 10:28 PM
  #6
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts
Sigh, the sucker is now stripped

Where do I find a machinist or a place that can drill?
EJ123 is offline
Old 09-22-21, 10:50 PM
  #7
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
can you take a picture?
thook is offline
Old 09-22-21, 11:01 PM
  #8
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts

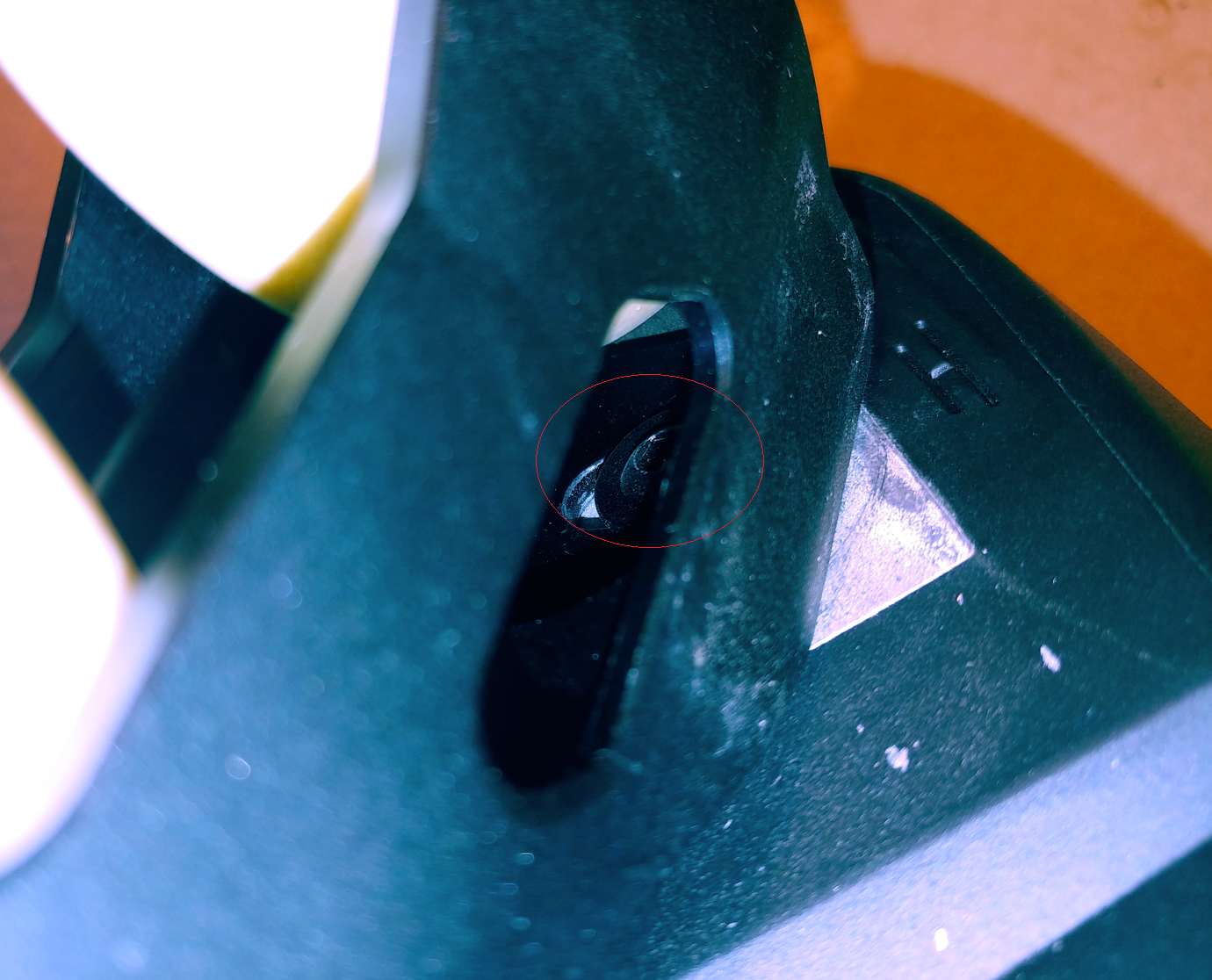

Originally Posted by thook View Post
can you take a picture?
EJ123 is offline
Old 09-22-21, 11:02 PM
  #9
noisebeam
Arizona Dessert

noisebeam's Avatar

Join Date: Jun 2004
Location: AZ
Posts: 15,007

Bikes: Cannondale SuperSix, Lemond Poprad. Retired: Jamis Sputnik, Centurion LeMans Fixed, Diamond Back ascent ex

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 5204 Post(s)
Liked 1,967 Times in 1,165 Posts
You can get an extractor at most hardware stores.
noisebeam is offline
Likes For noisebeam:
Old 09-22-21, 11:08 PM
  #10
noisebeam
Arizona Dessert

noisebeam's Avatar

Join Date: Jun 2004
Location: AZ
Posts: 15,007

Bikes: Cannondale SuperSix, Lemond Poprad. Retired: Jamis Sputnik, Centurion LeMans Fixed, Diamond Back ascent ex

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 5204 Post(s)
Liked 1,967 Times in 1,165 Posts
Like a Grabit #1 size.

Last edited by noisebeam; 09-22-21 at 11:14 PM.
noisebeam is offline
Old 09-22-21, 11:09 PM
  #11
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
or, get...if you don't have any....sacrificial allen keys. used one slightly bigger than the original size. jam it in there and jb weld it. cut it off short enough to grab with vice grips and have a go at it. this is akin to what i've seen done in auto shops when a bolt head strips or breaks off and they weld something to it to grab and get leverage with. make sense?
thook is offline
Likes For thook:
Old 09-22-21, 11:19 PM
  #12
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts

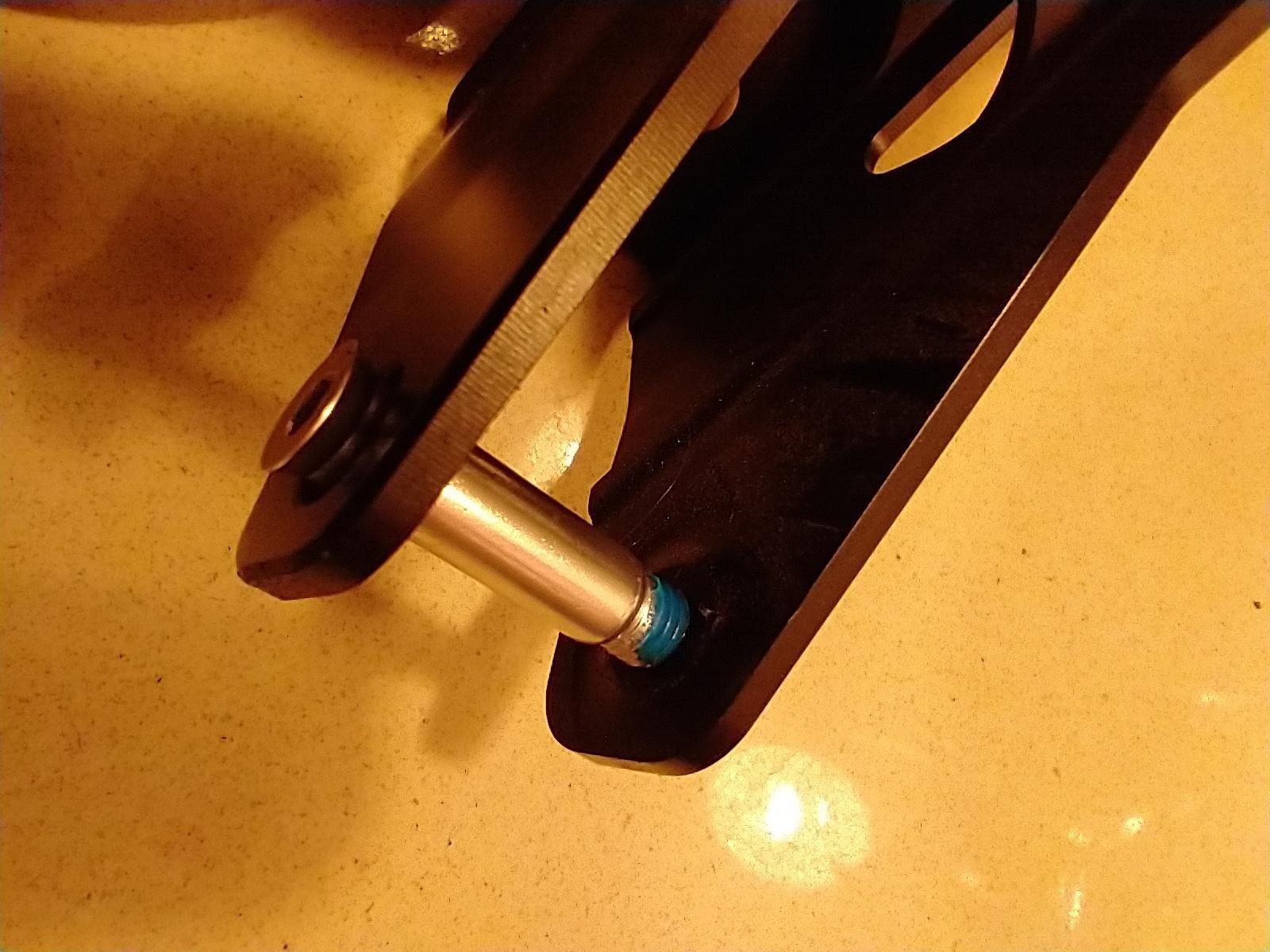

It's tough because the axle actually screws into the frame, and have no idea how stuck it is since its production. This probably needs an insane amount of torque lol

Here's the other frame in which all 3 axles came off with only mild difficulty

EJ123 is offline
Old 09-22-21, 11:22 PM
  #13
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts
Originally Posted by thook View Post
or, get...if you don't have any....sacrificial allen keys. used one slightly bigger than the original size. jam it in there and jb weld it. cut it off short enough to grab with vice grips and have a go at it. this is akin to what i've seen done in auto shops when a bolt head strips or breaks off and they weld something to it to grab and get leverage with. make sense?
I like it
EJ123 is offline
Likes For EJ123:
Old 09-23-21, 08:25 AM
  #14
genec
genec

genec's Avatar

Join Date: Sep 2004
Location: West Coast
Posts: 26,752

Bikes: custom built, sannino, beachbike, giant trance x2

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 11093 Post(s)
Liked 3,074 Times in 2,108 Posts
Originally Posted by noisebeam View Post
You can get an extractor at most hardware stores.
Probably the best solution here... as it will give something to grab and hold onto the bolt. I would find someone with a drill press to make the pilot hole.

I see "locktite" was used initially... in which case, heat will be required. You might try a penetrating oil like "Kroil."

For the record, the strongest hex drivers I can think of come on 3/8s drive sockets... But in this case, it appears that the bolt itself was made of a soft metal.
genec is offline
Old 09-23-21, 08:28 AM
  #15
StupidlyBrave
Chepooka

StupidlyBrave's Avatar

Join Date: Sep 2006
Location: South Central PA
Posts: 1,177

Bikes: 1990 Trek 1400 7spd; 2001 Litespeed Arenberg 10 speed

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked 556 Times in 347 Posts
StupidlyBrave is offline
Likes For StupidlyBrave:
Old 09-23-21, 08:31 AM
  #16
noisebeam
Arizona Dessert

noisebeam's Avatar

Join Date: Jun 2004
Location: AZ
Posts: 15,007

Bikes: Cannondale SuperSix, Lemond Poprad. Retired: Jamis Sputnik, Centurion LeMans Fixed, Diamond Back ascent ex

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 5204 Post(s)
Liked 1,967 Times in 1,165 Posts
Originally Posted by genec View Post
Probably the best solution here... as it will give something to grab and hold onto the bolt. I would find someone with a drill press to make the pilot hole.

I see "locktite" was used initially... in which case, heat will be required. You might try a penetrating oil like "Kroil."

For the record, the strongest hex drivers I can think of come on 3/8s drive sockets... But in this case, it appears that the bolt itself was made of a soft metal.
As long as the item with the bolt in it is secured, clamped or otherwise held down a power hand drill with reverse capability works fine. I've done this multiple times on a range of sizes including 4mm. I'd also heat the locktite and apply some penetrating oil to be sure.
noisebeam is offline
Old 09-23-21, 08:46 AM
  #17
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,509

Bikes: 29 frames + 74 wheels

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 970 Post(s)
Liked 310 Times in 184 Posts
I realize it's a little late, but I would have tried an impact driver on reverse when the bolt head was still undamaged.
__________________
What, Me Worry? - Alfred E. Neuman

Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me
TejanoTrackie is offline
Old 09-23-21, 09:53 AM
  #18
skijor
on by

skijor's Avatar

Join Date: Mar 2006
Location: Wisconsin
Posts: 953

Bikes: Waterford RS-33, Salsa Vaya, Bacchetta Giro 20 ATT

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Liked 600 Times in 375 Posts
Originally Posted by thook View Post
or, get...if you don't have any....sacrificial allen keys. used one slightly bigger than the original size. jam it in there and jb weld it. cut it off short enough to grab with vice grips and have a go at it. this is akin to what i've seen done in auto shops when a bolt head strips or breaks off and they weld something to it to grab and get leverage with. make sense?
This.

Or maybe a best-fit Torx driver.

If the OP is willing to sacrifice that wheel, grind a couple of wrench flats on the diameter once the wheel is cut(?) off. Or just good old Vise-grips.
skijor is offline
Old 09-23-21, 10:04 AM
  #19
J.Higgins
Covid Hermit

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,441

Bikes: Bilenky Tourlite, Surly Ogre

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1366 Post(s)
Liked 635 Times in 433 Posts
PRICELESS
J.Higgins is offline
Old 09-23-21, 10:20 AM
  #20
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
Originally Posted by J.Higgins View Post
those look good! the longer shafted extractors can break easily enough, but those shorter ones look stout = better torque transfer! plus, you could slide a socket over the end of one of them (vs the drill it's designed for) and use a ratchet to drive the broken bolt out
thook is offline
Likes For thook:
Old 09-23-21, 10:33 AM
  #21
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,267
Mentioned: 210 Post(s)
Tagged: 0 Thread(s)
Quoted: 14841 Post(s)
Liked 2,622 Times in 1,947 Posts
Are the wheels sacrificial?

You may be able to cut the wheel off, allowing you to grip the remaining bolt with vise grips.
CliffordK is offline
Old 09-23-21, 10:48 AM
  #22
genec
genec

genec's Avatar

Join Date: Sep 2004
Location: West Coast
Posts: 26,752

Bikes: custom built, sannino, beachbike, giant trance x2

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 11093 Post(s)
Liked 3,074 Times in 2,108 Posts
Originally Posted by thook View Post
those look good! the longer shafted extractors can break easily enough, but those shorter ones look stout = better torque transfer! plus, you could slide a socket over the end of one of them (vs the drill it's designed for) and use a ratchet to drive the broken bolt out
You can use an adjustable wrench with any hex shape... including the original hex mentioned. I do this often for "better torque transfer."
genec is offline
Old 09-23-21, 11:01 AM
  #23
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 783 Post(s)
Liked 590 Times in 439 Posts
Originally Posted by genec View Post
You can use an adjustable wrench with any hex shape... including the original hex mentioned. I do this often for "better torque transfer."
right. i use one to drive taps since i don't have a proper handle
thook is offline
Old 09-23-21, 11:03 AM
  #24
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 2,563

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 326 Times in 229 Posts
I have seen machine shops with boxes of old and new extractors. It's as if they consider them almost one time use so they order certain sizes in bulk. Looks like it was your turn for a challenge. Often little things like stubborn bolts can be much humbling... Ha
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 09-23-21, 11:20 AM
  #25
EJ123
djentleman
Thread Starter

EJ123's Avatar

Join Date: Aug 2005
Posts: 3,372
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 48 Times in 35 Posts
Originally Posted by CliffordK View Post
Are the wheels sacrificial?

You may be able to cut the wheel off, allowing you to grip the remaining bolt with vise grips.
Wheels are definitely sacrificial. I really just wanted to take the skate boot off to put on another set, but I can't remove the boot from the frame because the mounting bolt are directly under the wheel If I could sacrifice the wheel, I don't care about the frame per-se and wheels are expendable.


Do they make hex wrenches that could fit into this space to access the mounting bolt?
EJ123 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
