It's not flashing! :(

Foo Off-Topic chit chat with no general subject.

It's not flashing! :(

Reply

Old 05-05-09, 11:53 PM
  #1
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
It's not flashing! :(

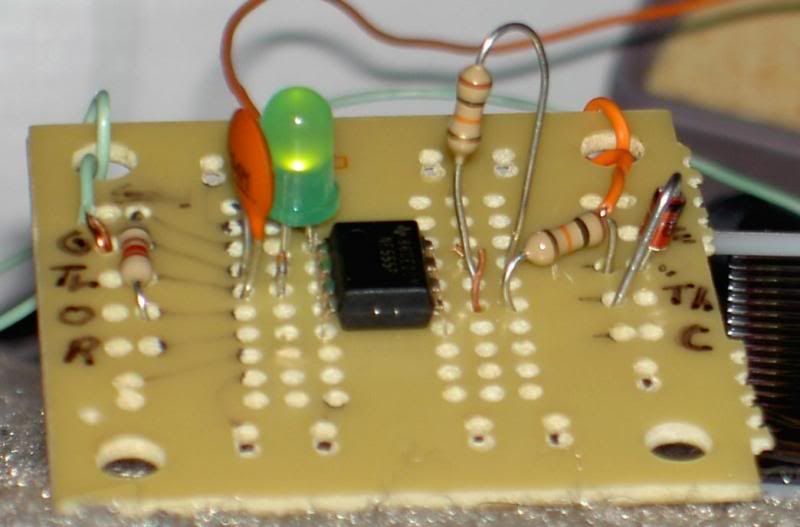

The darn clock generator is not flashing

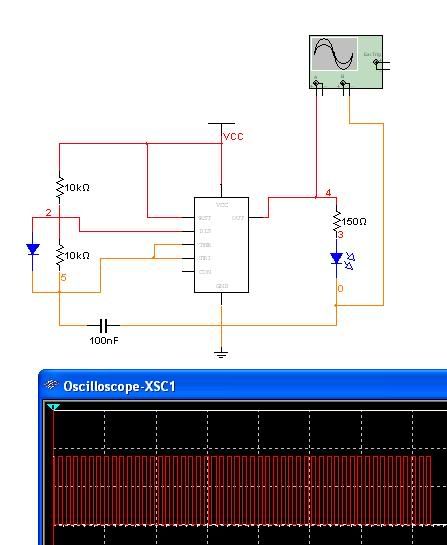

...according to the simulator, it's supposed to flash... at around 500Hz



I'm in despair... why they teach logic circuits BEFORE analog if they are gonna ask me to make sequential machines that require a darn clock, which I can not construct without the analog knowledge? ... despair

PS: Is my camera good?
RubenX is offline
Reply With Quote
Old 05-06-09, 05:09 PM
  #2
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
A trip to the cubicle of the local electronic weenie revealed that it is indeed flashing (the guy has a 5k oscilloscope on his cube) , it's just so fast that the led never discharges and appears to be on all the time. Gonna have to play with the values of R1, R2 and C1 to get the frequency down to about 1Hz... that will do... probably with a 10% duty cycle.

PS: No, I don't know what I'm doing.... yet.
RubenX is offline
Reply With Quote
Old 05-06-09, 05:43 PM
  #3
bigbenaugust
always rides with luggage

bigbenaugust's Avatar

Join Date: Feb 2005
Location: KIGX
Posts: 2,100

Bikes: 2007 Trek SU100, 2009 Fantom CX, 2012 Fantom Cross Uno, Bakfiets

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
I was going to say that I don't think they make LEDs that are capable of flashing at 500Hz. But someone already told you this.
__________________
--Ben
2006 Trek SU100, 2009 Motobecane Fantom CX, 2011 Motobecane Fantom Cross Uno, and a Bakfiets
Previously: 2000 Trek 4500 (2000-2003), 2003 Novara Randonee (2003-2006), 2003 Giant Rainier (2003-2008), 2005 Xootr Swift (2005-2007), 2007 Nashbar 1x9 (2007-2011), 2011 Windsor Shetland (2011-2014), 2008 Citizen Folder (2015)
Non-Bike hardware: MX Linux / BunsenLabs Linux / Raspbian / Mac OS 10.6 / Android 7
bigbenaugust is offline
Reply With Quote
Old 05-06-09, 06:26 PM
  #4
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,100

Bikes: Mostly English - predominantly Raleighs

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
flasing is a difficult concept.
__________________
In search of what to search for.
USAZorro is offline
Reply With Quote
Old 05-06-09, 07:54 PM
  #5
FlatMaster
Genius

FlatMaster's Avatar

Join Date: Jan 2008
Location: Auburn, AL
Posts: 324

Bikes: Specilized Sirrus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
you shouldn't be able to see flashing at 500 Hz. If you've ever looked at the 100'ths place of a digital watch, it's just a blur. And 1/100th of a second is five times slower than 500 Hz.
FlatMaster is offline
Reply With Quote
Old 05-06-09, 07:56 PM
  #6
FlatMaster
Genius

FlatMaster's Avatar

Join Date: Jan 2008
Location: Auburn, AL
Posts: 324

Bikes: Specilized Sirrus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Well, you could directly clip an oscilloscope to either side of the diode and see if you get your waveform there.
FlatMaster is offline
Reply With Quote
Old 05-06-09, 11:02 PM
  #7
norsehabanero
Just a student

norsehabanero's Avatar

Join Date: Aug 2005
Location: Yakima, wa
Posts: 277

Bikes: Cannondale, schiwin old road bike fuji a unicycle

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
norsehabanero is offline
Reply With Quote
Old 05-07-09, 10:24 AM
  #8
Scummer
Genetics have failed me

Scummer's Avatar

Join Date: Jun 2007
Location: Zorneding, Germany
Posts: 3,042

Bikes: Norwid Aaland, Radon Slide 140, Dahon mju, Pedalforce CX1, Battaglin Power+, Old MTB and lots of spare parts

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
It's not the LED that doesn't flash, it's your eye can't recognize 500Hz. That's why monitors are refreshed at 70Hz and higher so the image looks stable to you.
__________________
Gelato aficionado.
Scummer is offline
Reply With Quote
Old 05-07-09, 10:28 AM
  #9
KingTermite
On my TARDIScycle!

KingTermite's Avatar

Join Date: Jun 2005
Location: Eastside Seattlite Termite Mound
Posts: 3,925

Bikes: Trek 520, Trek Navigator 300, Peugeot Versailles PE10DE

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by RubenX View Post
A trip to the cubicle of the local electronic weenie revealed that it is indeed flashing (the guy has a 5k oscilloscope on his cube) , it's just so fast that the led never discharges and appears to be on all the time. Gonna have to play with the values of R1, R2 and C1 to get the frequency down to about 1Hz... that will do... probably with a 10% duty cycle.

PS: No, I don't know what I'm doing.... yet.
Just saw this thread. I was going to ask you how you thought you'd see it at that rate.
__________________
Originally Posted by coffeecake View Post
- it's pretty well established that Hitler was an *******.
KingTermite is offline
Reply With Quote
Old 05-07-09, 10:56 AM
  #10
bigbenaugust
always rides with luggage

bigbenaugust's Avatar

Join Date: Feb 2005
Location: KIGX
Posts: 2,100

Bikes: 2007 Trek SU100, 2009 Fantom CX, 2012 Fantom Cross Uno, Bakfiets

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Originally Posted by KingTermite View Post
Just saw this thread. I was going to ask you how you thought you'd see it at that rate.
High-speed camera, perhaps?
__________________
--Ben
2006 Trek SU100, 2009 Motobecane Fantom CX, 2011 Motobecane Fantom Cross Uno, and a Bakfiets
Previously: 2000 Trek 4500 (2000-2003), 2003 Novara Randonee (2003-2006), 2003 Giant Rainier (2003-2008), 2005 Xootr Swift (2005-2007), 2007 Nashbar 1x9 (2007-2011), 2011 Windsor Shetland (2011-2014), 2008 Citizen Folder (2015)
Non-Bike hardware: MX Linux / BunsenLabs Linux / Raspbian / Mac OS 10.6 / Android 7
bigbenaugust is offline
Reply With Quote
Old 05-08-09, 01:00 AM
  #11
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Originally Posted by KingTermite View Post
Just saw this thread. I was going to ask you how you thought you'd see it at that rate.
Light travels a lot faster and yet you can see the laser beams traveling with the naked eye on every star trek episode... even people dodging them....
RubenX is offline
Reply With Quote
Old 05-08-09, 01:18 AM
  #12
x136
phony collective progress

x136's Avatar

Join Date: Sep 2006
Location: San Hoosey
Posts: 2,981

Bikes: http://velospace.org/user/36663

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by RubenX View Post
Light travels a lot faster and yet you can see the laser beams traveling with the naked eye on every star trek episode... even people dodging them....
It's nothing to do with the speed of light. Even assuming that an LED is capable of turning on and off five hundred times per second (I doubt it), the human eye can't detect it.
__________________
x136 is offline
Reply With Quote
Old 05-08-09, 09:26 AM
  #13
KingTermite
On my TARDIScycle!

KingTermite's Avatar

Join Date: Jun 2005
Location: Eastside Seattlite Termite Mound
Posts: 3,925

Bikes: Trek 520, Trek Navigator 300, Peugeot Versailles PE10DE

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by RubenX View Post
Light travels a lot faster and yet you can see the laser beams traveling with the naked eye on every star trek episode... even people dodging them....
You could see it if it were a solid 'on' beam (like a laser pointer). It's not about the speed of the light, but about the speed of the blink and what your eye can detect.

An LED blinking 500 times per second effectively just looks 'on' to us because our eyes detect the on and the off is too quick to see. Why do we detect 'on' and not 'off' because its also off 500 times per second you ask? My guess is because our vision works on light coming in to our eyes (not lack of light)....so its the light phase of the period that is detected.
__________________
Originally Posted by coffeecake View Post
- it's pretty well established that Hitler was an *******.
KingTermite is offline
Reply With Quote
Old 05-08-09, 09:44 AM
  #14
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Erhm... guys... the star trek thing was a joke :S
RubenX is offline
Reply With Quote
Old 05-08-09, 09:46 AM
  #15
crackerjab
WTF is that smell?

Join Date: Dec 2005
Location: Charlotte, NC
Posts: 449
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by RubenX View Post
Erhm... guys... the star trek thing was a joke :S
I laughed at it fwiw.
crackerjab is offline
Reply With Quote
Old 05-08-09, 09:52 AM
  #16
KingTermite
On my TARDIScycle!

KingTermite's Avatar

Join Date: Jun 2005
Location: Eastside Seattlite Termite Mound
Posts: 3,925

Bikes: Trek 520, Trek Navigator 300, Peugeot Versailles PE10DE

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by RubenX View Post
Erhm... guys... the star trek thing was a joke :S
I know....but wanted to try to explain that better anyway.

How'd I do?
__________________
Originally Posted by coffeecake View Post
- it's pretty well established that Hitler was an *******.
KingTermite is offline
Reply With Quote
Old 05-08-09, 09:53 AM
  #17
Scummer
Genetics have failed me

Scummer's Avatar

Join Date: Jun 2007
Location: Zorneding, Germany
Posts: 3,042

Bikes: Norwid Aaland, Radon Slide 140, Dahon mju, Pedalforce CX1, Battaglin Power+, Old MTB and lots of spare parts

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Originally Posted by x136 View Post
It's nothing to do with the speed of light. Even assuming that an LED is capable of turning on and off five hundred times per second (I doubt it), the human eye can't detect it.
Depends on the LED.
An indicator LED like you can find in audio equipment and stuff like that have a max frequency of maybe a few hundred Hertz, while a laser LED in telecommunication equipment can go into the Gigahertz range, think data transfer through fiber optics in the Terabit range.
__________________
Gelato aficionado.
Scummer is offline
Reply With Quote
Old 05-08-09, 10:30 AM
  #18
bigbenaugust
always rides with luggage

bigbenaugust's Avatar

Join Date: Feb 2005
Location: KIGX
Posts: 2,100

Bikes: 2007 Trek SU100, 2009 Fantom CX, 2012 Fantom Cross Uno, Bakfiets

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Originally Posted by Scummer View Post
Depends on the LED.
An indicator LED like you can find in audio equipment and stuff like that have a max frequency of maybe a few hundred Hertz, while a laser LED in telecommunication equipment can go into the Gigahertz range, think data transfer through fiber optics in the Terabit range.
Well, yeah, but you aren't going to find one of those at Fry's... but maybe if you had a GBIC or FC card handy, you could disembowel it and get the LED.
__________________
--Ben
2006 Trek SU100, 2009 Motobecane Fantom CX, 2011 Motobecane Fantom Cross Uno, and a Bakfiets
Previously: 2000 Trek 4500 (2000-2003), 2003 Novara Randonee (2003-2006), 2003 Giant Rainier (2003-2008), 2005 Xootr Swift (2005-2007), 2007 Nashbar 1x9 (2007-2011), 2011 Windsor Shetland (2011-2014), 2008 Citizen Folder (2015)
Non-Bike hardware: MX Linux / BunsenLabs Linux / Raspbian / Mac OS 10.6 / Android 7
bigbenaugust is offline
Reply With Quote
Old 05-09-09, 08:12 PM
  #19
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Update... success!

I have the clock flashing... not only that, it's now adjustable from around 0.75Hz to a-lot-ofHz and I also used 2 D-Type Flip/Flop to provide 2 more frequencies, clock/2 and clock/4. It's still on the protoboard but works beautifully:

Linky

PS: phone video quality not too good...
RubenX is offline
Reply With Quote
Old 05-10-09, 03:04 AM
  #20
DannoXYZ
Senior Member

DannoXYZ's Avatar

Join Date: Jul 2005
Location: Saratoga, CA
Posts: 11,739
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Originally Posted by RubenX View Post
Light travels a lot faster and yet you can see the laser beams traveling with the naked eye on every star trek episode... even people dodging them....
It's not laser beams they're shooting. Phasers fire nadion particles.
DannoXYZ is offline
Reply With Quote
Old 05-10-09, 03:58 AM
  #21
RubenX
Look! My Spine!
Thread Starter

RubenX's Avatar

Join Date: Apr 2008
Location: Kissimmee, FL
Posts: 620
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Originally Posted by DannoXYZ View Post
It's not laser beams they're shooting. Phasers fire nadion particles.
Oh my! Danny is right...

/me hands over his Trekkie card
RubenX is offline
Reply With Quote
Old 05-10-09, 04:05 AM
  #22
DannoXYZ
Senior Member

DannoXYZ's Avatar

Join Date: Jul 2005
Location: Saratoga, CA
Posts: 11,739
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Yeah, figured it was a joke. Anyway, look into decay rates of phosphor screens and LEDs. There's a lobsided triangular graph somewhere. And different formulations have different decay rates as well. But they all tend to be faster than the recharge-rate of the cells in your eyeballs.
DannoXYZ is offline
