Sandblasting + Powdercoating - How to make sure stamped VIN on BB is still legible?

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Sandblasting + Powdercoating - How to make sure stamped VIN on BB is still legible?

Old 08-10-15, 09:04 PM
  #1
billytwosheds
Senior Member
Thread Starter

billytwosheds's Avatar

Join Date: Aug 2015
Location: Honolulu, HI
Posts: 994

Bikes: Peugeot, Legnano, Fuji, Zunow, De Rosa, Miyata, Bianchi, Pinarello, Specialized, Bridgestone

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 139 Times in 74 Posts
Sandblasting + Powdercoating - How to make sure stamped VIN on BB is still legible?

Hi all-

I'm in the process of restoring an 80's 3Rensho road frame that has taken on some rust damage. The paint is already bubbling in some areas, pitting in others. I'm planning on having it sand/beadblasted, cleaned of rust, and then powdercoated.

My question is: How can I maintain the VIN number stamped into the bottom bracket?

The rust is pretty bad down there, but I'm a little concerned that the above process(es) will more or less remove the VIN stamp. A thicker powdercoat layer seems like it would fill in the VIN stamp.

Can I mask off that portion of the BB and then paint it by hand after the other work is done? I don't mind a slight color difference, but it would be nice to hold onto that VIN. Or is there another method I should attempt?

Thanks a mucho
billytwosheds is offline
Old 08-10-15, 10:12 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,401

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3080 Post(s)
Liked 1,503 Times in 1,024 Posts
Well first remember that the serial number isn't a VIN. There's no bureaucratic recording with the government or insurance companies of this number. One can stamp whatever word or number they wish and state on any bike registration form, invoice or police report that this is the ID for the bike.

Second why don't you ask your painter their method of saving surface detail? If they have no answer or don't seem to offer any indication of concern then maybe that's an indication of their skill or motivation. perhaps moving onto another painter is indicated...

Third there are masking methods available. But since I don't have my frames powder coated (I like detail to be preserved) I can't say much more. Andy.
Andrew R Stewart is offline
Old 08-10-15, 10:40 PM
  #3
billytwosheds
Senior Member
Thread Starter

billytwosheds's Avatar

Join Date: Aug 2015
Location: Honolulu, HI
Posts: 994

Bikes: Peugeot, Legnano, Fuji, Zunow, De Rosa, Miyata, Bianchi, Pinarello, Specialized, Bridgestone

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 139 Times in 74 Posts
Thanks for the reply, Andy.

Originally Posted by Andrew R Stewart View Post
Well first remember that the serial number isn't a VIN. There's no bureaucratic recording with the government or insurance companies of this number. One can stamp whatever word or number they wish and state on any bike registration form, invoice or police report that this is the ID for the bike.
Ah yes, my mistake. FWIW serial numbers on bicycles are taken much more seriously here in Hawaii than other places I've lived...they actually require all bicycles ridden on the street here to be registered with the serial number and a DMV-issued bicycle ID number. The system is far from perfect, but it's one way they try to crack down on bicycle theft, which is rampant here. I meant serial number, but said "VIN".

Originally Posted by Andrew R Stewart View Post
Second why don't you ask your painter their method of saving surface detail? If they have no answer or don't seem to offer any indication of concern then maybe that's an indication of their skill or motivation. perhaps moving onto another painter is indicated...
Good point, something I'll inquire about with the painter.

Originally Posted by Andrew R Stewart View Post
Third there are masking methods available. But since I don't have my frames powder coated (I like detail to be preserved) I can't say much more. Andy.
The preservation of detail is somewhat important, as the frame has decent lugs and the "3RENSHO" embossed on the rear triangle. I'll definitely consider this.

Again, appreciate the reply. Mahalos
billytwosheds is offline
Old 08-10-15, 10:43 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,221
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,805 Times in 1,288 Posts
sandblasting is unlikely to be a problem. A good powdercoat really isn't so thick as to obscure a properly embossed serial number, but some of them were pretty weak to start with. Telling the powdercoat guy to go a little thin on the area of the number will probably be enough. I suppose there are ways to improve the number, but they would be a lot of work.
unterhausen is offline
Old 08-10-15, 10:48 PM
  #5
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,489

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 51 Times in 43 Posts
I had my frameset repainted (primer, 2 coats of wet paint, then clearcoat) and the paint filled the serial number so that it was illegible after painting. I used Jasco paint remover just on the serial number stamped into the bottom bracket shell, then hand painted the area using a small hobby brush and Testors enamel model paint which closely matched the paint color. It's a little sloppy, but the number is legible now and protected by paint.



__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 08-10-15, 11:07 PM
  #6
billytwosheds
Senior Member
Thread Starter

billytwosheds's Avatar

Join Date: Aug 2015
Location: Honolulu, HI
Posts: 994

Bikes: Peugeot, Legnano, Fuji, Zunow, De Rosa, Miyata, Bianchi, Pinarello, Specialized, Bridgestone

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 139 Times in 74 Posts
Originally Posted by Scooper View Post
I had my frameset repainted (primer, 2 coats of wet paint, then clearcoat) and the paint filled the serial number so that it was illegible after painting. I used Jasco paint remover just on the serial number stamped into the bottom bracket shell, then hand painted the area using a small hobby brush and Testors enamel model paint which closely matched the paint color. It's a little sloppy, but the number is legible now and protected by paint.
Ah, that's exactly what I was looking for! Thanks Stan.

Would paint remover have any impact on powdercoat, though? I suppose I could wear down the powdercoat using a physically abrasive means, but am not sure about a chemical agent that would have the same effect.
billytwosheds is offline
Old 08-11-15, 07:15 AM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,401

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3080 Post(s)
Liked 1,503 Times in 1,024 Posts
If paint is to be removed to expose the serial number I would suggest a mechanical method. I'd probably use a sharp knife or an Xacto to scrape under/through the paint. For such a localized removal getting into the possible issues of chemicals isn't worth it to me. Maybe experiment on the OEM paint before the bike is prepped for refinishing just so you have a better idea of what this project entails. Andy.
Andrew R Stewart is offline
Old 08-11-15, 08:49 AM
  #8
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,489

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 51 Times in 43 Posts
In my experience, chemical paint stripper may be used without any damage to the surrounding paint, powder coat, or base metal if you're careful to keep it localized to the small area of the serial number and then thoroughly clean the area with soap and flush with lots of water after removing the paint. I did have to use an Exacto knife to get the paint out of the stamping crevices.

Eric is probably right by suggesting you ask the powdercoater to simply make the coating thinner on the bottom of the BB bracket. It would be much simpler and cleaner than having to do what I did after the fact.
__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 08-11-15, 12:24 PM
  #9
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,325 Times in 834 Posts
rather than you, DIY before hand,
Ask them mask it off before blasting clean, then leave it bare when powder coated , apply touch up paint when finished .
same powder mixed in clear lacquer should do. & match.

Last edited by fietsbob; 08-11-15 at 12:29 PM.
fietsbob is offline
Likes For fietsbob:
Old 10-20-21, 06:35 AM
  #10
steadyturtle
Junior Member

Join Date: Oct 2021
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hello to Scooper! Looking at your pics w/the red bottom bracket, what bike is this? I'm trying to identify a frame. Thanks!
steadyturtle is offline
Old 10-20-21, 12:50 PM
  #11
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,612

Bikes: Indeed!

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 1,403 Times in 525 Posts
Originally Posted by steadyturtle View Post
Hello to Scooper! Looking at your pics w/the red bottom bracket, what bike is this? I'm trying to identify a frame. Thanks!
I haven't seen Scooper around here for a couple years, but knowing his long history with Schwinns, and looking at the section in the Waterford site where Paramount serial numbers are decoded I'm pretty sure it's 1987 Schwinn Paramount.

Further help with frame identity maybe forthcoming if you post a couple photos to the Classic & Vintage forum.
Brent
obrentharris is offline
Old 10-21-21, 06:21 AM
  #12
steadyturtle
Junior Member

Join Date: Oct 2021
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
thanks for your response. I cannot post photos until I have 10 posts or more.
steadyturtle is offline
Old 10-21-21, 06:29 AM
  #13
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,221
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,805 Times in 1,288 Posts
welcome to the forum, upload your pictures to an album in your gallery and we can rescue them for you
unterhausen is offline
Old 10-21-21, 06:51 AM
  #14
Jeff Neese
Senior Member

Join Date: Jul 2014
Posts: 453
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 94 Times in 64 Posts
Have the powder-coater mask it off, and just have him run a clearcoat on that section afterwards.
Jeff Neese is offline
Old 10-21-21, 07:19 AM
  #15
steadyturtle
Junior Member

Join Date: Oct 2021
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I posted a few pics to the gallery album

Mystery Steel Bike 2021-10-21 09:17:40.

steadyturtle is offline
Old 10-21-21, 09:42 AM
  #16
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,221
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,805 Times in 1,288 Posts

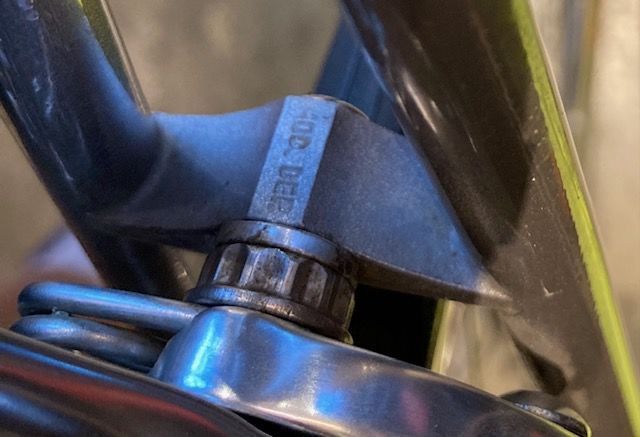

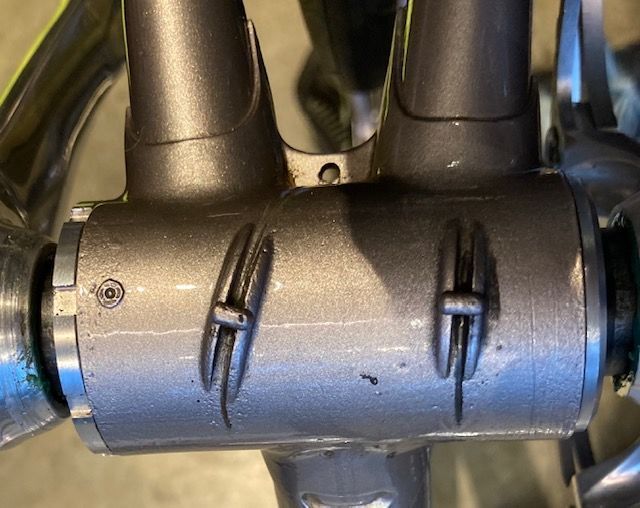

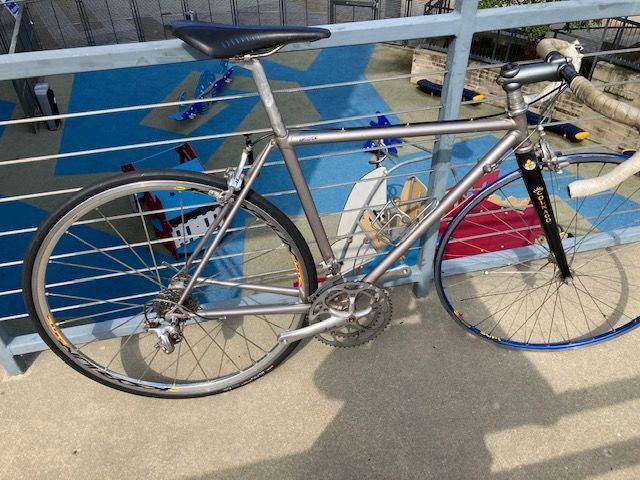

Picture rescue
