Can this be saved? Unknown / Proteus frame

Another "can this be saved" thread, I had this frame dropped off yesterday for $30, I'll use the few components left on it. Before I bin the rest, I'd like to get some opinions. Also, recommendations for DC area frame builders.

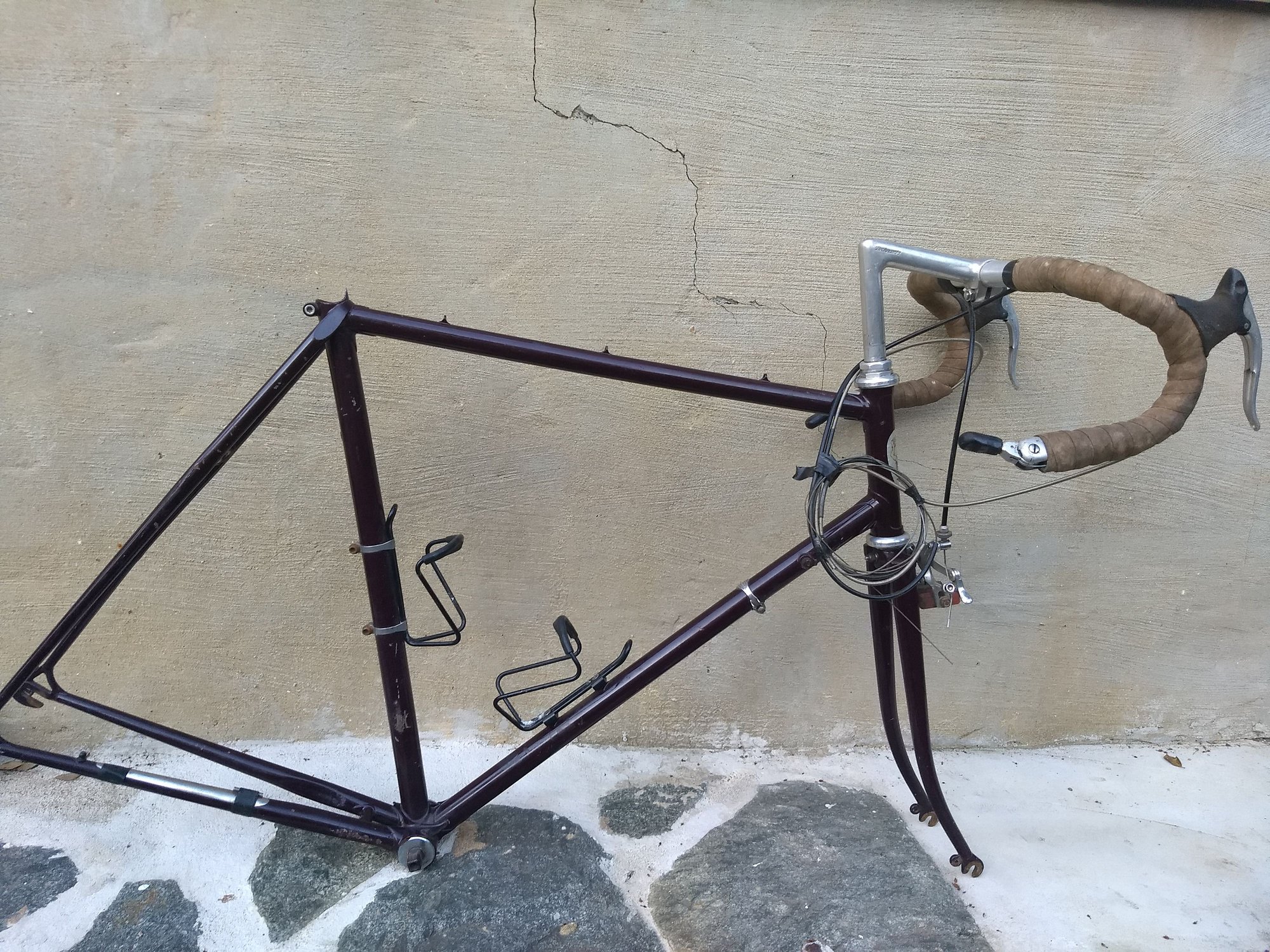

so, here we are: Proteus headbadge, never seen before on other Proteus frames on bikeforums. No serial number that I can find. Campagnolo fork ends, nice lightweight tubing (no stickers). This looks like it was powder coated or painted after the dt shifter bosses were hacked.
rocks in head is offline
Reply With Quote
Old 07-10-18, 06:57 AM
  #2
rocks in head
...addicted...
Thread Starter

rocks in head's Avatar

Join Date: Apr 2006
Location: East of the River, Washington DC
Posts: 923

Bikes: 1985 Alpine, 2007 IRO Rob Roy, 1986 Puegeot PGN-10, 1985 Ross Mt. Whitney, 1975 Gitane Gran Sport, 1991 Diamondback Master TG

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)

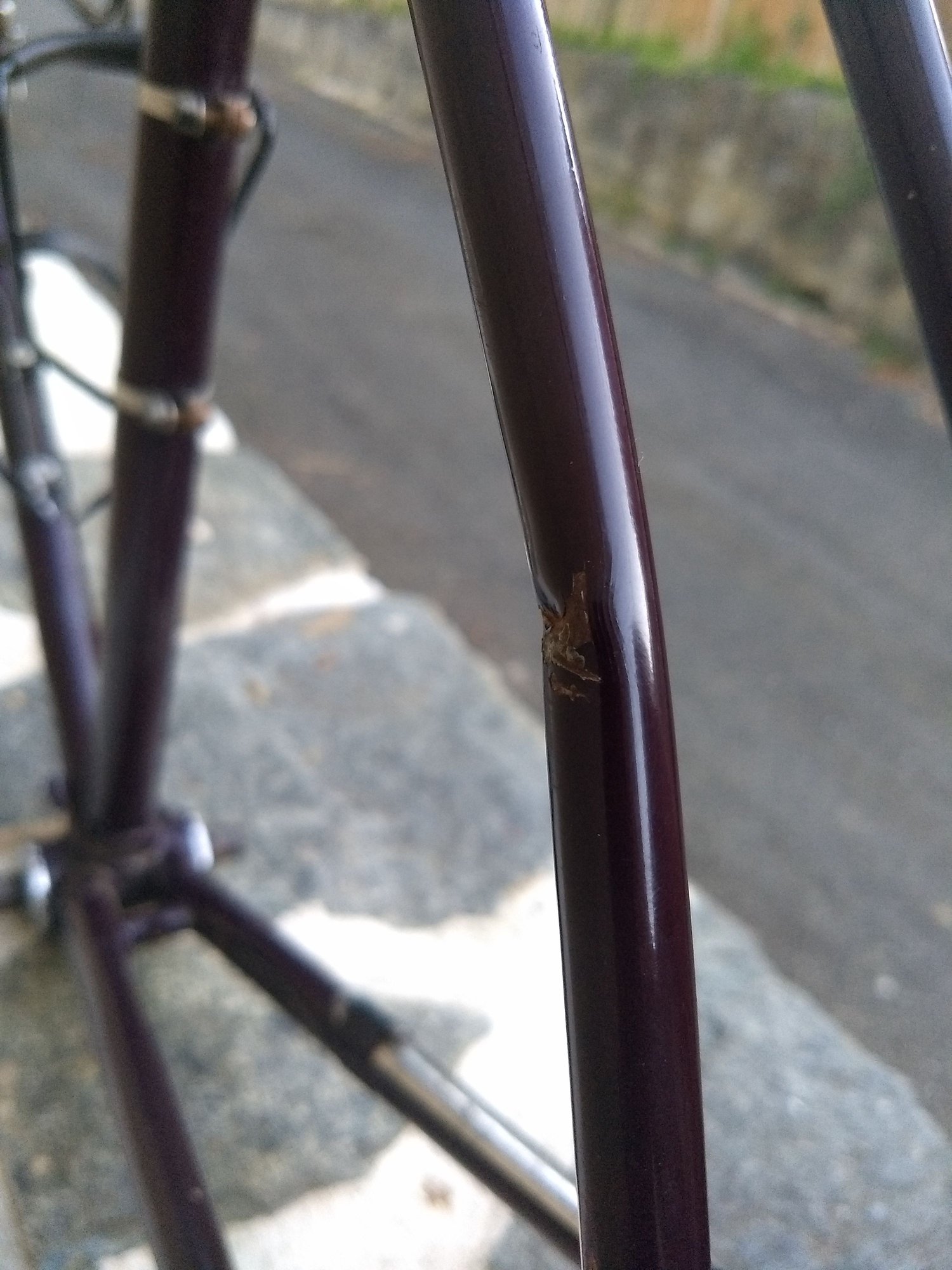

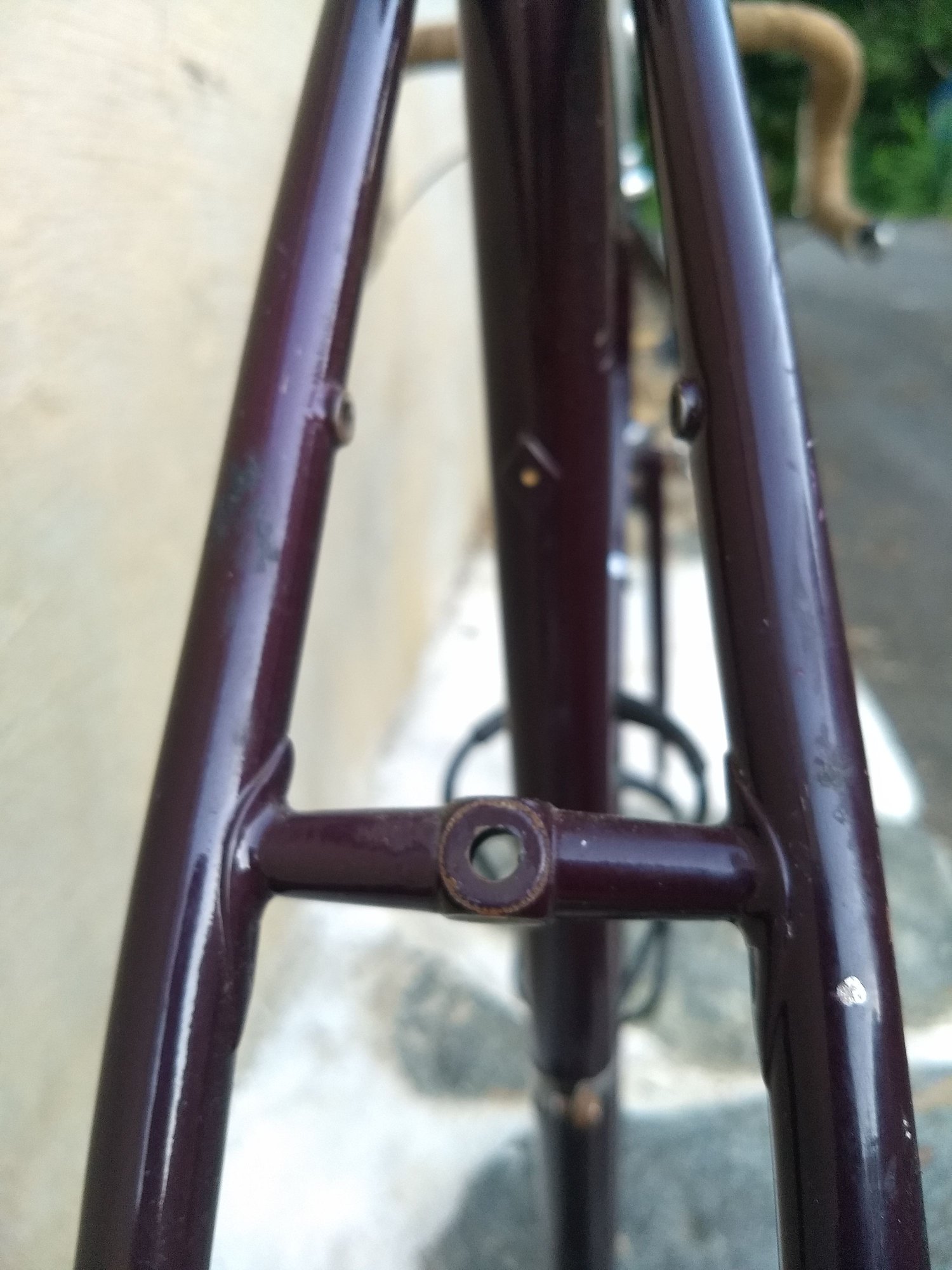

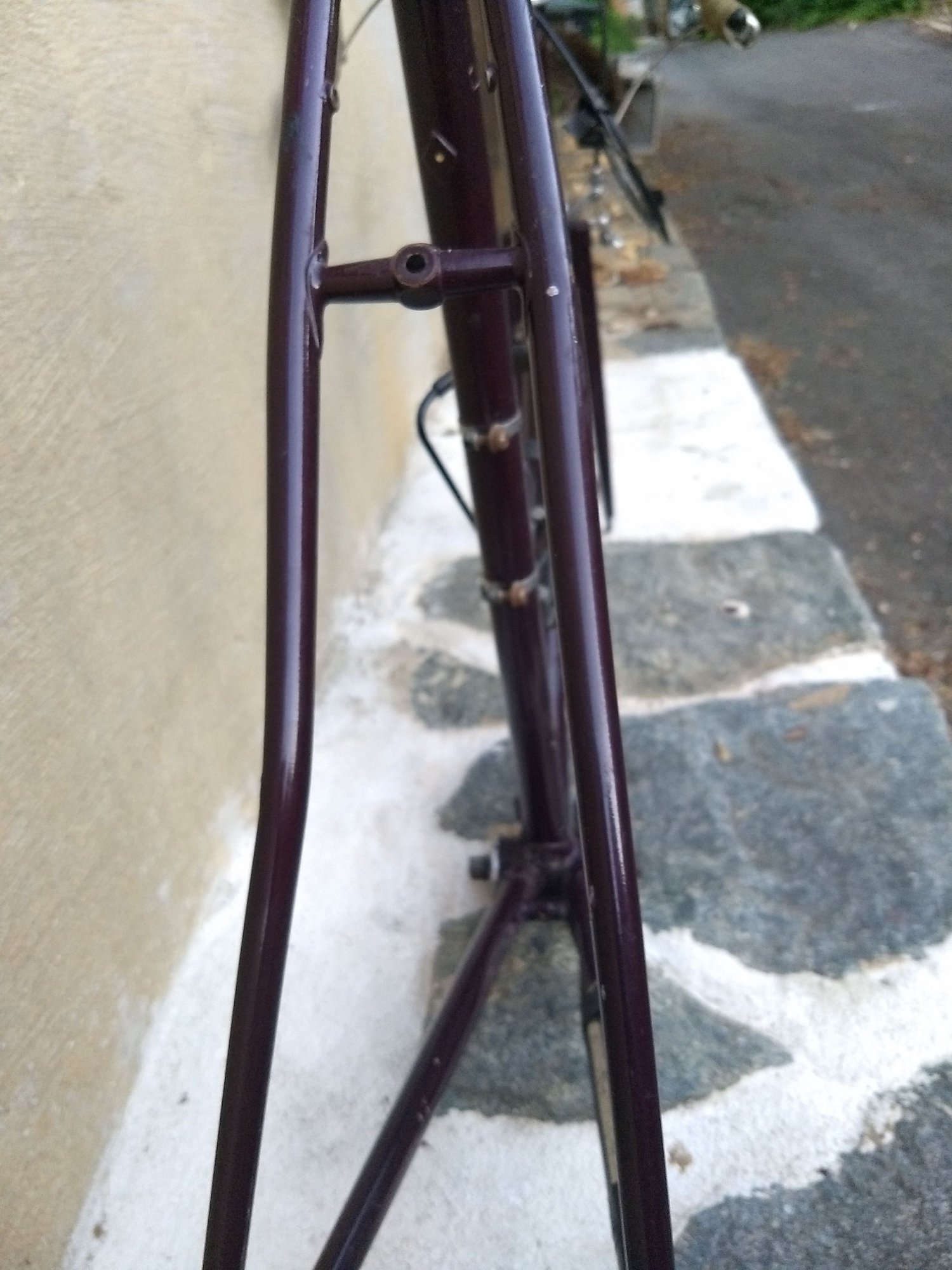

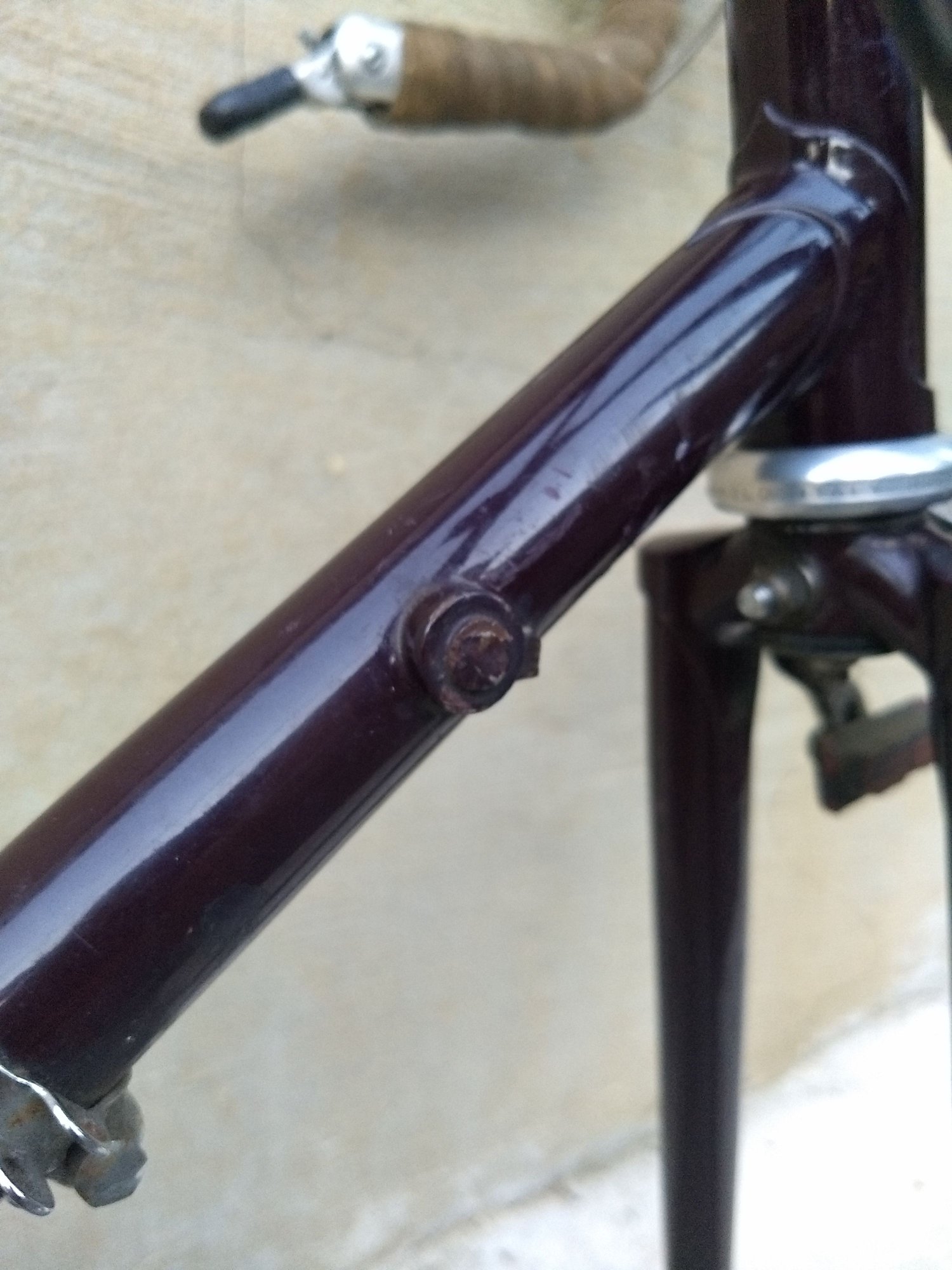

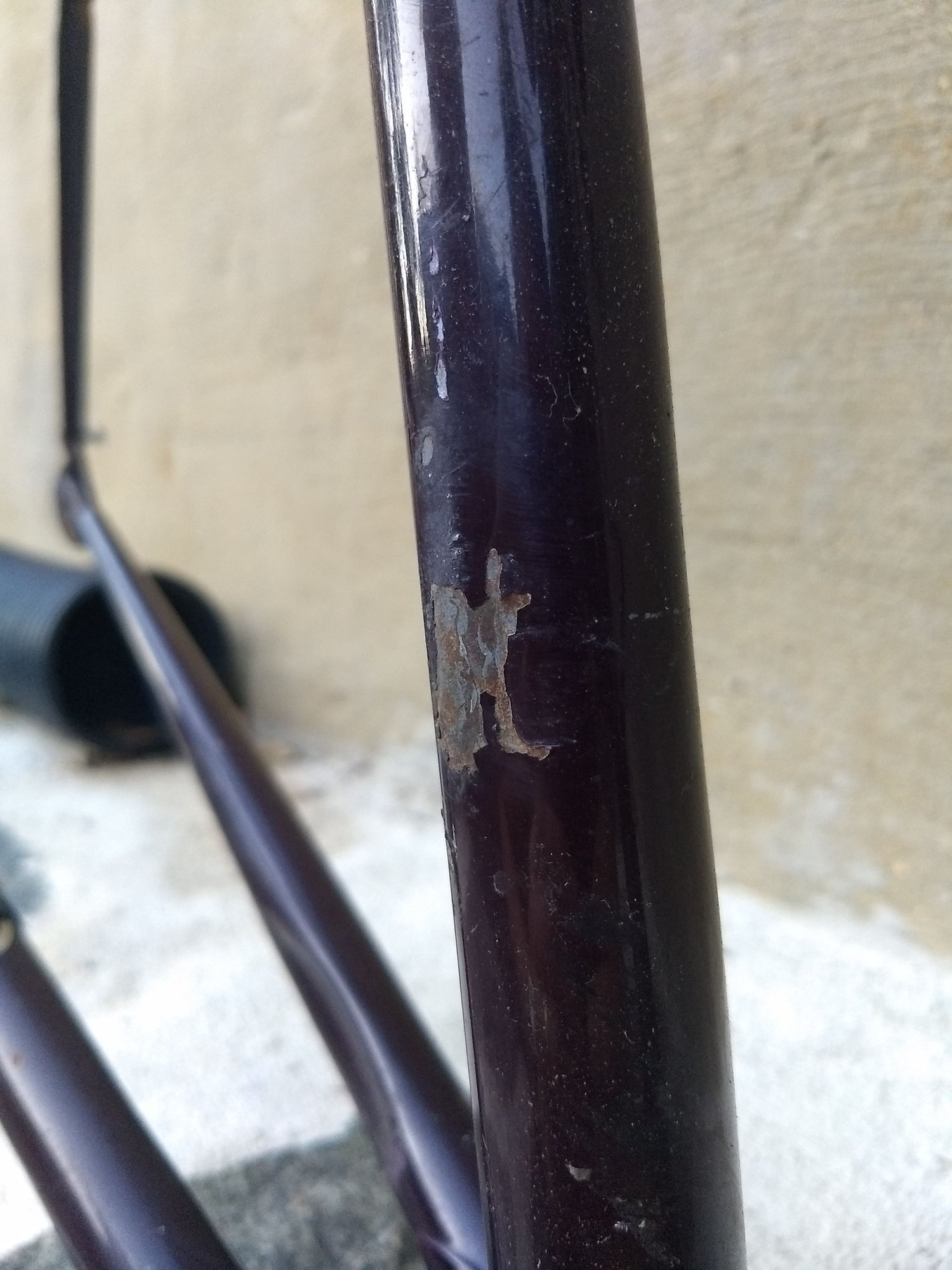

Mobile upload not working? Here's the damage.





We
rocks in head is offline
Reply With Quote
Old 07-10-18, 07:51 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 10,500

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1367 Post(s)
Yes, this frame can be "saved". Exactly what that entails depends on what "saved" means to you. The stay can be straightened or replaced. The DT lever boss can be removed or replaced. The ST indents can be filled with brass or bondo. What this frame is worth to you is the real question. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Reply With Quote
Old 07-10-18, 08:56 AM
  #4
rocks in head
...addicted...
Thread Starter

rocks in head's Avatar

Join Date: Apr 2006
Location: East of the River, Washington DC
Posts: 923

Bikes: 1985 Alpine, 2007 IRO Rob Roy, 1986 Puegeot PGN-10, 1985 Ross Mt. Whitney, 1975 Gitane Gran Sport, 1991 Diamondback Master TG

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
We'll, that's the question... It's a nice frame, probably 531, most of Proteus's kits were. I bought it because the price was right and it had a unique headbadge. Since it has no serial number it was probably a kit and assembled by a beginner builder. If it was a shop built bike itdi be worth more. I would personally cap repair costs at around 150, or put it in the attic until I can try it myself.
rocks in head is offline
Reply With Quote
Old 07-10-18, 10:27 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,036
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I just replied to your thread in C&V. I would say it's highly unlikely that it's a kit. They did use that headbadge, and they didn't sell them.

Proteus

Having said that, it's not worth all that much. If the seat stay doesn't crack badly when straightened, I would be tempted to fill the dent with bronze. I would ignore the seat tube dents, and file the remaining dt shifter bosses off. If you have to pay to get the seat stay replaced, it's a failed experiment unless you find a framebuilder that likes to gift their time to people.
__________________
Randonneuring -- it's touring for people that aren't smart enough to stop for the night.
It's a wonderful sport when you can make up for a lack of ability with a lack of sleep
unterhausen is offline
Reply With Quote
Old 07-11-18, 10:18 AM
  #6
rocks in head
...addicted...
Thread Starter

rocks in head's Avatar

Join Date: Apr 2006
Location: East of the River, Washington DC
Posts: 923

Bikes: 1985 Alpine, 2007 IRO Rob Roy, 1986 Puegeot PGN-10, 1985 Ross Mt. Whitney, 1975 Gitane Gran Sport, 1991 Diamondback Master TG

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Thanks for all the advice. I think I'll try the repairs, keeping a close eye on cracking. Hopefully with the assistance of someone with a frame jig or a good space to make sure everything is aligned properly afterwards. If the seat stay does crack badly, I'll put it in the attic until I have time to take on a learning project, and do the replacement myself.
rocks in head is offline
Reply With Quote
Old 07-11-18, 11:50 AM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,036
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
there are alternate repair methods with various degrees of hackery involved. I might be tempted to put a splitter there. Or for more ugliness, a split tube splice.
__________________
Randonneuring -- it's touring for people that aren't smart enough to stop for the night.
It's a wonderful sport when you can make up for a lack of ability with a lack of sleep
unterhausen is offline
