Fixing a Fixie,back to a road bike Guerciotti

So Ive been welder for over 30 years and know how to braze but never have tried brazing a bike frame till yesterday. I read up on some procedures,bought the parts I needed and gave it a go.

The Project, a Guerciotti SL that was turned into a Fixie by someone that obviously didnt know what they had. They cut off all the important stuff that makes it a Road bike. I re-installed all the braze on's without too much trouble. I had to modify a few small clamps to hold the parts in place and after alot of fitting I managed to get them on as best I could . I'm going to do finish and filing work but so far it looks good.I still have to double check everything before I send it off to powder coat but the results are looking correct.

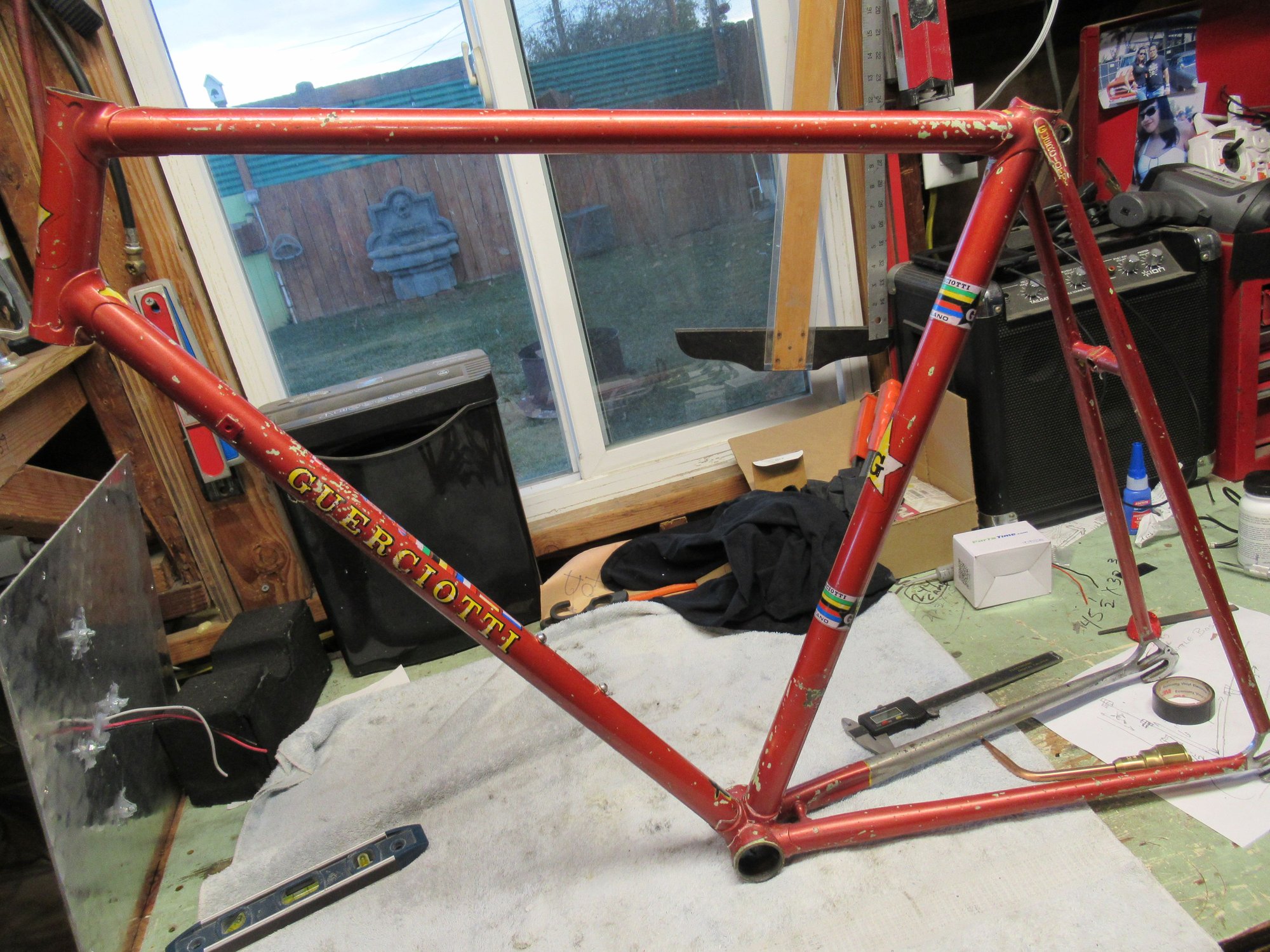

BEFORE
Manny66 is offline
Old 01-01-19, 02:51 PM
  #2
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts

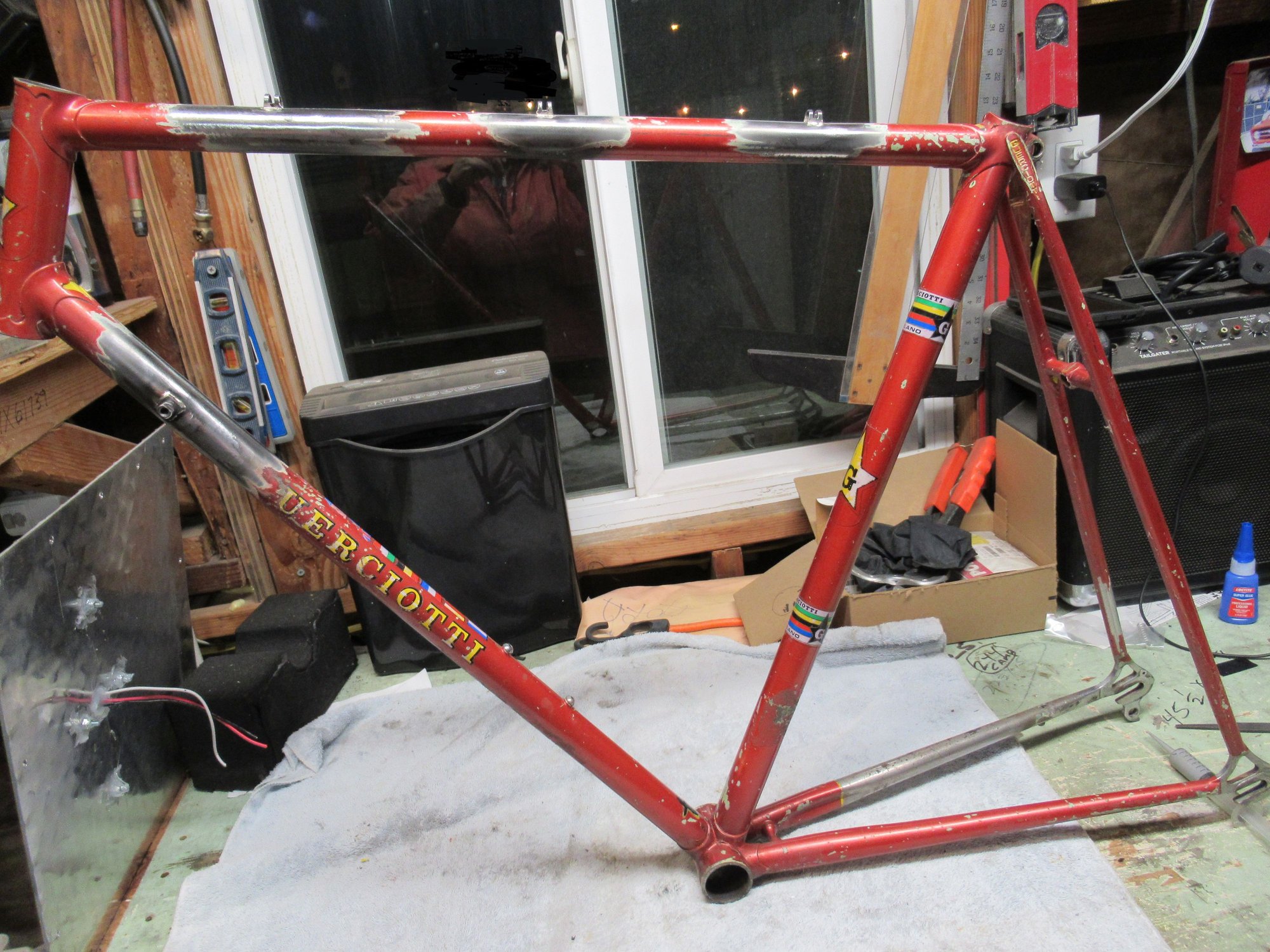

AFTER
Manny66 is offline
Old 01-01-19, 03:08 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,611

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 48 Times in 35 Posts

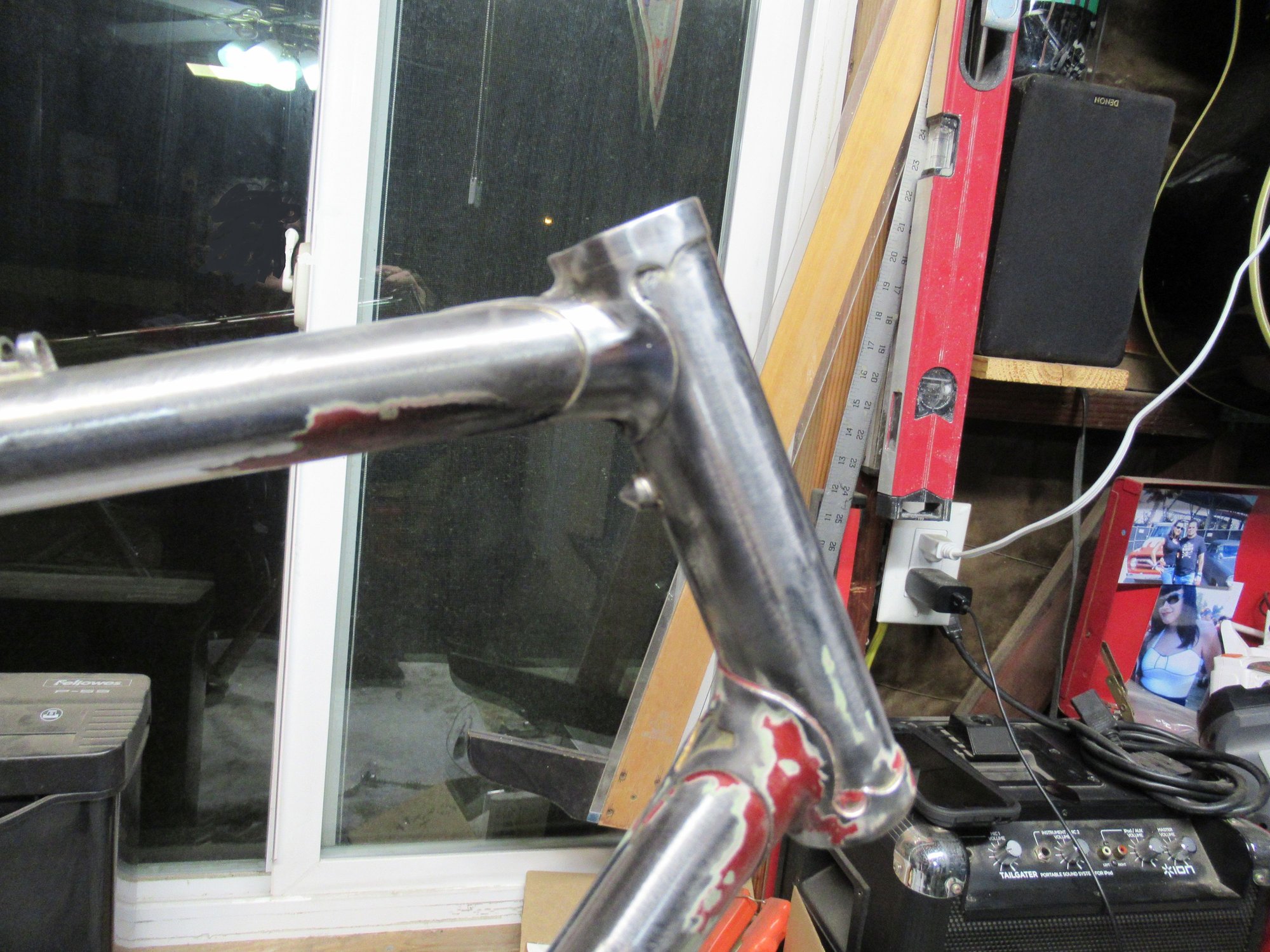

Looks like that someone also shaved down the upper headtube extension, likely to fit a non original fork that was too short. While this frame is nothing too special it is too bad it was so treated then discarded later. Good job resurrecting it best you have. BTW I suggest checking the alignment before painting. Crashes are a common reason to replace a fork. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 01-01-19, 04:27 PM
  #4
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by Andrew R Stewart View Post
Looks like that someone also shaved down the upper headtube extension, likely to fit a non original fork that was too short. While this frame is nothing too special it is too bad it was so treated then discarded later. Good job resurrecting it best you have. BTW I suggest checking the alignment before painting. Crashes are a common reason to replace a fork. Andy
Yes I noticed that head tube too. Still trying to figure out a fix for it.
Manny66 is offline
Old 01-01-19, 04:44 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,611

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 48 Times in 35 Posts
Ons could braze on an extender ring then spend the time to file it to mimic the bottom. Or just live with it as is. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 01-01-19, 07:56 PM
  #6
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by Andrew R Stewart View Post
Ons could braze on an extender ring then spend the time to file it to mimic the bottom. Or just live with it as is. Andy
I agree, after thinking about it for somewhat possible fix, I figured it would be more trouble than its worth,so Im just going to leave it alone .
Manny66 is offline
Old 01-01-19, 08:58 PM
  #7
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,384

Bikes: 86' Centurion Ironman , 84' Centurion "track bike" , 84' Bianchi Alloro

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 420 Post(s)
Liked 19 Times in 17 Posts
Just thinking out loud , what if you had a ring the size of what was ground off and a mandrel to hold it all in place for brazing ?


Mark .

Last edited by markwesti; 01-01-19 at 09:05 PM.
markwesti is offline
Old 01-01-19, 09:01 PM
  #8
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,398

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6839 Post(s)
Likes: 0
Liked 218 Times in 181 Posts
Burning Chrome.. is Toxic bear that in mind...
fietsbob is offline
Old 01-01-19, 09:13 PM
  #9
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,384

Bikes: 86' Centurion Ironman , 84' Centurion "track bike" , 84' Bianchi Alloro

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 420 Post(s)
Liked 19 Times in 17 Posts
Yes Bob , thank you for that . I wonder if they chromed the whole frame ? Also yrs. ago I had a HD springer fork striped of it's chrome it was cheap . Plus I think it should be striped anyway before PC . Thoughts ?

Last edited by markwesti; 01-01-19 at 09:18 PM.
markwesti is offline
Old 01-01-19, 09:34 PM
  #10
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by fietsbob View Post
Burning Chrome.. is Toxic bear that in mind...
Its funny you mentioned it as the Welding supply shop had a few pamphlets at the counter concerning Hexavalent Chromium poisoning and a few others. I picked up a few of them to ReRead some of the bad stuff Ive forgotten about. Not much chrome on this frame except for the right rear stay.

I still need to braze on the cable guides under the bottom bracket, I was going to use a screw on plastic cable guide but since the bottom bracket has a big Star Logo hole underneath Im going to have to find some small tubing to use.
Manny66 is offline
Old 01-02-19, 06:02 AM
  #11
busdriver1959
Senior Member

Join Date: Feb 2011
Posts: 793
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've tried lots of different fixtures for holding small bits in place for brazing. So far, bent spokes seem to work best for me. You might want to give it a try with the BB cable guides. That's a place where the guides might move around a lot before you can get them stuck down.
busdriver1959 is offline
Old 01-02-19, 08:34 AM
  #12
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,721

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 10 Times in 10 Posts
I think you have done a nice job up to this point. That head tube would bug me if left unattended though. Do you know someone with a lathe? I think a small extension piece could be fashioned quite easily and once brazed in place nobody would know.
Nessism is offline
Old 01-02-19, 10:42 AM
  #13
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,398

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6839 Post(s)
Likes: 0
Liked 218 Times in 181 Posts
I just bought a brake line (for cars), and cut it up for small cable guide tubing of very rust resistant metal . & brazed it on..
fietsbob is offline
Old 01-02-19, 11:17 AM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,611

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 48 Times in 35 Posts
I've used the K&S stainless tubing available through better hobby shops for cable tunnels before although mine get painted and I now just use 4130 tubing for this. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 01-02-19, 06:27 PM
  #15
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Thanks for the advice guys, I will add some cable guides soon . And the Head tube issue, i got an idea that might work.
Manny66 is offline
Old 01-02-19, 07:48 PM
  #16
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,721

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 10 Times in 10 Posts

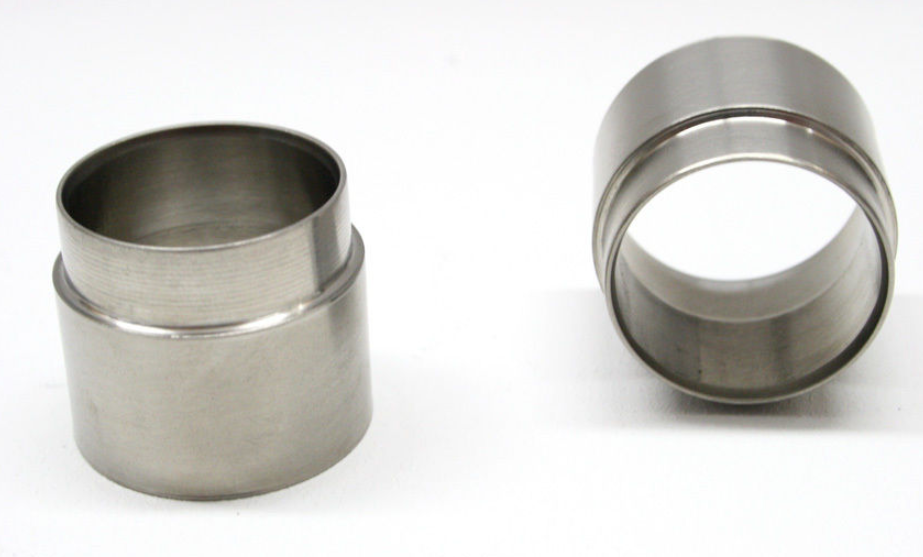

Something like this in the appropriate size...
Nessism is offline
Old 01-02-19, 08:27 PM
  #17
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,611

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 48 Times in 35 Posts
Do know that you will basically end up with a butt joint for the added sleeve/extension. After Sweating the above onto the end of the HT, cutting down to replicate the OEM length and remachining to fit the headset all the inner and overlapping sleeve will be gone. But if one were to extend the HT this would be a good way to keep it all aligned during construction. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 01-03-19, 10:52 PM
  #18
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
As far as the Head tube issue goes, I located a donor head tube that is the exact size I need to "graft" a small section onto the Guerciotti head tube and then cut it down to fit. If it does'nt work out I can always just remove it without too much problem. I'll work on it this saturday.
Manny66 is offline
Old 01-09-19, 09:43 PM
  #19
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
And so Its finished,Brazed on another set of water bottle bosses, made some cable guides for under the Bottom Bracket, and repaired that head tube situation. Just some final sanding and filing and then off to the powder coat.

Fire Engine Red is in the cards with some Guerciotti decals coming up.

Manny66 is offline
Old 01-09-19, 09:58 PM
  #20
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,611

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 48 Times in 35 Posts
Looks nice! Thanks for the follow up post. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 01-09-19, 10:02 PM
  #21
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by Andrew R Stewart View Post
Looks nice! Thanks for the follow up post. Andy
No, Thank You. Ive read some of Your advice on various Threads that led me to try fixing this frame.And so far its come out looking o.k.
Manny66 is offline
Old 01-10-19, 06:19 AM
  #22
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 35 Times in 32 Posts
that looks great.
unterhausen is offline
Old 01-10-19, 12:31 PM
  #23
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by unterhausen View Post
that looks great.
Thank You. I'll get a picture up when its powdercoated.
Manny66 is offline
Old 01-10-19, 01:02 PM
  #24
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,368
Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 8526 Post(s)
Liked 82 Times in 74 Posts
You might look up powdercoat vs paint. The powder gives a tough coat, but tends to obscure some of the crisp details of the frame.
CliffordK is offline
Old 02-09-19, 07:01 PM
  #25
Manny66
Senior Member
Thread Starter

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 161

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 16 Times in 13 Posts
So I made some progress on the Bike, got it back from powder coat and started to install the stickers and touch up paint. So far so good. Got to clean out the threads on the rear wheel adjusters so I gotta find out the Tap size .

The plan is to install all My Shimano Ultergra parts from another bike and ride the hell out of it.
Manny66 is offline
