QR-Through Axle Conversion

Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

QR-Through Axle Conversion

Reply

Old 01-09-19, 12:23 PM
  #1
LMCol
Newbie
Thread Starter

Join Date: Jan 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
QR-Through Axle Conversion

Hi guys, New to the forum.
Forgive me if this has already been covered, but I've had a good search and couldn't find anything.
I've got a Marin Pine Mountain (steel rigid 27.5+ bike) that I'd like to convert from the uncommon stock Boost QR to a proper through axle front and rear.

This has stemmed from the fact that i want to run some 29er XC wheels for a multi day gravel ride later in the year. My other bikes are all boost through axles so I'd rather keep the same axle standard across the stable.

Now I can TIG weld and don't mind rigging up a frame jig to make sure everything's all lined up properly, but before I get designing and commission a local machine shop to knock up the dropouts, is there any off the shelf units that i'd be able use / modify to fit?
LMCol is offline
Reply With Quote
Old 01-10-19, 12:27 AM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 38,251

Bikes: 8

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 5840 Post(s)
If you must ask...

show us your home shop you will do this in... ..

probably better: given Wheels are so much larger, Just buy the bike you want..
fietsbob is online now
Reply With Quote
Old 01-10-19, 06:14 AM
  #3
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I looked up that bike on their site, looks like it's aluminum now? on edit: steel, I was fooled by some giant welds. In any event, it had a fairly strange dropout, which didn't look like it could be easily replaceable by anything I'm familiar with. If you post a couple of pictures of the dropouts it would be easier.

Any self-respecting machine shop is going to charge you so much for dropouts that you will be better off selling this frame and getting one that matches your wheels. And that's before any cost to put them on, which is not inconsequential if you want to do a good job.

Last edited by unterhausen; 01-10-19 at 06:18 AM.
unterhausen is offline
Reply With Quote
Old 01-10-19, 06:57 AM
  #4
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Paragon would likely be your best bet for some sort of replacement but it still might be a tall order.
Canaboo is offline
Reply With Quote
Old 01-10-19, 07:13 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I was thinking that possibly a Paragon DR 2037 could be retrofitted, but I think the caliper might hit the seat stay and the chainstay on those bikes appear to be really large. A post mount adapter would be needed.




unterhausen is offline
Reply With Quote
Old 01-10-19, 07:24 AM
  #6
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Paragon does mention conversion kits but it sounds like you would need to put the wrong dropouts in first and then add the conversion to that.
Canaboo is offline
Reply With Quote
Old 01-10-19, 08:29 AM
  #7
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 183
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Adjustable Dropouts - Frame Building Parts

A link to Paragon
wsteve464 is online now
Reply With Quote
Old 01-10-19, 08:33 AM
  #8
David Tollefson
Senior Member

Join Date: Dec 2012
Location: Puyallup, WA
Posts: 108

Bikes: Many... Up to 9 in the stable now

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Stupid question: Why not just swap the hub end caps to QR? That conversion usually takes less than 5 minutes on compatible hubs.
David Tollefson is offline
Reply With Quote
Old 01-10-19, 10:15 AM
  #9
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
I misunderstood exactly what you were converting from.
Canaboo is offline
Reply With Quote
Old 01-10-19, 07:36 PM
  #10
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 211
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Originally Posted by David Tollefson View Post
Stupid question: Why not just swap the hub end caps to QR? That conversion usually takes less than 5 minutes on compatible hubs.
I agree with David this is your easy answer. As an example, the SP 15mm TA dynohub comes with a 'inner axle' that just slides into the 15mm axle and then takes a standard QR. Having a machine shop turn inner axles (or end caps) with the 9mm through hole with face and lips to grab the dropouts would be easy/cheaper than cutting, welding and repainting the frame and fork ends.
duanedr is offline
Reply With Quote
Old 01-11-19, 07:29 AM
  #11
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
It seems people are getting confused with which way this conversion is going.
Canaboo is offline
Reply With Quote
Old 01-11-19, 09:55 AM
  #12
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I think he has an older bike with boost QR, not the pic that I posted which is TA. However, in the absence of input from the OP, I assumed the dropouts were similar. If the hub is convertible, that would be the best path by far. Rear TA is not much of an advantage on the rear of a hardtail, which is why manufacturers stuck to saving $1 per frame with QR. Now they have come to realize that their customers would prefer TA, so the QR is mostly gone.
unterhausen is offline
Reply With Quote
Old 01-12-19, 03:26 AM
  #13
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 211
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
[QUOTE=LMCol;20739697
My other bikes are all boost through axles so I'd rather keep the same axle standard across the stable.

[/QUOTE]

First off, I will say I don't know why keeping the same axle standard across bikes would be a goal. The benefits seem extremely small.

But given that goal, what I am (and I think David is) suggesting is the TA wheels when used on the Pine Mtn would be boost TA wheels (that he wants to standardize on) with *adaptors* to use the QR that matches the frame. The sleeve or end caps or whatever machined adaptor bits would need to be removed - thereby converting them back to TA wheels - if those wheels were to be moved to a different TA frame.

For this Pine Mtn frame, those little machined bits would allow a TA wheelset to fit onto a QR frameset with a lot less hassle than replacing dropouts, paint etc.

The caveat is that I don't have all the QR/TA/Boost standards memorized so, if there's a combo that has QR Boost dropouts spaced narrower than TA Boost, then that would be a challenge but, probably not insurmountable with new endcaps.

Last edited by duanedr; 01-12-19 at 03:37 AM. Reason: clarity
duanedr is offline
Reply With Quote
Old 01-12-19, 03:48 AM
  #14
LMCol
Newbie
Thread Starter

Join Date: Jan 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Sorry for the late reply. I tried posting pictures, but being a new forum member I'm not allowed until I've got 10 forum posts. The model I have is the red/silver version from either 2016 or 2017.

Originally Posted by fietsbob View Post
show us your home shop you will do this in... ..
probably better: given Wheels are so much larger, Just buy the bike you want..
27.5+ and 29 have roughly the same rolling diameter, so wheelsize shouldn't be an issue. As for the home shop, its just a single garage, but I manage. I could quite easily buy a bike better suited to the job, but where's the fun in that?

Originally Posted by unterhausen View Post
I was thinking that possibly a Paragon DR 2037 could be retrofitted, but I think the caliper might hit the seat stay and the chainstay on those bikes appear to be really large. A post mount adapter would be needed.
They Look nice, thanks for the info.

Originally Posted by duanedr View Post
First off, I will say I don't know why keeping the same axle standard across bikes would be a goal. But given that goal, what I am (and I think David is) suggesting is the TA wheels when used on the Pine Mtn would be boost TA wheels (that he wants to standardize on) with *adaptors* to use the QR required by the frame. The sleeve or end caps or whatever machined adaptor bits would need to be removed if those wheels were to be moved to a different TA frame - thereby converting them back to TA wheels. For this Pine Mtn frame, those little machined bits would allow a TA wheelset to fit onto a QR frameset with a lot less hassle than replacing dropouts, paint etc.

The caveat is that I don't have all the QR/TA/Boost standards memorized so, if there's a combo that has QR Boost dropouts spaced narrower than TA Boost, then that would be a challenge but, probably not insurmountable with new endcaps.
Very good point, that would be a hell of a lot easier. I guess i'm just looking at excuses to fabricate stuff.
The QR boost uses the same rotor/spoke flange positons as TA Boost, but the actual axle length is shorter (141 vs 148 iirc), which may throw a spanner in the works. I guess it'd make sense to see if there's any wheelsets out there that have swappable cups between the two standards, i just presumed that there wouldn't be any as the QR boost standard is pretty much none-existent.
LMCol is offline
Reply With Quote
Old 01-12-19, 05:02 AM
  #15
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
it really depends on the hub manufacturer. My Salsa came with a convertible hub on the front. Not sure about the rear. Wouldn't surprise me

Someone on mtbr said that industry 9 has conversion axle parts on some of their hubs

Last edited by unterhausen; 01-12-19 at 05:08 AM.
unterhausen is offline
Reply With Quote
Old 01-12-19, 04:47 PM
  #16
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 211
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Originally Posted by LMCol View Post
I guess i'm just looking at excuses to fabricate stuff.
Ah, totally different question! As with gambling, don't bet more than you are willing to lose.

Replacing the dropouts isn't the hardest thing but you're talking about completely changing the configuration. Also, Through Axles require a pretty high level of precision to work and place the wheel in plane with the frame. This is hard when heating and cooling metals. With vertical/horizontal dropouts, the builder can fix small misalignment in the rear end by filing a bit here, and filling in over there. If a TA rear end isn't dead on when it cools, it doesn't work and you can't really fix it. Experienced builders use TA all the time in steel but, it's probably not the best place for a neophyte to start.

At a minimum, I would find an old steel MTB and try it before I would attempt on a frame I care much about.
duanedr is offline
Reply With Quote
Old 01-12-19, 05:00 PM
  #17
dsaul
Senior Member

Join Date: Jan 2013
Posts: 851
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
If it were me, I'd probably leave it as is. If I were determined to change it to thru axle, I would use the round thru axle dropouts from Paragon. I would use the current axle slot to center the correct size hole saw and cut out a round section of the existing dropout. You can then fixture the new round thru axle dropouts and weld them into the cutouts.
DR2065: Stainless Steel 1-1/2" OD x 1.1" Rear, 12 mm Hub
dsaul is offline
Reply With Quote
Old 01-12-19, 05:46 PM
  #18
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I had thought about Breezer style dropout, but didn't think of using parts of the old dropout. That's a good idea. But I agree with Duanedr, don't do it on this bike, mess around with (an)other one(s)
unterhausen is offline
Reply With Quote
Old 01-13-19, 04:28 PM
  #19
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 184

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)

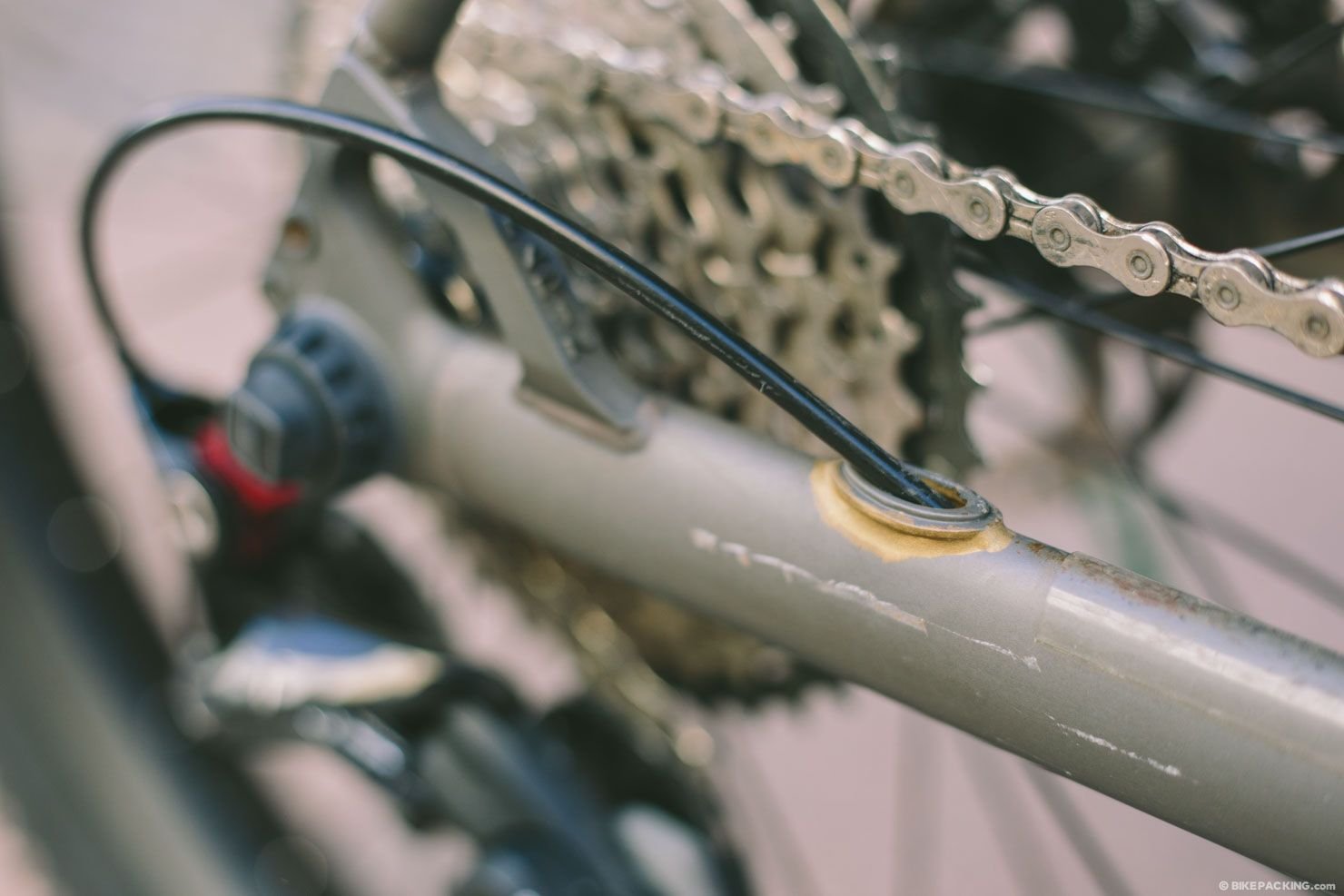

Is this what you have? I know what you are asking for, and it can be done.

Reynolds 531 is offline
