Source for Drilled Eyelets

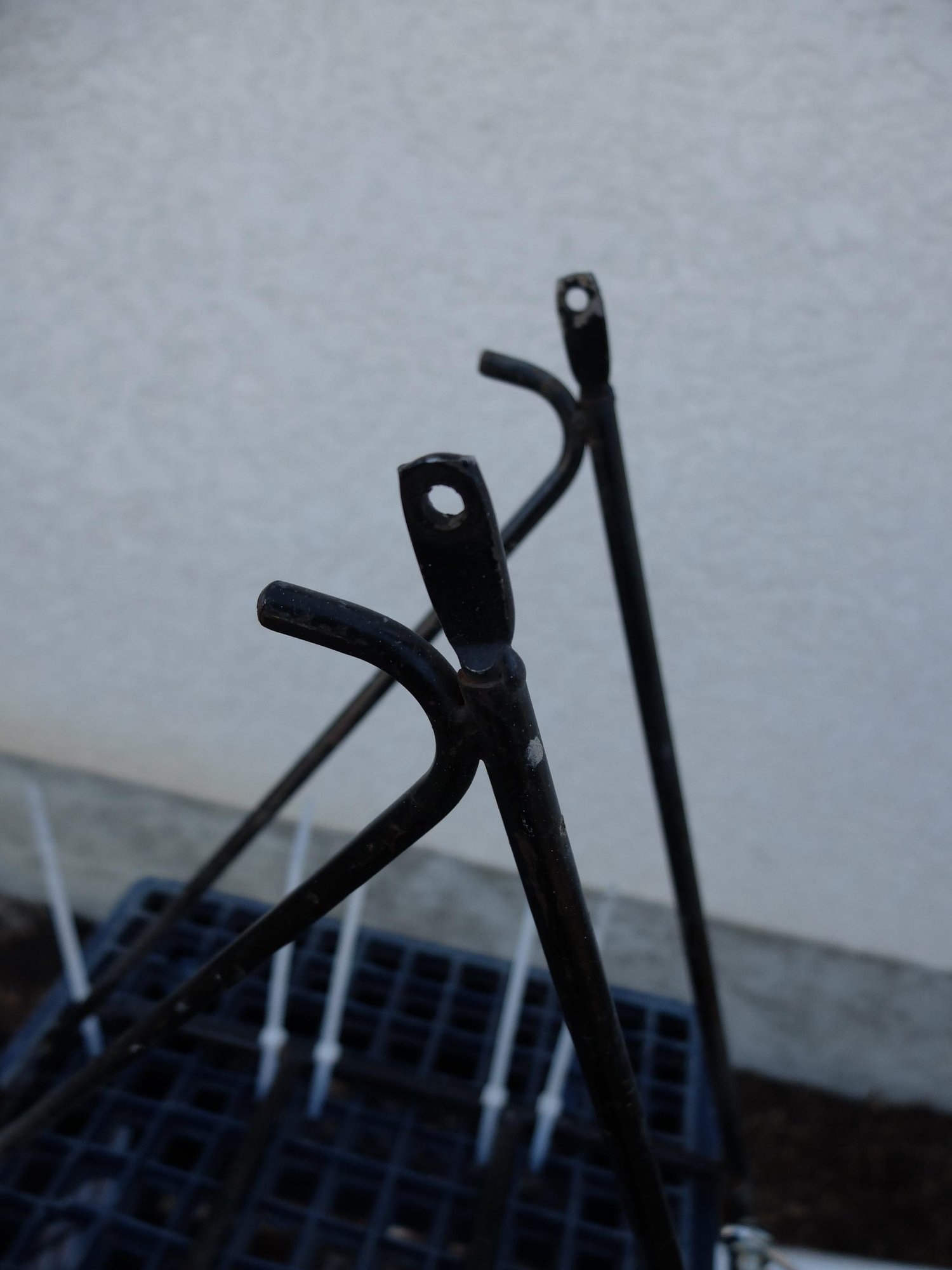

Hi, what you see before you is the dropout mounting end of a steel pannier rack. The rack is made from tubing and is terminated with these drilled lugs. I'm looking for some of those. For those who build frames, you ever seen anything like it in a supply store somewhere? If so, I'd sure like to know where in order to buy a few different sizes. Thanks a bunch for any assistance... !



prairiepedaler is offline
Old 04-11-19, 04:02 PM
  #2
mikeread
Senior Member

Join Date: Nov 2015
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
I built a very basic rack many moons ago and just used a bit of round steel rod that fitted inside the tube. Heated it red hot, hammered a flat, drilled a hole and cleaned it up. Looked as good as anything else i have seen, not that i spend much time oggling racks.

Last edited by mikeread; 04-12-19 at 04:49 AM.
mikeread is online now
Old 04-11-19, 07:09 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
https://framebuildersupply.com/collections/braze-ons

This is but one supplier who offers rack eyes/tabs. I doubt that you'll find anything that comes close from a hardware store or industrial supplier. If you're going to make a lot of racks then designing your own and getting a few hundred water jetted makes economic sense. If you need a few handfuls then buying something like I linked to makes sense. If you're making just one or two racks it's easy to cut/file/grind a few out free hand. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-14-19, 05:39 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
also Compass/Rene Herse and Nova
https://www.renehersecycles.com/shop...ass-rack-tabs/
unterhausen is offline
Old 04-15-19, 08:31 AM
  #5
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 543

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Hmmmm, ok thanks fellas. If you put in enough time it's possible to develop any skill. I did think about flattening/drilling rod stock but to play around and get it right might take significant time. I just wanted to get the thing over with and if a pre-made insert is there then that's the preferred option. We'll see! It would be kind of fun to do some minor metalsmithing though. As far as the rack tabs indicated on those websites, would those be strong enough to support all the weight? The tabs are to stabilize the rack topside and the dropout eyelet junction the brunt of the load.
prairiepedaler is offline
Old 04-15-19, 04:30 PM
  #6
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 5,930

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Originally Posted by prairiepedaler View Post
Hmmmm, ok thanks fellas. If you put in enough time it's possible to develop any skill. I did think about flattening/drilling rod stock but to play around and get it right might take significant time. I just wanted to get the thing over with and if a pre-made insert is there then that's the preferred option. We'll see! It would be kind of fun to do some minor metalsmithing though. As far as the rack tabs indicated on those websites, would those be strong enough to support all the weight? The tabs are to stabilize the rack topside and the dropout eyelet junction the brunt of the load.
getting things red hot and then pounding them with a hammer is simply fun...... just sayin
__________________
Looking for Torpado Superlight 58cm
squirtdad is online now
Old 04-15-19, 07:04 PM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Originally Posted by prairiepedaler View Post
As far as the rack tabs indicated on those websites, would those be strong enough to support all the weight? The tabs are to stabilize the rack topside and the dropout eyelet junction the brunt of the load.
The rack tabs in the links we shared are stronger than the ones on the picture in your OP. But it's all in the details, you didn't really say what you wanted to do with them.
unterhausen is offline
Old 04-15-19, 10:53 PM
  #8
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 543

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by unterhausen View Post
The rack tabs in the links we shared are stronger than the ones on the picture in your OP. But it's all in the details, you didn't really say what you wanted to do with them.
HI Unter, how can one tell which has greater strength just by a few photos? I'd planned on doing the same thing with the ends on the sample pannier rack in the pictures; weld them into the ends of some tube stock which will be the loadbearing end of a DIY pannier rack. I can't tell how deeply inserted they are into the tubing yet I assume they'd be deeper than the shallow tangs on the rack tabs. I also assume the example ends are round like the tubes themselves.
prairiepedaler is offline
Old 04-16-19, 04:40 AM
  #9
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Yes, I'm making assumptions. However, the ones in your picture are almost surely low carbon steel vs. alloy steel in the case of the ones intended for frame builders. If you look closely at your picture, you can see the ends are just tack welded on. This application doesn't really require a lot of strength and the rack ends are mostly in compression. If you think of the millions of miles of abuse tourists gave the old Pletcher rat trap racks and the extremely low grade materials they were made of, strength really isn't a worry.

The ends on the rack in your picture probably extend fairly far up into the tubing. This makes up for a lot of sins. It would be difficult to replicate this design. Success really depends on your fabrication skills and equipment. The tabs companies sell to framebuilders are intended for use in a way that is tailored for construction techniques that are available to framebuilders but might not be that easy to use for someone starting from scratch.

When I make stainless racks, I cut my own tabs out of bar stock. You could make a tab that fits up in the tubing and then close the gaps on the sides of the tab with weld or even just crush the tubing. A hammer will do that pretty well if you are careful. It's something to consider.
unterhausen is offline
Old 04-16-19, 12:41 PM
  #10
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 543

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by unterhausen View Post

When I make stainless racks, I cut my own tabs out of bar stock.
Hi Unter, thanks for those insights. I'll probably just fab some tabs - hey, that rhymes. I've bent the tab end on racks before because I tend to overload the back end but that's just the way it is sometimes. Mind you, those were alu-alloy and not that highly rated. Some newer Axiom alu racks are rated to 110lbs capacity , which I'd consider exceeds a safe carrying level on the rear of a bike anyways but unfortunately the layout of those heavy duty Axioms don't match my dimensional criteria. I won't be doing most of the work on this rack but will farm it out. I just want the thing done minus the diy learning curve involved this time around.

Last edited by prairiepedaler; 04-16-19 at 09:21 PM.
prairiepedaler is offline
Old 04-16-19, 10:18 PM
  #11
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Originally Posted by prairiepedaler View Post
Hi Unter, thanks for those insights. I'll probably just fab some tabs - hey, that rhymes. I've bent the tab end on racks before because I tend to overload the back end but that's just the way it is sometimes. Mind you, those were alu-alloy and not that highly rated. Some newer Axiom alu racks are rated to 110lbs capacity , which I'd consider exceeds a safe carrying level on the rear of a bike anyways but unfortunately the layout of those heavy duty Axioms don't match my dimensional criteria. I won't be doing most of the work on this rack but will farm it out. I just want the thing done minus the diy learning curve involved this time around.

The generationally sought out short cut. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-17-19, 12:44 PM
  #12
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 543

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by Andrew R Stewart View Post
The generationally sought out short cut. Andy
HI Andy, I would tend to agree with that. I'm trading time for skill building this time around. My cup already brimeth.
