Chainstay length vs tire size

I'm designing and building a new frame as a project for me, and I have a decent understanding of frame geometry and what I want, but one area of confusion still exists.

With a chainstay length of 420mm, STA of 73 degrees and BB drop of 75mm, is it possible to run 700x38 tires?

Are there clearance issues? What would be the minimum chainstay length required to run 38c tires? The bike will mostly see 28c tires, and rarely above 35. Would just like to have the option to go 38 if necessary. I like short chainstays, and would like to keep as much of the responsiveness of the bike that I can.

Thanks
IcemanYVR is offline
Old 09-22-19, 07:22 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 12,031

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1887 Post(s)
Liked 110 Times in 84 Posts
This is where modeling programs (Bike Pro, RattleCad being two) come in handy as they do the math for you. Otherwise the answer is either actual math or measuring existing bikes and "making a judgement". Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 09-23-19, 06:13 AM
  #3
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,165
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 66 Times in 50 Posts
I put those numbers into Rattlecad and it shows 9.9mm between the tire and the seat tube with a 700 x 38 tire.
dsaul is offline
Old 09-23-19, 06:49 AM
  #4
IcemanYVR
Junior Member
Thread Starter

Join Date: Sep 2019
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Andrew R Stewart View Post
This is where modeling programs (Bike Pro, RattleCad being two) come in handy as they do the math for you. Otherwise the answer is either actual math or measuring existing bikes and "making a judgement". Andy
Originally Posted by dsaul View Post
I put those numbers into Rattlecad and it shows 9.9mm between the tire and the seat tube with a 700 x 38 tire.
Thank you, I didn't even know about Rattlecad. Purchased it and am playing with the numbers. I had been using bikecad.

It seems clearance to the seat tube is ok, but it rubs on the chainstays. Makes you wonder how builders like Mosaic and Argonaut can run 38c tires with 420mm stays. They must use custom tubing or something.
IcemanYVR is offline
Old 09-23-19, 07:31 AM
  #5
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,165
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 66 Times in 50 Posts

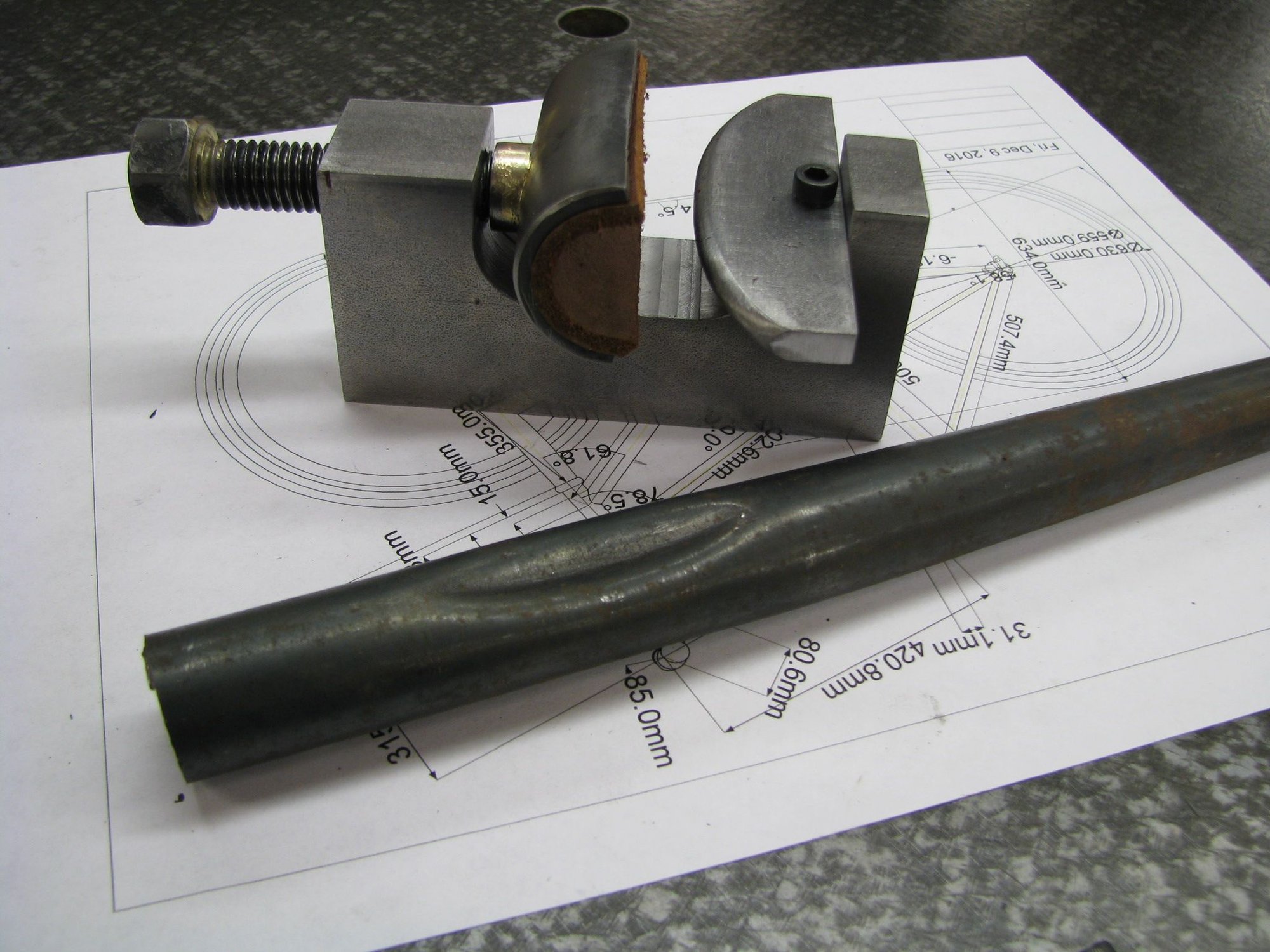

I make my own chainstays out of 3/4" .035 tubing, but you should not have a problem making clearance for a 38 tire at 420mm with oval chainstays and some dimpling. The chainstay length in the picture is 425 and easily fits a 42mm tire. and a road crankset on a 68mm bottom bracket. I don't rely on modeling to figure these things out. I draw out everything on paper and lay the chainstays on the paper to confirm clearances.
