Failing aluminum weld: repair?

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Failing aluminum weld: repair?

Old 12-22-19, 06:43 PM
  #1
Philly Tandem
Senior Member
Thread Starter

Join Date: Feb 2010
Location: SE Penna., USA
Posts: 1,118

Bikes: Too many! Santana tandems and triplet; MTBs; touring bikes

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 3 Times in 2 Posts
Failing aluminum weld: repair?

I searched the archives but didn't find anything related to this type of issue: I just noticed that the seaststay welds on my son's Niner EMD MTB (XS size) are basically lifting off the adjoining seat tube (photo attached). So the weld itself is cracking at the joint line, but the frame itself is not cracked. The crack does not go all the way around, and I'm guessing my son's been riding it like this for a while. It's an otherwise great frame in good condition, and is ridden by a fairly light youth NICA rider. Can another bead be laid down to reinforce this area, or is the frame bound for the recycling bin? I'm not so worried about cosmetics. Thanks for any advice...
Philly Tandem is offline
Old 12-23-19, 04:33 AM
  #2
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,231
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 83 Times in 65 Posts
It looks like they were made from 7005, so it can be welded. I would contact Niner first and see if they will help with a replacement frame.
dsaul is offline
Old 12-23-19, 09:28 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 12,413

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2008 Post(s)
Liked 175 Times in 139 Posts
I suspect that the cracks are in the ST and not restricted to the weld only. This is pretty classic weld bead root cracking IMO. I wonder if there was a lot of reaming of the ST after welding, too thin a ST wall was chosen or just poor welding that resulted in a stress riser at the root. Anyway about it I think any repair is to be considered a short term solution. Best is to replace, worst is to fix and wonder when the other shoe will drop. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-23-19, 11:22 AM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,937
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 122 Times in 104 Posts
sure looks like the tube is cracking, as would be expected. Take the seatpost out and see.
unterhausen is offline
Old 12-23-19, 06:58 PM
  #5
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,827
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 920 Post(s)
Liked 179 Times in 111 Posts
I have seen weld cracks at the head tube and BB, but never at the seat stays/seat tube junction. Is this common? Just how much stress is taking place there? Is the stress from the seat post being bounced on while hammering the trail or is it from the shock coming up from the rear wheel?
TiHabanero is offline
Old 12-23-19, 09:27 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 12,413

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2008 Post(s)
Liked 175 Times in 139 Posts
I suspect there's a few things contributing to these cracks. First is the use of a frame material that has a limited fatigue life. Weld beads can end up with a slight undercutting of the tube's surface right at the bead's edges. The ST ID might have been reamed to regain a round shape and of a wanted dimension, this would thin the tube about the welded area.

Not that it matters in this discussion but there's cracks in the paint radiating from the binder slot's bottom "relief" hole. These I suspect are paint only. But it would be interesting to find out if they are in the tube also.

IIRC 7005 alloy will continue to age harden for a long time. It does this without elevated temps (as in heat treating). It was my understanding that the Asian factories chose 7005 because no after construction heat treating would be needed and the amount of time between welding the frame and the customer riding the bike was long enough to bring the after welding strength to acceptable amounts WITH NO ADDITIONAL COST.
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-24-19, 05:13 AM
  #7
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,231
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 83 Times in 65 Posts
Originally Posted by TiHabanero View Post
I have seen weld cracks at the head tube and BB, but never at the seat stays/seat tube junction. Is this common? Just how much stress is taking place there? Is the stress from the seat post being bounced on while hammering the trail or is it from the shock coming up from the rear wheel?
I suspect, from the cracks around the seat tube slot, that the seatpost was slightly undersized and doesn't fully support the seat tube at the junction with the seat stays. That allowed the seat tube to flex from the loads being transferred up the seat stays and into the seat tube.
dsaul is offline
Old 12-24-19, 09:36 AM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 12,413

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2008 Post(s)
Liked 175 Times in 139 Posts
Originally Posted by dsaul View Post
I suspect, from the cracks around the seat tube slot, that the seatpost was slightly undersized and doesn't fully support the seat tube at the junction with the seat stays. That allowed the seat tube to flex from the loads being transferred up the seat stays and into the seat tube.

Perhaps after welding ST ID reaming produced an ID that was too large for the speced post. I didn't want to claim that the binder slot base's cracks are other then only paint (which is a fairly common condition). I was hoping my comments would motivate the OP to pull the post and take a look. But someone said something once about a horse and water Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-24-19, 10:43 AM
  #9
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,937
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 122 Times in 104 Posts
It's really common on that kind of attachment. In this case, Andy might be right about the cause. Builders that dont' reinforce the seat tube often cause this failure. Surly Pugslys had it for a number of years.
unterhausen is offline
Old 12-26-19, 01:05 PM
  #10
Philly Tandem
Senior Member
Thread Starter

Join Date: Feb 2010
Location: SE Penna., USA
Posts: 1,118

Bikes: Too many! Santana tandems and triplet; MTBs; touring bikes

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 3 Times in 2 Posts

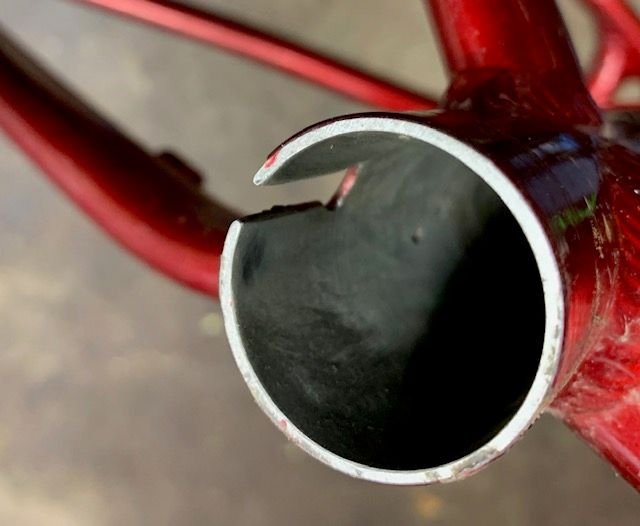

Thanks for the comments everyone, and sorry I haven't been able to check back in before now. I did, in fact, pull the seatpost (photos attached), and don't see any radiating cracks inside. However, there is a small hole inside around the area of each weld. Not sure if this was done purposefully during construction to allow for the relief of gasses during the welding process, or if they are the result of burning through the thin aluminum while welding. The outside cracks appear to only be at the weld joints, and not in the tubing itself. The correct size seatpost was always used (OEM). What appear as "cracks around the seat tube slot" are really just scratches that were touched up. I don't see any other cracks besides those in the welds as already noted. I haven't contacted Niner yet, but as 1) I'm not the original owner, 2) frame was only originally warrantied for 2 years, and 3) Niner got bought out and isn't really interested in helping with issues from previous ownership, I guess it's just wall art at this point. Sigh.
