Amateur replacing a lugged headtube?

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Amateur replacing a lugged headtube?

Old 05-19-20, 07:26 AM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
Amateur replacing a lugged headtube?

Amateur hour question here:
How involved is replacing a lugged head tube? I picked up a 531 Roy Thane touring frame that had its fork cantilever "studs" re silver brazed, but out of alignment. I figured I would have a frame builder replace them and head down the road. However when I removed the fork the bottom headset cup dropped out. I'm not sure why, but someone went at the inside of the head tube with a rasp. The cup doesn't wobble and Loc-tite has been recommended as worth giving a shot, and if I'm lucky the brakes will have enough adjustment to hit the rims. I have a lot of other bike projects so I don't realy want to build up a bike just to see if It will sort of work. I picked this frame up from a co-op just as the world ended, and I'm pretty sure I could return it and at least re-coop the value in greasy components.
How ever I do have aspirations to do some frame building. So I'm wondering, should I hold on to this frame as a project to do after I get some actual brazing experience? Or is this one of those "It would be better just to build a new frame" projects? Thanks, Woody
bark_eater is offline
Old 05-19-20, 07:41 AM
  #2
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,494
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 430 Post(s)
Liked 177 Times in 137 Posts
It would certainly be easier to build a new frame. Loctite 609 works very well for this purpose. I used it on a frame that had the lower head tube reamed oversize, so that the cup would press in by hand, and it has been working fine for 3 years now.
dsaul is offline
Old 05-19-20, 10:09 AM
  #3
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 59 Times in 54 Posts
If the gap is too big for loctite get some JB Weld epoxy and use a pipe clamp type clamp to clamp the top/bottom cups in place to try to keep the cups parallel in the head tube.
wsteve464 is offline
Old 05-19-20, 10:31 AM
  #4
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
I've got a pretty good grasp of the application of gap filling goop.... Head tube replacement, not so much. . .
bark_eater is offline
Old 05-19-20, 12:45 PM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 352 Times in 267 Posts
it's a lot of work and a paint job. I have done it. Not sure I would do it again. What if you open it up and the mitering is way off, like happened to me? Best not to know. I probably should have cut the frame up at that point, but sunk cost fallacy defeated good sense. In my case, the head tube was nearly cracked through, about 1/8" of tube was left that hadn't cracked. It was a beautiful bike, too bad the builder was mostly about finish and not construction quality.
unterhausen is offline
Old 05-19-20, 01:09 PM
  #6
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 440
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Just do the Epoxy filler trick and call it good.
Canaboo is offline
Old 05-19-20, 01:36 PM
  #7
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 876

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 197 Times in 141 Posts
Originally Posted by wsteve464 View Post
If the gap is too big for loctite get some JB Weld epoxy and use a pipe clamp type clamp to clamp the top/bottom cups in place to try to keep the cups parallel in the head tube.
There are two types of JB Weld, "fast setting" ( I think 5-minute) and regular slow setting which takes about 24 hours or so to cure.

Use the slow setting epoxy and instead of a clamp, use the actual headset to secure the cup to the headtube. Adjust the headset as you would normally do. This way, there will be little if any chance of the cup being set permanently crooked. Slow setting epoxy will be stronger than the fast stuff and it will also allow you time to set the cup just right.

Also, with slow setting epoxy, if you wake up in the middle of the night in a panick about what you've done, you can always remove it...

Last edited by branko_76; 05-19-20 at 05:30 PM.
branko_76 is online now
Old 05-19-20, 01:48 PM
  #8
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
I'm not worried about the paint. I am concerned that its something that would be way over my head even if I have the tooling and some prior experience. I actually have another 531 British touring bike project hanging in the garage that needs a new fork steerer. That one I'll throw time money and paint at some day. The Roy Thane I'm trying to justify keeping as future project material.
bark_eater is offline
Old 05-19-20, 03:30 PM
  #9
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 352 Times in 267 Posts
Well, my pat answer to that question is that if you have to ask you don't have the skills. But really, only you can answer the question. I don't know why you wouldn't just use glue.

Those English builders used brass most of the time, and so you are probably not going to be able to take the head tube out of the lugs by melting the filler. Or at least it's going to take a big fire and some firebricks and a lot of luck. There used to be a webpage on the Yellow Jersey website about doing a repair like that. Also, you have to check for pins and drill them out if they are there. One way to attempt it is to cut as much out as possible with a hacksaw and files and then grind out the part of the head tube that is in the lugs. I found a sanding drum in a dremel to be very effective

Once you can get a head tube in the lugs, brazing it in is the easy part.
unterhausen is offline
Old 05-19-20, 03:40 PM
  #10
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 59 Times in 54 Posts
If you are planning on building frames in the future I'd keep the frame even if it was to cut up the tubing to practice brazing.
wsteve464 is offline
Likes For wsteve464:
Old 05-19-20, 04:05 PM
  #11
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,825

Bikes: Homebuilt steel

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 32 Times in 27 Posts
I don't think it would be super hard to replace the head tube. I'd cut it above the lugs and then make radial cuts using a hack saw blade on the inside, cutting through the tube but stopping short of the lug. You can then use a carbide burr on a rotary tool to thin down the head tube. Last step is heat with a torch and peel out the remaining pieces of the tube. Then use a long file and smooth down the ID of the lug until the new head tube section fit smoothly inside. You should have some way to judge alignment before you call the fit done. That's the hard part for guys that are not setup for frames.
Nessism is offline
Old 05-19-20, 04:54 PM
  #12
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
I was kind of considering mechanical removal as being a "amateur" approach, which is fine. I just checked Ebay and it looks like there are some pretty cheap induction coil heaters available. It seems like you could focus a lot of heat directly onto a stub of head tube with out heating the lug.
bark_eater is offline
Old 05-19-20, 05:34 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,428

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 436 Times in 343 Posts
I replaced a head tube once. But the TT and DT were included in the replacement job for most of their lengths. I left TT and DT stubs just forward of the seat lug and shell for the new front end to attach to with lug like external sleeves. I did this for a very good friend for the cost of materials and for the experience. Don't think I'll do this again as it is a lot of work and very few frames will have the motive to do so much. This was one of the very first frames I had helped to build (more like finish file and add braze ons way back when).

One of the better bits of advice in any repair is to strongly consider the path of least consequence and most reversal. In this case that's a retaining compound for the head cup fit. Completely reversible and the least effort with very good track records (Including a few I've done this way).

The canti bosses are a different issue. They are fairly simple to replace although not without it's amount of work. Unless one is pretty good at mitering and brazing I would suggest brass/bronze as the filler for the new set. I assume the OP has tried all the usual tricks to get the current ones to play nice. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-19-20, 10:12 PM
  #14
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 440
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Using epoxy doesn't mean you have to glue the headset cup in place. Wax it well and then press it into the smeared in epoxy and then wipe off the excess. It will pop up if need be.
Canaboo is offline
Likes For Canaboo:
Old 05-20-20, 10:48 AM
  #15
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
Thanks for all the feed back. I'm sort of trying to figure out how deep this particular money pit could be. The "Sunk Costs" will be pretty high if the glued in headset only lasts 500 miles. I've also got a lot of "Sunk Cost" into getting set up for frame building. That 500 pound milling machine table I dragged home is going to have to earn its keep some day. So I have been looking for nice broken frames to practice on in the future. Thus the interest in replacing the head tube my self. I have lost 80% of my active free time since the schools closed and the world ended. I do still scheme..

So... moving forward with gluing a head set in, Is there a particular design that would be better for this application? I'm figuring one with sealed replaceable cartridge bearings would make sense as far as being replaceable with out messing with the cups. I've never taken one of these apart, so I don't know what I don't know.

The brake mounts will either work or not work. Valuing my teeth I will have a pro replace if necessary.

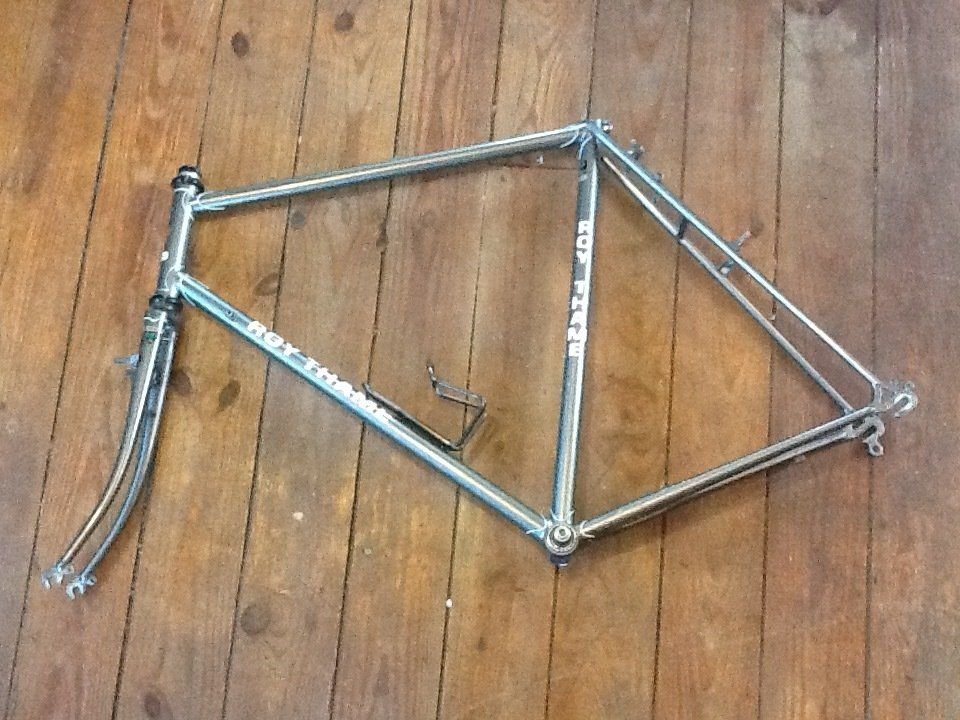

Here are some pictures of the dilemma:


bark_eater is offline
Old 05-20-20, 06:43 PM
  #16
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 59 Times in 54 Posts
If the epoxy doesn't work so the headset doesn't come loose you might try building up the inside of the head tube where it is too large with brass and ream it.
wsteve464 is offline
Likes For wsteve464:
Old 05-20-20, 07:28 PM
  #17
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 352 Times in 267 Posts
Or build it up with 45% silver even.
unterhausen is offline
Old 05-21-20, 08:31 AM
  #18
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 440
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Using filled epoxy in this type of application is very common. Plenty of specialty epoxies available just for this purpose.

https://www.masterbond.com/applicati...-epoxy-systems
Canaboo is offline
Old 05-21-20, 08:48 AM
  #19
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
A machinable epoxy is an interesting idea. I think I'd try one of the glues first, and building up a solder as a second try. One thing I would wonder about is weather the glue would be a persistent containment that would effect the solder adhesion. Other question I have is would the 3 heat cycles the 531 forks would go through to replace the cantilever mounts would be a concern.

Last edited by bark_eater; 05-21-20 at 08:52 AM.
bark_eater is offline
Old 05-21-20, 09:20 AM
  #20
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 352 Times in 267 Posts
there is no reason to expect heating the fork blades again would be a concern
unterhausen is offline
Old 05-21-20, 01:28 PM
  #21
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,825

Bikes: Homebuilt steel

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 32 Times in 27 Posts
Since this is a framebuilding forum not a mechanics forum, the idea of flowing some brazing filler into the lower race seat area of the head tube seems like a winner to me. Silver will pose less risk of loosening up the lower head tube lug so that seems appropriate to me too. Seems like a no brainer fix with very low risk.
Nessism is offline
Old 05-22-20, 07:55 AM
  #22
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,697
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 352 Times in 267 Posts
I would normally agree with that, but part of being a framebuilder is to keep people from needlessly messing up their paint job
unterhausen is offline
Old 05-22-20, 08:24 AM
  #23
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
I'm pretty sure this is a respray with vinyl reproduction stickers, as the damage inside the head tube is painted over. As I remember the other condition issue was some one drilling out the cable guide attachment screw and running a larger screw in untapped? So Its a bit of a basket case already.
bark_eater is offline
Old 05-28-20, 09:34 AM
  #24
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 887

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 91 Times in 61 Posts
I got a couple of minutes to look at this, and it looks like at the tube is ovalized a bit, and has been reamed a bit with sandpaper, running from 30.10mm to 30.25 mm. The cup that was in there was a Deore Mountain bike cup. I tried a NOS stronglight cup and it measures 30.10 to 30.15 mm, so if I turn it will go from loose to contact. The faceing looks like it was cut with a dull tool or a cup had been loose and rubbing.

What Im wondering, ids if it would be worth faceing it down a bit and trying to get some more contact points for the cup before glueing it in?
If so, How much can I take off the head tube with out running into another problem, like changing the head tube angle. The lug looks like it already might have been refaced/messed with once so I want to proceed with caution. The head tube reamer /face I have is a hand me down that has been resharpened, could anyone tell me what a factory reamer should cut at? Thanks.

P.S I decided on the Tange Falcon 250c sealed bearing headset. It has the same stack height as the Deore headset that came with the frame. I havent descided on what adhesive to go with, or whether to use the fork and head set to hold the cup while the glue cures.

Last edited by bark_eater; 05-28-20 at 01:27 PM.
bark_eater is offline
Old 05-28-20, 07:01 PM
  #25
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,428

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 436 Times in 343 Posts
How far inside the HT is the reamed portion? How long are the Tange headset cup "skirts"? Will removing some HT face get the headset skirts to contact un reamed HT ID? How much face removal to do so is needed? Your measurements will guide you in these aspects.

Any HT face removal will change the head angle It's a question of how much removal and thus what angle change. You could run the math to actually find out but people run different tire heights (widths) all the time and they don't crash from loss of steering control solely due to one tire being bigger then the other.

Unsure what you mean by "what a factory reamer should cut at". Are you meaning the ID, the depth of cut the angle (if any) of the resulting face's edge? I highly suggest at least a skimming of the HT face to insure the cup's sits square to the HT axis. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
