Why does no one sell press-fit shells?

Forgive my n00b'ishness:

I'm trying to build a clone of https://yeticycles.com/bikes/arc - but am confused about one aspect: The ARC uses a SRAM DUB BB92 to fit the SRAM X1/XX1 crankset - which has a 91.5mm shell width, with boost spacing. For reference, I build with bamboo, and have built all my frames so far as BSA68's, but had issues with fitting larger tires.

I went shopping for where I could buy a BB92 shell, and it seems like no one sells pressfit shells. (I assume this is for a good reason, but can't figure it out): Nova, Paragon, Frame Builder Supply, eBay, TiCycles, BikeFabSupply don't appear to stock them. However, It seems like T47 shells are pretty easy to come by in this width (92.5mm, to allow for facing). My concern is that SRAM doesn't list T47 DUB as supported for X1/XX1, but I can't see why not: https://www.sram.com/en/sram/models/fc-xx-1-c2 mentions only:

* DUB:BSA73
* PF89.5
* PF92
* PF30 MTB73
* BB30 MTB73
* BSA MTB68SP

I assume based on this that I should probably just buy a 73mm shell to get the most space for the chain stays (because I also have to watch out for pedal strike), but I'm just genuinely curious - why are press-fit shells unavailable for purchase?

I have 3 ideas, but I'm not convinced of any of them: alignment is difficult, no low-volume builders use PressFit, or PressFit shells are so easy for folks to create out of their DIY frames that selling shells isn't economically viable.
helixbikes is offline
Old 10-03-20, 01:28 PM
  #2
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 13,378

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2956 Post(s)
Liked 1,861 Times in 1,212 Posts
I was thinking about this. My Calfee 29er kit came with a 68 bb shell. I wanted to make it 73mm and QR 141. The bent stays help. To get tire clearance modern MTB frames have a yoke, but I don’t know how to do that with bamboo.

You could add to your list that they’re going out of fashion.

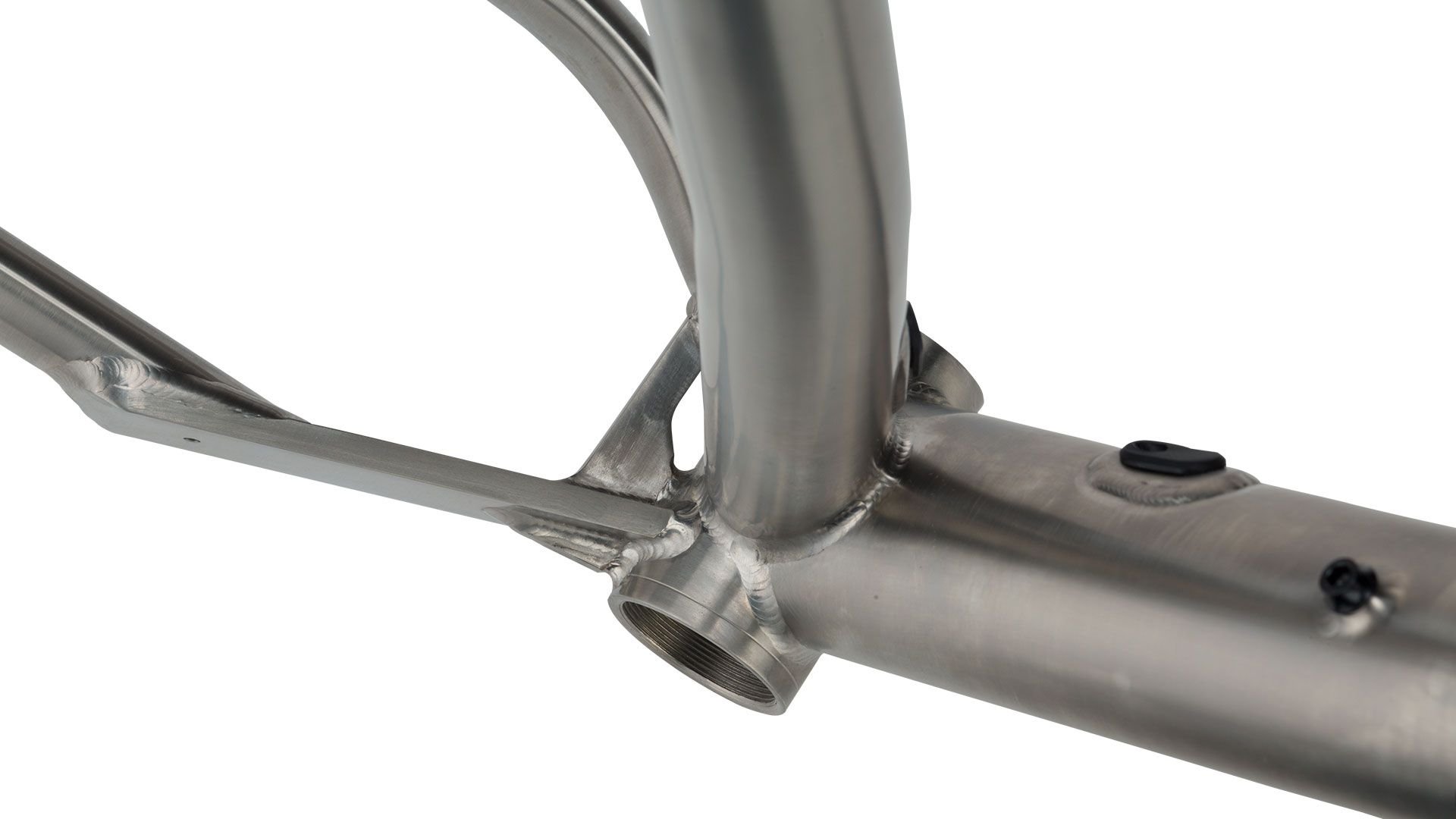

Salsa Timberjack 29er / 27.5+ titanium shown to illustrate the drive side yoke, and the extreme bend in the NDS


Last edited by Darth Lefty; 10-03-20 at 02:59 PM.
Darth Lefty is offline
Old 10-03-20, 03:27 PM
  #3
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,706 Times in 1,883 Posts
It's a real pain to get them right and very few builders want to take the risk. Big companies don't care if they have to eat a few frames because the press fit bb is bad. And they have the market power to just ignore customers that have problems with them, if the internet is to be believed. No small builder has that luxury. Seems like there was a time when someone offered a reamer/facer for a press fit bb, but a number of people got burned in that deal.

I have been doing a lot of frame prep recently and i was thinking about how you could do it with machine tools. I think I have heard of people using boring bars on a mill for press fit bb. Fixturing would be an issue, but it is doable
unterhausen is offline
Old 10-03-20, 05:09 PM
  #4
helixbikes
Junior Member
Thread Starter

Join Date: Dec 2011
Location: California
Posts: 16

Bikes: Custom Bamboo, Xtracycle, CAAD10

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Originally Posted by Darth Lefty View Post
I was thinking about this. My Calfee 29er kit came with a 68 bb shell. I wanted to make it 73mm and QR 141. The bent stays help. To get tire clearance modern MTB frames have a yoke, but I donít know how to do that with bamboo.
Thanks for bringing up yokes - I hadn't considered that before. I'm building a new Calfee kit, and plan to make it 73mm/BOOST. This time I have bent stays, but I guess I was just a bit nervous given how bad the fit issue was on my first build.

Paragon sells Yoke kits, but at an exorbitant price: https://www.paragonmachineworks.com/...stay-yoke.html

I did neglect to mention that they do sell PressFit shells, but not for any size compatible with an XX1 crankset. I guess I'll just end up going BB73, but I'm still surprised that there is no love for T47 for their MTB components.
helixbikes is offline
Old 10-03-20, 07:15 PM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,706 Times in 1,883 Posts
lots of companies use a flat plate on the drive side instead of a yoke. I was always put off by the price of a yoke. I don't think the price is exorbitant though, it's a complex piece of machining.
unterhausen is offline
Old 10-04-20, 10:22 AM
  #6
duanedr
Full Member

Join Date: Aug 2012
Location: Seattle
Posts: 470
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 127 Times in 78 Posts
Originally Posted by unterhausen View Post
I have been doing a lot of frame prep recently and i was thinking about how you could do it with machine tools. I think I have heard of people using boring bars on a mill for press fit bb. Fixturing would be an issue, but it is doable
I have done a Paragon 44mm HT's this way. It wasn't as hard/time consuming to indicate it in as I was expecting. I would clamp the DT with blocks for more rigidity and take light cuts. A bigger machine would make this much easier.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Likes For duanedr:
Old 10-04-20, 08:03 PM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,706 Times in 1,883 Posts
Did you flip the frame to do the other side, or come in from one side. I would like to be able to do it on my mill, but I think that will be tough because it has a fixed head and I don't think it has enough room to get the bike in there.
unterhausen is offline
Old 10-04-20, 10:37 PM
  #8
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 561
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 71 Times in 62 Posts
Not sure if this is what you are looking for but wheels manuf makes various BBs for the T47 flush and out board bearings.

https://wheelsmfg.com/bottom-brackets/t47.html

From looking at the Paragon site it seems that T47 has taken the place of the press fit BBs and they no longer make any PF bbs except PF30.

If you are looking for a wide BB Paragon has T47 up to 108mm wide, this can't be used with a Sram crank but some of the smaller vendors such as race face make cranks with a wider spindle which can be adjusted for chainline with shims between the crank and BB. Also the Q factor will be wider but it will give you more crank clearance.

Last edited by wsteve464; 10-04-20 at 11:21 PM.
wsteve464 is offline
Likes For wsteve464:
Old 10-05-20, 05:23 AM
  #9
Canaboo
Full Member

Join Date: Dec 2009
Posts: 478
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by helixbikes View Post
Forgive my n00b'ishness:

I'm trying to build a clone of https://yeticycles.com/bikes/arc - but am confused about one aspect: The ARC uses a SRAM DUB BB92 to fit the SRAM X1/XX1 crankset - which has a 91.5mm shell width, with boost spacing. For reference, I build with bamboo, and have built all my frames so far as BSA68's, but had issues with fitting larger tires.

I went shopping for where I could buy a BB92 shell, and it seems like no one sells pressfit shells. (I assume this is for a good reason, but can't figure it out): Nova, Paragon, Frame Builder Supply, eBay, TiCycles, BikeFabSupply don't appear to stock them. However, It seems like T47 shells are pretty easy to come by in this width (92.5mm, to allow for facing). My concern is that SRAM doesn't list T47 DUB as supported for X1/XX1, but I can't see why not: https://www.sram.com/en/sram/models/fc-xx-1-c2 mentions only:

* DUB:BSA73
* PF89.5
* PF92
* PF30 MTB73
* BB30 MTB73
* BSA MTB68SP

I assume based on this that I should probably just buy a 73mm shell to get the most space for the chain stays (because I also have to watch out for pedal strike), but I'm just genuinely curious - why are press-fit shells unavailable for purchase?

I have 3 ideas, but I'm not convinced of any of them: alignment is difficult, no low-volume builders use PressFit, or PressFit shells are so easy for folks to create out of their DIY frames that selling shells isn't economically viable.
I'm pretty sure Rock West Composites sells carbon PF BB shells in whatever size you need.

This one? https://www.rockwestcomposites.com/s...hell/45295-c92

Last edited by Canaboo; 10-05-20 at 05:28 AM.
Canaboo is offline
Likes For Canaboo:
Old 10-06-20, 06:07 PM
  #10
Canaboo
Full Member

Join Date: Dec 2009
Posts: 478
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by Darth Lefty View Post
. To get tire clearance modern MTB frames have a yoke, but I donít know how to do that with bamboo.
There's a few pretty easy ways of getting around that by using high density foam as a core for a carbon yoke joined to the bamboo or you can aggressively bend bamboo with heat and retain most of it as the core before adding carbon etc over it.
Canaboo is offline
Old 10-07-20, 04:54 PM
  #11
duanedr
Full Member

Join Date: Aug 2012
Location: Seattle
Posts: 470
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 127 Times in 78 Posts
Originally Posted by unterhausen View Post
Did you flip the frame to do the other side, or come in from one side. .
I have one of the small Grizzly mills similar to what Andrew has. The HT was 90mm Paragon so that helped. I used a tube block on the TT near the HT and put it in the vice with the BB up in the air. Then I went at it from the bottom of the HT. I had to stop after doing the bottom seat to extend the boring bar further out of the boring head to get the top seat. It really wasn't that bad to set up with my smallish tools.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Likes For duanedr:
Old 10-26-20, 01:23 PM
  #12
Serenity5
Junior Member

Join Date: Oct 2020
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 0 Times in 0 Posts
nova supply now has press fit bb's 69 and 73mm widths
Serenity5 is offline
Old 10-27-20, 05:04 AM
  #13
Canaboo
Full Member

Join Date: Dec 2009
Posts: 478
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by Serenity5 View Post
nova supply now has press fit bb's 69 and 73mm widths
Those are not finished to final dimensions.
Canaboo is offline
