The painting of lug cut outs

Old 10-14-20, 05:56 PM
  #1
ethet
Catastrophe Merchant
Thread Starter

ethet's Avatar

Join Date: Jul 2015
Location: Tideland
Posts: 197

Bikes: Keirin and a Steamroller

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 86 Times in 23 Posts
The painting of lug cut outs

Hello.

I apologize if this is the wrong place to post this query, though it seemed the most relevant from what one is afforded...

A lugged steel frame is being repainted and I am curious if there are any techniques or advice that might be offered when it comes to painting the lug cut outs in contrast to the frame's general paint. My plan is to just brush it in gently with a bottle of Testors once the initial spray has been completed—though before the clear coat—but am wondering if anyone has any tips or advice on the proper way to apply this detailing.

Thanks so much for any thoughts

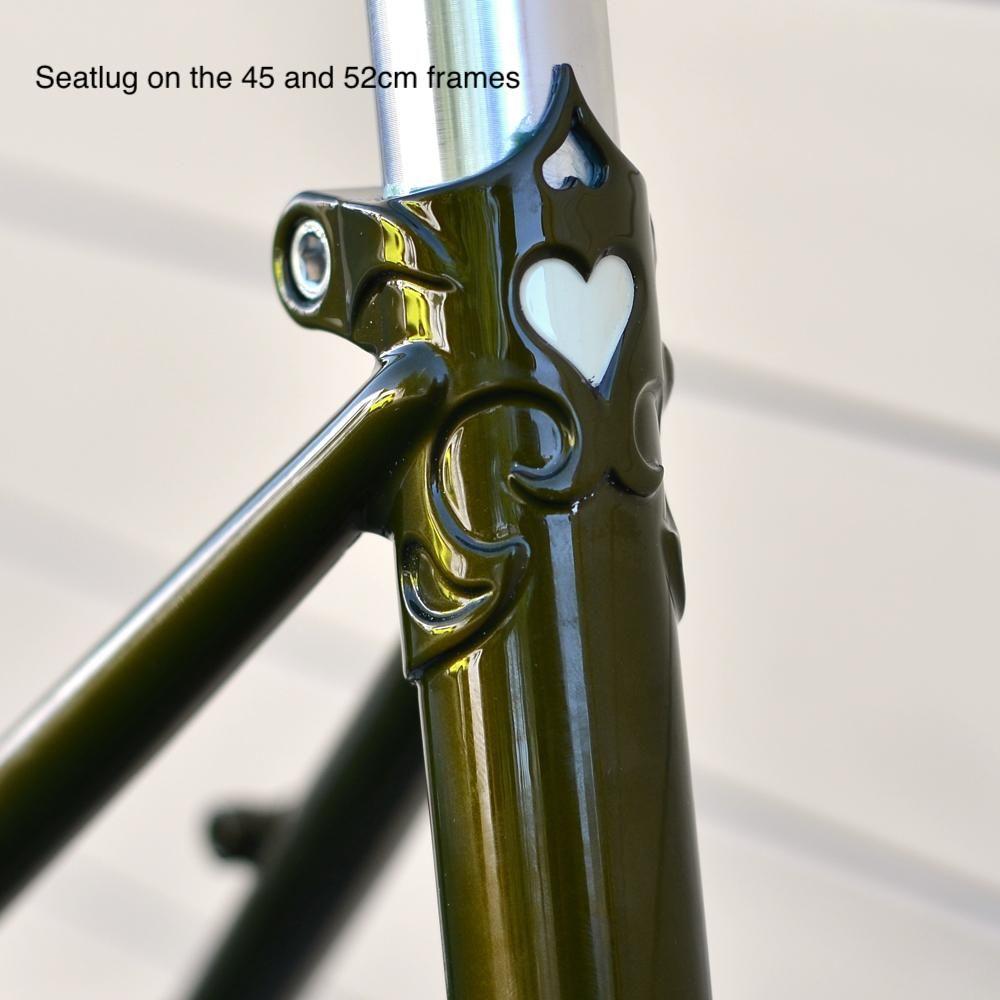

As a reference or point of understanding (acknowledge the contrasting paint in the heart-shaped lug cutout):


Last edited by ethet; 10-14-20 at 06:03 PM. Reason: A silly thing
ethet is offline
Old 10-14-20, 07:42 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,677
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 774 Times in 580 Posts
I don't paint, but Brian Chapman has posted videos of him using a Kemper Fluid Writer for this. Get the large https://www.amazon.com/Large-Fluid-W...e-b06387f8bcf1
unterhausen is offline
Likes For unterhausen:
Old 10-14-20, 07:56 PM
  #3
ethet
Catastrophe Merchant
Thread Starter

ethet's Avatar

Join Date: Jul 2015
Location: Tideland
Posts: 197

Bikes: Keirin and a Steamroller

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 86 Times in 23 Posts
Originally Posted by unterhausen View Post
Kemper Fluid Writer
This is delightful... The precision shown here is exactly what am I hoping to obtain—something a tiny brush doesn't seem best designed for (especially because the lug cutouts of the rear brake bridge seem to be a right nightmare to fill properly with a brush).

I had never known of this device until now; thank you for the recommendation
ethet is offline
Old 10-15-20, 06:02 AM
  #4
Tandem Tom
Senior Member

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,230

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Likes: 0
Liked 41 Times in 35 Posts
I bought the Fluid Writer early this year. It is fantastic for lug lining!!
Tandem Tom is offline
Likes For Tandem Tom:
