CAD templates for cutting lugs?

I've been thinking about custom styles for my cast lugs. I have access to CAD software, and I wonder if creating a template within that software would be a good idea? My idea is to draw out the rough design on the lugs with a graphic pencil, transfer those sketches onto graph paper, bring those designs in CAD for precision(ish) treatment, and finally, take the CAD print outs back to the lugs for cutting. Do others have any thoughts on this process. Perhaps any way to improve the workflow?

I'm aware of irregularities in the lug ODs, which will make the CAD drawing a little problematic, but I think I'm OK with that right now.
bikingman is offline
Old 11-14-20, 12:23 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,677
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 774 Times in 580 Posts
I had some lug designs in solidworks but I never finished them. IIRC, I didn't like the way I cut the profiles. I'm not sure what your plan is, would you try to get them 3d printed?

It's just a cylinder cutting a cylinder, and the outside has a fillet at the intersection. I think you should be able to fillet the intersection in most 3d software, maybe with some hackery involved.

I think it would be interesting to try to use sheet metal tools to make a welded lug like they used to make in the old days. I have always called them "pressed lugs" because of the way they formed the sheet metal. But nowadays you could get them laser cut out of a ductile steel.
unterhausen is offline
Old 11-14-20, 03:17 PM
  #3
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 502
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 348 Times in 196 Posts
Pacenti lugs started as CAD drawings.




He's a good guy and might answer questions if you ask nicely.

Don't bother trying to contact the Pacenti company though. Kirk's partners bought him out ó forcefully, not a friendly split from what I hear. The new owners will be less inclined to help you.

Mark B in Seattle
bulgie is offline
Likes For bulgie:
Old 11-14-20, 03:28 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,677
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 774 Times in 580 Posts
His partners wouldn't know anyway, Kurt was a long-time framebuilder and the lugs predated them.

I get the impression that Darrell McCulloch of Llewellyn bikes also did the cad for his lugs. He's a good guy, might have something to say about it.
unterhausen is offline
Likes For unterhausen:
Old 11-14-20, 03:57 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,159

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2632 Post(s)
Liked 762 Times in 566 Posts
So is bikingman just carving existing lugs or is creating a design to be cast into lugs?

Doug Fattic has had a lot of experience in both carving his own lugs as well as teaching his students how to do so. IIRC he suggests drawing on graph paper and then using a copier to change the scale to that of the actual lug's size.

The two lugs sets I have made in the last couple of years were done with brazing two tubes at the right angle and careful sharpie tracing then cutting/filing. For the one offs that I will do in the future this is the easiest way to get a properly angled lug in a shape I want. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 11-14-20, 06:22 PM
  #6
bikingman
Senior Member
Thread Starter

Join Date: Sep 2012
Posts: 133
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
So is bikingman just carving existing lugs or is creating a design to be cast into lugs?

Doug Fattic has had a lot of experience in both carving his own lugs as well as teaching his students how to do so. IIRC he suggests drawing on graph paper and then using a copier to change the scale to that of the actual lug's size.

The two lugs sets I have made in the last couple of years were done with brazing two tubes at the right angle and careful sharpie tracing then cutting/filing. For the one offs that I will do in the future this is the easiest way to get a properly angled lug in a shape I want. Andy
Right now, I plan to start with existing cast lugs for the experience and in time, move onto building/cutting or casting my own. I want to cut the lugs using a customized design built off a template that can be modified on-the-fly in CAD. I know it's not ideal, but it's all I can do right now. Others are way ahead of me in brazing experience. I started with graphite pencil but realized there could be flaws in the dimension. I'm looking for symmetry and that generalized template, so I feelCAD might be a good option.
bikingman is offline
Old 11-14-20, 06:22 PM
  #7
bikingman
Senior Member
Thread Starter

Join Date: Sep 2012
Posts: 133
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by bulgie View Post
Pacenti lugs started as CAD drawings.




He's a good guy and might answer questions if you ask nicely.

Don't bother trying to contact the Pacenti company though. Kirk's partners bought him out ó forcefully, not a friendly split from what I hear. The new owners will be less inclined to help you.

Mark B in Seattle
These are beautiful
bikingman is offline
Old 11-14-20, 06:32 PM
  #8
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,677
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 774 Times in 580 Posts
I think I like this idea, but I probably would use inkscape or illustrator to do it. That's what I have done when I made silly patterns for my model airplane skins.
unterhausen is offline
Old 11-14-20, 07:29 PM
  #9
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 359 Times in 157 Posts
Originally Posted by Andrew R Stewart View Post
Doug Fattic has had a lot of experience in both carving his own lugs as well as teaching his students how to do so. IIRC he suggests drawing on graph paper and then using a copier to change the scale to that of the actual lug's size.
I've always been interested in carving personal designs into blank lugs. This inspiration started when I bought a Hechins on Seven Sisters road in London in 1969. Every since I learned how to build frames, I've thought about methods to both design and carve. What I've found that works best for me is to start with a flat graph paper template for each socket. By making the templates twice life size, it is much easier to draw and correct and adjust the proportions. These adjustments seem easier drawing by hand over doing them by CAD. Because each socket has different dimensions, it is easier for me to customize each pattern to fit the available space. I like to use Vellum paper which is somewhat translucent and can be erased many times without damaging it. Once the design has been finalized, I use my laser printer/copy machine to reduce the lug drawing back to life size on either more vellum or label paper. This reduction also sharpens the lines.

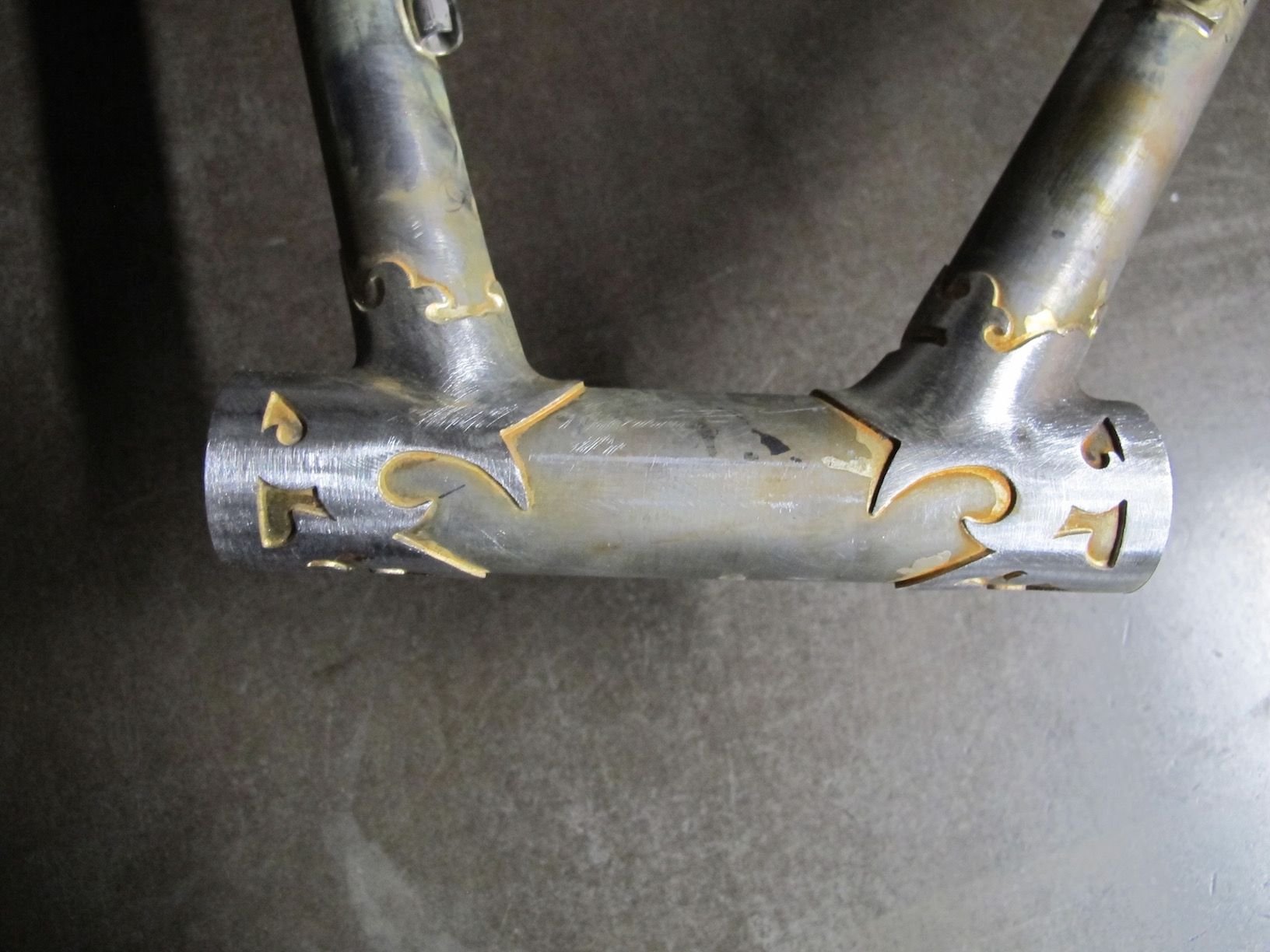

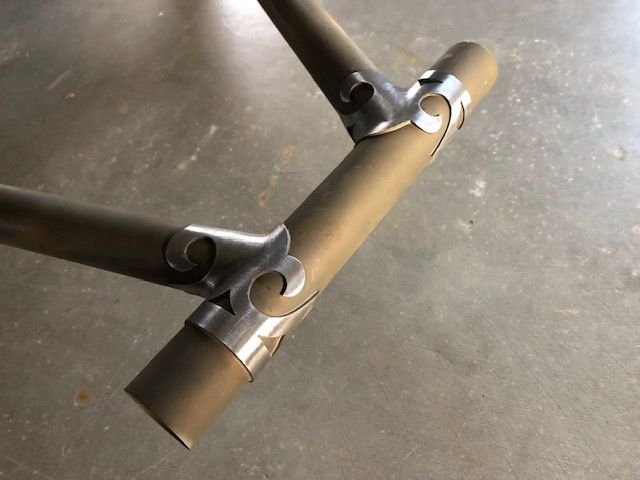

Many of my frame building class students have carved their own lug designs. I'll attach a few pictures to show some of that work. Some designs were pretty complex while others were simple.



Doug Fattic is offline
Likes For Doug Fattic:
Old 11-14-20, 08:30 PM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,159

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2632 Post(s)
Liked 762 Times in 566 Posts
Like many who initially ask here, soon you'll be the expert we all reference.

The last bit I'll mention is that cast lugs are fairly angle range challenged. I would suggest that any angle changes are taken into account WRT the carving. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 11-15-20, 02:08 PM
  #11
Tandem Tom
Senior Member

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,230

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Likes: 0
Liked 41 Times in 35 Posts
Doug taught me how to carve lugs during my class. I remember spending 8 hours on a single lug. I still have cramps min my hands!!! But the bike looks great!
Tandem Tom is offline
Likes For Tandem Tom:
Old 11-29-20, 06:36 PM
  #12
bikingman
Senior Member
Thread Starter

Join Date: Sep 2012
Posts: 133
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Doug Fattic View Post
I've always been interested in carving personal designs into blank lugs. This inspiration started when I bought a Hechins on Seven Sisters road in London in 1969. Every since I learned how to build frames, I've thought about methods to both design and carve. What I've found that works best for me is to start with a flat graph paper template for each socket. By making the templates twice life size, it is much easier to draw and correct and adjust the proportions. These adjustments seem easier drawing by hand over doing them by CAD. Because each socket has different dimensions, it is easier for me to customize each pattern to fit the available space. I like to use Vellum paper which is somewhat translucent and can be erased many times without damaging it. Once the design has been finalized, I use my laser printer/copy machine to reduce the lug drawing back to life size on either more vellum or label paper. This reduction also sharpens the lines.

Many of my frame building class students have carved their own lug designs. I'll attach a few pictures to show some of that work. Some designs were pretty complex while others were simple.



Doug, these are incredible for students and exactly what I'd like to shoot for in custom lug design. I've started the process of building CAD templates, using tube miter print outs from BikeCAD Pro that have been adjusted to fit the OD of the lug instead of the ID. I'm finding that it's a little tricky to get the custom curves symmetrical. That might be better off done by hand. I may pivot my process to printing out blank templates from CAD and drawing the designs by hand, then shipping those draft designs back to CAD for touch-ups/precision pointing.
bikingman is offline
Old 11-29-20, 09:08 PM
  #13
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 359 Times in 157 Posts
My experience has shown that it is easier to draw and then refine a design than do it all in CAD. Actually Iíve tried to get those experienced in both CAD and art to create a design totally in CAD and they have struggled to get it just right. What I have discovered is that very small changes in the lines can have a fairly significant overall impact. What I do is shade in a thicker line and then erase part of it until the proportions of a thinned line looks right. It is essential to do this at 200% actual size where bigger adjustments have a smaller impact and easier to control. Each lug socket has a different amount of space and shape. That requires some fiddling to get them all to play nicely so they look right together. Of course reducing the drawing to life size and trying it out on a lug can revel if things look right. A curved surface lug gives a different appearance than a larger flat drawing.

Doug Fattic is offline
Likes For Doug Fattic:
Old 12-03-20, 07:32 PM
  #14
Tandem Tom
Senior Member

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,230

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Likes: 0
Liked 41 Times in 35 Posts
When I took Doug's class I carved my lugs. A lot of work but I get to enjoy them on every ride!
Tandem Tom is offline
Likes For Tandem Tom:
