cracked seattube

Old 01-06-21, 05:08 AM
  #1
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post
cracked seattube

Hi,

I have a couple of cracked seattubes of our frames in the last couple of years. The first two had a shim inside, so we blamed it on the shim. But this week we got another one without a shim.
I only design the frames, buy the tubes and have them made by other companies. And this specific type is on the market since 2002 and about 1000 pieces have been made.
The seattube is 31.8x0.9 4130. And the seatpost is 30.0 mm.
The frames is 3 years old , and the rider is about 75 kg.
The position of the crack is where the seatpost ends.

My questions:
Where does the stress come from that causes the crack? Why doesn't the other side crack?



marcow is offline
Old 01-06-21, 05:44 AM
  #2
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post

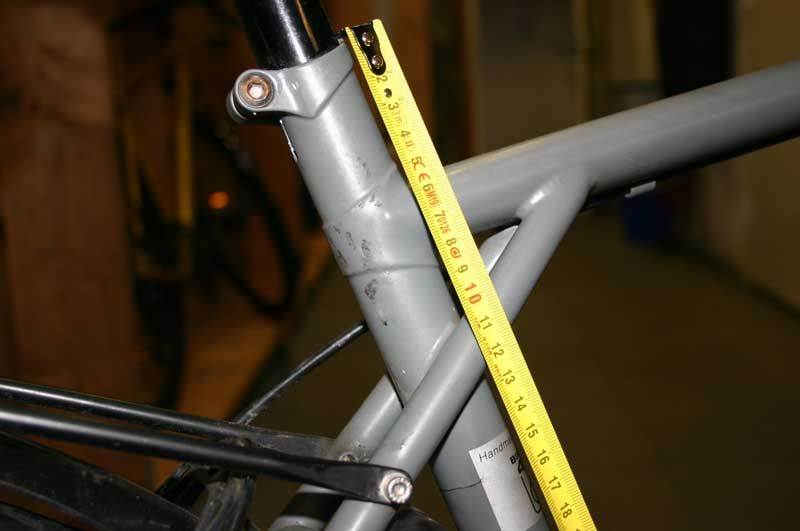

Here's one from last year.
Same tube and material. Shim was used with a Thudbuster seatpost.
The crack is at 80 mm from the top. This is the shim length.


I think this rules out that the cause has anything to do with movement of the bottom part of the seattube.
This specific bike has a Pinion gearing system. (but I don't think that has anything to do with it)
I also had another frame from this type. Also with Pinion, shim and a Thudbuster seatpost. But the shim was 100 mm instead of the above 80 mm.
The crack there was also 20 mm down.

Last edited by marcow; 01-06-21 at 07:42 AM. Reason: extra info
marcow is offline
Old 01-06-21, 08:27 AM
  #3
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 2,127

Bikes: Ti, Mn Cr Ni Mo Nb, Al, C

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 906 Post(s)
Liked 494 Times in 333 Posts
How long is the seat post being used? does it end where the crack begins?
jadocs is offline
Old 01-06-21, 08:34 AM
  #4
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post
It's a 300 mm seatpost. And it ends at the crack.
marcow is offline
Old 01-06-21, 09:10 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,874
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 880 Times in 656 Posts
I have to think about this more, but the first thing that occurred to me is that there could be stress built into the frame. It would have to be in such a way that the rear of the seat tube was in tension. Then the compression from the rider leads to tension/compression cycles, which are the worst possible case for fatigue crack growth.

Do you know the order of operations? It seems like doing the top tube join first would possibly lessen the tension in the frame. If they do the side tack on the seat tube first, then the seat tube will be put in tension when they did the top tube.

Last edited by unterhausen; 01-06-21 at 09:13 AM.
unterhausen is offline
Old 01-06-21, 09:10 AM
  #6
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post

Mystery almost solved. Bad tube.
Wall thickness varies from 0.47 to 1.4 mm
marcow is offline
Old 01-06-21, 09:20 AM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,874
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 880 Times in 656 Posts
Good job. Problems with distortion leading to heavy reaming.
unterhausen is offline
Old 01-06-21, 09:31 AM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,335

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2694 Post(s)
Liked 866 Times in 632 Posts
Very good thread! I much like that marcow did more then post images and ask about this. When we made the Helenic frames at Cyclery North we had some concerns about seat tube walls and post fit too. I did see a different shop's attempt at a helenic that cracked at the stay/seat tube joint. We assumed it had been over heated, knowing the person who did the work as we did. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-06-21, 11:17 AM
  #9
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post
Originally Posted by unterhausen View Post
I have to think about this more, but the first thing that occurred to me is that there could be stress built into the frame. It would have to be in such a way that the rear of the seat tube was in tension. Then the compression from the rider leads to tension/compression cycles, which are the worst possible case for fatigue crack growth.

Do you know the order of operations? It seems like doing the top tube join first would possibly lessen the tension in the frame. If they do the side tack on the seat tube first, then the seat tube will be put in tension when they did the top tube.

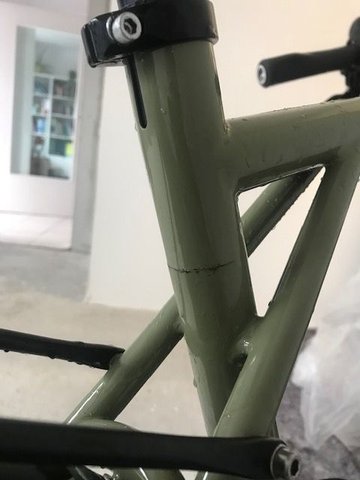

That's what we tought at frame nr 1.(the green one) It was a normal frame, that was locally converted with a Pinion bridge. The welder admitted that he might have bended the tube a little to make it fit.
Then nr 2 appeared. This was also a Pinion frame, but this one was build around the Pinion Bridge, and was not a conversion. Done by a different framebuilder. This doesn't rule out the tension, but makes it less obvious.

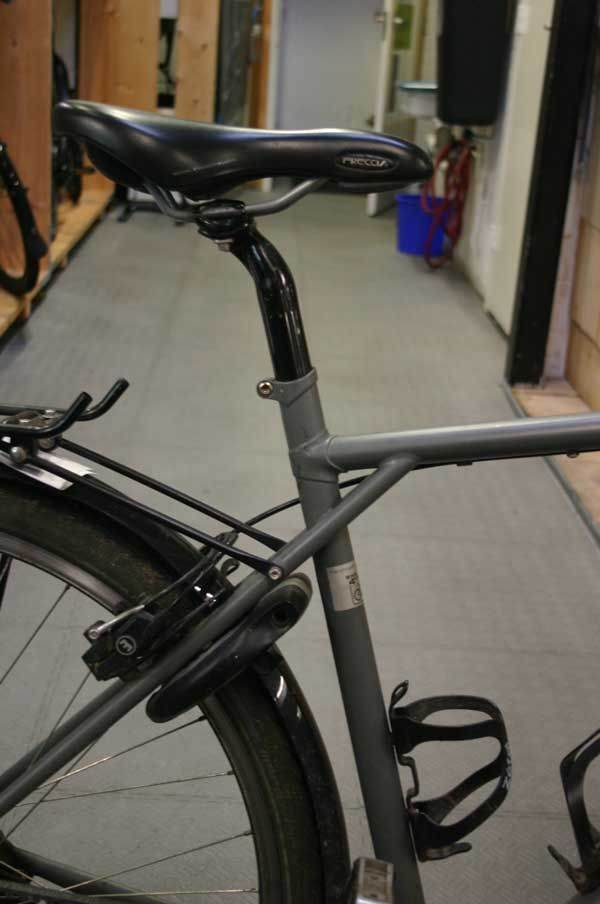

Frame nr 3 (the grey one in the first post). I don't know how they build it.
marcow is offline
Old 01-06-21, 11:21 AM
  #10
marcow
Junior Member
Thread Starter

Join Date: Oct 2017
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 4 Times in 1 Post
Originally Posted by unterhausen View Post
Good job. Problems with distortion leading to heavy reaming.
Not too much reaming. (not more than 0.05 mm that I can measure)
But it is strange that I measure 1.4 mm on one side, that is supposed to be 0.9 mm.
Somehow the internal diameter is off center.

Last edited by marcow; 01-06-21 at 11:25 AM. Reason: typo
marcow is offline
Old 01-06-21, 06:15 PM
  #11
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,874
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 880 Times in 656 Posts
Okay, you can see that in your pic. I assume it's not high-end tubing? Do you mind saying what brand?

Almost makes me want to get a water table and doing an ultrasonic thickness inspection every tube.
unterhausen is offline
Old 01-06-21, 06:43 PM
  #12
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 391

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 152 Times in 89 Posts
seattube fracture.

after finding a hairline crack on an '85 Falcon in an unstressed area it too had me stumped-till I shined a light in to the tube.a very thin wall in the same area as the fracture.guess its not uncommon to have bad tubes of varying thickness.
'02 nrs is offline
Old 01-07-21, 01:09 AM
  #13
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,874
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 880 Times in 656 Posts
That's not really unstressed area on that Falcon though, seeing how it's close to the area squished by the binder bolt. How far did the crack go?
unterhausen is offline
Old 01-07-21, 09:54 AM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,335

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2694 Post(s)
Liked 866 Times in 632 Posts
The Falcon's crack is exactly where the temp control during brazing can be hard to do, twice. I wonder if there's a slight bulge outward of the ST just below the lug's edge. I can't count how many frames I've felt that heat distortion about a finger length down the ST. Both of the frames I have made that suffered cracks did right there too. Both times I knew I cooked the ST. One cracked before the paint, one after many thousands of miles and many years. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
