Threadless stem conversion

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Threadless stem conversion

Old 01-19-21, 09:39 AM
  #1
guy153
Senior Member
Thread Starter

Join Date: Dec 2019
Posts: 512
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked 99 Times in 81 Posts
Threadless stem conversion

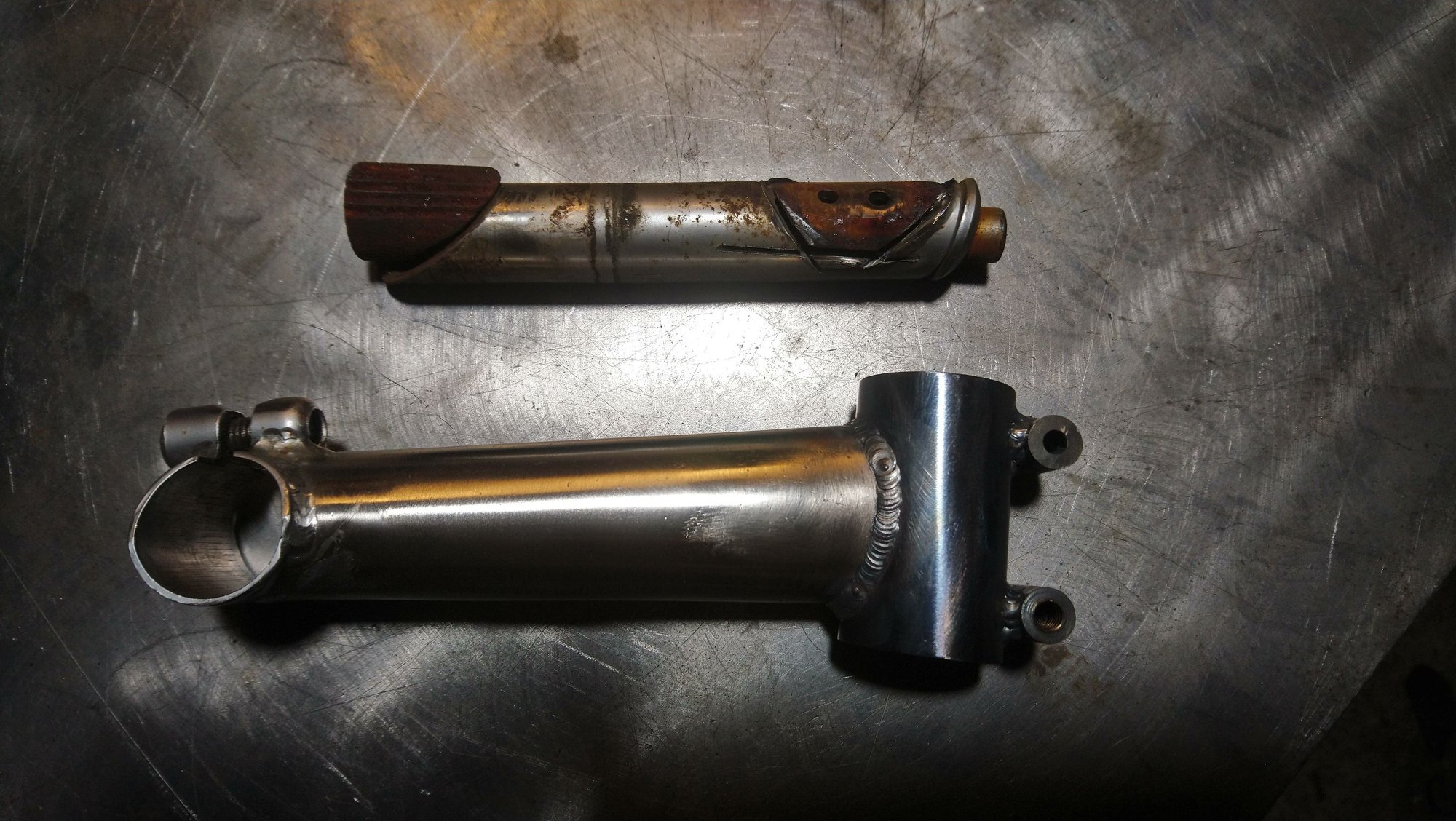

And I do mean literally. I must be the only person mad enough to have converted a low-end quill stem to threadless like this. Seems to have worked out pretty good though. I'm thinking of welding the very 90s bar-ends onto the actual handlebar (also made of steel but painted to look like aluminium) a bit further in for a sort of soft-road gravel-cross/adventure semi-aero position.

guy153 is offline
Likes For guy153:
Old 01-19-21, 09:44 AM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,882
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 885 Times in 658 Posts
You probably are the only person ever to do this
unterhausen is offline
Old 01-19-21, 09:52 AM
  #3
guy153
Senior Member
Thread Starter

Join Date: Dec 2019
Posts: 512
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked 99 Times in 81 Posts
Just realized my custom bar end idea isn't going to work unless I weld them on after attaching the bar to the stem and don't mind that it's never coming off again.

Which I don't really. Was originally going to make this stem with a bit of old steerer and just weld to the handlebar instead of making a clamp. But the original stem looked stiffer being ovalized.
guy153 is offline
Old 01-19-21, 12:13 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,882
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 885 Times in 658 Posts
Weld another pinch bolt on there and make the faceplate removable
unterhausen is offline
Old 01-19-21, 12:30 PM
  #5
guy153
Senior Member
Thread Starter

Join Date: Dec 2019
Posts: 512
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked 99 Times in 81 Posts
Originally Posted by unterhausen View Post
Weld another pinch bolt on there and make the faceplate removable
That's the other option but it might need two pinch bolts. Just one at the top and one at the bottom might be too sketchy for when I'm sending it, laying waste to the trail etc. Stems that are like that usually have four bolts (although they're usually also aluminium).

​​​​​​There's really nothing wrong with having the handlebar and stem one-piece. The only reason they're not usually is just so you can swap parts around which I don't plan on doing.

Not decided yet whether to do inboard bar ends. It seems they might work quite well for ergonomics.
guy153 is offline
Old 01-19-21, 12:34 PM
  #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,882
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 885 Times in 658 Posts
it seems to me that whenever I decide I'm not going to have to take something apart, that is quickly overcome by events. You could have the only stem faceplate with 3 bolts.
Or 5
unterhausen is offline
Old 01-20-21, 07:52 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,339

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2697 Post(s)
Liked 870 Times in 634 Posts
We've seen a number of home done set ups with bar ends located inboard of the grips/levers. I have a good friend who's done the same with his Jones barred bike. Although i wouldn't weld the bar ends on as I would want some future adjustment ability. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 01-21-21, 10:17 AM
  #8
guy153
Senior Member
Thread Starter

Join Date: Dec 2019
Posts: 512
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked 99 Times in 81 Posts
Originally Posted by Andrew R Stewart View Post
We've seen a number of home done set ups with bar ends located inboard of the grips/levers. I have a good friend who's done the same with his Jones barred bike. Although i wouldn't weld the bar ends on as I would want some future adjustment ability. Andy
It turns out the bar ends actually fit inboard anyway, using the pinch bolt things they already have. So I'll probably try inboard, but no need for me to ruin everything by welding it all together at this point!
guy153 is offline
