Simple carbon fork extension for scooter

Old 04-08-22, 09:26 AM
  #26
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 473
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
I think you would have been better off just buying aluminum close to the final shape needed and drilled and bolted them to the existing forks. If they worked you could then take them apart and refine the shape a bit.
Canaboo is offline
Old 04-08-22, 11:20 AM
  #27
scottfsmith
I like bike
Thread Starter

scottfsmith's Avatar

Join Date: Feb 2021
Location: Merry Land USA
Posts: 468

Bikes: Roubaix Comp 2020

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 206 Times in 134 Posts
Originally Posted by Canaboo View Post
I think you would have been better off just buying aluminum close to the final shape needed and drilled and bolted them to the existing forks. If they worked you could then take them apart and refine the shape a bit.
Maybe for experimenting I could do that. I could get a bunch of fork shapes cut in aluminum and try different setups until I hit the optimal, then do that one in carbon. I think the carbon will save around 200g on the weight and it should be much stronger. At the sendcutsend place it looks like fork shapes will be $1.25 each.. so I could get a large number of them.

The O.L.D on the wheel would have to be different since the aluminum bolted to the outside would widen the gap, but I could just put some washers on the axle to compensate.
scottfsmith is offline
Old 04-08-22, 02:21 PM
  #28
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,507

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1740 Post(s)
Liked 1,368 Times in 830 Posts
While not a frame builder yet, I have built a lot of things over the years (included hacked roller set up so a luge sled could be used for training on roads).

My concern, especially i used for skate style vs classic nordic style, that there will be a lot of lateral forces in play, and with the amount on length added to fit the larger wheels that unless using really thick plate, there will be way to much flex, especially with 16 in wheels

maybe flat, with stiffener welded on outside, but that sound's like it is going beyond OP's current shop toolset

Doesn't hurt to try,
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 04-08-22, 04:43 PM
  #29
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,914

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 2754 Post(s)
Liked 1,577 Times in 1,029 Posts
As you design, don’t conflate stiffness with strength and don’t forget about either. You need more of both just because it’s a longer arm from the platform to the wheel. If you replace steel with carbon the carbon has to be thicker… it’s “stronger” and “stiffer” per weight but much less dense.
__________________
Genesis 49:16-17
Darth Lefty is online now
Old 04-08-22, 08:51 PM
  #30
scottfsmith
I like bike
Thread Starter

scottfsmith's Avatar

Join Date: Feb 2021
Location: Merry Land USA
Posts: 468

Bikes: Roubaix Comp 2020

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 206 Times in 134 Posts
Originally Posted by Darth Lefty View Post
As you design, don’t conflate stiffness with strength and don’t forget about either. You need more of both just because it’s a longer arm from the platform to the wheel. If you replace steel with carbon the carbon has to be thicker… it’s “stronger” and “stiffer” per weight but much less dense.
My impression was the modulus of elasticity (stiffness) and tensile strength (strength) were not scaled by density, they were absolute numbers. Specific stiffness and specific strength are the per-density ones. Carbon has similar stiffness to aluminum and more than 2x the strength. I am mainly worried about strength in my design as I don't think there will be much unwanted elasticity. So, it seems like with the same thickness of carbon as with the current aluminum I should get 2x the strength which should be OK for the longer forks. This is for the 12" wheels, for 16" wheels it may need something thicker.

Or so is my impression of this stuff.. I'm no expert. I am using this page as a reference.

Re: how much stiffness is needed, I don't think it matters all that much as there are not many side-to-side forces on these skates. You are not twisting in NCS, it is not like downhill skiing. Having less stiffness will in fact be good I think, for the up-and-down forces for which some dampening would be good.

Last edited by scottfsmith; 04-08-22 at 08:57 PM.
scottfsmith is offline
Old 04-09-22, 12:21 AM
  #31
guy153
Senior Member

Join Date: Dec 2019
Posts: 799
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Liked 202 Times in 166 Posts
Originally Posted by Darth Lefty View Post
As you design, don’t conflate stiffness with strength and don’t forget about either. You need more of both just because it’s a longer arm from the platform to the wheel. If you replace steel with carbon the carbon has to be thicker… it’s “stronger” and “stiffer” per weight but much less dense.
The two are related in this case because lack of stiffness can cause the structure to deform meaning it's loaded differently and therefore breaks. Basically if it bends it might break (in the case of CF) or yield (if Al).

It's a bit like if you do the math you will find that in theory you could stand up vertically on a piece of TIG wire. In theory the strength is there. But a tiny perturbation and you won't be loading it straight down any more so of course it will bend.
guy153 is offline
Old 04-09-22, 05:29 AM
  #32
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,106
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 611 Times in 382 Posts
This seems to have really gone into the weeds with all the theoretical discussion of strength and stiffness. Sometimes you just have to build it and see if it works.
dsaul is offline
Old 04-09-22, 10:20 AM
  #33
scottfsmith
I like bike
Thread Starter

scottfsmith's Avatar

Join Date: Feb 2021
Location: Merry Land USA
Posts: 468

Bikes: Roubaix Comp 2020

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 206 Times in 134 Posts

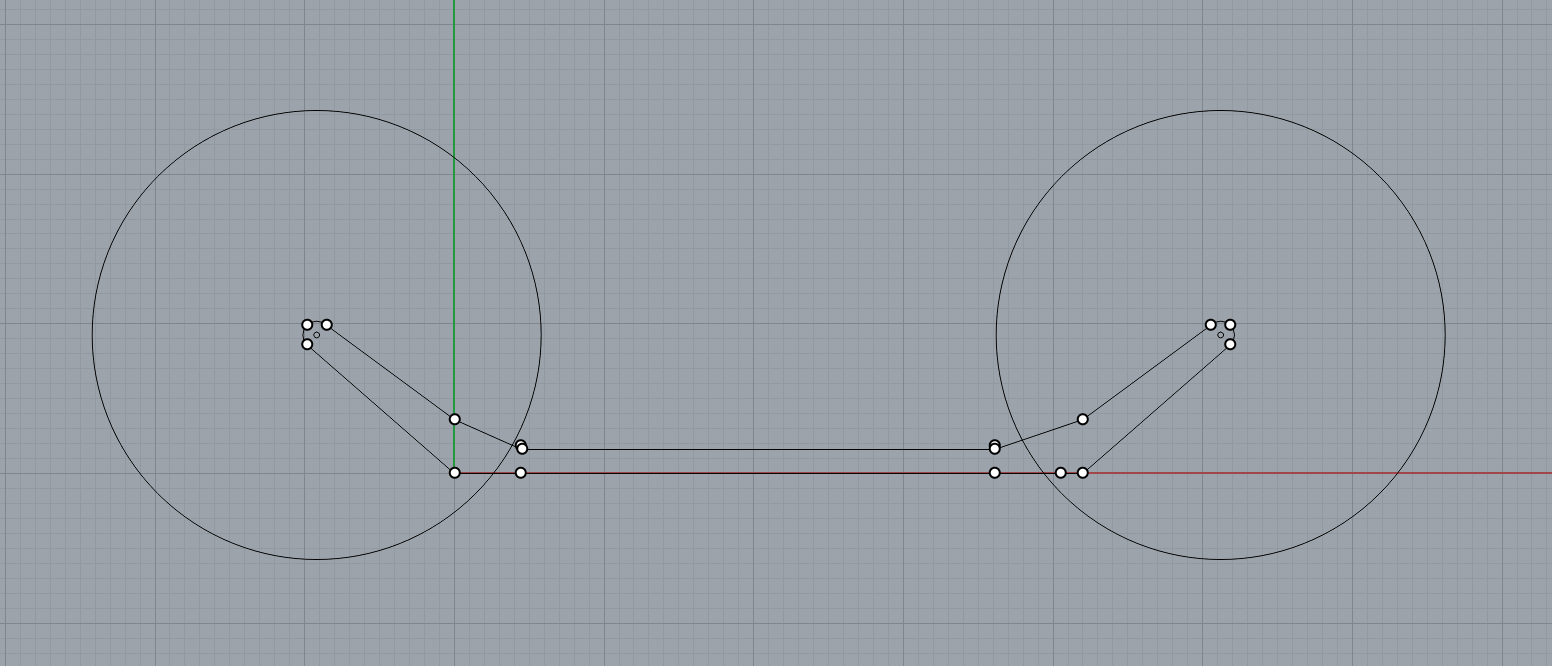

Indeed. I decided to order some full side panels in aluminum and use those to prototype. Its $12 a panel including materials, cutting, shipping, and tax .. it seems worth the cost to get a realistic prototype. Here is my simple design if you are curious. I had to learn a few more features of my CAD program to get this done.

scottfsmith is offline
