angle markings on lugs

Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

angle markings on lugs

Old 02-05-23, 10:08 AM
Senior Member
Thread Starter
juvela's Avatar
Join Date: Feb 2013
Location: Alta California
Posts: 12,998
Mentioned: 376 Post(s)
Tagged: 1 Thread(s)
Quoted: 3293 Post(s)
Liked 2,246 Times in 1,560 Posts
angle markings on lugs

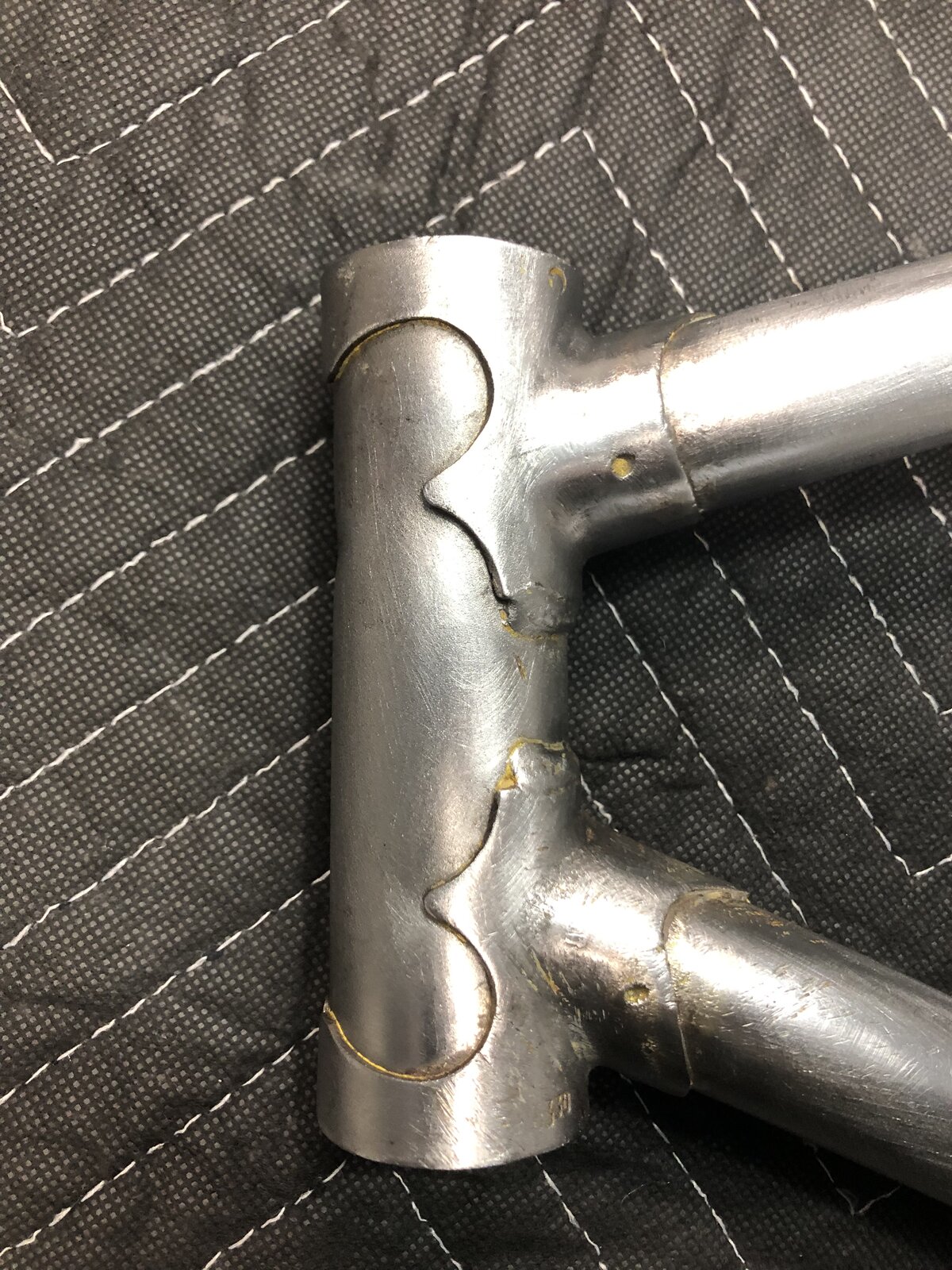

this is a german built muscle bike frame from the late 1960's

note the ESGE plate style bridges


it was badged as Brillant (not a typo)

the upper head lug carries a "74" angle marking, nothing unusual there


the lower head lug carries a "6330" angle marking with the "63" in a larger font than the "30" to indicate 63 degrees and thirty minutes(!)


has anyone else ever encountered and angle marking on a lug which goes down to minutes?


Last edited by juvela; 02-05-23 at 10:56 AM. Reason: addition
juvela is online now
Old 02-05-23, 10:26 AM
Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,446
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,961 Times in 2,034 Posts
I have seen it on Nervex BB. This is probably more of a C&V question. Since the advent of investment cast lugs in the late '70s, multiple lug sizes don't generally exist. You still see degree markings sometimes. Just something else to clean up.
unterhausen is offline
Old 02-05-23, 12:01 PM
Andrew R Stewart
Senior Member
Andrew R Stewart's Avatar
Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,308

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3878 Post(s)
Liked 3,096 Times in 1,892 Posts
What is a frame builder's aspect is the welded spots along the head lugs. I have seen this as a method of tacking before brazing but on low cost Asian made bikes from the 1970s/1980s. There's verry little new under the frame making sun.

I hope the OP isn't assuming that the actual geometry numbers that the frame factory built to are what the lug manufacturer stamped on the lugs. Given the rather crude brazing and finishing (head tube facing as example) I wouldn't assume much. Andy
Andrew R Stewart is offline
Likes For Andrew R Stewart:
