Bottom Bracket Lug - common crack location?
02-25-23, 12:42 PM
#1
BIKE RIDE
Thread Starter
Join Date: Jun 2014
Location: Michigan
Posts: 1,588
Bikes: my very own customized GUNNAR CrossHairs
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 244 Times
in
164 Posts
Bottom Bracket Lug - common crack location?
1989 Panasonic Mountain Cat
NDS chainstay at the bottom bracket.
Is this a location anyone has seen develop a crack?
I’ve had 2 TIG welded frames crack in this area. One a 25ish year old RockHopper. The other a couple of year old Gunnar CrossHair I had purchased new. Gunnar repaired at no cost to me.
This Panasonic I bought last year to use as my dirty road camper/tourer for 2023. While cleaning and frame savering I noticed this hair line on the lug that won’t scrape off. My thumb nail will catch on it.
When I flex the rear triangle it does not look too change. I suppose I could remove the paint….
So now what? Ride and keep an eye on it? Try to convince my wife I should buy an even older StumpJumper for sale an hour away for $500?
Contract Assenmacher to replace the lug? He’s not painting last time I checked, so I’ll have to rattle can it after….
Thanks.

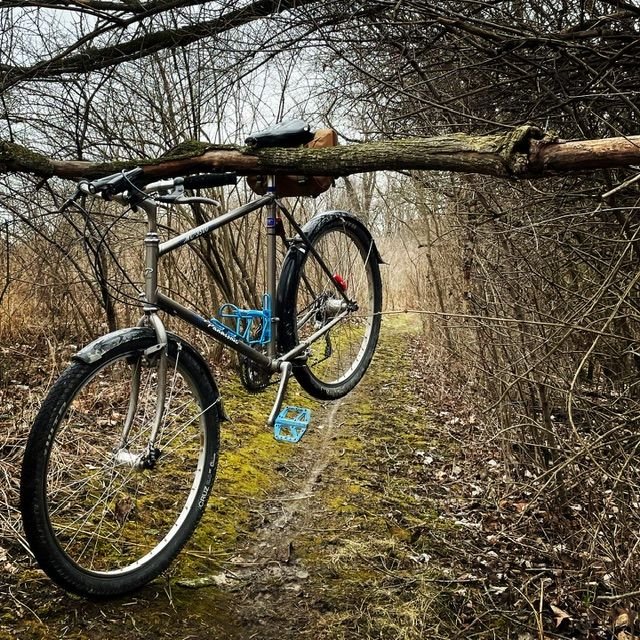

In the wild this fall….
PS - this frame is spaced 130 mm for rear hub. As received it had a 130mm wheel installed. I upgraded to a different set and changed the hub to 130. White Industries has spacers to do that. They are great to work with.
NDS chainstay at the bottom bracket.
Is this a location anyone has seen develop a crack?
I’ve had 2 TIG welded frames crack in this area. One a 25ish year old RockHopper. The other a couple of year old Gunnar CrossHair I had purchased new. Gunnar repaired at no cost to me.
This Panasonic I bought last year to use as my dirty road camper/tourer for 2023. While cleaning and frame savering I noticed this hair line on the lug that won’t scrape off. My thumb nail will catch on it.
When I flex the rear triangle it does not look too change. I suppose I could remove the paint….
So now what? Ride and keep an eye on it? Try to convince my wife I should buy an even older StumpJumper for sale an hour away for $500?
Contract Assenmacher to replace the lug? He’s not painting last time I checked, so I’ll have to rattle can it after….
Thanks.
In the wild this fall….
PS - this frame is spaced 130 mm for rear hub. As received it had a 130mm wheel installed. I upgraded to a different set and changed the hub to 130. White Industries has spacers to do that. They are great to work with.
Last edited by mrv; 02-25-23 at 12:47 PM.
02-25-23, 12:52 PM
#2
Senior Member
Join Date: Oct 2014
Location: Portland, OR
Posts: 11,862
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 4157 Post(s)
Liked 3,147 Times
in
2,044 Posts
Not a framebuilder but I'd guess replacing the bottom bracket is probably harder than building a frame from scratch. Now I have broken chainstays (behind the bridge; not at the BB. The bike rode OK with the broken chainstay. So if I were you, I;d just ride it and keep an eye on the crack. (If it does go, you will have that bridge keeping things together, at least for a while so I don't think you have anything to fear unless big time descents are in your future.)
Now,if this were at the front end of the bike, I'd take a much keener interest in that crack, mark the ends and watch carefully for growth.
Now,if this were at the front end of the bike, I'd take a much keener interest in that crack, mark the ends and watch carefully for growth.
Likes For 79pmooney:
02-25-23, 01:20 PM
#3
BIKE RIDE
Thread Starter
Join Date: Jun 2014
Location: Michigan
Posts: 1,588
Bikes: my very own customized GUNNAR CrossHairs
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 244 Times
in
164 Posts
Not a framebuilder but I'd guess replacing the bottom bracket is probably harder than building a frame from scratch. Now I have broken chainstays (behind the bridge; not at the BB. The bike rode OK with the broken chainstay. So if I were you, I;d just ride it and keep an eye on the crack. (If it does go, you will have that bridge keeping things together, at least for a while so I don't think you have anything to fear unless big time descents are in your future.)
Now,if this were at the front end of the bike, I'd take a much keener interest in that crack, mark the ends and watch carefully for growth.
Now,if this were at the front end of the bike, I'd take a much keener interest in that crack, mark the ends and watch carefully for growth.
I do have a couple of far-ish from home treks planned for the late summer - Katy Trail in Missouri, and some rail-trail stuff a few hours away in Michigan. Worst case I'm pulling out a credit card at a bike shop near the Katy trail. Or my wife comes and picks me up and we make a mini-vacation of it.
Keeping an eye on it is my first thought. When I had BB-cracks before, the shifting went wonky first. Neither time was I far from home though.
02-25-23, 01:29 PM
#4
Senior Member
Join Date: Oct 2014
Location: Portland, OR
Posts: 11,862
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 4157 Post(s)
Liked 3,147 Times
in
2,044 Posts
Your crack is on the non-drive side so even if it fails, your gears ought to work pretty well.
Those big Lower Mitten climbs - I lived at the summit of Ann Arbor' s mountain for two years. In those days I was superman and could make that massive ascent on my 42-17 fix gear.
Those big Lower Mitten climbs - I lived at the summit of Ann Arbor' s mountain for two years. In those days I was superman and could make that massive ascent on my 42-17 fix gear.
02-25-23, 01:30 PM
#5
BIKE RIDE
Thread Starter
Join Date: Jun 2014
Location: Michigan
Posts: 1,588
Bikes: my very own customized GUNNAR CrossHairs
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 244 Times
in
164 Posts
ouch: $250 for a BB replacement: https://www.assenmachers.com/about/2...rame-pg171.htm
- not a lot for a repair - just a lot when I can get a beautiful refurbed Peugeot Orient Express for $500 - and I think it's the exact same frame!
- not a lot for a repair - just a lot when I can get a beautiful refurbed Peugeot Orient Express for $500 - and I think it's the exact same frame!
02-25-23, 07:04 PM
#6
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,341
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3888 Post(s)
Liked 3,117 Times
in
1,904 Posts
1- The scratch doesn't look like the typical cracks that happen to a lugged BB, much more like a simple scratch from a sharp pointed something. So I suggest riding the bike and just keep an eye on this to be sure.
2- Replacing a BB shell is a big effort and one that many builders won't seek out. Replacing BB shell on a French frame? - Bike Forums Is a thread on this that just happens to be current.
3- I sold Panasonics for a bunch of years back in the day. Perhaps one of the better production bikes WRT joining quality and consistency that I have handled. Andy
4- $250 is what I would consider a low price for a shell replacement. I suspect Matt A isn't doing this to make "real" money... Andy
2- Replacing a BB shell is a big effort and one that many builders won't seek out. Replacing BB shell on a French frame? - Bike Forums Is a thread on this that just happens to be current.
3- I sold Panasonics for a bunch of years back in the day. Perhaps one of the better production bikes WRT joining quality and consistency that I have handled. Andy
4- $250 is what I would consider a low price for a shell replacement. I suspect Matt A isn't doing this to make "real" money... Andy
__________________
AndrewRStewart
AndrewRStewart
02-25-23, 07:52 PM
#7
BIKE RIDE
Thread Starter
Join Date: Jun 2014
Location: Michigan
Posts: 1,588
Bikes: my very own customized GUNNAR CrossHairs
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 244 Times
in
164 Posts
Originally Posted by Andrew R Stewart;[url=tel:22812490
22812490[/url]]1- The scratch doesn't look like the typical cracks that happen to a lugged BB, much more like a simple scratch from a sharp pointed something. So I suggest riding the bike and just keep an eye on this to be sure.
2- Replacing a BB shell is a big effort and one that many builders won't seek out. Replacing BB shell on a French frame? - Bike Forums Is a thread on this that just happens to be current.
3- I sold Panasonics for a bunch of years back in the day. Perhaps one of the better production bikes WRT joining quality and consistency that I have handled. Andy
4- $250 is what I would consider a low price for a shell replacement. I suspect Matt A isn't doing this to make "real" money... Andy
2- Replacing a BB shell is a big effort and one that many builders won't seek out. Replacing BB shell on a French frame? - Bike Forums Is a thread on this that just happens to be current.
3- I sold Panasonics for a bunch of years back in the day. Perhaps one of the better production bikes WRT joining quality and consistency that I have handled. Andy
4- $250 is what I would consider a low price for a shell replacement. I suspect Matt A isn't doing this to make "real" money... Andy
02-25-23, 08:05 PM
#8
blahblahblah chrome moly
Join Date: Apr 2009
Location: Seattle
Posts: 1,459
Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 1,723 Times
in
756 Posts
I am 88.5% sure that is not a crack, just a scratch.
The Beatles weigh in:
"Rocky said, Doc it's only a scratch"
"Speaking words of wisdom — Let it be"
Mark B
The Beatles weigh in:
"Rocky said, Doc it's only a scratch"
"Speaking words of wisdom — Let it be"
Mark B
Likes For bulgie:
02-26-23, 05:18 PM
#9
Steel is real
Join Date: Mar 2013
Location: Not far from Paris
Posts: 1,265
Bikes: 1992Giant Tourer,1992MeridaAlbon,1996Scapin,1997KonaKilaueua,1993Peugeot Prestige,1991RaleighTeamZ(to be upgraded),1998 Jamis Dragon(to be built),1992CTWallis(to be built),1998VettaTeam(to be built),1995Coppi(to be built),1993Grandis(to be built)
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Liked 490 Times
in
313 Posts
02-27-23, 05:21 AM
#10
Randomhead
Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,496
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,994 Times
in
2,060 Posts
Cracks almost always happen at the transitions from one tube to another. Something probably got stuck in the wheel and pushed into the bb shell and scratched the paint.
Likes For unterhausen:
