20 inch wheels?

Old 05-22-18, 06:17 PM
  #1
Dake2
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
20 inch wheels?

I am thinking about buying a folding bike with 20 inch wheels. But I am having trouble getting my head around the physics of riding a bike with 20 inch wheels. Using the same gear ratio as I would use riding my bike with 700c wheels, and turning the same number of revolutions per minute, how much slower will I be going on the 20 inch wheels if I am riding at 15 miles per hour on the 700c wheels. Thanks

Last edited by Dake2; 05-22-18 at 08:36 PM.
Dake2 is offline
Old 05-22-18, 06:25 PM
  #2
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Dake2 View Post
I am thinking about buying a folding bike with 20 inch wheels. But I am having trouble getting my head around the physics of riding a bike with 20 inch wheels. Using the same gear ratio as I would use riding my bike with 700cm wheels, and turning the same number of revolutions per minute, how much slower will I be going on the 20 inch wheels if I am riding at 15 miles per hour on the 700 cm wheels. Thanks
The math is roughly 406/622 or 0.65. One turn of a ISO406 wheel covers the same distance as 0.65 of a turn of a 700c wheel. Inversely one turn of a 700c wheel covers the same distance as 1.53 turns of a 406 wheel. So, same gear, same cadence, 15 miles per hour on a 700c bike is about 10miles per hour on a 406 wheel.

btw, the most common 20" wheel is ISO406, but there's also ISO451. I own both types. There's a lot of ignorance and prejudice of small wheel bikes (i.e. 451 or smaller). Head over to the Folding Bicycles channel for solid info.

Last edited by Abu Mahendra; 05-22-18 at 11:47 PM.
Abu Mahendra is offline
Old 05-22-18, 07:14 PM
  #3
Dake2
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Really? Modern bikes have something called gearing? So it sounds like you are saying I would need to turn a bigger gear to keep up with someone riding a bike with larger wheels.
Dake2 is offline
Old 05-22-18, 07:18 PM
  #4
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 2,122
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 883 Post(s)
Likes: 0
Liked 33 Times in 27 Posts
Originally Posted by Dake2 View Post
Really? Modern bikes have something called gearing? So it sounds like you are saying I would need to turn a bigger gear to keep up with someone riding a bike with larger wheels.
Yes, and thus small wheeled bikes often geared higher.
Kapusta is offline
Old 05-22-18, 07:26 PM
  #5
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Dake2 View Post
Really? Modern bikes have something called gearing? So it sounds like you are saying I would need to turn a bigger gear to keep up with someone riding a bike with larger wheels.
You have the following options to raise gearing, on any bike, big or small wheel:
1. bigger chainring
2. internal gear crankset ala Patterson Drive
3. 9T rear sproket cogset ala Shimano Capreo
4. IGH ala SRAM DualDrive

This rig of mine had 125 gear-inches at the top at one time...
Abu Mahendra is offline
Old 05-22-18, 07:42 PM
  #6
Dake2
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Best looking folding bike I have seen! What brand is your bike? Thanks for the info.
Dake2 is offline
Old 05-22-18, 07:56 PM
  #7
prathmann
Senior Member

Join Date: Nov 2008
Location: Bay Area, Calif.
Posts: 7,262
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As one example, my Bike Friday with nominal 20" wheels (451mm rims) has a large chain ring with 60 teeth and the smallest cog with 11 teeth. That gives it about the same high gear as my 700c (622mm rim) Cannondale with a 53 tooth chain ring and a 13 tooth rear cog. The force with which I need to push the pedals and the cadence on both bikes will be the same if I'm riding both at the same speed.

There are a variety of ways to give small-wheeled bikes reasonably high gears. On mine it's using a larger than usual chain ring, others use an internal rear hub gear (usually 3-speed) in addition to the cassette gears. Another way is to use Shimano's Capreo cassette which has cogs going down to 9 teeth instead of the usual 11. Then there's the option of using a step-up gear built into the bottom bracket (see Schlumpf Speed Drive).

So there's no reason to think that you'd be using the same gear ratios when riding a bike with smaller wheels than the 700c wheels you're used to. And, BTW, you certainly don't have "700 cm" wheels - those would be 23 feet in diameter.

Last edited by prathmann; 05-22-18 at 08:01 PM.
prathmann is offline
Old 05-22-18, 07:57 PM
  #8
BlazingPedals
Senior Member

BlazingPedals's Avatar

Join Date: Dec 2004
Location: Middle of da Mitten
Posts: 10,914

Bikes: Trek 7500, RANS V-Rex, Optima Baron, Velokraft NoCom, M-5 Carbon Highracer, homebuilt recumbent

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 895 Post(s)
Liked 14 Times in 12 Posts
If you want the equivalent of a 52T chainring on a 700c wheel, but on a 406 wheel (assuming the same cassette,) than you'll need something like a 62T big ring. The problem with bigger rings is, derailleurs can only handle so many teeth of difference between rings, and as the rings get bigger, you max out the derailleurs and have to accept smaller % steps between the rings. Which is to say, if you want full-range gearing on a small wheel, you have to resort to more drastic measures.

I think that most folders and citi-bikes use lower gearing, because they're just not as fast and so don't need the big gears.
BlazingPedals is offline
Old 05-22-18, 07:58 PM
  #9
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Likes: 0
Liked 1 Time in 1 Post

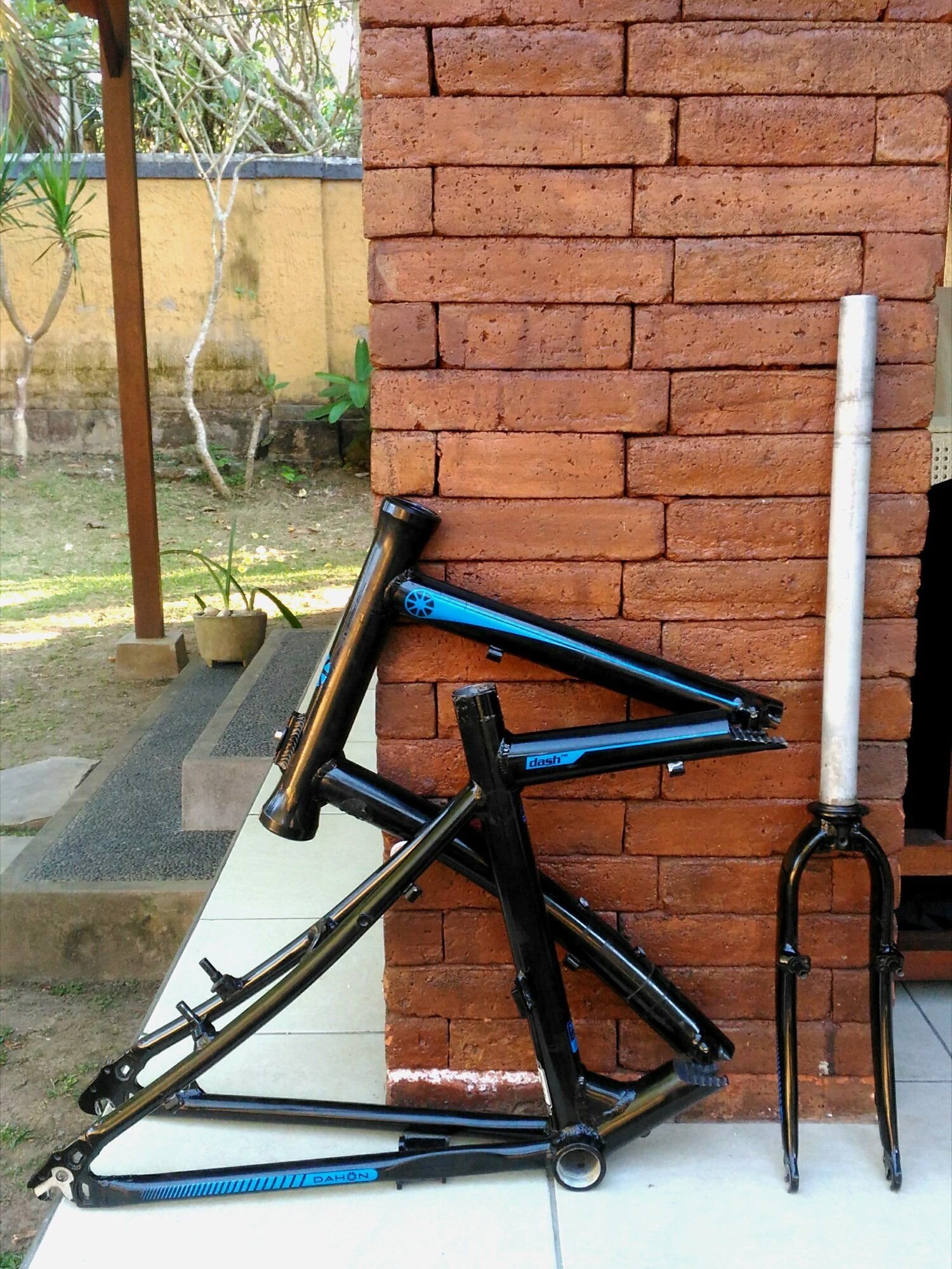

This dog?



It is a Dahon Dash, the little brother to my Dahon Dash Altena...


25-99GI on tap


Originally Posted by Dake2 View Post
Best looking folding bike I have seen! What brand is your bike? Thanks for the info.

Last edited by Abu Mahendra; 05-22-18 at 08:07 PM.
Abu Mahendra is offline
Old 05-22-18, 08:38 PM
  #10
Dake2
Newbie
Thread Starter

Join Date: May 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I stand corrected 700c not 700 cm.
Dake2 is offline
Old 05-22-18, 08:59 PM
  #11
1nterceptor
LET'S ROLL

1nterceptor's Avatar

Join Date: Nov 2009
Location: NEW YORK, NY - USA
Posts: 4,735

Bikes: 2014 BMC Gran Fondo, 2013 Brompton S6L-X

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Instead of relying on people's opinion on the internet; I suggest to try some folding bikes for yourself
and get first hand experience/knowledge.

My folding bike with 16 in tires(349 ETRTO); keeping and passing other bikes w/ 20 inch, 26 inch, 700c,
29 inch, etc. wheels:
__________________
One day: https://www.youtube.com/watch?v=20X43026ukY&list=UUHyRS8bRu6zPoymgKaIoDLA&index=1
1nterceptor is offline
Old 05-23-18, 08:07 AM
  #12
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 2,122
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 883 Post(s)
Likes: 0
Liked 33 Times in 27 Posts
Originally Posted by 1nterceptor View Post
Instead of relying on people's opinion on the internet; I suggest to try some folding bikes for yourself
and get first hand experience/knowledge.

My folding bike with 16 in tires(349 ETRTO); keeping and passing other bikes w/ 20 inch, 26 inch, 700c,
29 inch, etc. wheels:
https://www.youtube.com/watch?v=lmFU...IoDLA&index=31
https://www.youtube.com/watch?v=ROYH...6zPoymgKaIoDLA
To be fair, you can pass 90% of the people on the 5 Boro ride with square wheels and no chain.
Kapusta is offline
Old 05-23-18, 10:42 AM
  #13
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,564

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6739 Post(s)
Likes: 0
Liked 157 Times in 133 Posts
Imo

20" especially in 406, is likely about the most abundant rire size on the globe ...


451 is a thin go fast rim - tire, 406 is a more rugged rim - tire combo..
both are nominally 20"





...

Last edited by fietsbob; 07-16-18 at 11:10 PM.
fietsbob is offline
Old 05-23-18, 11:04 AM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,258
Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 8393 Post(s)
Liked 36 Times in 32 Posts
Originally Posted by BlazingPedals View Post
If you want the equivalent of a 52T chainring on a 700c wheel, but on a 406 wheel (assuming the same cassette,) than you'll need something like a 62T big ring. The problem with bigger rings is, derailleurs can only handle so many teeth of difference between rings, and as the rings get bigger, you max out the derailleurs and have to accept smaller % steps between the rings. Which is to say, if you want full-range gearing on a small wheel, you have to resort to more drastic measures.

I think that most folders and citi-bikes use lower gearing, because they're just not as fast and so don't need the big gears.
I'll admit that I've had issues with front derailleurs and big rings in general, for a couple of reasons, some with intended range, some with frame design.

However, Say you use a 60 or 70T outer ring, then the logical choice is to use say a 50T inner ring. And you should be able to shift it with most front derailleurs.
CliffordK is offline
Old 05-23-18, 11:33 AM
  #15
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 3,873
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1183 Post(s)
Liked 10 Times in 9 Posts
Originally Posted by Dake2 View Post
Best looking folding bike I have seen! What brand is your bike? Thanks for the info.
I don't think that bike folds. It has 20" wheels, yes, but I'm not seeing a folding mechanism anywhere.
Leisesturm is offline
Old 05-23-18, 11:40 AM
  #16
JA TREK
Senior Member

JA TREK's Avatar

Join Date: Apr 2018
Posts: 61

Bikes: 2018 Scott Aspect 950, 2018 Trek Hybrid, 1971 Raleigh Twenty

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm thinking of selling my 20" folder with brand new tires (only rode on once for 1 mile) and a tune-up if you're interested! It has 3 gears and shifter works. It's in NY. I love the bike, just don't use it enough.
JA TREK is offline
Old 05-23-18, 11:51 AM
  #17
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,564

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6739 Post(s)
Likes: 0
Liked 157 Times in 133 Posts
Mini Velos are a non folding 20" wheel road bike , often discussed here ..

no hinges means it can be lighter, too.
fietsbob is offline
Old 05-23-18, 07:29 PM
  #18
Maddy Lighter
Junior Member

Maddy Lighter's Avatar

Join Date: May 2018
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
20 inch wheels would look so cool
Maddy Lighter is offline
Old 05-23-18, 10:28 PM
  #19
atwl77
Kamen Rider

atwl77's Avatar

Join Date: Aug 2017
Location: KL, MY
Posts: 505

Bikes: Fuji Transonic Elite, Marechal Soul Ultimate, Dahon Dash Altena

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Leisesturm View Post
I don't think that bike folds. It has 20" wheels, yes, but I'm not seeing a folding mechanism anywhere.
That Dahon Dash, as well as the Altena, are both folding mini-velos.
atwl77 is offline
Old 05-24-18, 12:27 AM
  #20
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Leisesturm View Post
I don't think that bike folds. It has 20" wheels, yes, but I'm not seeing a folding mechanism anywhere.
Come again?

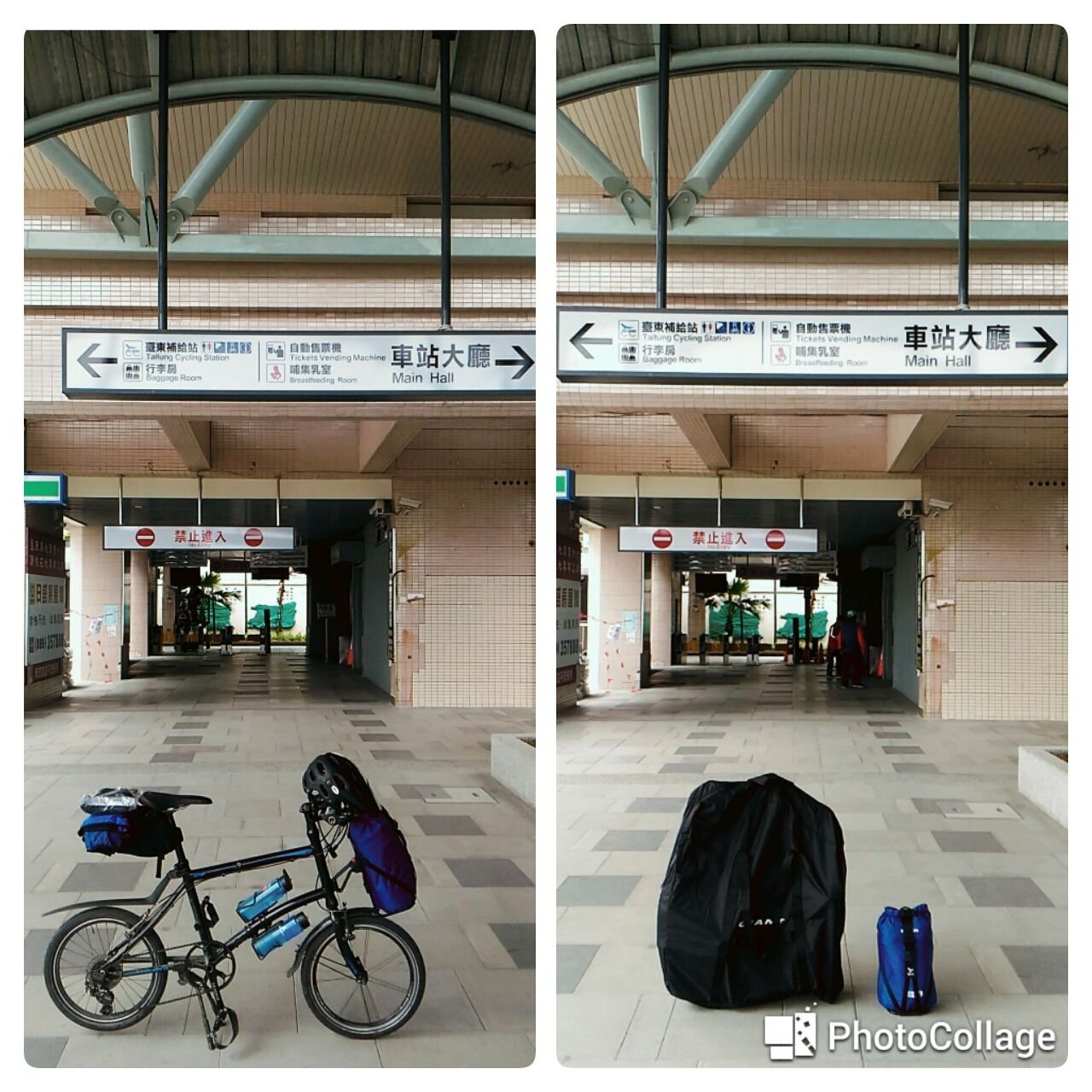

it folds via a LockJaw hinge on the top-tube and on the down-tube which clamp down with an Allen key on a set of inter-locking teeth. Zero flex. Six years on--it is a 2012 model--the hinge Mechanism is still tight, free of play or give. Frame, fork, dereilleur hanger and headset weigh 3.1kg. Not über-light, but not a porker either. And best of all, the bike is affordably priced, and requires no proprietary parts save for the hinges. The downsides? It is far from the smallest fold, one size only so tall folks are out of luck, and Dahon stopped making them in 2016 so they are tough to find on the sale block.


Last edited by Abu Mahendra; 05-24-18 at 11:55 PM.
Abu Mahendra is offline
Old 05-24-18, 01:34 AM
  #21
atwl77
Kamen Rider

atwl77's Avatar

Join Date: Aug 2017
Location: KL, MY
Posts: 505

Bikes: Fuji Transonic Elite, Marechal Soul Ultimate, Dahon Dash Altena

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Abu Mahendra View Post
What bag are you using for your Dash? Most 20" bags that I have found do not fit.
atwl77 is offline
Old 05-24-18, 02:58 AM
  #22
50PlusCycling
Senior Member

50PlusCycling's Avatar

Join Date: Mar 2018
Posts: 230
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I ride a Birdy folder with 20" wheels. I run Panaracer Minits at 115 psi, the suspension on the bike keeps the ride smooth even at high tire pressures. A Dura Ace/XTR 11 speed drive line gives me enough gearing, a 56t front chain ring gives me more top end. It's light, fast, folds up small, and fits my body the same as my full size road bikes.
50PlusCycling is offline
Old 05-24-18, 05:01 AM
  #23
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by atwl77 View Post
What bag are you using for your Dash? Most 20" bags that I have found do not fit.
A 'Giant'-branded bag purchased at the Giant store across the street from the Taitung train station in Taiwan.
Abu Mahendra is offline
Old 05-24-18, 09:32 AM
  #24
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,258

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1146 Post(s)
Liked 21 Times in 16 Posts
[QUOTE=1nterceptor;20355088]Instead of relying on people's opinion on the internet; I suggest to try some folding bikes for yourself
and get first hand experience/knowledge.

How fast will it go? How hard will I have to work? How well will it shift? How do the small wheels handle? Wouldn't take much of a test ride to determine those things. That way you'll know for sure.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.

Last edited by Retro Grouch; 05-24-18 at 09:52 AM.
Retro Grouch is offline
Old 05-28-18, 10:12 AM
  #25
Jax Rhapsody
Rhapsodic Laviathan

Jax Rhapsody's Avatar

Join Date: Jan 2013
Location: Louisville KY
Posts: 581

Bikes: Rideable; 83 Schwinn High Sierra. Two cruiser, bmx bike, one other mtb, three road frames, one citybike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Love that 20" deep vee. Would look good on a chopper or bmx bike.
Jax Rhapsody is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
