Micrometer to measure rim thickness?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Micrometer to measure rim thickness?

Old 09-03-18, 09:15 AM
  #1
SylvainG
Senior Member
Thread Starter

Join Date: Apr 2017
Location: Ottawa,ON,Canada
Posts: 1,269

Bikes: Schwinn Miranda 1990, Giant TCX 2 2012

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 9 Times in 6 Posts
Micrometer to measure rim thickness?

I know about Iwanson tools to measure rim thickness but anybody uses a micrometer? Yes, the spindle/anvil are wider than the Iwanson tips tool but I think it can be beneficial since it can be used to see if the rim is concave or not. One thing I'm not sure is if the anvil/frame thickness will be too big to fit inside my rim. My wheels are Giant S-R2 which I can't find anywhere if it has dimples to know when they are due to be replaced. I bought it used and have put around 7 000 km on them (including rainy ride but try to limit braking with the front wheel when wet).

Thanks

PS. Sorry, this was meant to be in Bicycle Mechanics. Mods, you can move if you so whish.
SylvainG is offline
Old 09-03-18, 10:58 AM
  #2
VegasTriker
Senior Member

Join Date: Feb 2006
Location: Sin City, Nevada
Posts: 2,303

Bikes: Catrike 700, Greenspeed GTO trike, , Linear LWB recumbent, Haluzak Horizon SWB recumbent, Balance 450 MTB, Cannondale SM800 Beast of the East

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 365 Post(s)
Likes: 0
Liked 50 Times in 41 Posts
Buy yourself a cheap vernier caliper and measure it with the caliper. I just checked the rim thickness on an older bike to see if it works. It is an old Araya 27" rim.

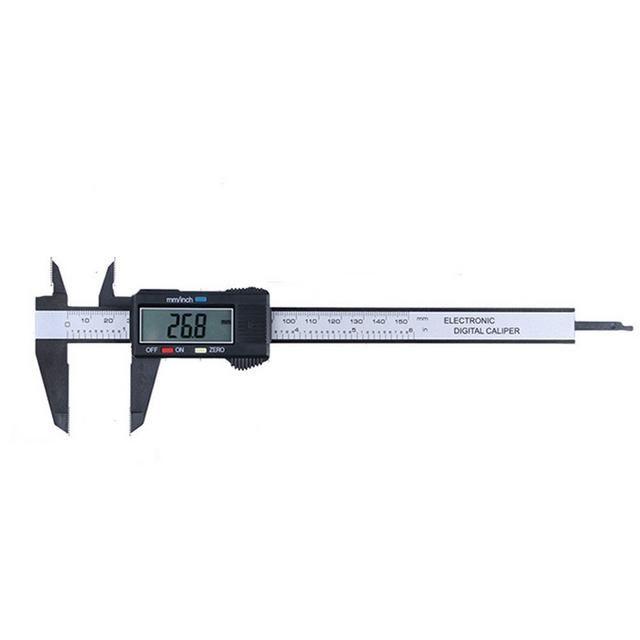

You can get a digital vernier caliper for under $5 from overseas vendors if you are willing to wait. I checked mine against a few thickness gauges and it was spot on. Here's the exact one I used for $3 postpaid 150MM/6inch LCD Digital Electronic Vernier Caliper Gauge Micrometer Ruler Tool $2.99. https://www.ebay.com/itm/150MM-6inch...wAAOSwBP9bjOfl
VegasTriker is offline
Old 09-03-18, 11:02 AM
  #3
SylvainG
Senior Member
Thread Starter

Join Date: Apr 2017
Location: Ottawa,ON,Canada
Posts: 1,269

Bikes: Schwinn Miranda 1990, Giant TCX 2 2012

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 9 Times in 6 Posts
Thanks, I already have a caliper but because of the lip on the rim, I can't really use it on my rims
SylvainG is offline
Old 09-03-18, 11:06 AM
  #4
Spoonrobot
Senior Member

Spoonrobot's Avatar

Join Date: Jul 2006
Posts: 3,273
Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1167 Post(s)
Liked 112 Times in 79 Posts
VegasTriker are you modifying the caliper to accommodate the lip?

Before I got an Iwanson gauge I used a bent spoke to sit proud of the lip but it didnít feel very accurate.
Spoonrobot is offline
Old 09-03-18, 11:15 AM
  #5
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,010

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2769 Post(s)
Liked 680 Times in 474 Posts
Good idea, @Spoonrobot. Harbor Freight sells plastic calipers for $2 or so. Grind off material where it makes sense and if it doesn't work, you're only out $2 (or so.)

P.S. Based on this link, the Giant S-R2 wheels should have a circumferential wear indicator in the rim: https://www.ashcycles.com/site/road-...d5ccql6uvd3035
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 09-03-18, 11:16 AM
  #6
jasnooks
Senior Member

Join Date: Jan 2018
Posts: 104
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
You'd probably have to get a mic with more pointed anvils.

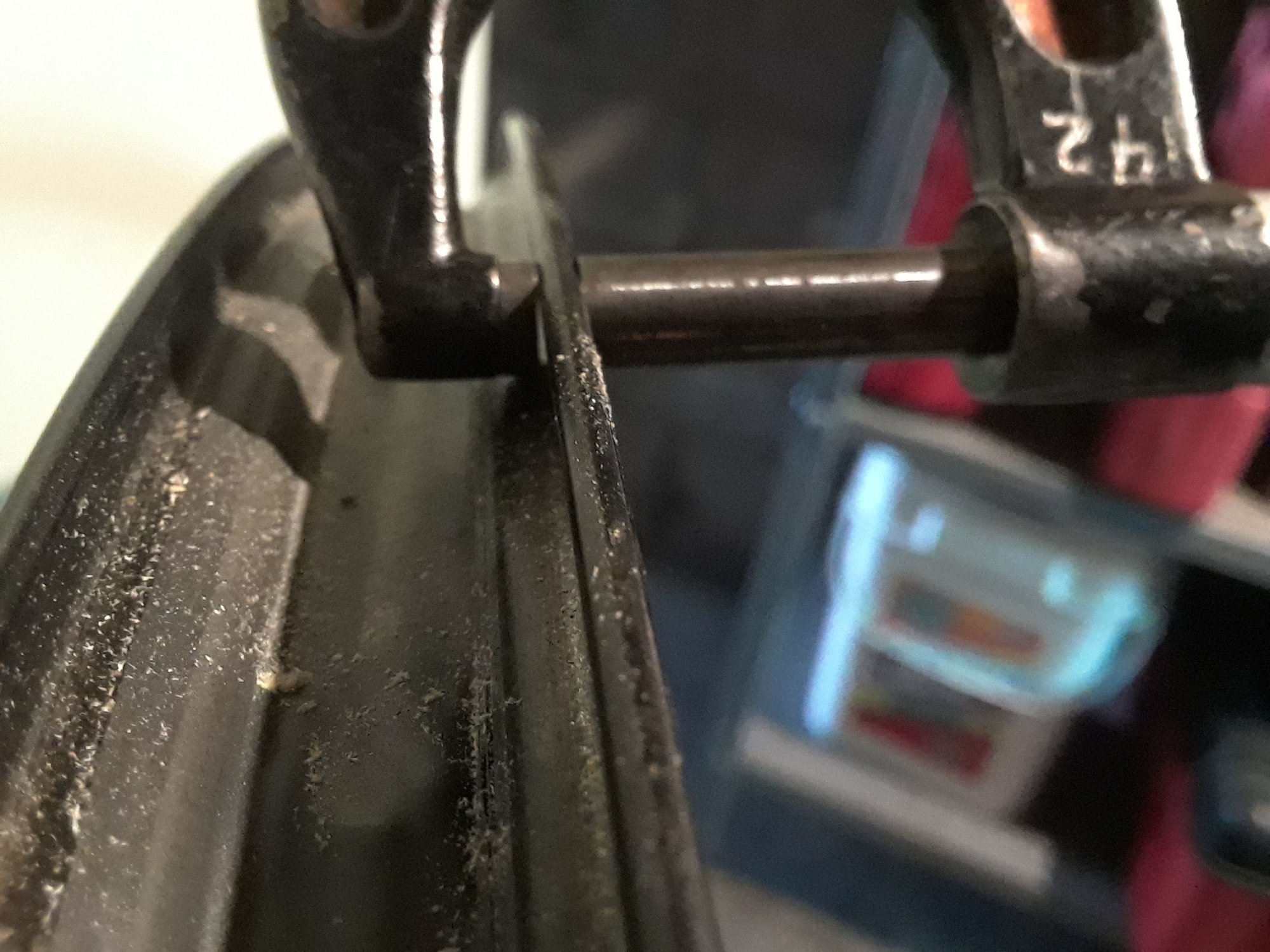

Here's a pic of a standard Starrett 0-1" mic on a generic 700c clincher rim. You can see how the anvil can't get all the way in there.
Another option to get around the hook, is to hold a small ball bearing on the inside of the wheel, then measure from that to the outside of the rim. Subtract the ball diameter from your measurement to get the wall thickness.
jasnooks is offline
Old 09-03-18, 12:19 PM
  #7
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,070
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 784 Post(s)
Liked 207 Times in 152 Posts
Originally Posted by Spoonrobot View Post
Before I got an Iwanson gauge I used a bent spoke to sit proud of the lip but it didn’t feel very accurate.
I'd expect that to be fairly accurate, though I might just use a piece of spoke with the ends rounded off.
Gresp15C is offline
Old 09-03-18, 02:35 PM
  #8
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,263

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 6 Times in 6 Posts
The digital calipers can be zeroed out at any point in their range. While measuring the ball or spoke or whatever you will use for a spacer, zero it out, then measure the rim with the spacer. The reading will be the rim's measurement.
__________________
My C&V Bikes:
1972 Bottecchia Professional, 1987 Bottecchia Team C-Record, 1982 Colnago Super,
1995 Bianchi Campione d'Italia, 1995 DeBernardi Thron Super Record


CroMo Mike is offline
Old 09-03-18, 02:35 PM
  #9
SylvainG
Senior Member
Thread Starter

Join Date: Apr 2017
Location: Ottawa,ON,Canada
Posts: 1,269

Bikes: Schwinn Miranda 1990, Giant TCX 2 2012

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 9 Times in 6 Posts
Thanks all for your help

Originally Posted by Spoonrobot View Post
VegasTriker are you modifying the caliper to accommodate the lip?

Before I got an Iwanson gauge I used a bent spoke to sit proud of the lip but it didnít feel very accurate.
Good idea. I do have an old caliper at the cottage that I can reuse.

Originally Posted by ThermionicScott View Post
Good idea, @Spoonrobot. Harbor Freight sells plastic calipers for $2 or so. Grind off material where it makes sense and if it doesn't work, you're only out $2 (or so.)

P.S. Based on this link, the Giant S-R2 wheels should have a circumferential wear indicator in the rim: https://www.ashcycles.com/site/road-...d5ccql6uvd3035
Do you mean the groove around the whole rim? I never thought of it as a wear indicator. If that's it, then I have lots of life left on my rims.

Originally Posted by jasnooks View Post
You'd probably have to get a mic with more pointed anvils.
Here's a pic of a standard Starrett 0-1" mic on a generic 700c clincher rim. You can see how the anvil can't get all the way in there.
Another option to get around the hook, is to hold a small ball bearing on the inside of the wheel, then measure from that to the outside of the rim. Subtract the ball diameter from your measurement to get the wall thickness.
This is what I was afraid of.
SylvainG is offline
Old 09-03-18, 04:24 PM
  #10
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,567

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7319 Post(s)
Liked 927 Times in 586 Posts
a piece, you keep, that fits under the lip, will be a way to measure the thickness
of the rim and then subtract the thickness of that added piece..

[like weighing a box on the bathroom scale, holding the box in your hands,
then subtracting your weight]


start by measuring the brand new rim as a base line..



...
fietsbob is offline
Old 09-03-18, 05:21 PM
  #11
VegasTriker
Senior Member

Join Date: Feb 2006
Location: Sin City, Nevada
Posts: 2,303

Bikes: Catrike 700, Greenspeed GTO trike, , Linear LWB recumbent, Haluzak Horizon SWB recumbent, Balance 450 MTB, Cannondale SM800 Beast of the East

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 365 Post(s)
Likes: 0
Liked 50 Times in 41 Posts
I was able to measure the rim thickness on the Araya rim directly but I thought about what I would do if the rim was designed so that there was a thicker part between the wear area and the edge of the rim. You can zero the caliper in any position so the answer is to glue (JB Weld) two small nuts near the end of the caliper so the flat surfaces are parallel. Measure the thickness of the rim and zero the caliper with it closed on the rim. Remove the caliper and close it. It does read negative numbers so your reading will be the thickness of the rim in negative numbers. These calipers are so inexpensive that it would be no big deal to have one that only measures rim thickness.
VegasTriker is offline
Old 09-03-18, 05:46 PM
  #12
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 14,834

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1051 Post(s)
Liked 113 Times in 100 Posts
Originally Posted by SylvainG View Post
I know about Iwanson tools to measure rim thickness but anybody uses a micrometer? Yes, the spindle/anvil are wider than the Iwanson tips tool but I think it can be beneficial since it can be used to see if the rim is concave or not. One thing I'm not sure is if the anvil/frame thickness will be too big to fit inside my rim. My wheels are Giant S-R2 which I can't find anywhere if it has dimples to know when they are due to be replaced. I bought it used and have put around 7 000 km on them (including rainy ride but try to limit braking with the front wheel when wet).

Thanks

PS. Sorry, this was meant to be in Bicycle Mechanics. Mods, you can move if you so whish.
Hoping to get this in before we all get too technical, why do you need to do this? Canít you see if the rim is concave?
Road Fan is offline
Old 09-03-18, 05:50 PM
  #13
gsadler1
Gary

Join Date: Sep 2018
Location: Lower SE Michigan USA
Posts: 2

Bikes: Raleigh Tamarack 1983

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Use a small ball bearing to Mike over if you can. Just subtract the bearing diameter.

Originally Posted by SylvainG View Post
Thanks, I already have a caliper but because of the lip on the rim, I can't really use it on my rims
use a small ball bearing or pin against the curved surface to measure over. Then subtract the objects measurement from the larger measurement.
gsadler1 is offline
Old 09-03-18, 07:35 PM
  #14
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,010

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2769 Post(s)
Liked 680 Times in 474 Posts
Originally Posted by SylvainG View Post
Do you mean the groove around the whole rim? I never thought of it as a wear indicator. If that's it, then I have lots of life left on my rims.
Yep! As long as that groove is visible, you're good to go.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 09-03-18, 08:19 PM
  #15
SylvainG
Senior Member
Thread Starter

Join Date: Apr 2017
Location: Ottawa,ON,Canada
Posts: 1,269

Bikes: Schwinn Miranda 1990, Giant TCX 2 2012

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 9 Times in 6 Posts
Originally Posted by Road Fan View Post

Hoping to get this in before we all get too technical, why do you need to do this? Can’t you see if the rim is concave?

Because it can be concave but still have enough metal to be safe.

Originally Posted by VegasTriker View Post
Buy yourself a cheap vernier caliper and measure it with the caliper. I just checked the rim thickness on an older bike to see if it works. It is an old Araya 27" rim.

You can get a digital vernier caliper for under $5 from overseas vendors if you are willing to wait. I checked mine against a few thickness gauges and it was spot on. Here's the exact one I used for $3 postpaid 150MM/6inch LCD Digital Electronic Vernier Caliper Gauge Micrometer Ruler Tool $2.99. https://www.ebay.com/itm/150MM-6inch...wAAOSwBP9bjOfl
Thanks, too cheap not to buy one

Originally Posted by gsadler1 View Post
use a small ball bearing or pin against the curved surface to measure over. Then subtract the objects measurement from the larger measurement.
It gets complicated when trying to measure thickness at different locations over the rim's circumference. One or two spot might not be enough if the wheel was not always true.

Originally Posted by ThermionicScott View Post
Yep! As long as that groove is visible, you're good to go.
Great, I just checked and the groove is still evident, more on the front than the back but still very visible.
SylvainG is offline
Old 09-04-18, 06:00 AM
  #16
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,526

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2168 Post(s)
Liked 533 Times in 367 Posts
Instead of a micrometer or vernier/digital caliper with wide jaws, use a dental caliper. They're designed to work in tight spots:

JohnDThompson is offline
Old 09-04-18, 02:44 PM
  #17
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 14,834

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1051 Post(s)
Liked 113 Times in 100 Posts
Originally Posted by SylvainG View Post
Because it can be concave but still have enough metal to be safe.



Thanks, too cheap not to buy one



It gets complicated when trying to measure thickness at different locations over the rim's circumference. One or two spot might not be enough if the wheel was not always true.



Great, I just checked and the groove is still evident, more on the front than the back but still very visible.
I guess from this last post I infer we are interested in gauging the wear on the brake tracks to make sure the rims are safe from fracturing due to brake track wear. Seems to me two tools are needed. One is to capture the thickness of the brake track and keep that setting when it is removed, and then to measure that gap when the first tool is removed. But based on this last comment from Silvain, my suggestion is only valuable if the brake track groove was never present if it is somehow not a conclusive indication.
Road Fan is offline
Old 09-05-18, 04:25 PM
  #18
coffeesnob
Senior Member

coffeesnob's Avatar

Join Date: Jan 2016
Location: Va
Posts: 553

Bikes: Trek DS 8.3 - cannondale M500

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2513 Post(s)
Liked 43 Times in 27 Posts
If you want to go high tech buy a UT meter
coffeesnob is offline
Old 09-05-18, 04:43 PM
  #19
SylvainG
Senior Member
Thread Starter

Join Date: Apr 2017
Location: Ottawa,ON,Canada
Posts: 1,269

Bikes: Schwinn Miranda 1990, Giant TCX 2 2012

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 9 Times in 6 Posts
Originally Posted by coffeesnob View Post
If you want to go high tech buy a UT meter
https://www.amazon.com/Estone-Digita.../dp/B00GSM9IHU

$78, I would have though more expensive than that but minimum of 1.2mm might be problematic... Nonetheless, that groove will suffice for those wheels
SylvainG is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
spinnaker
Bicycle Mechanics
13
05-29-19 01:41 PM
spectastic
Bicycle Mechanics
13
10-04-17 05:49 PM
Ils
Classic & Vintage
6
08-08-11 04:44 PM
mcbachma
Bicycle Mechanics
2
08-12-10 12:26 AM
JeffThompson
Bicycle Mechanics
11
06-24-10 02:53 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
