Rear Light Adapter
10-12-18, 07:30 PM
#1
Oooooooofffff SALESMAN!
Thread Starter
Rear Light Adapter

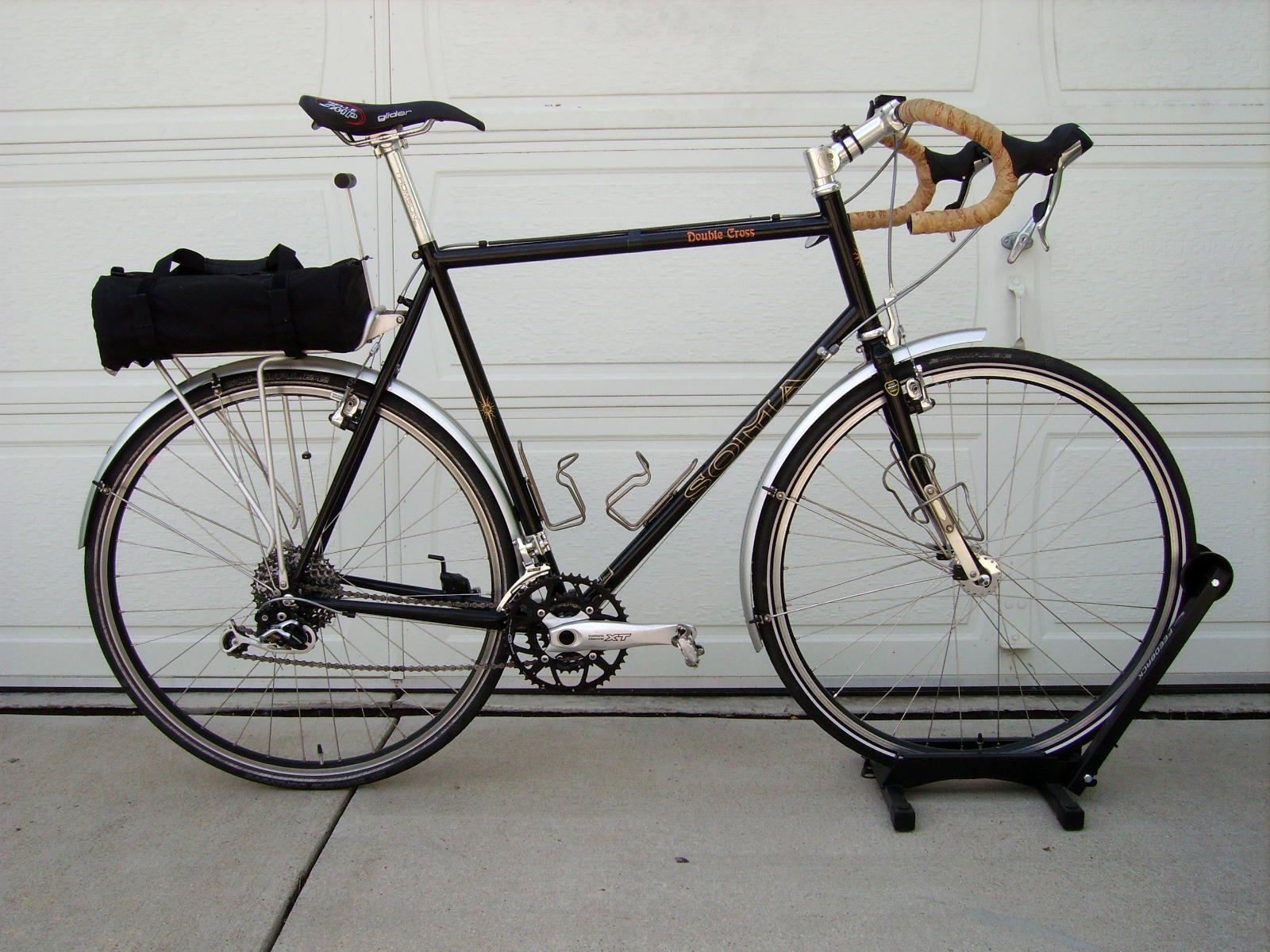

I would like to mount a rear bike light on my rear rack of my bike however the light comes with a mount that goes on the seatpost. Problem is
1) I can't mount the light to the seatpost because when I carry a bag on my rear bag it covers up the light 100%
2) My rack doesn't have a "seat post tube" to attach the light onto.
Here is a photo I found online of a guy that fixed the problem but it looks really bad. Isn't there some kind of adapter I can buy? Has anyone else fixed this issue and would like to provide some photos?
1) I can't mount the light to the seatpost because when I carry a bag on my rear bag it covers up the light 100%
2) My rack doesn't have a "seat post tube" to attach the light onto.
Here is a photo I found online of a guy that fixed the problem but it looks really bad. Isn't there some kind of adapter I can buy? Has anyone else fixed this issue and would like to provide some photos?
10-12-18, 08:04 PM
#2
don't try this at home.
Join Date: Jan 2006
Location: N. KY
Posts: 5,619
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
Liked 275 Times
in
201 Posts

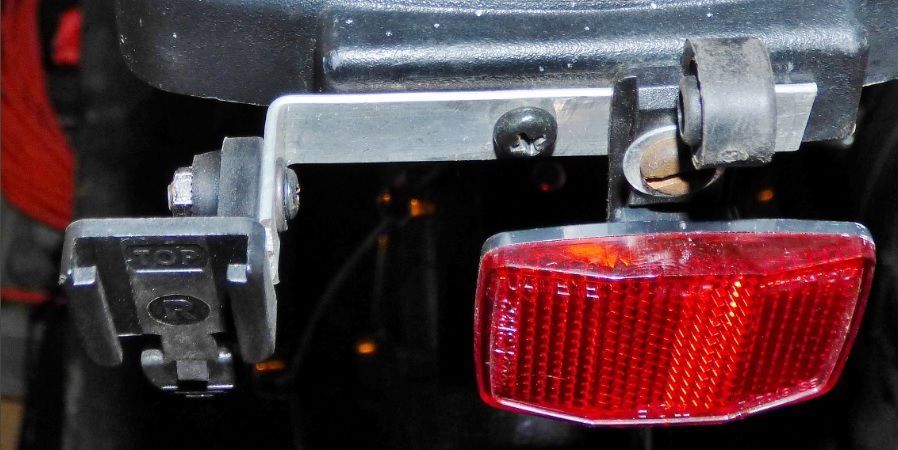

Cygolite sells a rack mount for $3.95 (plus $3.00 shipping)
It fits both older Hotshot and newer Hotshot Pro lights. The two outside mounting bolt holes are at 50mm (1.97 inch) spacing, that's pretty common on rear racks. Or use the center bolt hole if there's only one hole.
It's the same click-in method as the seatpost brackets use.
When clicked in, my tail light sits below the level of the top of the rack, so a top bag doesn't interfere with the light.
There's similar brackets for other brands, too.
It fits both older Hotshot and newer Hotshot Pro lights. The two outside mounting bolt holes are at 50mm (1.97 inch) spacing, that's pretty common on rear racks. Or use the center bolt hole if there's only one hole.
It's the same click-in method as the seatpost brackets use.
When clicked in, my tail light sits below the level of the top of the rack, so a top bag doesn't interfere with the light.
There's similar brackets for other brands, too.
Last edited by rm -rf; 10-12-18 at 08:15 PM.
10-12-18, 08:30 PM
#3
Non omnino gravis
If you lived even remotely close to me, I could fabricate something in about 10 minutes.
But as you don't, I would say remove the rear reflector, and use that hole to screw into a piece of dowel-- probably 1 1/4". Put the light's seatpost mount on that.
But as you don't, I would say remove the rear reflector, and use that hole to screw into a piece of dowel-- probably 1 1/4". Put the light's seatpost mount on that.
__________________
10-12-18, 09:02 PM
#4
Senior Member
Join Date: Sep 2015
Location: Left Coast, Canada
Posts: 5,126
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,311 Times
in
706 Posts
Just do what that guy did more or less and make it look better.
Or zip tie it to your helmet. Puts the blinky up higher.
Or zip tie it to your helmet. Puts the blinky up higher.
10-12-18, 10:28 PM
#5
Clark W. Griswold
Join Date: Mar 2014
Location: ,location, location
Posts: 11,141
Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3410 Post(s)
Liked 2,717 Times
in
1,815 Posts
Originally Posted by Happy Feet
Just do what that guy did more or less and make it look better.
Or zip tie it to your helmet. Puts the blinky up higher.
Or zip tie it to your helmet. Puts the blinky up higher.
10-13-18, 12:23 AM
#6
Senior Member
Join Date: Sep 2015
Location: Left Coast, Canada
Posts: 5,126
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,311 Times
in
706 Posts
I have one on my old helmet snd have seen many others do it as well. Works fine. It's a red flashing light designed to be seen from an arc of rear facing angles.
But this is a great easy project to try out. All you need is a friend, a light, a helmet and a zip tie.
But this is a great easy project to try out. All you need is a friend, a light, a helmet and a zip tie.
10-13-18, 03:51 AM
#7
Mike J
Join Date: Nov 2013
Location: Jacksonville Florida
Posts: 1,609
Bikes: 1975 Peugeot PX-50L, 1971 Peugeot PX-10, 1974 Peugeot PX-8
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Likes: 0
Liked 6 Times
in
6 Posts
No pics, but I think you could use a small P-clamp, which would mount onto the rack's rear diagonal down-brace, about where the dowel rod is beside the reflector. Remove the round seatpost clamp part from your light mount, and thread a small bolt with nut (if your bolt and nut on your light mount won't work) through the p-clamp hole and tighten it well.
10-13-18, 06:57 AM
#8
SE Wis
Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,622
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,642 Times
in
1,611 Posts

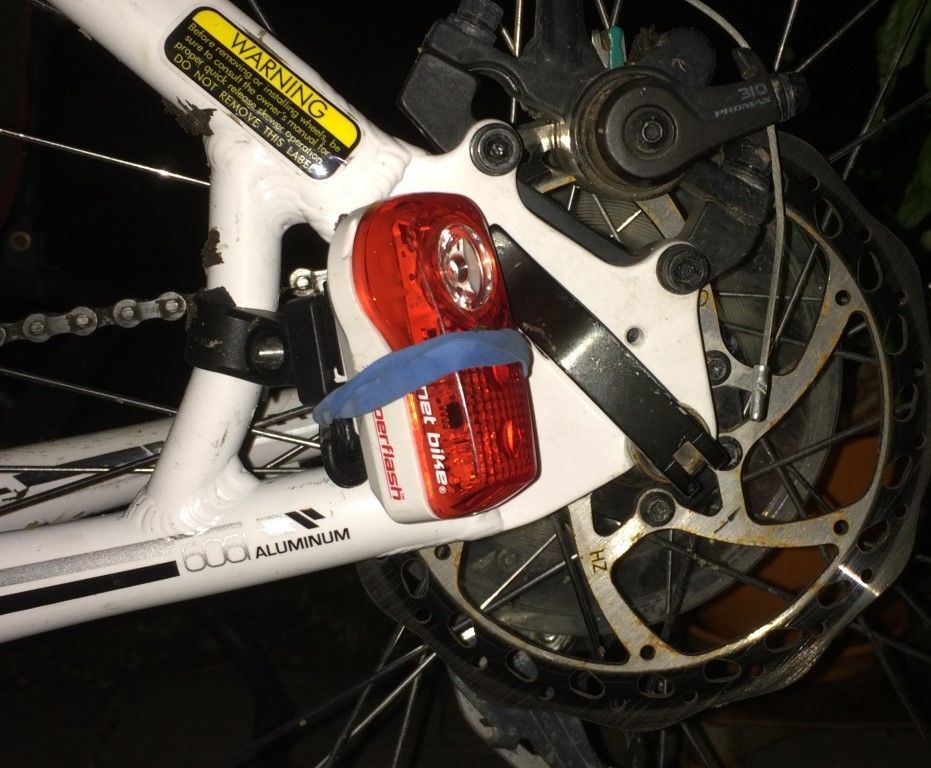

I used a smaller bracket to mount on one of the rack stays on one bike. Something like this. I may have added more rubber to fit it.
https://www.modernbike.com/niterider...eat-stay-mount
https://www.modernbike.com/niterider...eat-stay-mount
10-13-18, 08:17 AM
#9
Senior Member
Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,477
Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4898 Post(s)
Liked 2,866 Times
in
1,921 Posts
you didn't say or show us what light & rack you have. I agree that there's a big lack of support for this exact circumstance with rear lights, even those that supply multiple brackets with their lights. they all seem to assume we want to mount them on circular objects. well we don't all want to do that, do we?

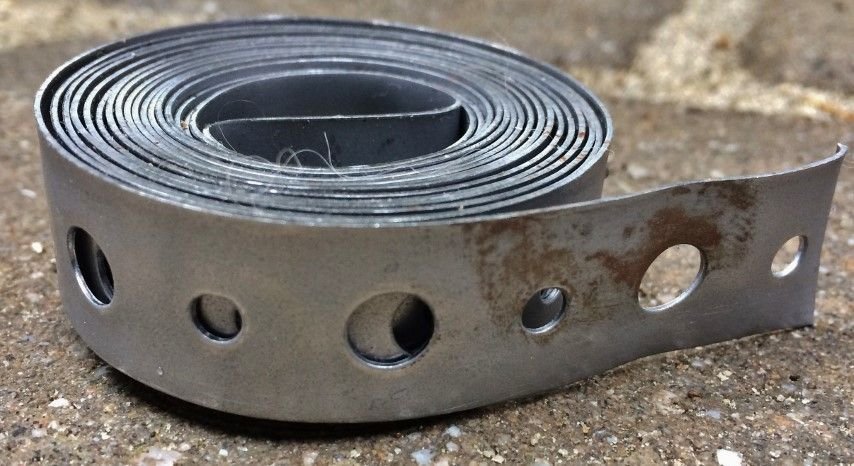

probably the easiest stuff to work with is metal strapping from the hardware store. it comes on a roll, is easy to bend, already has 2 sizes of holes along the whole length. to cut it to length it's best to use metal snips. altho you can break it with pliers or a hammer by bending it back & forth and slamming it at the crease. it's also easy to twist so you can make odd angles
this is my roll

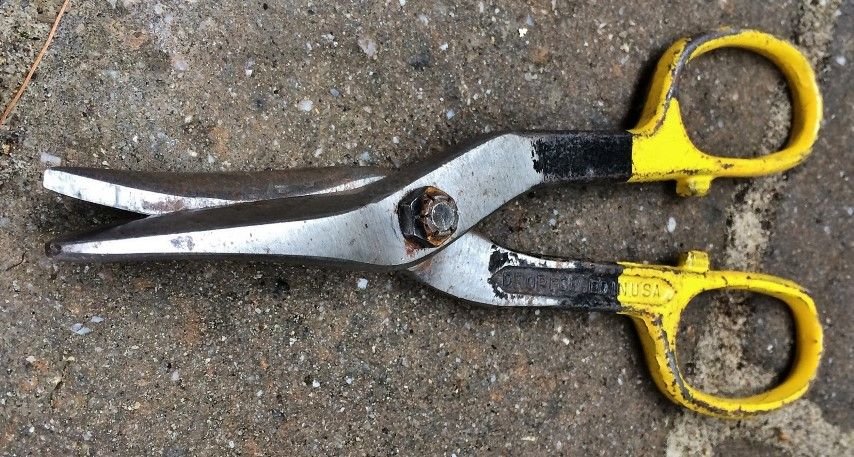

these are the Midwest Standard, drop forged, snips I inherited from my father-in-law
once you have these two things, you can make all sorts of stuff for your bike
your local hardware store may also have lightweight thin "bar stock" that is easy to cut with a bench vise & hack saw. no home should be without those items as well. bar stock comes in aluminum & steel. it's easy to drill with metal drill bits on a wooden work bench & a clamp

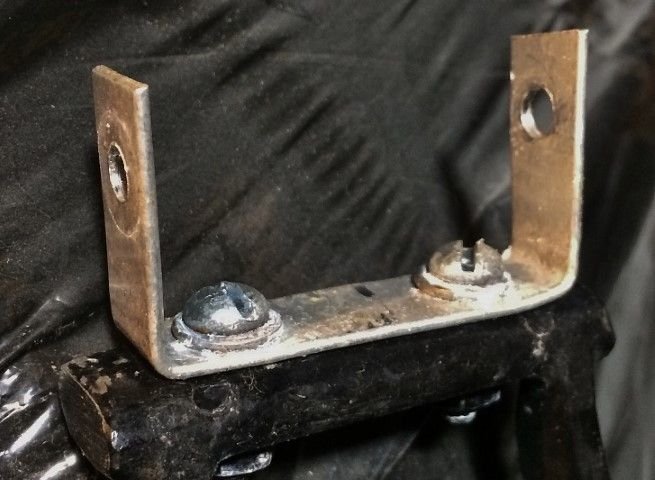

so put that circular bracket in a box for safe keeping & make a bracket exactly as you need it
btw your light may have come with a small bracket, which can fit on seat stays or in this case a small part by my dropout
probably the easiest stuff to work with is metal strapping from the hardware store. it comes on a roll, is easy to bend, already has 2 sizes of holes along the whole length. to cut it to length it's best to use metal snips. altho you can break it with pliers or a hammer by bending it back & forth and slamming it at the crease. it's also easy to twist so you can make odd angles
this is my roll
these are the Midwest Standard, drop forged, snips I inherited from my father-in-law
once you have these two things, you can make all sorts of stuff for your bike
your local hardware store may also have lightweight thin "bar stock" that is easy to cut with a bench vise & hack saw. no home should be without those items as well. bar stock comes in aluminum & steel. it's easy to drill with metal drill bits on a wooden work bench & a clamp
so put that circular bracket in a box for safe keeping & make a bracket exactly as you need it
btw your light may have come with a small bracket, which can fit on seat stays or in this case a small part by my dropout
Last edited by rumrunn6; 10-13-18 at 09:27 AM.
10-13-18, 09:03 AM
#10
Mad bike riding scientist
Join Date: Nov 2004
Location: Denver, CO
Posts: 25,833
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5232 Post(s)
Liked 2,791 Times
in
1,647 Posts
Originally Posted by rm -rf
Cygolite sells a rack mount for $3.95 (plus $3.00 shipping)
It fits both older Hotshot and newer Hotshot Pro lights. The two outside mounting bolt holes are at 50mm (1.97 inch) spacing, that's pretty common on rear racks. Or use the center bolt hole if there's only one hole.
It's the same click-in method as the seatpost brackets use.
When clicked in, my tail light sits below the level of the top of the rack, so a top bag doesn't interfere with the light.
There's similar brackets for other brands, too.
It fits both older Hotshot and newer Hotshot Pro lights. The two outside mounting bolt holes are at 50mm (1.97 inch) spacing, that's pretty common on rear racks. Or use the center bolt hole if there's only one hole.
It's the same click-in method as the seatpost brackets use.
When clicked in, my tail light sits below the level of the top of the rack, so a top bag doesn't interfere with the light.
There's similar brackets for other brands, too.

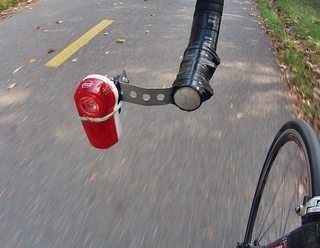

DSCN0387 by Stuart Black, on FlickrI will suggest adding something to keep the light in place...a zip tie or o-ring. Some of the lights will pop out. I find lots of them on the road...mostly smashed.
I would also suggest some rear taillights over others. Most all states in the US require rear reflectors. There aren’t that many taillights that are also reflectors. The Portland Design Works Radbot is one and the Cateye Reflex is another. Most of the others don’t really have integrated reflectors.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
10-13-18, 09:50 AM
#11
Senior Member
Join Date: Jan 2009
Location: Colorado Springs, CO
Posts: 5,746
Bikes: 2015 Charge Plug, 2007 Dahon Boardwalk, 1997 Nishiki Blazer, 1984 Nishiki International, 2006 Felt F65
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,437 Times
in
717 Posts

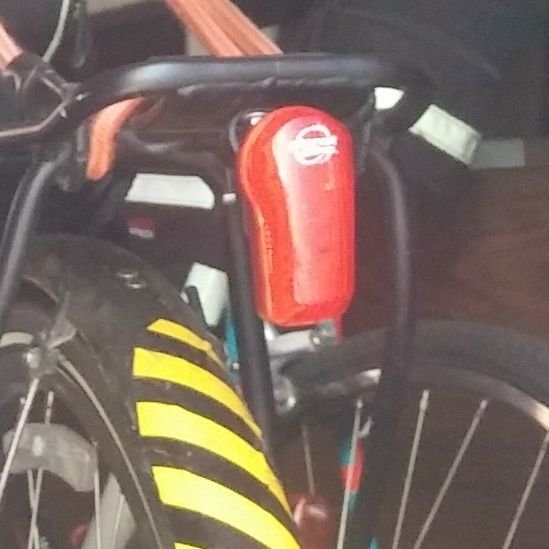

I simply drilled a hole in the plastic "ring".
10-13-18, 10:02 AM
#12
Banned
DIY any?
I have more than 1 tail light that will mount directly to that bracket
with the 2 holes 2 cm apart vertically.. with a screw..
and have a couple lights, German spec, B&M, 2 bolts 5 cm apart, horizontally,
they include both LED and passive reflectors.. they're fixed.
But will admit People might steal your light if they can , (in major cities and school bike racks)
so put it in your pocket when you lock up your bike..
...
with the 2 holes 2 cm apart vertically.. with a screw..
and have a couple lights, German spec, B&M, 2 bolts 5 cm apart, horizontally,
they include both LED and passive reflectors.. they're fixed.
But will admit People might steal your light if they can , (in major cities and school bike racks)
so put it in your pocket when you lock up your bike..
...
10-13-18, 06:00 PM
#13
Senior Member
Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,477
Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4898 Post(s)
Liked 2,866 Times
in
1,921 Posts
Originally Posted by BobbyG
I simply drilled a hole in the plastic "ring".
10-14-18, 09:42 AM
#14
Senior Member
Join Date: Jan 2009
Location: Colorado Springs, CO
Posts: 5,746
Bikes: 2015 Charge Plug, 2007 Dahon Boardwalk, 1997 Nishiki Blazer, 1984 Nishiki International, 2006 Felt F65
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,437 Times
in
717 Posts
He

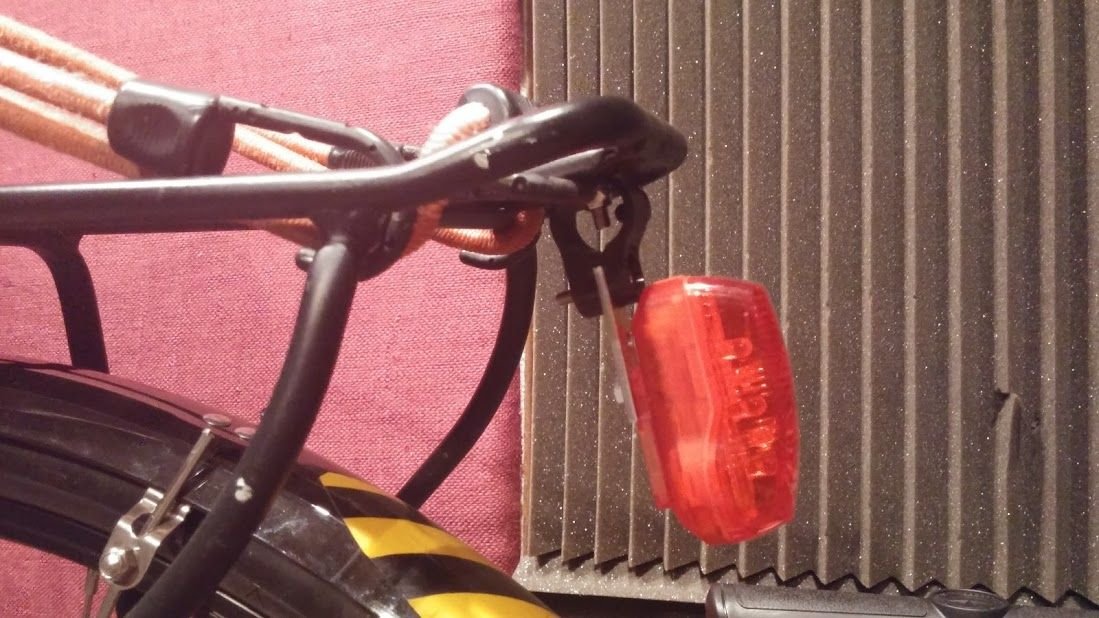

re is a better look at mine...
re is a better look at mine...
10-14-18, 09:50 AM
#15
Senior Member
Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 2,115
Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1002 Post(s)
Liked 235 Times
in
154 Posts
Home Depot has what you need for like $2
It's an angle bracket.
It's sort of this like...
https://www.homedepot.com/p/Superstr...G-10/100390324
except instead of both brackets going the same direction one is twisted 90 degrees. I couldn't find it on the website, but go into any Home Depot and you'll find it in 10 minutes.
Bolt it directly to the rear rack and then bolt the light's mount to the twisted part of the bracket. Viola.
It's an angle bracket.
It's sort of this like...
https://www.homedepot.com/p/Superstr...G-10/100390324
except instead of both brackets going the same direction one is twisted 90 degrees. I couldn't find it on the website, but go into any Home Depot and you'll find it in 10 minutes.
Bolt it directly to the rear rack and then bolt the light's mount to the twisted part of the bracket. Viola.
10-14-18, 11:00 AM
#16
Non omnino gravis
With each post, this thread gets a bit more like an episode of GCN's Hack or Bodge. Not that there's anything wrong with that.
__________________
10-14-18, 03:06 PM
#17
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 24,075
Bikes: Several, mostly not name brands.
Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3194 Post(s)
Liked 2,503 Times
in
1,471 Posts

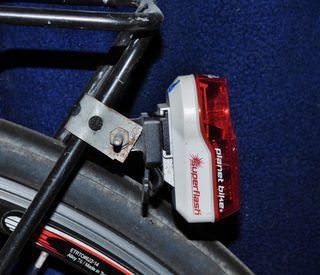

If you have fenders, you can mount a tail light to the rear fender:
10-14-18, 09:41 PM
#18
Senior Member
Join Date: Jan 2009
Location: Colorado Springs, CO
Posts: 5,746
Bikes: 2015 Charge Plug, 2007 Dahon Boardwalk, 1997 Nishiki Blazer, 1984 Nishiki International, 2006 Felt F65
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,437 Times
in
717 Posts
Originally Posted by JohnDThompson
If you have fenders, you can mount a tail light to the rear fender:
10-14-18, 09:47 PM
#19
Senior Member
Join Date: Jan 2009
Location: Colorado Springs, CO
Posts: 5,746
Bikes: 2015 Charge Plug, 2007 Dahon Boardwalk, 1997 Nishiki Blazer, 1984 Nishiki International, 2006 Felt F65
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,437 Times
in
717 Posts

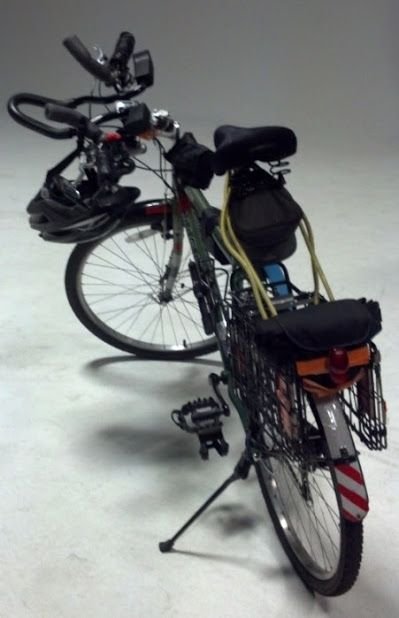

On my MTB-based commuter I have a rear blinky with what is like a pocket clip. I put an orange velcro strap between the Wald folding baskets and clipped it there.
BTW, the black bag behind the orange strap carries two cloth bags I use in the Wald folding baskets to carry small items that would fall through the wires.
BTW, the black bag behind the orange strap carries two cloth bags I use in the Wald folding baskets to carry small items that would fall through the wires.
10-14-18, 09:48 PM
#20
Senior Member
Join Date: May 2008
Location: Zang's Spur, CO
Posts: 9,057
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 3017 Post(s)
Liked 4,414 Times
in
2,243 Posts
See the object just below the rear of the saddle?That is a short piece of wooden dowel attached to the end of a 1/8" x 3/4" aluminum bar stock, with the end bolted to the rack.
It works nicely with my Dinotte 140R tail light.
10-14-18, 09:54 PM
#21
Senior Member
Join Date: Apr 2008
Location: Salt Lake City, UT (Formerly Los Angeles, CA)
Posts: 1,145
Bikes: 2008 Cannondale Synapse -- 2014 Cannondale Quick CX
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Likes: 0
Liked 83 Times
in
54 Posts
Originally Posted by Shimagnolo
See the object just below the rear of the saddle?That is a short piece of wooden dowel attached to the end of a 1/8" x 3/4" aluminum bar stock, with the end bolted to the rack.
It works nicely with my Dinotte 140R tail light.
10-14-18, 09:58 PM
#22
Senior Member
Join Date: May 2008
Location: Zang's Spur, CO
Posts: 9,057
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 3017 Post(s)
Liked 4,414 Times
in
2,243 Posts
Originally Posted by daoswald
Are you sure that chain couldn't be reduced by a pair of links? Looks like a bump could make the chain contact the derailleur cage. That aside, what a beautiful bike!
I have tested it in in every gear, and it does work fine, even if it looks wonky.
10-15-18, 05:38 AM
#23
Advanced Slacker
Join Date: Feb 2017
Posts: 5,820
Bikes: Soma Fog Cutter, Surly Wednesday, Canfielld Tilt
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2590 Post(s)
Liked 2,290 Times
in
1,294 Posts
Several companies that sell tail lights sell brackets to attach them to a rear rack.
What light do you have?
What light do you have?
10-15-18, 09:13 AM
#24
Senior Member
Join Date: Nov 2010
Location: Along the Rivers of Pittsburgh
Posts: 1,243
Bikes: 2011 Novara Forza Hybrid, 2005 Trek 820, 1989 Cannondale SR500 Black Lightning, 1975 Mundo Cycles Caloi Racer
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 271 Times
in
143 Posts
Originally Posted by Kapusta
Several companies that sell tail lights sell brackets to attach them to a rear rack.
I have one attached to a Racktime rack. Works great.
10-15-18, 05:47 PM
#25
Senior Member
These are pretty cool if you have M6 threaded brake posts:
https://store.oceanaircycles.com/pro...-light-adapter
or this will work with any threaded braze-on you may have (M5 I think):
https://problemsolversbike.com/produ...mounts_-_27182
Or this is for a front rack - might work with a rear rack?:
https://problemsolversbike.com/produ...mount_-_271821
https://store.oceanaircycles.com/pro...-light-adapter
or this will work with any threaded braze-on you may have (M5 I think):
https://problemsolversbike.com/produ...mounts_-_27182
Or this is for a front rack - might work with a rear rack?:
https://problemsolversbike.com/produ...mount_-_271821
