Aerodynamic Charts and Graphs

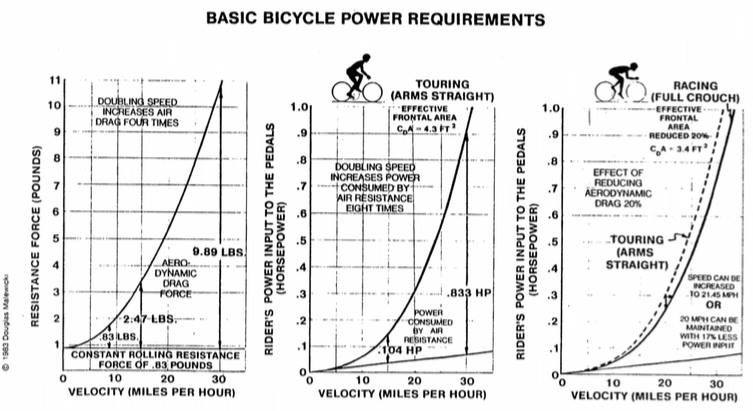

Aerodynamic Drag ©1983 Douglas Malewicki


​​​​​​You may have seen some photos of my Aerodynamic Fairings. Most of my bikes have been upright bikes and Not Recumbents. I wanted to set up manufacturing for crates or panniers, molded in plastic such as HDPE or Polypropylene. When I started cycling the two main types of Bicycle were Racing or Touring. It was before Mountain Bikes. Nowadays, most "touring bikes" are actually Mountain Bikes. My theory was that a streamlined Touring Bike could go faster than a Racing Bike. Okay, keep in mind, Fairings are prohibited from Racing because they are "Cheating", and there are no timing officials to deal with on a transcontinental tour.
I've built a couple dozen prototypes, which I won't show here. Today I want to show the charts and graphs I studied before going whole hog into this project.
Some of these appeared in the December 1983 Scientific American , and are used with permission of the author , Douglas Malewicki.




Short Term Human Power


Long Term Human Power

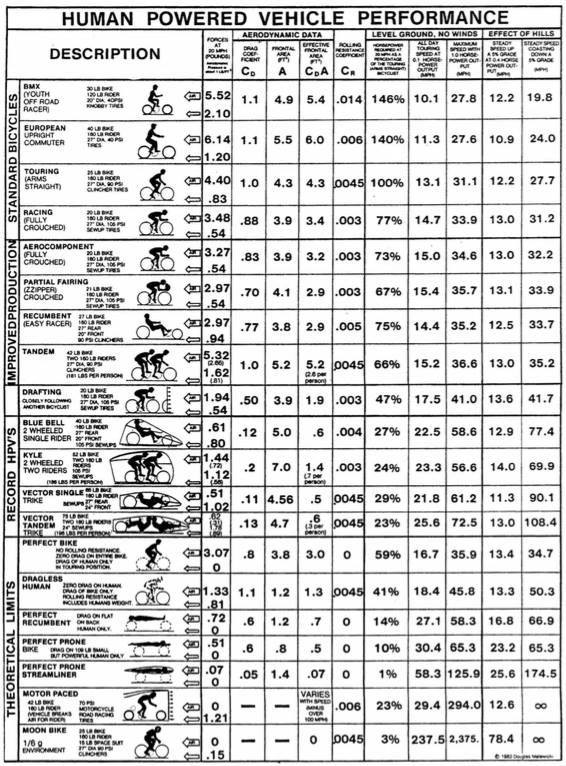

Theoretical Aerodynamic Performance ©1983 Douglas Malewicki
hotbike is offline
Old 03-20-19, 05:13 PM
  #2
caloso
Packfodding 3

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 37,729

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
How does Malewicki define "first class athlete"?
caloso is online now
Old 03-20-19, 06:20 PM
  #3
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 1,970
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 826 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The second chart illustrates what I have been saying for years: A bar of soap is less aero than a can of spam.
Kapusta is offline
Old 03-20-19, 06:36 PM
  #4
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,275

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by caloso View Post
How does Malewicki define "first class athlete"?
.
I believe that would mean Olympic level, or cat 1 cyclist .
hotbike is offline
Old 03-20-19, 11:34 PM
  #5
caloso
Packfodding 3

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 37,729

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by hotbike View Post
.
I believe that would mean Olympic level, or cat 1 cyclist .
Huh. If thatís the case, I think his short term curve is off. I know of at least one masters Cat 3 who can put out .8 hp (600w) for a minute. Heís never going to make Cat 1, much less the Olympics.
caloso is online now
Old 03-21-19, 12:51 PM
  #6
Koyote
Senior Member

Join Date: Sep 2017
Posts: 585
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Likes: 0
Liked 2 Times in 1 Post
All I got is that I am, at best, a "healthy human."
Koyote is offline
Old 03-21-19, 03:02 PM
  #7
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,275

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Okay, I was looking at the text, so to define "first class athlete" , it should be noted the researchers averaged together results from men and women, and made no regard for the cyclists weight.
hotbike is offline
Old 03-21-19, 04:59 PM
  #8
mcours2006
Senior Member

mcours2006's Avatar

Join Date: Jul 2014
Location: Toronto, CANADA
Posts: 5,599

Bikes: Giant Rapid, Bianchi Advantage, Specialized Roubaix, 1985 Gardin Quatro, Norco Threshold, Raleigh Serengheti MTB

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1674 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm going to have to ride 'perfect prone' Superman style tomorrow afternoon with 60 kph wind gusts. Now how the heck do I pedal?
mcours2006 is offline
Old 03-22-19, 09:31 AM
  #9
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,275

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

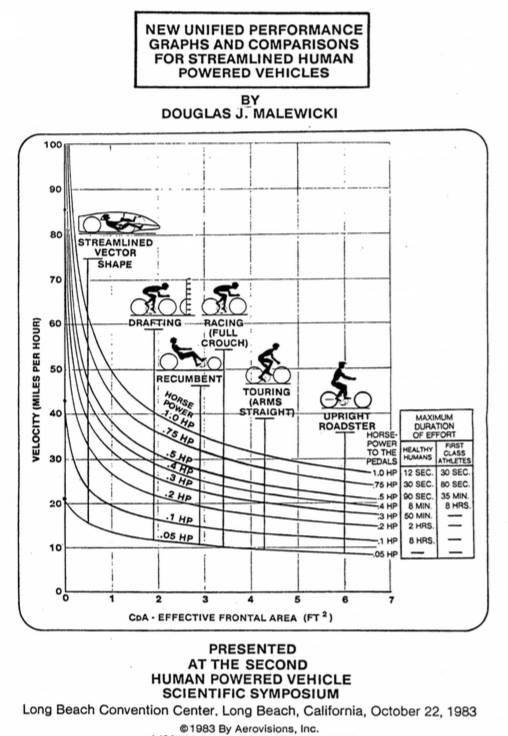

Unified Performance Graphs ©1983 Douglas Malewicki


Vector on the cover of Scientific American December 1983


Modified version of Douglas Malewicki's Unified Performance Graphs.
hotbike is offline
Old 03-22-19, 05:10 PM
  #10
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,995

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by caloso View Post
How does Malewicki define "first class athlete"?
Way better than me.
Road Fan is offline
Old 03-22-19, 05:31 PM
  #11
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,275

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by road fan View Post
way better than me.
​​​​​​​lmao
hotbike is offline
Old 03-22-19, 07:53 PM
  #12
RChung
Senior Member

Join Date: Sep 2009
Posts: 1,447
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by hotbike View Post
Some of these appeared in the December 1983 Scientific American , and are used with permission of the author , Douglas Malewicki.


Thanks. Very nice. I remember these from that issue of Scientific American. I kept it on my bookshelf for several years. These bring back pleasant memories.
