Have you ever painted your bike ?

General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Have you ever painted your bike ?

Old 05-15-19, 02:59 AM
  #1
Solo_rider
Junior Member
Thread Starter

Solo_rider's Avatar

Join Date: May 2019
Location: Vancouver
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Have you ever painted your bike ?

I kinda have some form of obsessive compulsive but it's only with keeping my things clean and looking like new. My bike -just got it a couple of weeks back, used- looks mostly like brand new with the exception of the top tube and a couple other places where there are scratches and it just bugs me to the point where I feel it's affecting my ride, lol. Well, I know it's not affecting my ride but mentally it's bothering me and I cannot stop thinking about it. So, I'm thinking about painting the areas where the scratches are but I'm worried about the results. I know the proper way of painting (sanding, priming, color, clear, wet sanding, rubbing compound, waxing) but I'm still worried about messing things up or paint chipping later since I'm sure factories have a different process of painting. The color of the bike is something like dark charcoal and it's not glossy.

Has anyone tried painting their bike with good results ?
Solo_rider is offline
Old 05-15-19, 04:49 AM
  #2
FlMTNdude
Senior Member

Join Date: Mar 2017
Location: Gainesville FL
Posts: 374

Bikes: 1988 Panasonic

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
There has been a number of threads the past few months on this, a lot of helpful ideas in them.
FlMTNdude is offline
Old 05-15-19, 05:02 AM
  #3
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 6,475

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '68 Schwinn Orange Krate, and More!!

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1032 Post(s)
Liked 85 Times in 49 Posts
Originally Posted by Solo_rider View Post
Has anyone tried painting their bike with good results ?
I have done many in the past. Many with good results. But it's a lot of work, and I wouldn't expect your first job to turn out great. Get a junk bike frame and practice. Or, if you really like your latest bike, find a local shop that can powder coat it. It'll be a much tougher finish than any paint job you do yourself and look great.

EDIT: ^^^Rattle can Chevy engine enamel. Sandblasted frame, primer, wet sanding, top coat, wet sanding, buffing and polishing. Most who see it in person can not believe it's rattle can paint. I've likely painted 8-10 bikes prior to this one.

Last edited by AlmostTrick; 05-15-19 at 09:09 AM.
AlmostTrick is offline
Likes For AlmostTrick:
Old 05-15-19, 07:00 AM
  #4
daviddavieboy
Senior Member

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 628

Bikes: 00' Pinarello Opera, 16' Surly Cross Check, 82' Motobecane jubile sport, 85' Moser Supersprint, 80' Mercier Formule 1, 72' Peugeot AO8, 70' Bob Jackson

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 9 Times in 5 Posts
Originally Posted by Solo_rider View Post
Has anyone tried painting their bike with good results ?

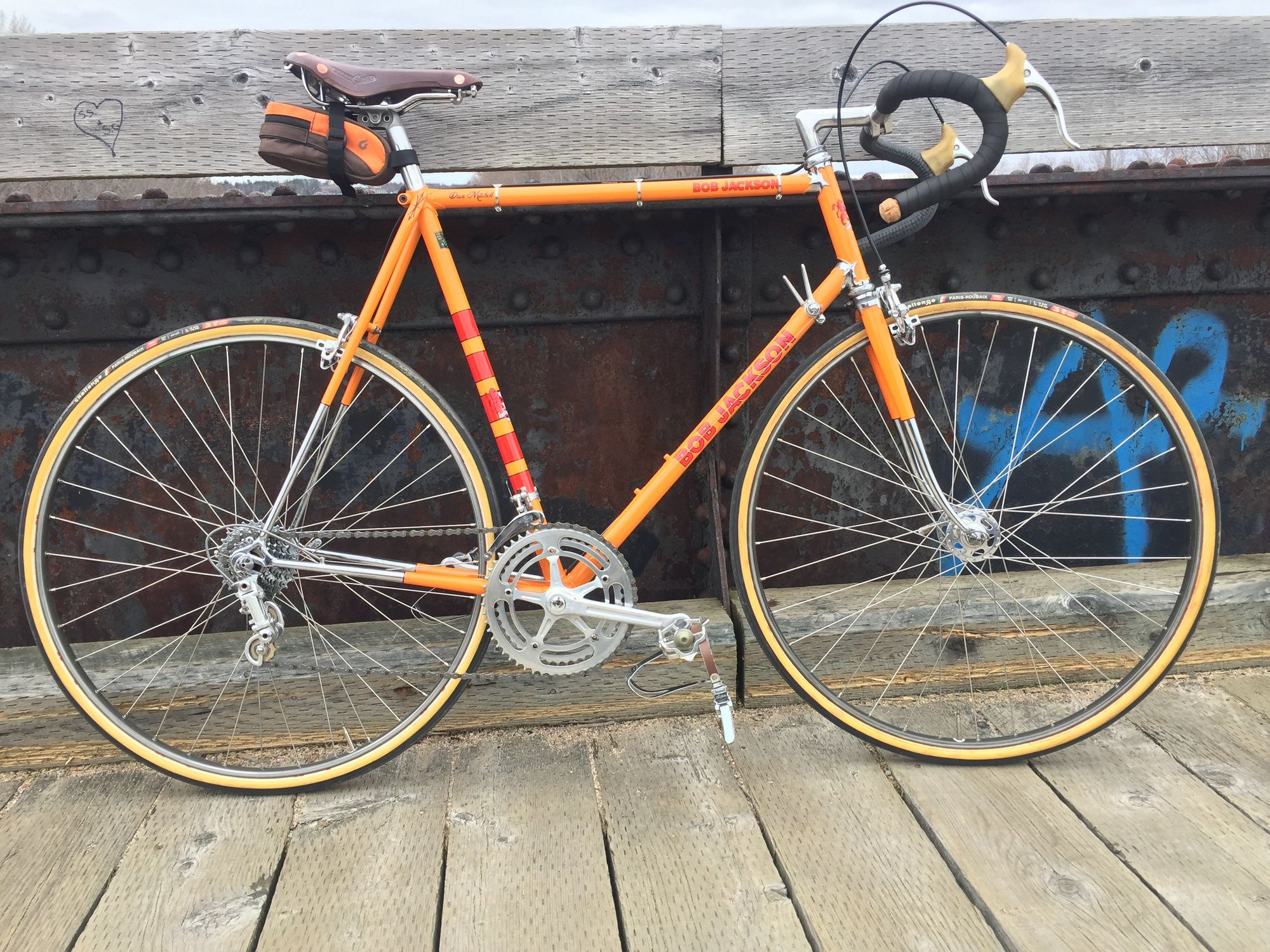

I would call this result good. I had to strip, did a little brazing and paint. I have about 100 hours of work into the frame including home-making most of the decals and painting, If you include collecting, cleaning, rebuilding other parts and rebuilding the bike there would be over 200 hours, I made plenty of mistakes along the way, but I would call it good enough. I have plans to repaint next winter.



daviddavieboy is offline
Likes For daviddavieboy:
Old 05-15-19, 07:13 AM
  #5
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,297
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 703 Post(s)
Liked 86 Times in 69 Posts
Originally Posted by Solo_rider View Post
I kinda have some form of obsessive compulsive but it's only with keeping my things clean and looking like new. My bike -just got it a couple of weeks back, used- looks mostly like brand new with the exception of the top tube and a couple other places where there are scratches and it just bugs me to the point where I feel it's affecting my ride, lol. Well, I know it's not affecting my ride but mentally it's bothering me and I cannot stop thinking about it. So, I'm thinking about painting the areas where the scratches are but I'm worried about the results. I know the proper way of painting (sanding, priming, color, clear, wet sanding, rubbing compound, waxing) but I'm still worried about messing things up or paint chipping later since I'm sure factories have a different process of painting. The color of the bike is something like dark charcoal and it's not glossy.

Has anyone tried painting their bike with good results ?
I've tried painting bikes plenty of times, with bad results. There are a million and one ways to screw up even the simplest paint job, and glitches can occur at any point that cause you to have to start the whole process all over again. Weeks of work can be wasted by one minor mistake, and it might not even be something that's your fault (e.g., paint color mismatch).

Someone suggested a "practice frame", I think that's a very good idea, because you will be amazed at how long such a simple job can take, and how poor the results are despite your best efforts. Look at the post above. 200 hours invested, and he's still gonna need to redo it.
Lemond1985 is offline
Old 05-15-19, 07:39 AM
  #6
delbiker1
Senior Member

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 608

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 23 Times in 17 Posts

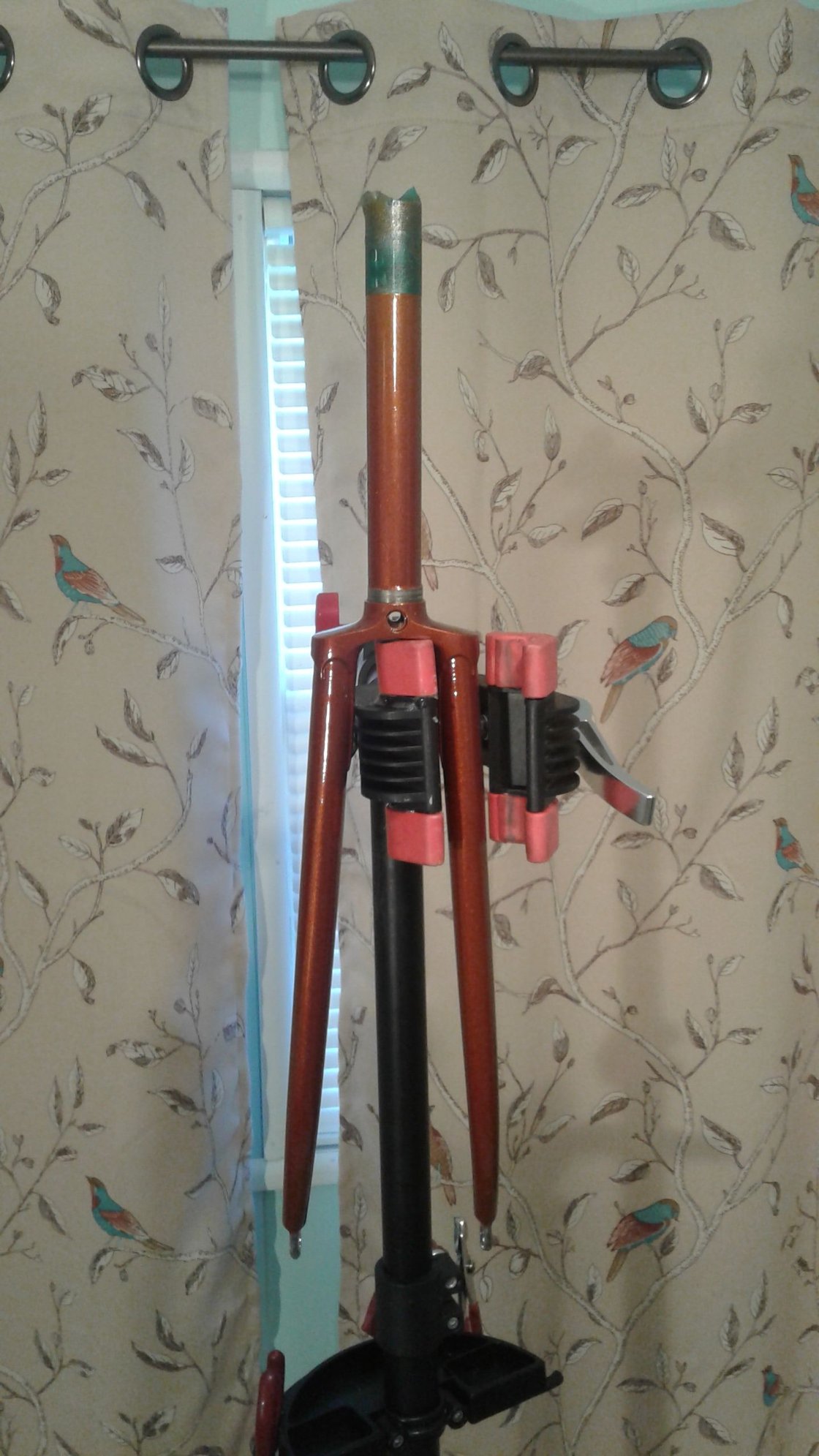

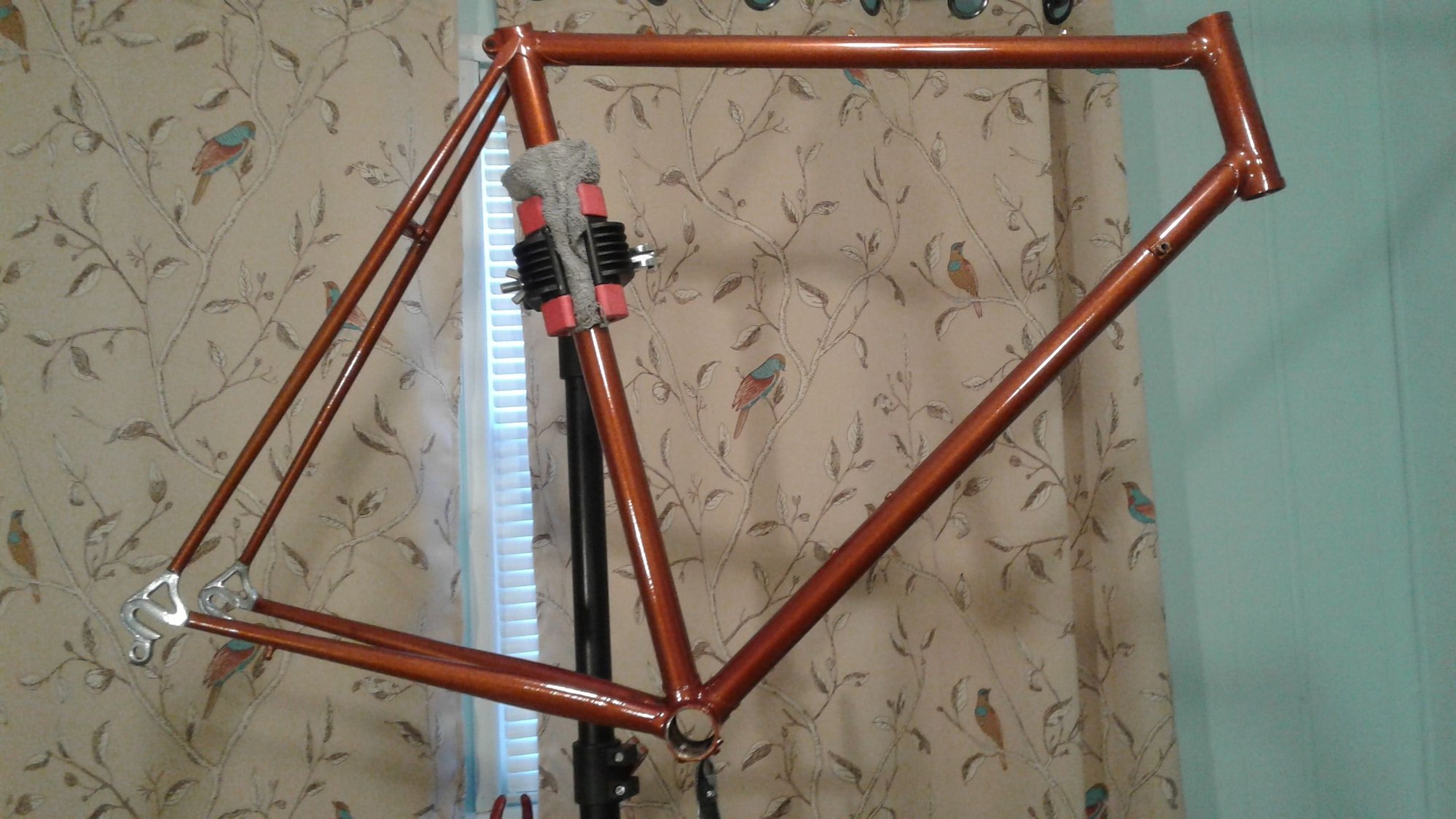

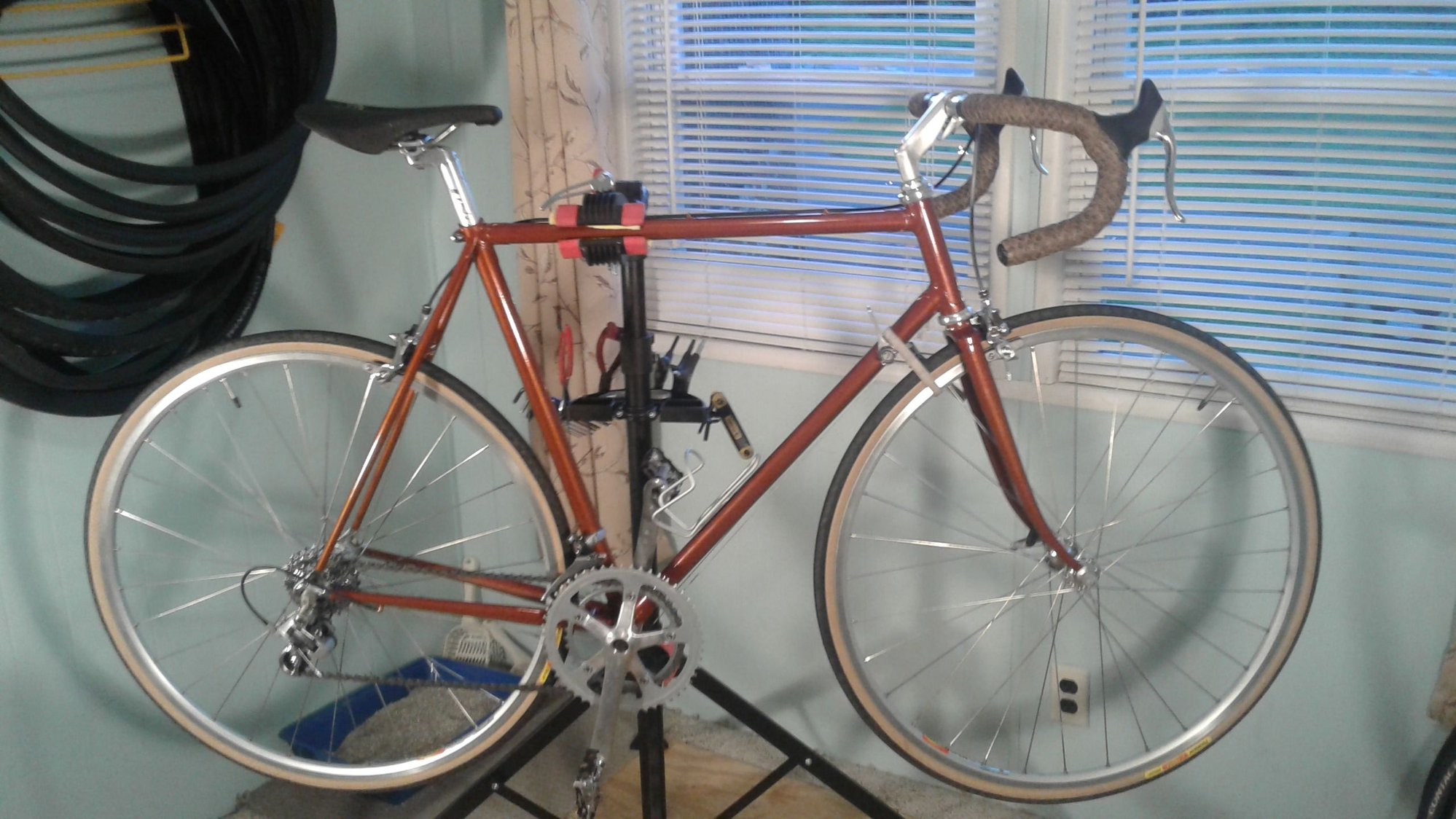

Final touches done
I would agree with the powder coating. Locally, I can get my frame powder coated for $100 with the shop using powder already on hand, and a one stage coating. I recently had a frame done with two stage and special order powder at the cost of $180. It is very durable, takes a good bit to chip/scratch it. I could have spent a lot of time and effort, probably half as much on paint, and the bike woule not have come out anywhere near as nice. The coating also filled some dents and scratches. I did strip the frame myself. Ask the powder coating person about that.
delbiker1 is offline
Likes For delbiker1:
Old 05-15-19, 07:49 AM
  #7
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 750

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 39 Times in 32 Posts
It depends on how involved that you want to get.

We repainted a 10 speed for my son many years back.
  • Stripped it to bare metal.
  • Painted with primer.
  • Painted it white.
  • Painted it with day glow yellow.
  • Painted it with a clear gloss.
It came out looking okay for what it was and the materials that we could afford.

I am having a custom tandem made for my wife and myself. The color has to be a certain one that is not made by powder coat companies. So....
  • Prime it with bare metal epoxy primer.
  • Lightly sand and scuff the primer.
  • There is a 10 minute flash time between each coat of paint
  • 2 coats single stage urethane automotive paint in the desired color.
  • 1 coat 50% single stage color urethane with 50% urethane clear coat. <- not really necessary but it gives a deeper finish.
  • 2 coat surethane clear coat.
It will be a bit pricey but it will be in the color that we want and have enough layers of clearcoat to protect the underlying color.
bakerjw is offline
Old 05-15-19, 08:15 AM
  #8
daviddavieboy
Senior Member

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 628

Bikes: 00' Pinarello Opera, 16' Surly Cross Check, 82' Motobecane jubile sport, 85' Moser Supersprint, 80' Mercier Formule 1, 72' Peugeot AO8, 70' Bob Jackson

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 9 Times in 5 Posts
Originally Posted by bakerjw View Post
The color has to be a certain one that is not made by powder coat companies.
I cant even imagine a color that prismaticpowders doesn't have.
daviddavieboy is offline
Likes For daviddavieboy:
Old 05-15-19, 08:26 AM
  #9
Wilfred Laurier
Señor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 4,194
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 29 Times in 21 Posts
With the exception of powder coating, I have never seen a repainted bike with anywhere near the quality or durability of finish found on even the cheapest of bikes. Sometimes they look halfway decent when the paint is fresh, but it starts to chip quickly and looks like junk after a very short time.
Wilfred Laurier is online now
Old 05-15-19, 08:57 AM
  #10
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 6,581

Bikes: Nekobasu, Pandicorn

Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 3511 Post(s)
Liked 105 Times in 82 Posts

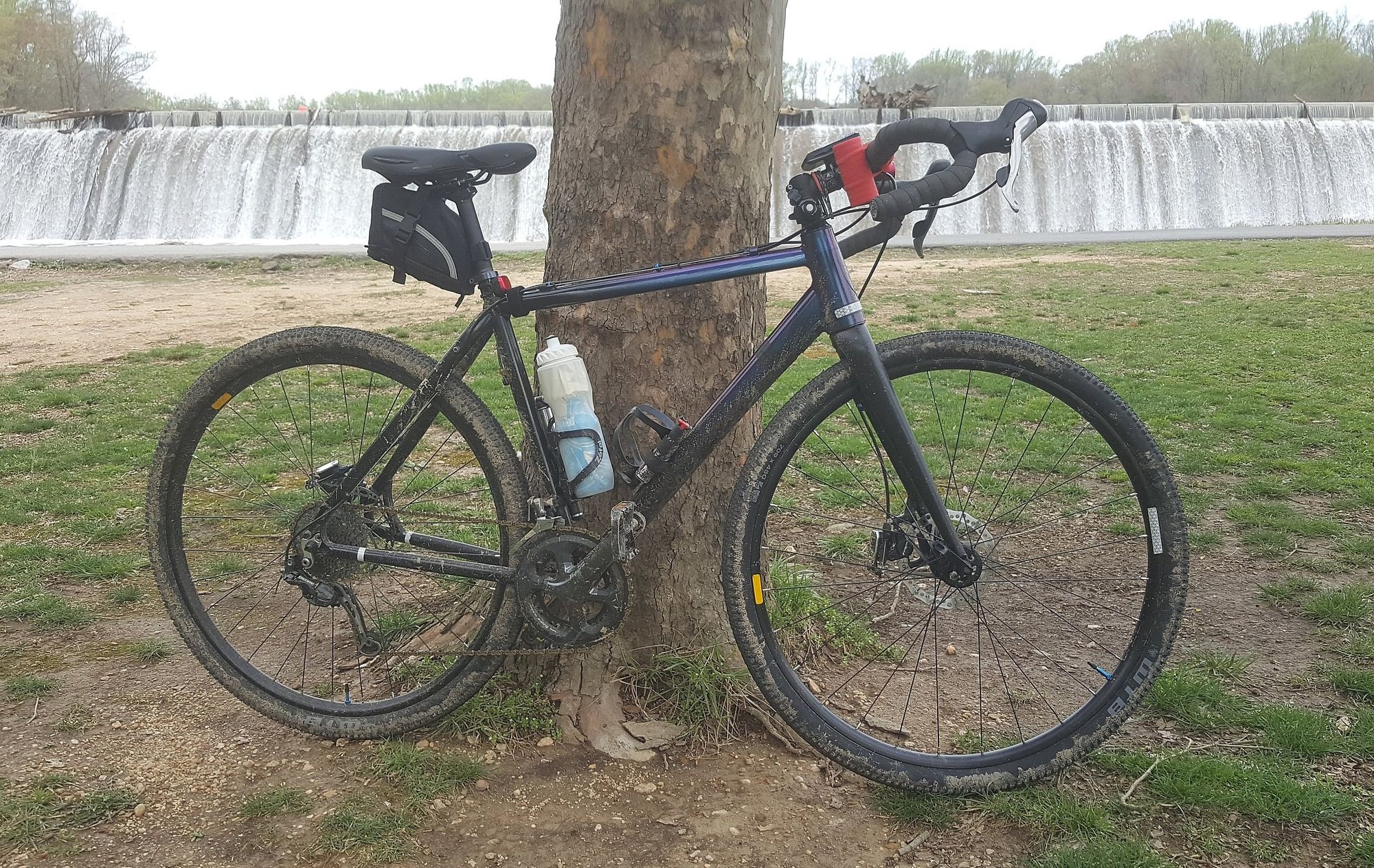

Would I consider powdercoat? Absolutely. But in my case, I wanted to paint the bike, so I did. I think all the materials (including stripper and cleaning supplies) ran about 80 bucks.

Factory paint, had the bike about 8 months.


Freshly Duracoated, disassembly, stripping factory paint, coating, reassembling all in same day.


About a year and 12,500 miles later. Many component changes, finish still excellent.
__________________
DrIsotope is online now
Likes For DrIsotope:
Old 05-15-19, 09:14 AM
  #11
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 882
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 310 Post(s)
Liked 16 Times in 13 Posts
This winter I painted my MTB and my gravel bike with rattle cans.. 98% prep and 2% actual painting. Color changing paint in the front, and change to gloss black in the back, flat black fork. It has been holding up well and I am not "easy" on my bikes or where they sit or lean. Looks better in the sun. Just noticed in my second pic I am in big/big ring (50-36). Something else no one else would do along with paint their own bike . Props to the Deore!



Last edited by u235; 05-15-19 at 09:21 PM.
u235 is offline
Likes For u235:
Old 05-15-19, 09:19 AM
  #12
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,297
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 703 Post(s)
Liked 86 Times in 69 Posts
Looks great, Your situation is one where it would make sense to DIY. Something different or custom, that would cost a fortune to have someone else do for you, can be done pretty easily, with your own talent being the only limiting factor.

On the other hand, it's not a great feeling to bust your butt on a simple single color bike paint job for a month or more, only to have the final result look not even as good as what you'd see on a bike that sells at Walmart for $100.
Lemond1985 is offline
Old 05-15-19, 09:29 AM
  #13
Doctor Morbius
Interocitor Command

Doctor Morbius's Avatar

Join Date: Oct 2003
Location: The adult video section
Posts: 3,333

Bikes: Endurance Road, Road, DS Hybrid, Hybrid, Sport MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by Lemond1985 View Post
On the other hand, it's not a great feeling to bust your butt on a simple single color bike paint job for a month or more, only to have the final result look not even as good as what you'd see on a bike that sells at Walmart for $100.
And that is exactly why I haven't bothered to paint any of mine. I'm afraid I would just make them worse as I have zero experience in this department.
Doctor Morbius is offline
Old 05-15-19, 09:40 AM
  #14
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 412

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 7 Times in 7 Posts


1982 Bianchi Champione del Mondo Before


After

If your obsessive compulsive, have a professional do it, I doubt you’ll be satisfied with the results otherwise.
I am, I did, and very happy with the results.
Tim

Last edited by tkamd73; 05-15-19 at 12:09 PM.
tkamd73 is offline
Likes For tkamd73:
Old 05-15-19, 09:51 AM
  #15
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 989

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Likes: 0
Liked 34 Times in 30 Posts
Factory paint is hard stuff, and ages like a fine wine.

Brush or rattle-can paint isn't, and doesn't. It's shyte.
It's okay for tidying something up on the cheap, but you'll only ever ruin a perfectly good factory paint job with it once.

I chopped up and shortened a tandem for my current whip. I used etch primer and industrial Hard Hat paint by Rustoleum, but naturally it's proving a temporary cover. I figure I can enjoy a change of colour now and then, at least...
MikeyMK is offline
Old 05-15-19, 09:57 AM
  #16
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 989

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Likes: 0
Liked 34 Times in 30 Posts






MikeyMK is offline
Old 05-15-19, 10:32 AM
  #17
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,573

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6739 Post(s)
Likes: 0
Liked 157 Times in 133 Posts
1957,, black primer under a green 'candy' top coat ,, with spray cans,,
fietsbob is online now
Old 05-15-19, 10:41 AM
  #18
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 6,475

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '68 Schwinn Orange Krate, and More!!

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1032 Post(s)
Liked 85 Times in 49 Posts
Originally Posted by MikeyMK View Post





What? Where does the rear wheel go? I'm confused, Help!
AlmostTrick is offline
Old 05-15-19, 10:57 AM
  #19
indyfabz
Senior Member

Join Date: Jan 2010
Posts: 22,225
Mentioned: 163 Post(s)
Tagged: 1 Thread(s)
Quoted: 8446 Post(s)
Liked 242 Times in 152 Posts
Cerakote is the future of bike frame coloring. Just sayin'.


indyfabz is offline
Old 05-15-19, 11:53 AM
  #20
delbiker1
Senior Member

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 608

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 23 Times in 17 Posts
Originally Posted by daviddavieboy View Post
I cant even imagine a color that prismaticpowders doesn't have.
Prismatic Powders.com and you can see all the colors/hues they have, one stage and 2 stage. It is over 6,500.
delbiker1 is offline
Old 05-15-19, 12:10 PM
  #21
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 989

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Likes: 0
Liked 34 Times in 30 Posts
Originally Posted by AlmostTrick View Post
What? Where does the rear wheel go? I'm confused, Help!
Early mock-up with an LTS rear frame..



And completed with an STS rear frame..

MikeyMK is offline
Old 05-15-19, 12:19 PM
  #22
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 6,475

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '68 Schwinn Orange Krate, and More!!

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1032 Post(s)
Liked 85 Times in 49 Posts
Originally Posted by MikeyMK View Post
Early mock-up with an LTS rear frame..



And completed with an STS rear frame..
Thanks, I figured it was something like that but wanted to see it!

Next question, what kind of critter(s)? (need pic!)
AlmostTrick is offline
Old 05-15-19, 01:43 PM
  #23
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 882
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 310 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by MikeyMK View Post
Factory paint is hard stuff, and ages like a fine wine.

Brush or rattle-can paint isn't, and doesn't. It's shyte.
It's okay for tidying something up on the cheap, but you'll only ever ruin a perfectly good factory paint job with it once.

I chopped up and shortened a tandem for my current whip. I used etch primer and industrial Hard Hat paint by Rustoleum, but naturally it's proving a temporary cover. I figure I can enjoy a change of colour now and then, at least...
Rattle can paint is not that bad. It can be a sit down and point and shoot product but the results of that effort will be what it is. Put yourself in a professional booth with professional paint but do all the work yourself and you might get similar results to you yourself doing a rattle can job. Rattle can paint is different in that it takes a longer time to "cure" and takes care with the coat thickness and attention to any recoat times. If you have ever had extremely soft paint after a few weeks, something was not ideal and it may never properly cure. I'm not saying rattle can is the same or ideal or compares to a professional doing the job or powder coating but the conditions and the way it was applied is the a MAJOR factor on the results, more so than the paint itself. In the end, there is very little incentive to master rattle cans. If you are painting things often, you skip that step and go right for a full blown setup.

Last edited by u235; 05-15-19 at 01:46 PM.
u235 is offline
Old 05-15-19, 02:08 PM
  #24
Kedosto
Ambulophobic

Join Date: Nov 2008
Location: San Leandro, CA
Posts: 1,066
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 48 Times in 36 Posts
Back in the day I painted a lot of bikes. Rattle can paint jobs are mostly a product of your effort. Put in little effort and get a less than optimal result. Put in a lot of effort with focus on quality prep and prime and you’ll enjoy a paint job that rivals anything a shop can produce. Unfortunately, rattle can paint isn’t very durable or chip resistant, so a lot of effort is spent for a short lived result.

These days I prefer powder coating. There’s really nothing that matches the durability of a quality powder coat. That, and the fact that I can simply drop it off and pick it up all shiny and new.


-Kedosto
Kedosto is offline
Likes For Kedosto:
Old 05-15-19, 11:57 PM
  #25
jade408
Senior Member

Join Date: May 2014
Posts: 1,471

Bikes: Working on replacing my stolen Soma Buena Vista Mixte

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Liked 36 Times in 22 Posts
I know nothing about the results, but I saw this paint at one of my local bike shops.

https://spraybike.us/
jade408 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
