Schwinn world sport rear drop ou not milled all the way ?

General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Schwinn world sport rear drop ou not milled all the way ?

Old 05-23-19, 06:50 PM
  #1
srinath.the.man
Senior Member
Thread Starter

Join Date: Jan 2016
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Schwinn world sport rear drop ou not milled all the way ?

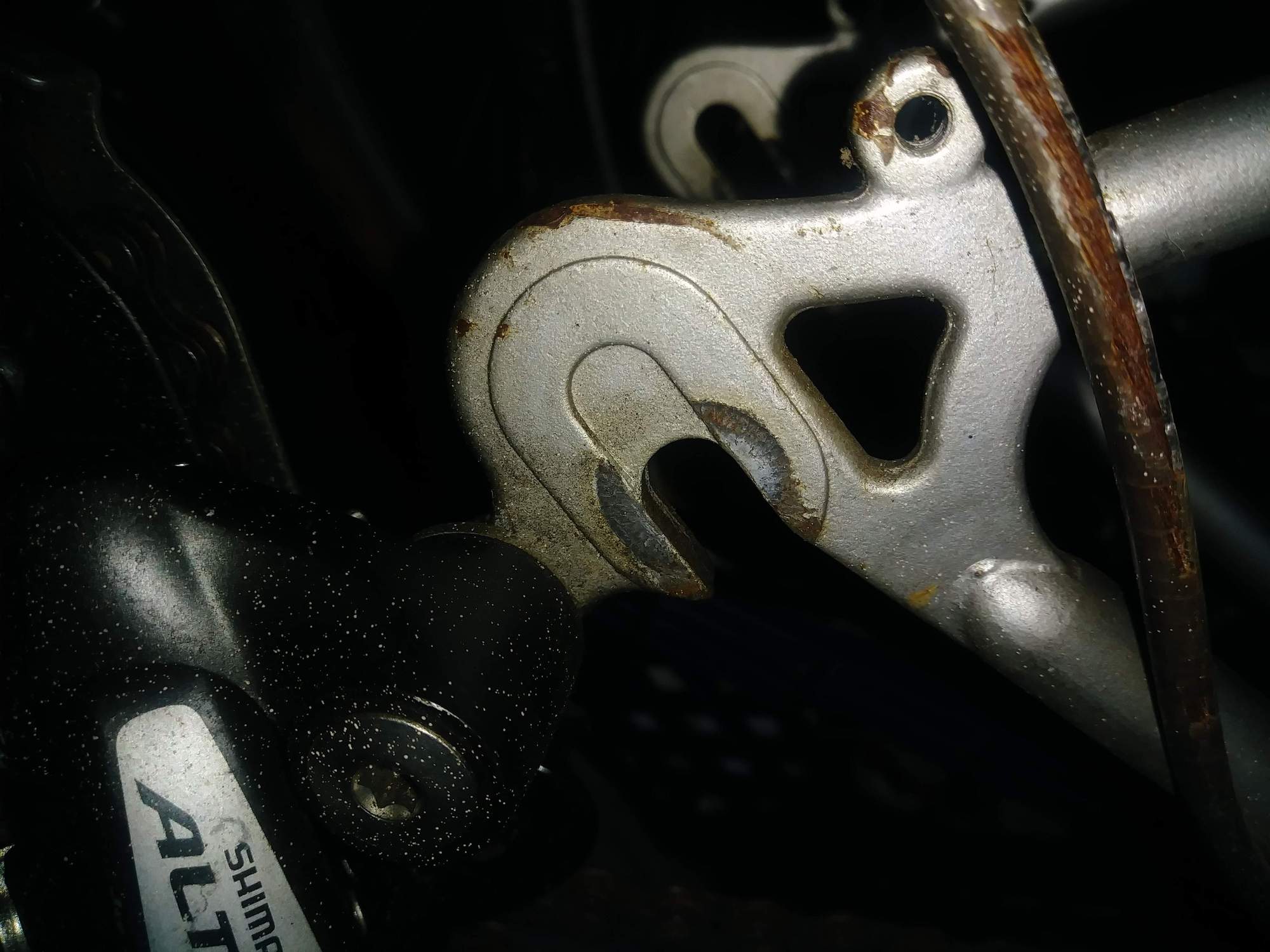

Is this strange, or pretty much normal -




Basically the drop out isn't slotted all the way across on the drive side.
Thanks.
Srinath.
srinath.the.man is offline
Old 05-23-19, 07:38 PM
  #2
BlazingPedals
Senior Member

BlazingPedals's Avatar

Join Date: Dec 2004
Location: Middle of da Mitten
Posts: 10,940

Bikes: Trek 7500, RANS V-Rex, Optima Baron, Velokraft NoCom, M-5 Carbon Highracer, homebuilt recumbent

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 913 Post(s)
Liked 27 Times in 22 Posts
Originally Posted by srinath.the.man View Post
Is this strange, or pretty much normal -




Basically the drop out isn't slotted all the way across on the drive side.
Thanks.
Srinath.
Looks normal to me. It's got the integrated derailleur dropout instead of one that bolts into the slot; so the slot doesn't need to be open as far back.
BlazingPedals is offline
Old 05-23-19, 07:41 PM
  #3
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 991
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 19 Times in 12 Posts
Originally Posted by srinath.the.man View Post
Is this strange, or pretty much normal -




Basically the drop out isn't slotted all the way across on the drive side.
Thanks.
Srinath.
There's a version of this that has the rear portion milled out but leaving a center rib. When there is a skewer you cannot see a thing and it is frustrating trying to get the wheels back.... and then realizing you cannot
DorkDisk is offline
Old 05-23-19, 09:33 PM
  #4
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 368

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor fixie

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 30 Times in 21 Posts
That's a little weird, especially considering that the NDS dropout is milled all the way back.
Litespud is offline
Old 05-23-19, 11:04 PM
  #5
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 1,077

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Likes: 0
Liked 52 Times in 45 Posts
Perhaps the provision is for when a derailleur isn't specified. In that case the slot is needed for chain tensioning, whereas here it isn't.
MikeyMK is offline
Old 05-24-19, 04:39 AM
  #6
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 784

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 49 Times in 37 Posts
Originally Posted by Litespud View Post
That's a little weird, especially considering that the NDS dropout is milled all the way back.
I thought the same thing at first but on the NDS, you can see where the quick release has worn into the paint a bit. Likely there was a spacer in there.

I'd like to see a picture of the other side of the bike.
bakerjw is offline
Old 05-24-19, 05:02 AM
  #7
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,696
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 16 Times in 11 Posts
Not a mistake.

If I remember rightly, that dropout design was introduced to ensure that the sprockets would be optimally positioned for the then-new indexing derailleurs. The NDS end was milled to enable centering of the wheel. That dropout design preceded the common use of vertical dropouts.

Last edited by Trakhak; 05-24-19 at 05:51 AM.
Trakhak is offline
Likes For Trakhak:
Old 05-24-19, 06:28 AM
  #8
OldTryGuy
Senior Member

Join Date: Jun 2013
Location: SW Fl.
Posts: 4,396

Bikes: 1981 Custom Touring Paramount, 1983 Road Paramount, 2013 Giant Propel Advanced SL3, 2018 Specialized Red Roubaix Expert mech., 2002 Magna 7sp hybrid, 1976 Bassett Racing 45sp Cruiser

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Liked 36 Times in 29 Posts
Originally Posted by Trakhak View Post
Not a mistake.

If I remember rightly, that dropout design was introduced to ensure that the sprockets would be optimally positioned for the then-new indexing derailleurs. The NDS end was milled to enable centering of the wheel. That dropout design preceded the common use of vertical dropouts.
Former Schwinn Dealer ---
OldTryGuy is offline
Likes For OldTryGuy:
Old 05-24-19, 06:44 AM
  #9
srinath.the.man
Senior Member
Thread Starter

Join Date: Jan 2016
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ok, I am not fixie'ing this bike then. Cos its all intact and might as well keep it as a unit and sell it as such.
Thanks.
Srinath.
srinath.the.man is offline
Old 05-24-19, 08:07 PM
  #10
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 15,480

Bikes: RANS V3 ti, RANS V-Rex, RANS Screamer

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 468 Post(s)
Liked 22 Times in 21 Posts
Originally Posted by Trakhak View Post
Not a mistake.

If I remember rightly, that dropout design was introduced to ensure that the sprockets would be optimally positioned for the then-new indexing derailleurs. The NDS end was milled to enable centering of the wheel. That dropout design preceded the common use of vertical dropouts.
That makes sense.
__________________
RANS V3 Ti, RANS V-Rex, RANS Screamer
JanMM is offline
Old 05-27-19, 07:49 AM
  #11
Wilfred Laurier
SeŮor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 4,284
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 65 Times in 46 Posts
This is so the axle is properly position wrt. the derailleur, but the longer slot on the NDS allows adjustment if the frame is not perfectly aligned.

Many less expensive bikes with horizontal dropouts use a 'claw' type rear derailleur, and the claw acts as a spacer exactly the same way as this short dropout.
Wilfred Laurier is offline
Old 05-28-19, 07:29 AM
  #12
Hiro11
Senior Member

Join Date: Jun 2010
Posts: 2,051

Bikes: To the right: opinions, not facts.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Likes: 0
Liked 22 Times in 14 Posts
I love this forum. Someone posts a extremely esoteric question about a thirty year old, low-priced bike and someone else knows the answer.
