Are these bars too high?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Are these bars too high?

Old 10-25-19, 11:05 AM
  #26
phughes
Senior Member

Join Date: Mar 2011
Posts: 1,288
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked 65 Times in 48 Posts
It looks as if the OP has simply put the fork in the frame for the purpose of a picture, and has not yet assembled the bike completely. There are no brakes installed, or any cables. As for the bar height, it is not too high from a safety perspective. I currently have the bars on my touring bike slightly higher than the seat. It is very comfortable for me on tour. It looks like it will be a nice bike once you get it built.

Build the bike without cutting the steerer tube and ride it a while to see where you want the bars, and then cut it if you feel it necessary. Contrary to what someone else said, running the stem as a -17 is not a bad idea. You have the option to flip it later if you need the bars higher. You have more options if you do not cut the steerer tube down, and can switch to different bars later that require a long steerer tube if you so desire.
phughes is offline
Likes For phughes:
Old 10-25-19, 11:10 AM
  #27
jackb
Senior Member

Join Date: Apr 2005
Location: Billings, Montana
Posts: 516

Bikes: Trek Domane 5SL Disc; REI Mazama; Specialized Langster

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 22 Times in 11 Posts

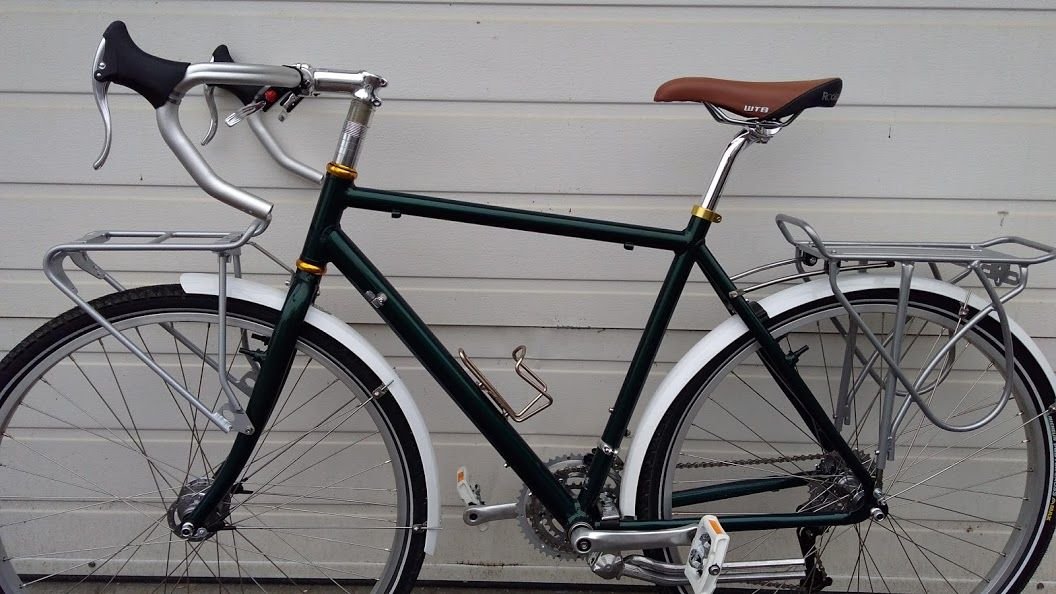

I ride my touring bike, my road bike and my single-speed all with the bars higher than the saddle. I like it that way. Who's to tell me than I shouldn't do what feels good and pleases me.
jackb is offline
Likes For jackb:
Old 10-25-19, 11:18 AM
  #28
terrymorse
climber has-been

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 3,520

Bikes: Scott Addict R1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 332 Post(s)
Liked 166 Times in 123 Posts
Originally Posted by hybridbkrdr View Post
I'm also thinking of pushing the saddle a bit forward and turn up the bars a little.
Moving the saddle forward should be okay, it has quite a large setback now.

But do not rotate the bars up. They are already at the maximum. The bends of the bars should be parallel to the ground or pointed slightly downwards, never pointed upwards.
__________________
Ride, Rest, Repeat
terrymorse is offline
Old 10-25-19, 12:47 PM
  #29
ab_antiquo
Banned

Join Date: Sep 2019
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 23 Times in 15 Posts
Originally Posted by livedarklions View Post
don't assume the person you're talking to is an idiot.
Given many people's posting history, that is a big, big ask.

ab_antiquo is offline
Old 10-25-19, 12:56 PM
  #30
livedarklions
Cyclesomatic

livedarklions's Avatar

Join Date: Jun 2018
Location: New England
Posts: 5,937

Bikes: Trek FX 3; 1994 Specialized Allez Pro; Motobecane Fantom CX; Giant OCR A1

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 3060 Post(s)
Liked 1,533 Times in 920 Posts
Originally Posted by ab_antiquo View Post
Given many people's posting history, that is a big, big ask.

Contrary to popular belief, refuting straw men doesn't make you seem any smarter.
livedarklions is offline
Old 10-25-19, 03:47 PM
  #31
wolfchild
Senior Member

wolfchild's Avatar

Join Date: Feb 2008
Location: Mississauga/Toronto, Ontario canada
Posts: 5,880

Bikes: I have 3 singlespeed/fixed gear bikes

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1560 Post(s)
Likes: 0
Liked 224 Times in 132 Posts
How is it even possible to do a proper bike fit over the internet ??
wolfchild is offline
Old 10-25-19, 05:10 PM
  #32
ab_antiquo
Banned

Join Date: Sep 2019
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 23 Times in 15 Posts
Originally Posted by livedarklions View Post
Contrary to popular belief, refuting straw men doesn't make you seem any smarter.

You mean like the straw man you just created? That's a glorious self-own there.
ab_antiquo is offline
Old 10-25-19, 05:23 PM
  #33
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 2,714
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Likes: 0
Liked 245 Times in 162 Posts
I think everything looks pretty much dead on perfect.

Slap on some bar tape and call her done.
Kapusta is offline
Old 10-25-19, 05:39 PM
  #34
livedarklions
Cyclesomatic

livedarklions's Avatar

Join Date: Jun 2018
Location: New England
Posts: 5,937

Bikes: Trek FX 3; 1994 Specialized Allez Pro; Motobecane Fantom CX; Giant OCR A1

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 3060 Post(s)
Liked 1,533 Times in 920 Posts
Originally Posted by ab_antiquo View Post

You mean like the straw man you just created? That's a glorious self-own there.
/ignore
livedarklions is offline
Old 10-25-19, 06:01 PM
  #35
Wileyrat
Senior Member

Join Date: Mar 2013
Location: Tucson Az
Posts: 1,421

Bikes: 2015 Ridley Fenix, 1983 Team Fuji, 1985 Novara Strada, 2013 BD Motobecane 650ht, 90 Trek 850

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 54 Times in 35 Posts
If you need to ask, yes.....Slam that stem!




Says the guy that rides 25mm of spacers.
Wileyrat is offline
Old 10-25-19, 06:17 PM
  #36
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 1,402

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 163 Times in 116 Posts
What's the point in putting spacers underneath a stem, and having the stem angled down? Flip the stem, lose the spacers, the handlebar position is identical and you've shaved weight. Or just flip the stem so the bars are high enough to see where you're going.
MikeyMK is offline
Old 10-25-19, 08:00 PM
  #37
ab_antiquo
Banned

Join Date: Sep 2019
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 23 Times in 15 Posts
Originally Posted by livedarklions View Post
/ignore

ab_antiquo is offline
Old 10-26-19, 03:40 PM
  #38
hybridbkrdr
we be rollin'
Thread Starter

hybridbkrdr's Avatar

Join Date: Oct 2009
Location: Quebec, Canada
Posts: 1,739
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 5 Times in 5 Posts
Uh, excuse me for the last pic. That was actually with a double kickstand (Pletscher). Anyway, I used the top portion of a Listerine bottle to make a temporary 40mm spacer. At this angle, the photo lies a little as the bars are really about the same height as the saddle, not higher. So, do you think I should slide forward the saddle even more? I adjusted the bars slighter higher to be more parallel to the ground. And I adjusted the brake levers lower (hoods). Does that seem OK now?
hybridbkrdr is offline
Old 10-26-19, 04:09 PM
  #39
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 2,853
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 126 Times in 95 Posts
If it's comfortable enough to ride, get a proper spacer in there and ride it. Most of us don't fit bikes that are set up like the bikes seen in marketing pictures and athletic events.

About pictures, cell phone pictures taken from close-up are always distorted, making it hard to judge exactly what's going on. To get a better look at how the bike is actually set up, you might have to take the picture from some distance, and then crop it as needed. But even without an accurate picture, the bike looks like it's at least set up well enough to try it out for a long ride, and then dial it in with a few minor adjustments. Happy riding, nice bike.
Gresp15C is offline
Old 10-26-19, 04:11 PM
  #40
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 2,714
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Likes: 0
Liked 245 Times in 162 Posts
Originally Posted by hybridbkrdr View Post
Uh, excuse me for the last pic. That was actually with a double kickstand (Pletscher). Anyway, I used the top portion of a Listerine bottle to make a temporary 40mm spacer. At this angle, the photo lies a little as the bars are really about the same height as the saddle, not higher. So, do you think I should slide forward the saddle even more?I adjusted the bars slighter higher to be more parallel to the ground. And I adjusted the brake levers lower (hoods). Does that seem OK now?
I think it fit better before.
Kapusta is offline
Old 10-26-19, 06:23 PM
  #41
Happy Feet
Senior Member

Happy Feet's Avatar

Join Date: Sep 2015
Posts: 3,778
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1518 Post(s)
Liked 383 Times in 238 Posts
Why the stem up side down?

The stem is that thing that connects the bars to the fork. Flip it so it angles up and you will lose about 2" of spacers. Practically speaking adding more spacers and angling it downward as you have achieves the same effect as removing spacers and angling it upward but, as it is, it looks odd to the eye. Sort of like getting extra long crank arms and adding peddle blocks so your feet reach. You will have people continually asking why you did that.

Otherwise the height and angle of bars looks fine - it's all about how it fits you.
Happy Feet is offline
Likes For Happy Feet:
Old 10-28-19, 09:27 AM
  #42
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,406

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Liked 276 Times in 159 Posts
I'd say that, based on the stem length and handlebar reach, the number of spacers needed to get the hand position high enough for your comfort, as well as the saddle setback, that you are compensating for a frame that simply is too small for you. Which is okay, but I prefer not to do that if it can be avoided by getting the right size frame beforehand.

It looks functional enough, as long as the steerer tube can handle the unsupported load above the headset. Aesthetically...not so much.
Phil_gretz is offline
Likes For Phil_gretz:
Old 10-29-19, 10:22 AM
  #43
Caliper
Senior Member

Join Date: May 2014
Location: Michigan
Posts: 941

Bikes: Many

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Liked 31 Times in 25 Posts
That's... a lot of spacers... I'd check with the fork manufacturer about how tall a spacer stack they recommend, even if it is a metal steerer tube. Honestly, you may benefit from the next size larger frame.
Caliper is offline
Likes For Caliper:
Old 10-29-19, 11:34 AM
  #44
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 24,804
Mentioned: 189 Post(s)
Tagged: 1 Thread(s)
Quoted: 10077 Post(s)
Liked 1,540 Times in 913 Posts
Multi-quote doesn't work with my old work browser, so I will "manually" state that post Nos. 41-43 make gogent points.
indyfabz is offline
Old 10-31-19, 04:03 AM
  #45
smarkinson
Senior Member

Join Date: May 2015
Posts: 1,003
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 332 Post(s)
Liked 13 Times in 7 Posts
Flip the stem!

(my next post needs to be a damn good one to celebrate 1,000 posts)
smarkinson is offline
Old 10-31-19, 09:47 AM
  #46
Kedosto
Ambulophobic

Join Date: Nov 2008
Location: San Leandro, CA
Posts: 1,249
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Liked 201 Times in 121 Posts
As Phil said in post #42 , the frame appears to be too small and you’re trying to find comfort with a lot of spacers. I wouldn’t be surprised if you find you need to raise the seat , given how far you’re trying to raise the bars. Flipping the stem to reduce the spacer stack will also reduce the reach which given what your setup looks like now would only make things worse.

Without much more to go on than a crooked photo (the tires aren’t lined up squarely with the wall), it looks like at least one frame size or possibly two sizes larger will fix your seatpost, saddle setback, stack, and reach. While you may be able to cobble something together that seems to work, it looks to me like you’re not gonna get your best fit with this frame.

-Kedosto
Kedosto is offline
Likes For Kedosto:
Old 10-31-19, 01:57 PM
  #47
hybridbkrdr
we be rollin'
Thread Starter

hybridbkrdr's Avatar

Join Date: Oct 2009
Location: Quebec, Canada
Posts: 1,739
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 5 Times in 5 Posts
OK, I don't want to be annoying with this. I just messaged the manufacturer about using 100mm in spacers. And now, with the saddle pushed forward, I feel more comfortable but find I might be able now to use fewer spacers (I'll see). Anyway, my legs are long for my height and torso short so that may explain why I'm having a challenge getting it right. So, what do you think of the saddle position now? Is it safe to run it close to the edge of the rails?
hybridbkrdr is offline
Old 10-31-19, 03:14 PM
  #48
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 2,714
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Likes: 0
Liked 245 Times in 162 Posts
Originally Posted by hybridbkrdr View Post
OK, I don't want to be annoying with this. I just messaged the manufacturer about using 100mm in spacers. And now, with the saddle pushed forward, I feel more comfortable but find I might be able now to use fewer spacers (I'll see). Anyway, my legs are long for my height and torso short so that may explain why I'm having a challenge getting it right. So, what do you think of the saddle position now? Is it safe to run it close to the edge of the rails?
If you are worried about too many spacers, Why donít you just flip the stem? You are using way more spacers than you need to get that bar height.
Kapusta is offline
Old 10-31-19, 03:55 PM
  #49
FiftySix
I'm the anecdote.

FiftySix's Avatar

Join Date: Apr 2019
Location: S.E. Texas
Posts: 1,120

Bikes: Norco CityGlide, Schwinn "Speedster" Willy

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 410 Times in 304 Posts
Another vote here to remove a spacer and flip the stem.
FiftySix is offline
Old 10-31-19, 05:18 PM
  #50
wolfchild
Senior Member

wolfchild's Avatar

Join Date: Feb 2008
Location: Mississauga/Toronto, Ontario canada
Posts: 5,880

Bikes: I have 3 singlespeed/fixed gear bikes

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1560 Post(s)
Likes: 0
Liked 224 Times in 132 Posts
Flip the stem and keep all the spacers....When I had drop bars on my mountain bike I had 80mm of spacers and a 90mm 35 degree stem, it was a perfect fit for me and very comfortable. I like my bars higher up because it gives me better control and better handling on rough terrain and on the road...
wolfchild is offline
