How to pack a frame for shipping?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

How to pack a frame for shipping?

Old 01-10-20, 10:25 PM
  #1
Decadence
Member
Thread Starter

Join Date: Jul 2018
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 8 Times in 6 Posts
How to pack a frame for shipping?

I need to send a steel frame interstate, and can't find much info on how to pack it - there are plenty of tutorials on disassembling and packing full bikes into boxes, but nothing about wrapping just the frame.

I'm aware that the fork/rear dropouts need some material in between them so they don't get bent in transit, but should I unscrew the headset and take the forks off of the frame? Should I just use styrofoam wrap/bubble wrap and then wrap that with cardboard?

Any info is appreciated thanks
Decadence is offline
Old 01-11-20, 07:01 AM
  #2
Tandem Tom
Senior Member

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,250

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Likes: 0
Liked 44 Times in 37 Posts
I work in a bike shop so I will share how we do it. Dropouts get a spacer,you can probably get then at a shop we always have extras, foam tube like pipe insulation around all tubes . Then pack the empty areas with foam,bubble wrap lots of newspaper.
Then use Ship Bikes to send as they use FedEx.
Tandem Tom is offline
Old 01-11-20, 07:05 AM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,470

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 1,048 Times in 719 Posts
search function - Probably 50 threads on this
How To Pack & Ship A Bicycle...

How to pack a bike 101
dedhed is offline
Old 01-11-20, 10:42 AM
  #4
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,064

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 2149 Post(s)
Liked 1,090 Times in 763 Posts
Typically when I get a new frame the fork is separate but that is usually due to the fact I don't have a headset on it because I don't much go for anything but Cane Creek and generally 110 series (except threaded I go Chris King)

It sounds like you got it pretty well figured out. Basically your goal is to make sure the frame doesn't get damaged in shipping do if you wrap it well and put something to hold the dropouts you will be fine.
veganbikes is offline
Old 01-11-20, 02:51 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,470

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 1,048 Times in 719 Posts
Remember that the cost of shipping things like this is the size of the box, not the weight
dedhed is offline
Old 01-11-20, 03:14 PM
  #6
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,816

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 112 Times in 66 Posts

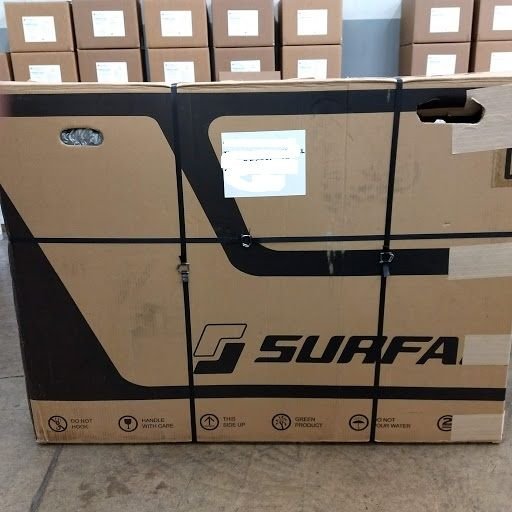

This frame was shipped last summer. The tubes are protected with foam pool noodles. The dropouts are supported with a wood dowel attached with screws and fender washers. I also fill the voids in the box with strips of cardboard cut the width of the box, they're folded into 10" triangles three layers thick. This is a lot of extra work, but the box is almost crush proof.

brian3069 is offline
Likes For brian3069:
Old 01-12-20, 07:23 AM
  #7
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 2,883

Bikes: Specialized,Cannondale,Argon 18

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 786 Post(s)
Liked 389 Times in 260 Posts
Originally Posted by brian3069 View Post


I had a bike frame shipped to me last year and it was packed just like this! It came from factory this way. It was in a giant bike box and was wrapped up in these noodles. It was much prettier but it was the same and it was great. Rear drop outs had a plastic dummy axle in it and the BB had plugs threaded in. The headset also had plastic caps installed. No issues. Took me like 30 minutes to unwrap the darn thing!

They used bike flights to ship being it came from Canada and it was perfect.
sdmc530 is offline
Old 01-12-20, 07:50 AM
  #8
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,083

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1518 Post(s)
Liked 491 Times in 290 Posts
Shipping costs are affected by the size of the object as much as by the weight. Try to find a frame box at your local bike store rather than a whole bike box. A more compact carton = lower shipping cost.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 01-12-20, 02:06 PM
  #9
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,340

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5058 Post(s)
Liked 2,373 Times in 1,390 Posts
Get a box from a bike shop- one near me gives em out for free with all the packaging in the box. You can then reuse the cardboard and dropout spacers that came with the prior bike.
Get a few pool noodles or some foam pipe insulation. Zip tie and packing tape everything in place.

Cut the box to fit. It takes an extra 10min to cut off any excess length, but it reduces the chance of frame movement and also reduces the shipping cost.
mstateglfr is offline
Old 01-15-20, 05:25 PM
  #10
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,643

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 521 Post(s)
Liked 249 Times in 171 Posts

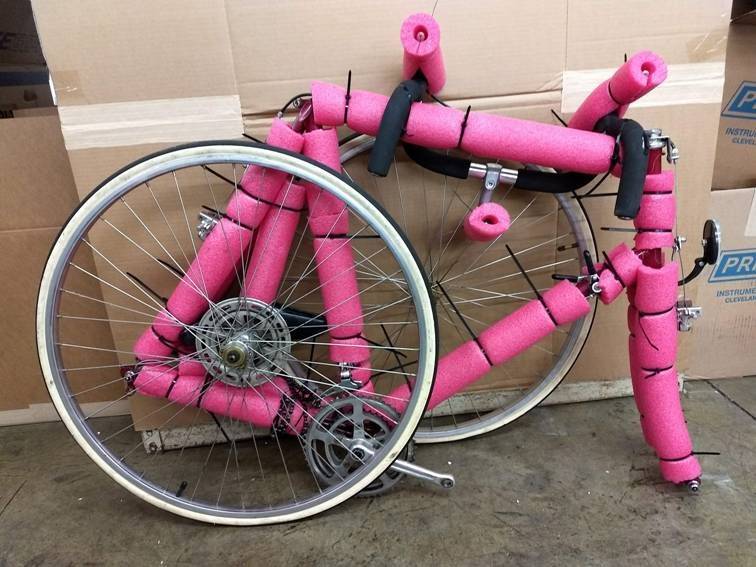

This is how I shipped an entire 25"-frame touring bike clear across the country. Pool noodles and zip ties. I used PVC pipe and the wheel skewers in the dropouts.

I didn't have the proper tool to remove the headset bearing retainer, so it got shipped with the fork still installed.

I shipped it in a double-wall box that my coworker's e-bike came in. Very sturdy box!





__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
