Wacky 48/38/18 crankset on vintage touring bike???

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Wacky 48/38/18 crankset on vintage touring bike???

Old 06-11-20, 02:27 PM
  #1
RoLo50312
Junior Member
Thread Starter

Join Date: Jan 2019
Location: Des Moines, IA
Posts: 24
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 4 Times in 3 Posts
Wacky 48/38/18 crankset on vintage touring bike???

Ok, so I am really hoping someone can enlighten me. I saw a listing for an old Brooks saddle for $20 but it came with a bike I didnít want. I figured I would take the saddle and donate the bike to the co-op. Once I had the bike I started to think that under the grime and filth it is actually kind of cool. Itís a little small for me - a 54 (I normally ride a 56). So instead of keeping the saddle and getting rid of the bike I started thinking about cleaning it up a bit and selling it - I had been thinking about $100-120 after new tubes, tires, and bar tape. I have been cleaning it and discovered the rims are true, hubs spin smoothly, canti brakes needed slight adjustment...but the down tube friction shifting is all out of whack. So then I looked closer and realized the touring triple crankset is a 48/38/18. Itís a six speed cassette 13-30. The 18T chainring appears to be affixed with some type of bright purple adapter. So Iím thinking this must be an extreme adaptation for steep climbs with a heavy load. But it seems like there is no way that all gear combinations can possibly work. Has anyone ever seen this setup? Is the intent that the rider knows that if using the 18T chainring that it will only work with the largest couple cogs in the cassette? If I shift to the 18 in front and 13 in the back the chain droops down with no tension and massive slack. The setup seems pretty odd and Iím hoping someone can help me understand this setup. The bike is a kuwahara caravan tour.





RoLo50312 is offline
Old 06-11-20, 03:39 PM
  #2
RoLo50312
Junior Member
Thread Starter

Join Date: Jan 2019
Location: Des Moines, IA
Posts: 24
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 4 Times in 3 Posts
LOL. I just checked and the chain is way too long for the 18-30 combo and too short to reach the 48-13 combo. I think Iíll just keep the saddle and donate the bike to the co-op where it can be used for parts. Or if someone were to remove the 18 up front and put in a 28 and then put on a new chain it might be a decent bike. Interesting thing that was done to this bike...
RoLo50312 is offline
Old 06-11-20, 04:37 PM
  #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,609

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7333 Post(s)
Liked 940 Times in 595 Posts
the purple thing is an aftermarket piece somebody added...

replace the crank ,,a 48 38 28 may work better for you,,
fietsbob is offline
Likes For fietsbob:
Old 06-11-20, 05:35 PM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,602

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 640 Times in 438 Posts
Looks like a nice touring frame, lots of braze ons, racks.Should be worth something.
Question is why would you need an 18 in Iowa?
dedhed is offline
Old 06-11-20, 05:48 PM
  #5
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,702

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 111 Post(s)
Tagged: 1 Thread(s)
Quoted: 3346 Post(s)
Liked 797 Times in 504 Posts
Originally Posted by RoLo50312 View Post
LOL. I just checked and the chain is way too long for the 18-30 combo and too short to reach the 48-13 combo. I think I’ll just keep the saddle and donate the bike to the co-op where it can be used for parts. Or if someone were to remove the 18 up front and put in a 28 and then put on a new chain it might be a decent bike. Interesting thing that was done to this bike...
It’s not as silly as you think. Perhaps an 18 is a bit small but I run a 20 tooth inner on a number of bikes with 11-34 and 11-36 cassettes. It works just fine and I find the 15” low to be highly useful in a number of situations. I actually modify 104/64 external bearing bottom bracket cranks to accept a 20 tooth inner. This is a modified crank with a 46/34/20 and an 11-36 9 speed cassette. It’s an even wider range than the one you have.

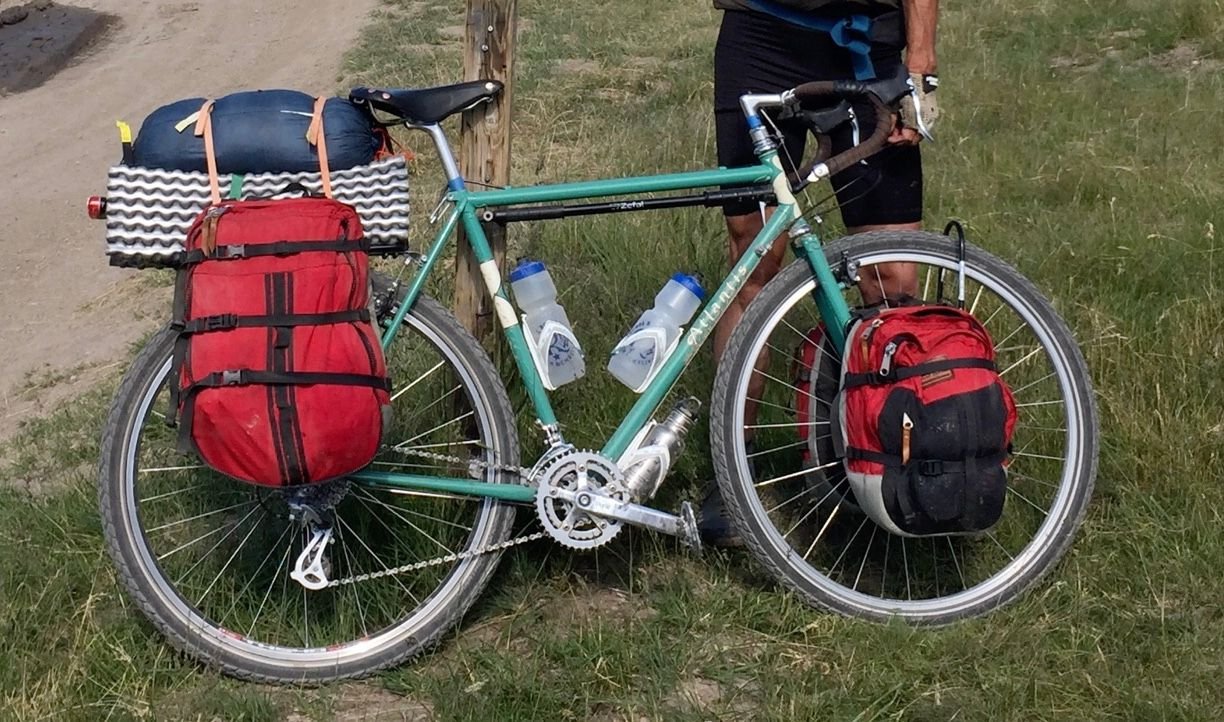

Untitled by Stuart Black, on Flickr

The purple bit is may be an Avid MicroAdaptor or it might be a Mountain Tamer Triple adapter. It looks like the cog is on old freewheel cog rather than a bolted on chainring. The problem you are having with the chain may be the fault of the rear derailer. It looks like it has a shorter arm that can’t wrap the proper amount of chain. A longer derailer would help. The arm may be sticky as well. It should be folded back further. Put a new derailer on it and I think you’ll find that it works just fine.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.

Last edited by cyccommute; 06-11-20 at 05:54 PM.
cyccommute is offline
Old 06-11-20, 08:19 PM
  #6
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 5,973

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 1724 Post(s)
Likes: 0
Liked 447 Times in 317 Posts
My own with a 22T cog bolted to a crank. Since you mentioned that the small ring only works with the largest two cogs it looks to me like the guy built himself a bailout gear. Even in the Midwest there must be some short steep drops and climbs near creek bottoms. Get off and push or use a gear like this.

Last edited by thumpism; 06-11-20 at 08:23 PM.
thumpism is offline
Old 06-11-20, 08:20 PM
  #7
RoLo50312
Junior Member
Thread Starter

Join Date: Jan 2019
Location: Des Moines, IA
Posts: 24
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by cyccommute View Post
Itís not as silly as you think. Perhaps an 18 is a bit small but I run a 20 tooth inner on a number of bikes with 11-34 and 11-36 cassettes. It works just fine and I find the 15Ē low to be highly useful in a number of situations. I actually modify 104/64 external bearing bottom bracket cranks to accept a 20 tooth inner. This is a modified crank with a 46/34/20 and an 11-36 9 speed cassette. Itís an even wider range than the one you have.

Untitled by Stuart Black, on Flickr

The purple bit is may be an Avid MicroAdaptor or it might be a Mountain Tamer Triple adapter. It looks like the cog is on old freewheel cog rather than a bolted on chainring. The problem you are having with the chain may be the fault of the rear derailer. It looks like it has a shorter arm that canít wrap the proper amount of chain. A longer derailer would help. The arm may be sticky as well. It should be folded back further. Put a new derailer on it and I think youíll find that it works just fine.
I would love to have an 18-30 (or 34, or 36) and a 50 or 52-11 on the other end and a good selection of choices in between. To me the wacky thing is that it appears that this setup was done in a strange way - basically with components that cannot handle the range. I was wondering if this is somewhat common and people just know which combos work and which donít work. I had never before seen a configuration where the chain is far too long on one end and too short on the other. Seems odd, but to be honest my knowledge of bikes and practices related to setup is pretty limited. I love biking and love learning about it but I have soooo much to learn.... and yes I guess a longer cage might help but wow itís a darn big difference
RoLo50312 is offline
Old 06-11-20, 08:25 PM
  #8
RoLo50312
Junior Member
Thread Starter

Join Date: Jan 2019
Location: Des Moines, IA
Posts: 24
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by dedhed View Post
Looks like a nice touring frame, lots of braze ons, racks.Should be worth something.
Question is why would you need an 18 in Iowa?
Need? I suppose I donít need 18, and donít need this bike at all. I just wanted the saddle for $20 but it came with the bike and I found the bike to be kind of neat and interesting.
RoLo50312 is offline
Old 06-11-20, 08:45 PM
  #9
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 1,410

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Hiawatha 3sp | Shogun Kaze | Breezer Lightning

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 224 Times in 135 Posts
Originally Posted by RoLo50312 View Post
Ok, so I am really hoping someone can enlighten me. I saw a listing for an old Brooks saddle for $20 but it came with a bike I didnít want. I figured I would take the saddle and donate the bike to the co-op. Once I had the bike I started to think that under the grime and filth it is actually kind of cool. Itís a little small for me - a 54 (I normally ride a 56). So instead of keeping the saddle and getting rid of the bike I started thinking about cleaning it up a bit and selling it - I had been thinking about $100-120 after new tubes, tires, and bar tape. I have been cleaning it and discovered the rims are true, hubs spin smoothly, canti brakes needed slight adjustment...but the down tube friction shifting is all out of whack. So then I looked closer and realized the touring triple crankset is a 48/38/18. Itís a six speed cassette 13-30. The 18T chainring appears to be affixed with some type of bright purple adapter. So Iím thinking this must be an extreme adaptation for steep climbs with a heavy load. But it seems like there is no way that all gear combinations can possibly work. Has anyone ever seen this setup? Is the intent that the rider knows that if using the 18T chainring that it will only work with the largest couple cogs in the cassette? If I shift to the 18 in front and 13 in the back the chain droops down with no tension and massive slack. The setup seems pretty odd and Iím hoping someone can help me understand this setup. The bike is a kuwahara caravan tour.
How's the chainline? It might be a "quad."

Generally these came from MTBs, from when 24t was the smallest granny and a standard 28t cog rear and a 34t wasn't low enough for MTBs. This provided a more noticable difference and one could keep the preferred 12-28 cassette.

Some products off the top of my head:

Mountain Tamer Quad
Limbo Spider
DorkDisk is offline
Old 06-11-20, 08:53 PM
  #10
SalsaShark
Senior Member

SalsaShark's Avatar

Join Date: Nov 2014
Location: Eastern Iowa
Posts: 430

Bikes: 2014 Trek Allant drop bar conversion, modified Schwinn MTN commuter, 2015 Trek 520, Soma ES, Salsa Journeyman

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 145 Times in 67 Posts
Originally Posted by dedhed View Post
Question is why would you need an 18 in Iowa?
Hey now! The driftless region in Eastern Iowa is no joke for hills, especially in my neck of the woods with the steep river bluffs of the Mississippi River. It's hard to find a 50 mile road ride that won't net you 3,000-4,000 feet of elevation, and pretty easy to find 100 ft per mile if that's what you're looking for. The rolling hills are steep and relentless. I am no slouch up an incline, the low gear on my touring/commuter is a 24 /32, and does get used from time to time!
SalsaShark is offline
Likes For SalsaShark:
Old 06-12-20, 12:30 AM
  #11
theDirtyLemon
Senior Member

theDirtyLemon's Avatar

Join Date: Jun 2016
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 61 Times in 41 Posts
Definitely somebody's homebrew set-up, probably they just knew its idiosyncracies and rode accordingly. I rode a bike like that for years, no problem as far as I was concerned, but my brother borrowed it and declared it a "lapdog of satan."

I'm pretty sure Kuwahara bikes are fairly nice, maybe even very nice--check around the C&V forum and see what they have to say about it. Apparently their road bikes aren't very common in the US, for what that's worth.

That rear derailleuer is really rather good, although it probably needs a clean and a lube. If nothing else, it's a brand some people are very fond of.
theDirtyLemon is offline
Old 06-12-20, 05:35 AM
  #12
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,771
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 272 Times in 177 Posts
One interesting feature on that bike are the spoke holders along the drive side chainstay. they serve a double function, also providing protection from chain slap on the stay when you use them to carry spare spokes
alcjphil is offline
Old 06-12-20, 05:54 AM
  #13
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by RoLo50312 View Post
Ok, so I am really hoping someone can enlighten me. I saw a listing for an old Brooks saddle for $20 but it came with a bike I didn’t want. I figured I would take the saddle and donate the bike to the co-op. Once I had the bike I started to think that under the grime and filth it is actually kind of cool. It’s a little small for me - a 54 (I normally ride a 56). So instead of keeping the saddle and getting rid of the bike I started thinking about cleaning it up a bit and selling it - I had been thinking about $100-120 after new tubes, tires, and bar tape. I have been cleaning it and discovered the rims are true, hubs spin smoothly, canti brakes needed slight adjustment...but the down tube friction shifting is all out of whack. So then I looked closer and realized the touring triple crankset is a 48/38/18. It’s a six speed cassette 13-30. The 18T chainring appears to be affixed with some type of bright purple adapter. So I’m thinking this must be an extreme adaptation for steep climbs with a heavy load. But it seems like there is no way that all gear combinations can possibly work. Has anyone ever seen this setup? Is the intent that the rider knows that if using the 18T chainring that it will only work with the largest couple cogs in the cassette? If I shift to the 18 in front and 13 in the back the chain droops down with no tension and massive slack. The setup seems pretty odd and I’m hoping someone can help me understand this setup. The bike is a kuwahara caravan tour.




I have a friend who lives in Des Moines who sets up his bikes like this. He rides a 54 but I don't think this was one of his bikes. In any case, he was quite the tourist and he's up there in age so yeah this gearing would make sense for some people.

If you ride a 56-57 and want to do a swap, I'd think about it. 56-57 is my size but I have a friend who would use a 54. I live in D.M. as well.
bikemig is offline
Likes For bikemig:
Old 06-12-20, 05:56 AM
  #14
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by SalsaShark View Post
Hey now! The driftless region in Eastern Iowa is no joke for hills, especially in my neck of the woods with the steep river bluffs of the Mississippi River. It's hard to find a 50 mile road ride that won't net you 3,000-4,000 feet of elevation, and pretty easy to find 100 ft per mile if that's what you're looking for. The rolling hills are steep and relentless. I am no slouch up an incline, the low gear on my touring/commuter is a 24 /32, and does get used from time to time!
+ 1 on this. There is some fine riding in NE IA, SW WI, and SE MN. The hills can be unrelenting and steep.

Last edited by bikemig; 06-12-20 at 06:02 AM.
bikemig is offline
Likes For bikemig:
Old 06-12-20, 06:09 AM
  #15
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,881
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 412 Times in 316 Posts
My first impression from the photo is a rear derailleur problem. Should be possible to get a derailleur with more capacity than that one.
unterhausen is offline
Likes For unterhausen:
Old 06-12-20, 06:38 AM
  #16
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Posts: 6,828
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1663 Post(s)
Liked 935 Times in 561 Posts
That bike has potential. Looks like a nice touring frame with some cool details. Easy enough for someone to replace the worn out stuff and kludge gearing. Please don't junk it.
shelbyfv is offline
Likes For shelbyfv:
Old 06-12-20, 07:15 AM
  #17
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,879

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1428 Post(s)
Liked 316 Times in 193 Posts
I don't see the problem. Riding bikes is sometimes different than working on bikes.

The mechanic in me wants to be able to take up the chain slack in every gear combination on the bike. The rider in me only cares about the gear combinations that I'm likely to actually use. The only time that I'd use that 18 chainring would be grinding up a steep hill. As soon as I'd clear the summit, I'd shift into a different ring. What's wrong with that?
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Likes For Retro Grouch:
Old 06-12-20, 07:20 AM
  #18
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 913

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 167 Post(s)
Liked 81 Times in 59 Posts
I'd clean it up and modernize the drive train a bit.
But, an 18 chain ring???? That is whacked.
I'm running a 22 on our mountain tandem and it is almost overkill.
bakerjw is offline
Likes For bakerjw:
Old 06-12-20, 08:04 AM
  #19
L134
Senior Member

Join Date: Dec 2015
Location: San Diego
Posts: 397

Bikes: 1978 Bruce Gordon, 1978 Lippy, 199? Lippy tandem, Bike Friday NWT, Trek 720(stolen-frame recovered), Rivendell Atlantis

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 29 Times in 20 Posts
That looks like a very good touring bike and not strange at all to me. I rode a section of the GDMBR with 42/34/19 crankset using a mountain tamer for the 19. Cassette was a 12-36. I didn’t set it up like that to be using a 19/12 combo so how much droop there might be in the chain in that combo is irrelevant. I still did some walking.
L134 is offline
Likes For L134:
Old 06-12-20, 08:41 AM
  #20
Needles
Senior Member

Needles's Avatar

Join Date: Apr 2015
Location: Rogers, AR
Posts: 292

Bikes: '87 Giant Iguana, Nishiki designed Kamra Aero II, Schwinn Loop folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 2 Times in 2 Posts
It's a good frame, for sure. Kuwahara made frames for other companies and their own were comparable to, say, Nishiki, or Panasonic. It likely began as a "12-speed" and the original owner added the tiny granny ring. Sometimes, you can add a ring on front or another gear on the rear stack with friction shifters and the derailleur can be adjusted for enough travel to cover it, as long as the chain is thin enough. My Nishiki designed Kamra Aero II has a Suntour rear "touring" stack with a big jump to the granny gear. (I'd have to go count the teeth to know exactly how many.) All I can say is I'm 64, and I've never had to get off it in a climb. I'm no powerhouse, but that 3rd ring must have been for someone with noodly legs. If I were going to sell it, I would remove the tiny front ring--- I think it would be worth more without it.
Needles is offline
Likes For Needles:
Old 06-12-20, 08:45 AM
  #21
Happy Feet
Senior Member

Happy Feet's Avatar

Join Date: Sep 2015
Location: Left Coast, Canada
Posts: 4,149
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1675 Post(s)
Liked 640 Times in 372 Posts
Wide range drivetrains like that often require knowing what chainring you are in and adjusting gears accordingly. Usually you can run the entire cassette in the middle ring, higher T cogs in the granny ring, and low T cogs in the big ring. Once you get it it's easy peasy.
Happy Feet is offline
Likes For Happy Feet:
Old 06-12-20, 09:03 AM
  #22
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by bakerjw View Post
I'd clean it up and modernize the drive train a bit.
But, an 18 chain ring???? That is whacked.
I'm running a 22 on our mountain tandem and it is almost overkill.
There may be people who can use this. I have a friend who is in his 70s and this is what he uses to climb. YMMV but it's not "whacked." He's still out there riding.
bikemig is offline
Likes For bikemig:
Old 06-12-20, 09:46 AM
  #23
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,702

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 111 Post(s)
Tagged: 1 Thread(s)
Quoted: 3346 Post(s)
Liked 797 Times in 504 Posts
Originally Posted by RoLo50312 View Post
I would love to have an 18-30 (or 34, or 36) and a 50 or 52-11 on the other end and a good selection of choices in between. To me the wacky thing is that it appears that this setup was done in a strange way - basically with components that cannot handle the range. I was wondering if this is somewhat common and people just know which combos work and which donít work. I had never before seen a configuration where the chain is far too long on one end and too short on the other. Seems odd, but to be honest my knowledge of bikes and practices related to setup is pretty limited. I love biking and love learning about it but I have soooo much to learn.... and yes I guess a longer cage might help but wow itís a darn big difference
Iím not sure that the components couldnít handle the range...at some point. It may have been able to when the derailer was new but the derailer could have worn out over the years. It would be worth putting a new derailer on and see if it works better. Hereís what my bike drivetrain looks like in various gears.

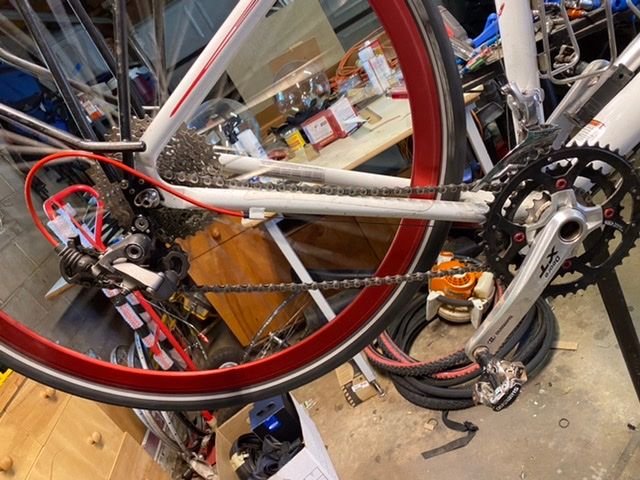

46x11

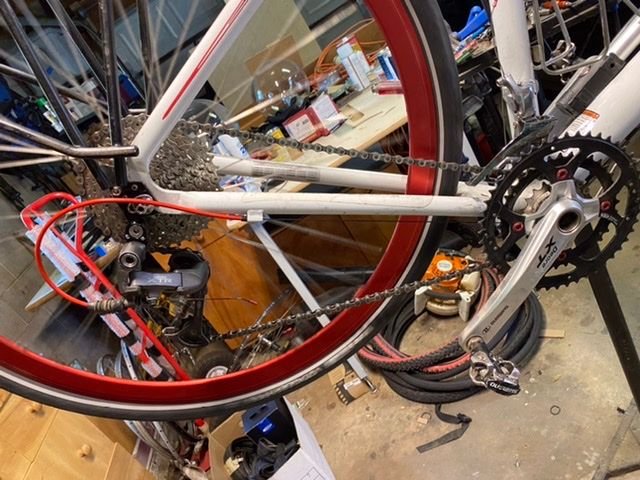

20x11. The chain is a little slack but I wouldnít never use that gear anyway.


20x36. Thatís a 15Ē gear. In terms of ďdevelopmentĒ or the distance the bike move with each pedal revolution, thatís 1.2m (a bit over 6í). Itís 4 mph at 90rpm. I may not be able to go very fast in that gear but I can ride up most anything...slowly...but Iím still pedaling.


36x36



46x36. This is the only fly in the ointment. The derailer is stretched to itís limit but I would never, ever put the bike in this gear. I would shift down to the middle range long before I even got close to this situation.



By the way, your gearing isnít quite like mine. Hereís what yourís looks like with a 20 tooth inner. The calculator wonít allow for an 18 tooth inner but if you do the math, the 18x30 is a 16Ē gear which is just a little higher than my 15Ē gear. Your high is also a little lower than mine. Looking at the gearing, it is kind of smart as well. It what is called a ďcross overĒ gear...not to be confused with cross chainingĒ. The shift from the outer ring to the middle ring is about the same step as downshifting the rear. For example look at the 40x24 gear. Itís 65Ē gear. Downshifting to the 40x28 gear goes down to a 54Ē gear. Down shifting on the front to the 38x20 gear is a 51Ē gear. Assuming that you start in the 30x30 gear, you would shift the bike in the rear to the middle gear (20 or 17) and then ďcross overĒ to the outer ring and continue up the cluster to the high gear. Just reverse it to go back down.

The 18 tooth ring is used as a bailout when the hill in front of you just keeps going towards the clouds. When you hit the top of the hill, just shift up to the middle ring and start upshifting. Itís actually a really good shift pattern.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 06-12-20, 09:50 AM
  #24
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,702

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 111 Post(s)
Tagged: 1 Thread(s)
Quoted: 3346 Post(s)
Liked 797 Times in 504 Posts
Originally Posted by SalsaShark View Post
Hey now! The driftless region in Eastern Iowa is no joke for hills, especially in my neck of the woods with the steep river bluffs of the Mississippi River. It's hard to find a 50 mile road ride that won't net you 3,000-4,000 feet of elevation, and pretty easy to find 100 ft per mile if that's what you're looking for. The rolling hills are steep and relentless. I am no slouch up an incline, the low gear on my touring/commuter is a 24 /32, and does get used from time to time!
Hills east of the Rocky Mountains make up for their lack of altitude by having attitude. They are kind of like attack chihuahuaís...little but damned mean!

Out here in the west, you may need a spare lung to ride but we donít run roads straight up a mountains. We can see where our roads go and no one in their right mind would go up ďthat!Ē In the east, the hills are usually covered by trees and no one can tell if the hill is stupidly steep.

I hate riding in the east. Itís just too damned hard!
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 06-12-20, 09:58 AM
  #25
RoLo50312
Junior Member
Thread Starter

Join Date: Jan 2019
Location: Des Moines, IA
Posts: 24
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by cyccommute View Post
Iím not sure that the components couldnít handle the range...at some point. It may have been able to when the derailer was new but the derailer could have worn out over the years. It would be worth putting a new derailer on and see if it works better. Hereís what my bike drivetrain looks like in various gears.

46x11


20x11. The chain is a little slack but I wouldnít never use that gear anyway.


20x36. Thatís a 15Ē gear. In terms of ďdevelopmentĒ or the distance the bike move with each pedal revolution, thatís 1.2m (a bit over 6í). Itís 4 mph at 90rpm. I may not be able to go very fast in that gear but I can ride up most anything...slowly...but Iím still pedaling.


36x36

46x36. This is the only fly in the ointment. The derailer is stretched to itís limit but I would never, ever put the bike in this gear. I would shift down to the middle range long before I even got close to this situation.

By the way, your gearing isnít quite like mine. Hereís what yourís looks like with a 20 tooth inner. The calculator wonít allow for an 18 tooth inner but if you do the math, the 18x30 is a 16Ē gear which is just a little higher than my 15Ē gear. Your high is also a little lower than mine. Looking at the gearing, it is kind of smart as well. It what is called a ďcross overĒ gear...not to be confused with cross chainingĒ. The shift from the outer ring to the middle ring is about the same step as downshifting the rear. For example look at the 40x24 gear. Itís 65Ē gear. Downshifting to the 40x28 gear goes down to a 54Ē gear. Down shifting on the front to the 38x20 gear is a 51Ē gear. Assuming that you start in the 30x30 gear, you would shift the bike in the rear to the middle gear (20 or 17) and then ďcross overĒ to the outer ring and continue up the cluster to the high gear. Just reverse it to go back down.

The 18 tooth ring is used as a bailout when the hill in front of you just keeps going towards the clouds. When you hit the top of the hill, just shift up to the middle ring and start upshifting. Itís actually a really good shift pattern.
WOW! Itís truly amazing what I am learning through this forum! Really interesting and useful info! Thanks!
RoLo50312 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
