New Shimano cassette missing rivet pin

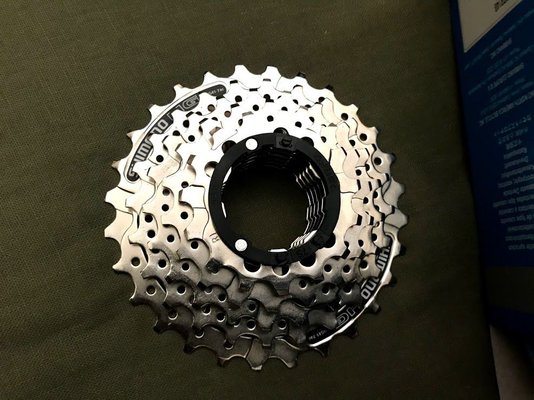

Just purch'd a new 7-speed HG-41 cassette from an eBay bicycle-parts seller.
Noted that one of the three rivet pins is is missing (see rear photo).



Looking at from view may reveal why -- the spacer has no provision for third pin.


Not sure how common this is.
But won't get a flush mounting for rear/freehub interface (not without adding a minor shim or similar)
EDIT:
I just stuck a toothpick in the hole, and it goes in about 2.5mm before encountering resistance (pin from the top spacer??).

Last edited by elcyc; 06-13-20 at 10:11 PM.
elcyc is offline
Old 06-13-20, 10:12 PM
  #2
AdkMtnMonster
Airplanes, bikes, beer.

Join Date: Jan 2020
Location: Off the front
Posts: 283

Bikes: Canyon Endurace CF SL 8.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 327 Times in 128 Posts
Think of the weight savings. Now you’ll have more time to wave at people while riding on the sidewalk. I seriously hope you’re riding carbon wheels!
AdkMtnMonster is offline
Likes For AdkMtnMonster:
Old 06-14-20, 12:54 AM
  #3
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,044

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1081 Post(s)
Liked 630 Times in 437 Posts
Remove the other two pins and you can take the entire cassette apart for a thorough cleaning of the individual cogs when they get dirty/grunged up.

Cheers
Miele Man is online now
Likes For Miele Man:
Old 06-14-20, 02:11 AM
  #4
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 3,354
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1508 Post(s)
Liked 390 Times in 221 Posts
Originally Posted by elcyc View Post
But won't get a flush mounting for rear/freehub interface (not without adding a minor shim or similar)
Are you sure? On Shimano freehub bodies, the stops that the cassette sits against are on the "raised" portions, with the "valleys" going farther inboard, which should leave room for the rivets.

If you use a spacer, to fit it on a wider freehub body, the spacer will need to be shaped to accommodate the rivets. If you have a spacer that does not accommodate the rivets, it's fairly easy to check how the rivets align with the spacer (when they're mounted on the freehub) and file those spots down a little to make room.
HTupolev is online now
Likes For HTupolev:
Old 06-14-20, 03:45 AM
  #5
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,181
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 84 Times in 63 Posts
Originally Posted by elcyc View Post
Noted that one of the three rivet pins is is missing....won't get a flush mounting for rear/freehub interface ....
Youíre worrying over a non-issue. The base of the splined freehub body isnít a smooth flange. Itís notched to provide clearance for the rivets. Itíll fit just fine as it is.
dabac is offline
Old 06-14-20, 04:38 AM
  #6
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 126

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 8 Times in 7 Posts
Uh.... no, toots ... I ain't ... 'cause some of us "non-issuers" ...

Originally Posted by dabac View Post
Youíre worrying over a non-issue. The base of the splined freehub body isnít a smooth flange. Itís notched to provide clearance for the rivets. Itíll fit just fine as it is.

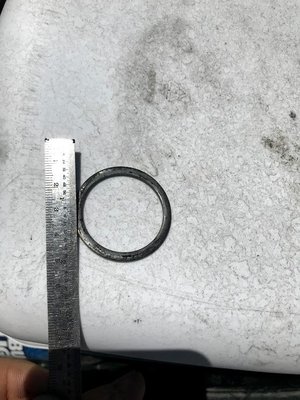

Uh.... no, toots ... I ain't ... 'cause some of us "non-issuers" actually do have to use one of these flat spacers which come in direct contact with those rear rivet heads:



Hmmm .... I think a small pieces of Al foil, folded over 3x may work.
elcyc is offline
Old 06-14-20, 08:10 AM
  #7
Barry2
LRųP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 431

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 120 Times in 79 Posts
Shimano Spacer

IIRC a SRAM compatible freehub plus one of these will fit a Shimano cassette.
my Mavic wheels came with just such a 3 notch spacer.
Plus a 1mm spacer, never did work out what thatís for!

Barry
Barry2 is offline
Likes For Barry2:
Old 06-14-20, 10:11 AM
  #8
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,044

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1081 Post(s)
Liked 630 Times in 437 Posts

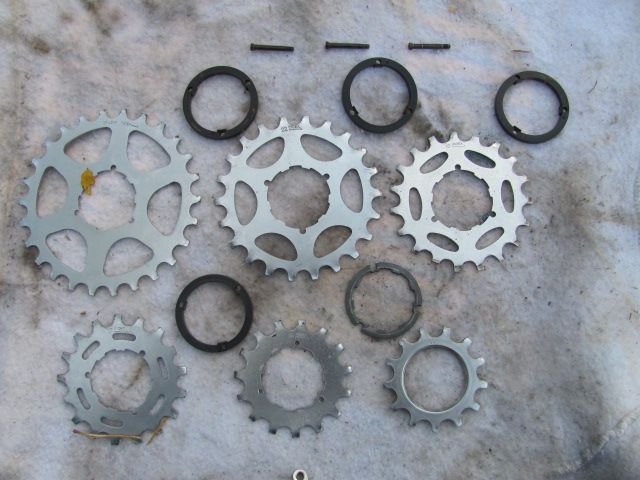

Here's an image of a 6-speed Uniglide cassette I took off a wheel. When I took it off the cogs were a black/brown colour from the buildup of the grunge on them. Being able to take that cassette apart enabled me to do a thorough cleaning of all the individual parts. This is what was under that grunge. I wish I'd taken a Before image.




I now do this with all my cassettes = remove the pins so I can use individual cogs and spacers.

Cheers
Miele Man is online now
