Brake Adjustment Question

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Brake Adjustment Question

Old 06-18-20, 08:17 PM
  #1
BROOKLINEBIKER
Senior Member
Thread Starter

Join Date: Dec 2009
Posts: 329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Brake Adjustment Question

Hi folks,
I went to my LBS to have new brakes installed (Shimano Altus C91 Rear Cantilever) just before the COVID 19 lockdowns. I didn't look closely when I took the bike home and the bike seemed to stop fine. I looked again recently and saw that the gap between the pads and the wheel rims on my rear tire are irregular. Does this need to be fixed? If yes, what needs to be adjusted? Is this doable for an amateur mechanic?

view of brakes from top

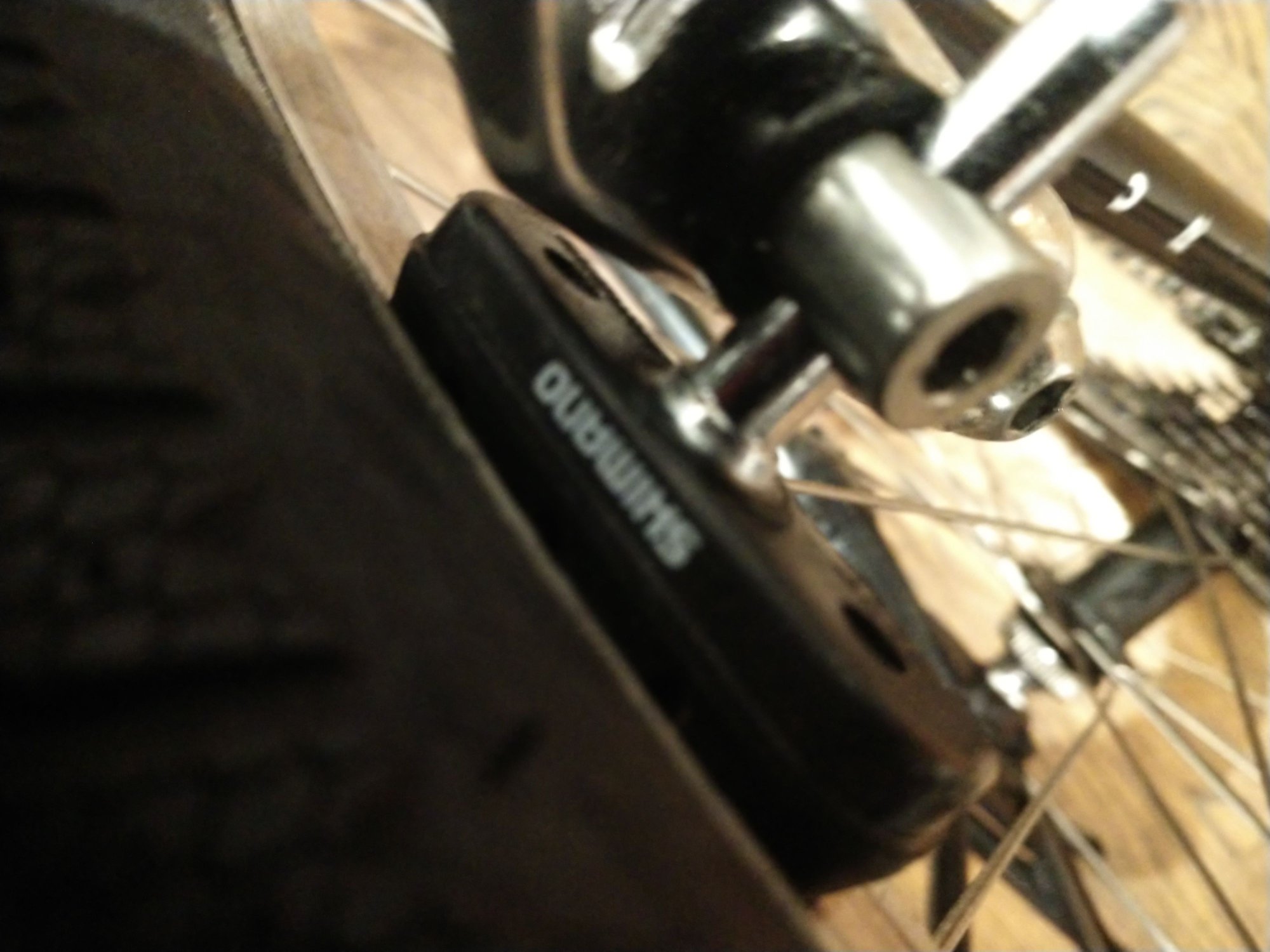

side view

Left side: large gap between pad & wheel rim

Right side: almost no gap between pad & wheel rim

Last edited by BROOKLINEBIKER; 06-18-20 at 08:22 PM.
BROOKLINEBIKER is offline
Old 06-18-20, 08:43 PM
  #2
Hikebikerun
Senior Member

Join Date: May 2020
Location: Sacramento, CA
Posts: 97

Bikes: Trek Emonda SL5 ; Felt Versa Speed 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 70 Times in 22 Posts

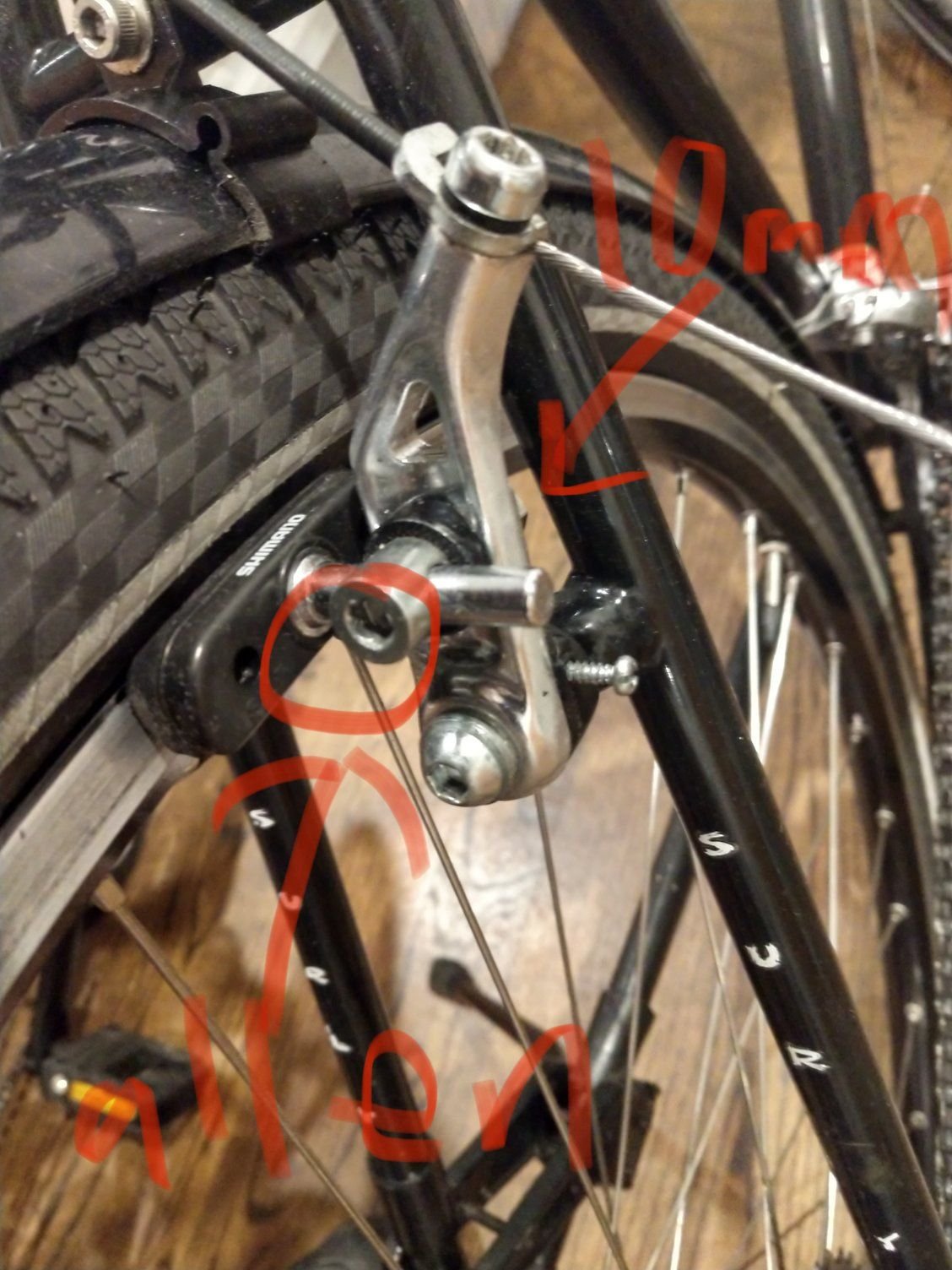

You should be able to put an Allen/hex key in the Spot I circled (to hold it steady), then I believe itís a 10mm wrench that will go on the bolt head on the opposite side (where the arrow is pointing). Loosen with the wrench as you hold the Allen key steady. This should loosen the pad and allow you to back one side out (or the other side in) to even out the gap.

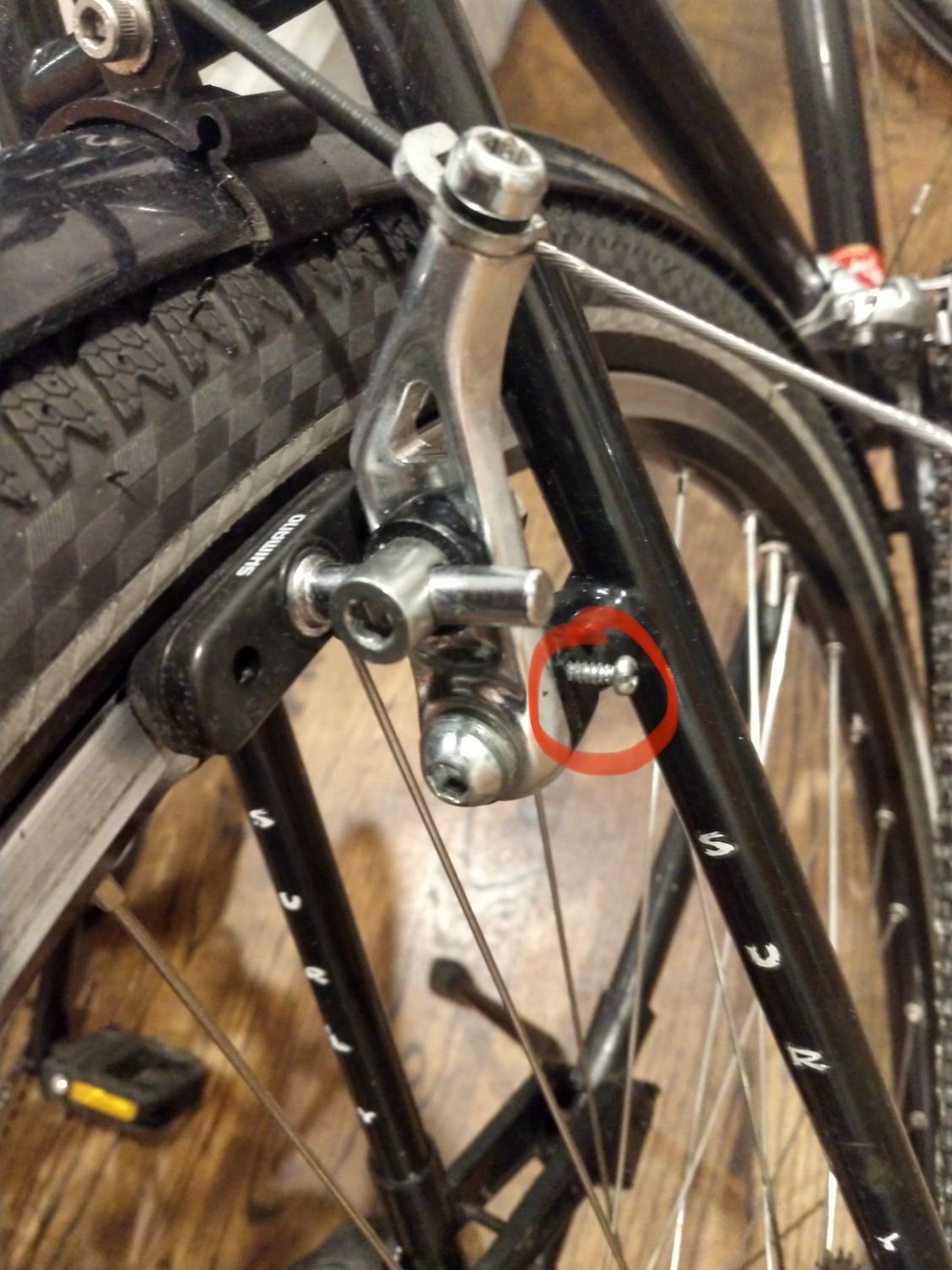

Do this for major adjustments. For small adjustments, you can just turn the tiny screw sticking out of the side of the left side pad:




Totally doable with no experience. Iíd start with the small screw to see if you can get it straightened out.

Disclaimer: Iíve never even seen these brakes, just did a quick google search.
Hikebikerun is offline
Likes For Hikebikerun:
Old 06-18-20, 10:31 PM
  #3
frogman
frogman

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 413

Bikes: Trek 520, Trek Madone, Rivendell Romulus, Salsa titanium, Habanero Titanium Diamond Back Mtn bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 50 Times in 31 Posts
Excellent instructions
frogman is offline
Old 06-18-20, 10:35 PM
  #4
powermatt99
Senior Member

powermatt99's Avatar

Join Date: Jul 2011
Location: Milwaukee, WI
Posts: 116

Bikes: Felt VR5, '85 Trek 520, '84 Trek 890

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 16 Times in 8 Posts
Did you check the installation of the wheel? My wife had a similar issue. Turns out she did not seat the QR skewers properly in the fork.
powermatt99 is offline
Likes For powermatt99:
Old 06-19-20, 08:58 AM
  #5
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 182
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 53 Times in 39 Posts
@powermatt99 says, the problem is almost definitely that the wheel is not straight in the dropouts. This is a very common mistake when adjusting brakes, and will make an experienced mechanic pull their hair out until they realize the simple mistake.

You can tell it is wheel alignment because the way the pads have become misaligned - one pad too close and riding up on the tire, and the other pad a mile away from the rim. THis is exactly what happens when the wheel is not straight.
ClydeClydeson is offline
Likes For ClydeClydeson:
Old 06-19-20, 09:01 AM
  #6
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 182
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 53 Times in 39 Posts
Originally Posted by frogman View Post
Excellent instructions
except that advice skips the troubleshooting steps that will identify the root of the problem (almost definitely the wheel is not straight in the dropouts), and adjusting the brakes to work with the wheel crooked in its dropouts will just become even worse adjusted brakes as soon as the wheel is removed and replaced again.
ClydeClydeson is offline
Old 06-19-20, 10:47 AM
  #7
BROOKLINEBIKER
Senior Member
Thread Starter

Join Date: Dec 2009
Posts: 329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Hi again,
Thanks for the comments about wheel alignment and skewers. Now the origins of the brake problem make sense. I have a Burley trailer and just added the trailer "hitch" to the quick release skewer. So that may have knocked things out of line? If yes, how do I adjust the brakes or wheel?
BROOKLINEBIKER is offline
Old 06-23-20, 10:26 AM
  #8
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 182
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 53 Times in 39 Posts
To fix wheel alignment in the dropouts, you just have to loosen the quick release, then ensure the axle is fully seated in the dropouts before you retighten the quick release. I bet if you do this right your brakes will no longer be out of adjustment.
ClydeClydeson is offline
Old 06-23-20, 10:28 AM
  #9
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 182
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 53 Times in 39 Posts
ALSO

There are usually two little conical springs on the QR skewer. These should be positioned one on each side so that the smaller end of both springs are pointing in towards the hub. Having a backwards QR spring will make it impossible to get the wheel straight.
ClydeClydeson is offline
Old 06-23-20, 10:24 PM
  #10
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,968

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3505 Post(s)
Liked 974 Times in 605 Posts
Originally Posted by BROOKLINEBIKER View Post
Hi folks,
I went to my LBS to have new brakes installed (Shimano Altus C91 Rear Cantilever) just before the COVID 19 lockdowns. I didn't look closely when I took the bike home and the bike seemed to stop fine. I looked again recently and saw that the gap between the pads and the wheel rims on my rear tire are irregular. Does this need to be fixed? If yes, what needs to be adjusted? Is this doable for an amateur mechanic?

view of brakes from top

side view

Left side: large gap between pad & wheel rim

Right side: almost no gap between pad & wheel rim

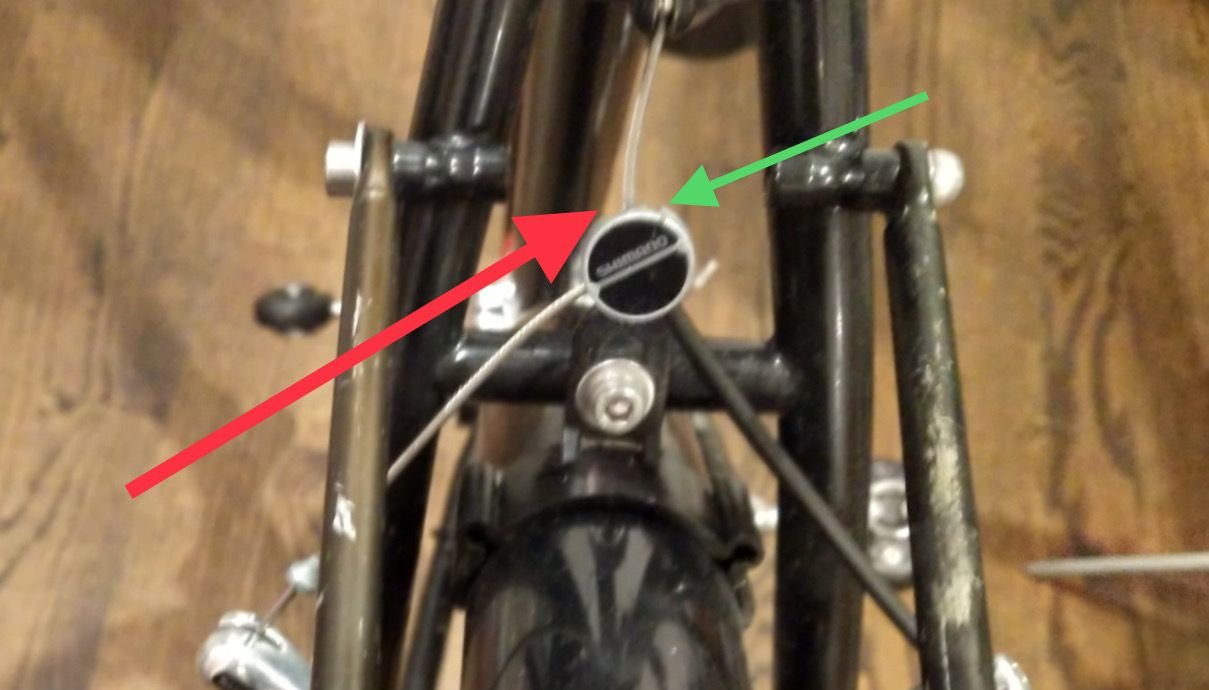

Before you follow any of Hikebikerunís excellent advice, move the cable from where the red arrow to where the green arrow is pointing in the picture below. You may need to do the other adjustments but start here and see what happens.


__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Old 06-24-20, 07:41 AM
  #11
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,283 Times in 801 Posts
Above should look symmetrical .. the main cable passes through the grey tube , it needs to be a little bit tighter/ looser..

use the fixing bolt to adjust its length..
then pad to rim spacing is done with the length of the shaft on the brake pad post.





..

Last edited by fietsbob; 06-24-20 at 07:46 AM.
fietsbob is offline
Old 06-24-20, 07:53 AM
  #12
Razorrock
Senior Member

Join Date: Oct 2016
Location: Northwest Arkansas
Posts: 82

Bikes: Litespeed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 10 Times in 6 Posts
Don't mean to derail this thread but
Every time I remove my rear tire I have to adjust the rear derailleur to get shifting back to perfect. Is that a common problem with QR's? or am I not fully seating it.
Razorrock is offline
Old 06-24-20, 11:23 AM
  #13
BROOKLINEBIKER
Senior Member
Thread Starter

Join Date: Dec 2009
Posts: 329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by cyccommute View Post
Before you follow any of Hikebikerunís excellent advice, move the cable from where the red arrow to where the green arrow is pointing in the picture below. You may need to do the other adjustments but start here and see what happens.


Hi, the cable I'm seeking to move is the one that is the end of the brake cable, as opposed to the straddle cable?
BROOKLINEBIKER is offline
Old 06-24-20, 11:48 AM
  #14
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,283 Times in 801 Posts
You don't have a straddle cable , That cable continues thru the grey tube and is held by the clamping bolt on the right side arm.

It's a fail safe system, so a broken main cable wont drop the straddle cable onto front tire,
with knobby tires the bike stops throwing the rider to the ground..


maybe you need to consider buying a separate transverse cable and the hanger you put on that main cable like this,
which you think you now have, but don't.

like this : ^the top pieces^ you can find them for a few bucks @ bike shops..

Last edited by fietsbob; 06-24-20 at 11:55 AM.
fietsbob is offline
Old 06-24-20, 11:56 AM
  #15
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 182
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 53 Times in 39 Posts
Originally Posted by Razorrock View Post
Don't mean to derail this thread but
Every time I remove my rear tire I have to adjust the rear derailleur to get shifting back to perfect. Is that a common problem with QR's? or am I not fully seating it.
Probably user error, possibly not properly seated axle, possible something else. Removing and replacing your wheel should not put your derailleur out of adjustment.

One possibility is that the removable derailleur hanger (if your bike has one) is not properly fastened to the frame. Make sure the bolt(s) that connect(s) the hanger to the frame are tight. If they are loose, the hanger will move when the wheel is installed.
ClydeClydeson is offline
Old 06-24-20, 01:08 PM
  #16
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,931

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1446 Post(s)
Liked 356 Times in 218 Posts
The return springs in those particular brakes are confined within a plastic retainer. Examine those little plastic cups for cracks. If you find a crack, that's your problem. Shimano used to provide replacements at no charge. I've also successfully fixed them by wrapping the cracked cup with wire..
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 06-24-20, 03:34 PM
  #17
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,968

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3505 Post(s)
Liked 974 Times in 605 Posts
Originally Posted by BROOKLINEBIKER View Post
Hi, the cable I'm seeking to move is the one that is the end of the brake cable, as opposed to the straddle cable?

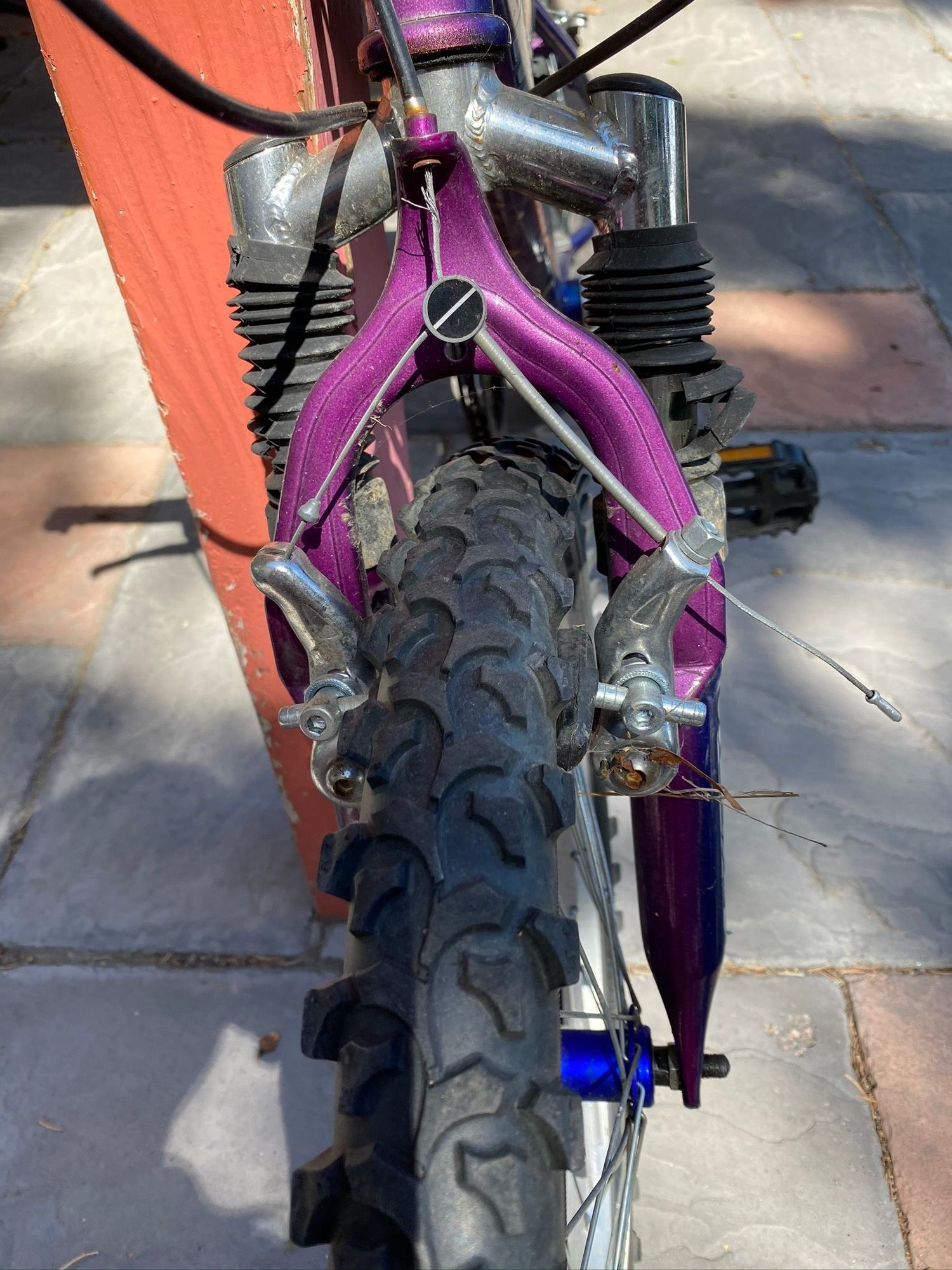

Look at how the cable on the left comes in at a weird angle. That’s what is pulling your brake over to one side. There are two notches on the straddle cable that the right hand cable can go through. The proper notch is the one on the right as you look at the straddle cable. Yours in the picture goes through the left one. I don’t use this kind of straddle cable but I happen to have one right now. Here’s what yours looks like from the front

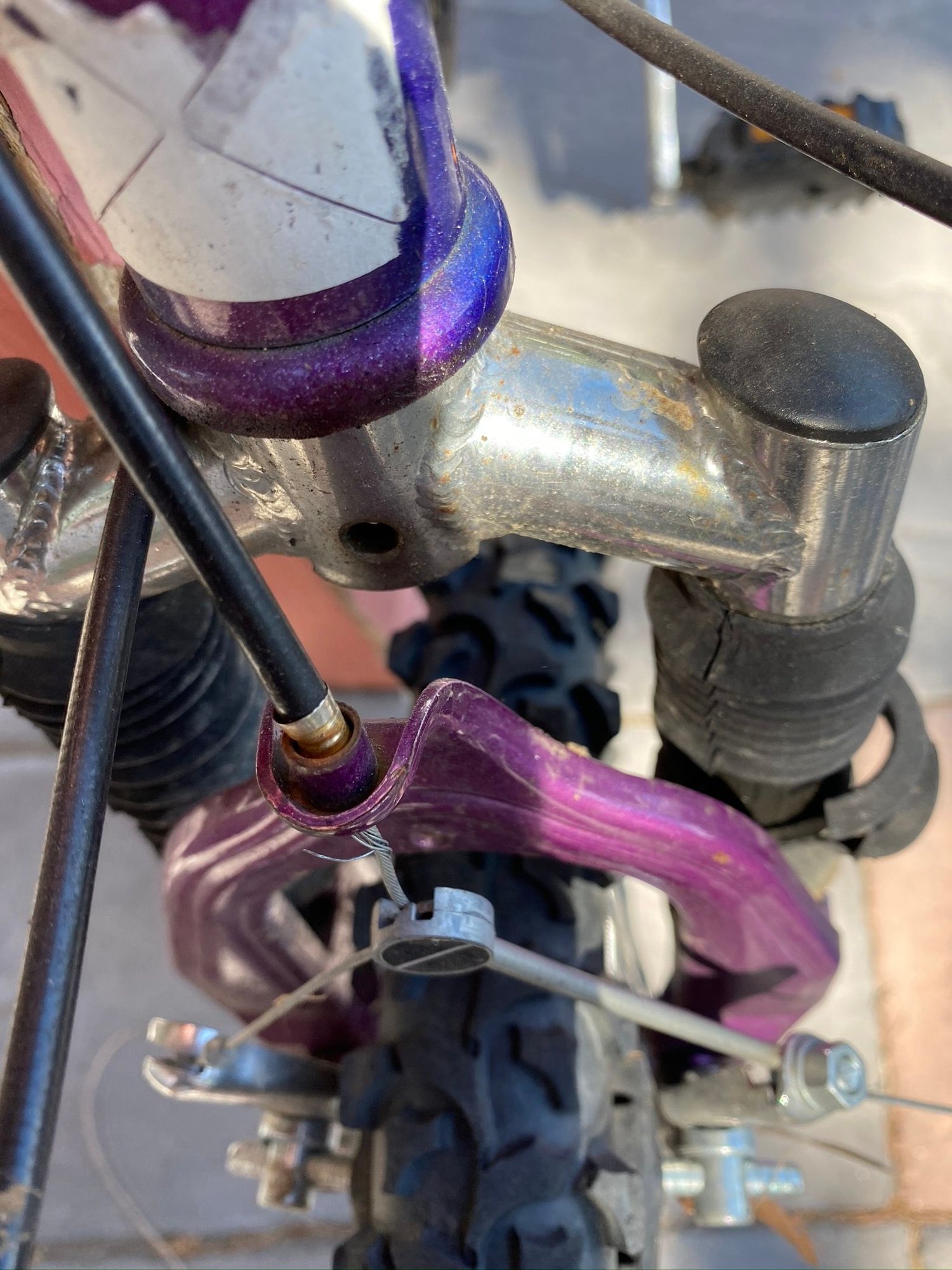

And from above.

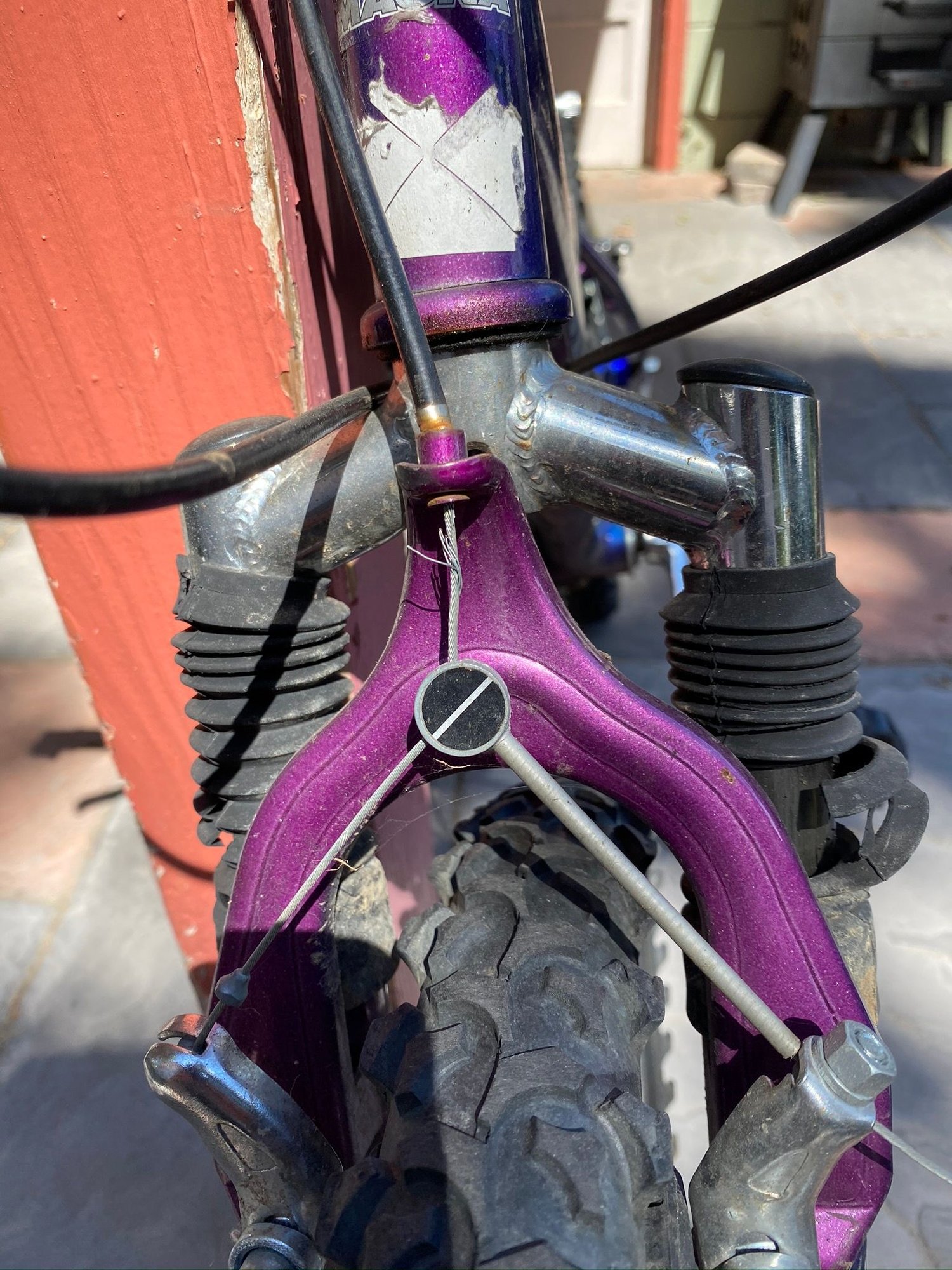

Here’s what it should look like from the front and



Above



The difference is subtle but if the through cable is in the wrong place, it can pull the brakes off to one side.

By the way, an old style straddle cable and hanger like this one

_IMG4950 by Stuart Black, on Flickr

doesn’t pull the cable one way or the other because of the tension on the one side of the hanger like the link cables can. If they do, you just slide the hanger over.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.

Last edited by cyccommute; 06-24-20 at 03:39 PM.
cyccommute is online now
Old 06-24-20, 03:42 PM
  #18
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 39,207

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2311 Post(s)
Liked 1,090 Times in 574 Posts
Yep. With straddle hangers, a lot of times you can get it to self align with a good hard squeeze of the brake lever.
caloso is offline
Old 06-24-20, 03:49 PM
  #19
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,141
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 232 Times in 170 Posts
I'm voting for wheel alignment, because the tire is also quite close to the fender on the side that it's close to the pad. If the frame has vertical dropouts, then you can usually fix this by just holding the bike straight upright, flick the QR open, then flick it closed again. You'll hear it clunk into place. This will also be a good time to review the correct technique for using QR.
Gresp15C is offline
Old 06-24-20, 04:25 PM
  #20
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,968

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3505 Post(s)
Liked 974 Times in 605 Posts
Originally Posted by Gresp15C View Post
I'm voting for wheel alignment, because the tire is also quite close to the fender on the side that it's close to the pad. If the frame has vertical dropouts, then you can usually fix this by just holding the bike straight upright, flick the QR open, then flick it closed again. You'll hear it clunk into place. This will also be a good time to review the correct technique for using QR.
Thatís a good point. Iíd still suggest getting the link wire in the right place but absolute check the wheel in the dropout.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Likes For cyccommute:
Old 06-24-20, 05:11 PM
  #21
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,141
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 232 Times in 170 Posts
If you toss an old pair of centerpull brakes, keep the straddle hangers.
Gresp15C is offline
Old 06-24-20, 06:01 PM
  #22
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,968

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3505 Post(s)
Liked 974 Times in 605 Posts
Originally Posted by Gresp15C View Post
If you toss an old pair of centerpull brakes, keep the straddle hangers.
The hundreds of them that we have in the parts bin at my co-op have lost them long ago
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
