rear rack , no brazeon, no seat stay

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

rear rack , no brazeon, no seat stay

Old 08-08-20, 11:33 PM
  #1
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 183
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3247 Post(s)
Liked 65 Times in 57 Posts
rear rack , no brazeon, no seat stay

looks like theres no easy way to attach a rear rack. no space for P clamps.

i dont want anything large and bulky...just a light duty rack inplace of a backpack.


ideas?



Last edited by mtb_addict; 08-09-20 at 02:38 AM.
mtb_addict is offline
Old 08-08-20, 11:58 PM
  #2
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 829

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 222 Times in 119 Posts
Looks like it has eyelets in the rear for a rack.
polymorphself is offline
Old 08-09-20, 03:11 AM
  #3
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,187

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1127 Post(s)
Liked 675 Times in 478 Posts

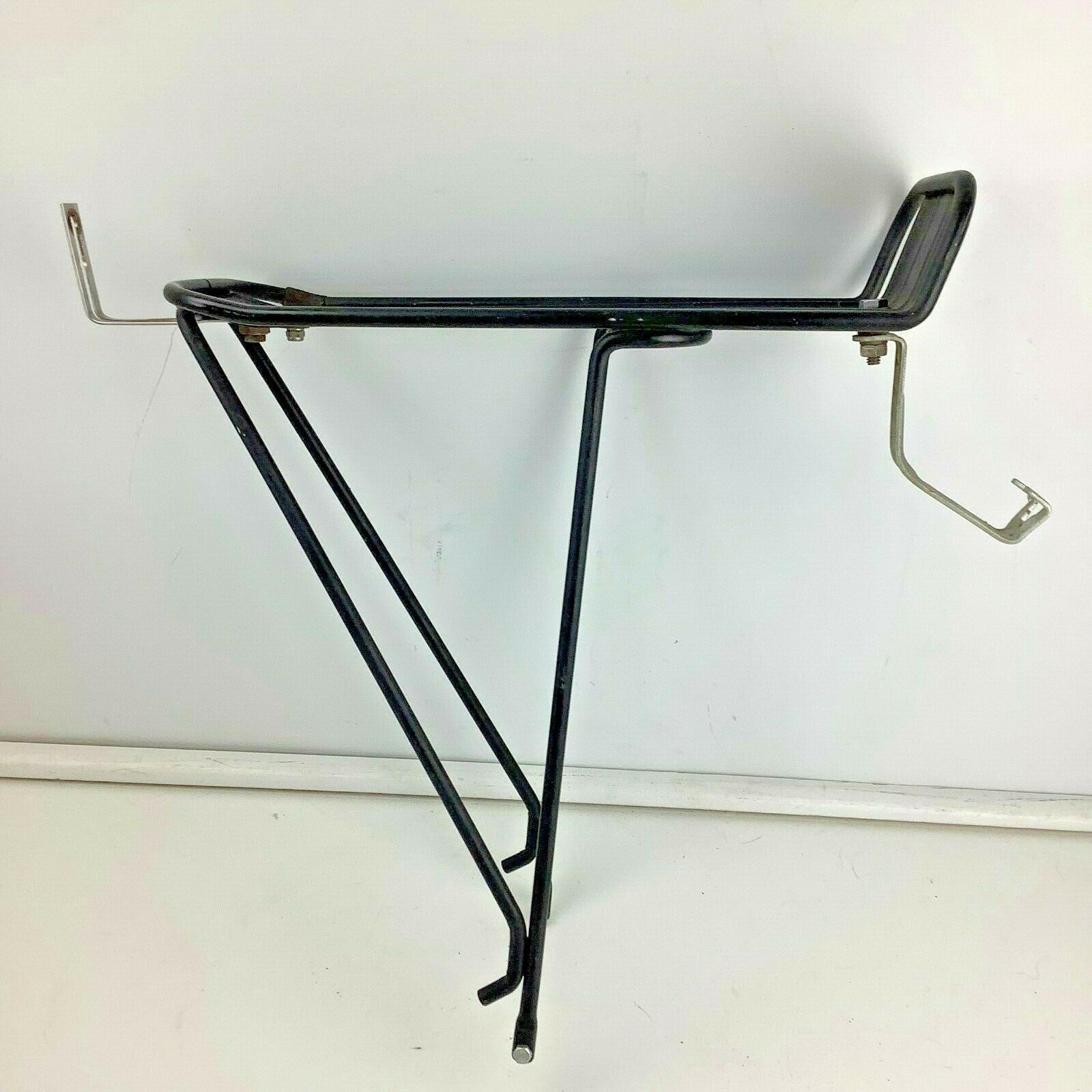

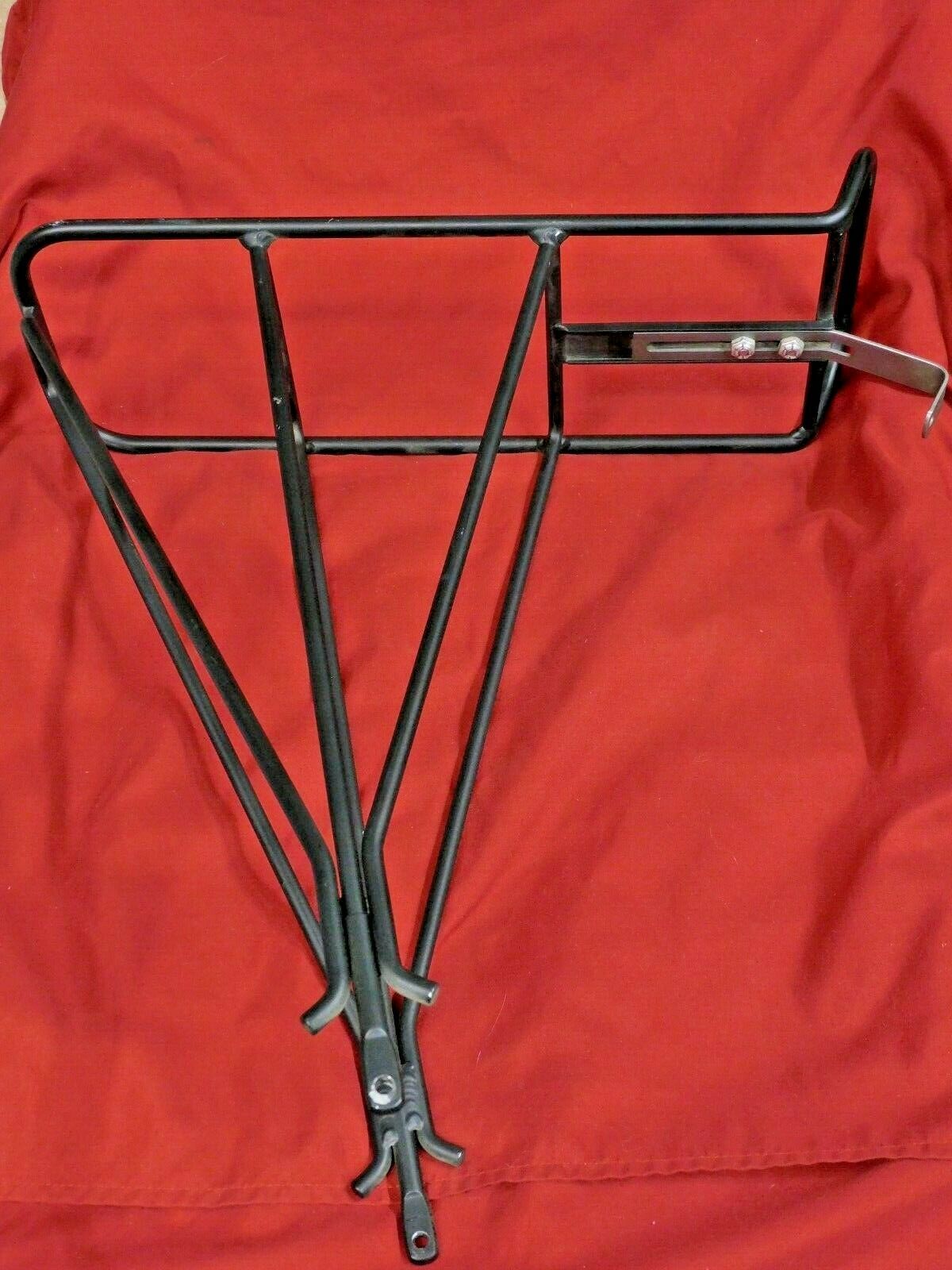

That bicycle has rear rack leg and rear fender eyelets. It also has a hole through the seatstay bridge. You can get a rear rack with a single central mount that'll go under the V-brake crossover cable and bolt to the hole in the seatstay bridge.

Examples.





Cheers
Miele Man is online now
Old 08-09-20, 04:17 PM
  #4
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,461

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 158 Times in 98 Posts
Also Topeak and others make 'beam racks' like this: https://www.topeak.com/global/en/pro...tx-beamrack-ex
philbob57 is offline
Old 08-09-20, 06:01 PM
  #5
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
Yea, Buy a different Bike..
fietsbob is offline
Old 08-09-20, 06:10 PM
  #6
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,799

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Liked 703 Times in 484 Posts
https://www.amazon.com/Sunlite-Alloy.../dp/B00ZDTS7H6

https://www.amazon.com/M-Wave-Clamp-...56313275&psc=1

https://www.trekbicyclesuperstore.co...saAloREALw_wcB
dedhed is offline
Old 08-10-20, 05:46 AM
  #7
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 183
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3247 Post(s)
Liked 65 Times in 57 Posts
so looks like we four candidates:

1. special rack with long bar single attachment point at brake bridge.



2. a seat clamp "braze on"


3. brake bridge "braze on"


4. beam rack



which method is bestest?
1 should work, but bar will have to be very long....flexy?

2 looks like best to me, but will have to determine precise diameter of seat tube.

3 might not work...because v-brake is in-the-way.

4 ought to work, but looks heavy.

Last edited by mtb_addict; 08-10-20 at 07:32 AM.
mtb_addict is offline
Likes For mtb_addict:
Old 08-10-20, 07:56 AM
  #8
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,799

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Liked 703 Times in 484 Posts
Originally Posted by mtb_addict View Post
so looks like we four candidates:

1. special rack with long bar single attachment point at brake bridge.



2. a seat clamp "braze on"


3. brake bridge "braze on"


4. beam rack



which method is bestest?
1 should work, but bar will have to be very long....flexy?

2 looks like best to me, but will have to determine precise diameter of seat tube.

3 might not work...because v-brake is in-the-way.

4 ought to work, but looks heavy.
1. Not as big of deal as you think. The upper rack stay basically just stabilizes and really carries minimal load. But, V brake may also pose an issue.

2. https://www.harborfreight.com/hand-t...per-63586.html

3. Might be in the way. Looks kinda "kludgy"

4. Puts additional strain on seat post etc.
dedhed is offline
Old 08-10-20, 09:18 AM
  #9
Batstar
Senior Member

Batstar's Avatar

Join Date: Jan 2019
Location: Alberta, Canada
Posts: 149
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 102 Times in 58 Posts
I recently fitted two carbon bikes with this lightweight rack that attaches to both the saddle rails and seat post/tube. It's sturdy and installs and removes in seconds. Only caveat may be its limited weight capacity of 13lbs. If you carry relatively light loads then it might be a rack to consider.

https://www.arkel-od.com/arkel-randonneur-rack


Batstar is offline
Old 08-10-20, 07:15 PM
  #10
PaulRivers
Senior Member

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 6,315
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 461 Post(s)
Liked 10 Times in 9 Posts
Other posters have mentioned that the bike might actually already have rack mounts. But if it doesn't the most straightforward solution is an Axiom Streamliner Disc:
https://www.amazon.com/Axiom-Streaml...dp/B004094HY2/

Axiom Trekk Seat Collar With Rack Eyelets
https://www.eriksbikeshop.com/axiom-...?skuId=8012804

Others make similar racks as well - I think tubus makes adapters for all their racks for example.
PaulRivers is offline
Old 08-10-20, 07:21 PM
  #11
PaulRivers
Senior Member

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 6,315
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 461 Post(s)
Liked 10 Times in 9 Posts
Originally Posted by mtb_addict View Post
so looks like we four candidates:

1. special rack with long bar single attachment point at brake bridge.



2. a seat clamp "braze on"


3. brake bridge "braze on"


4. beam rack



which method is bestest?
1 should work, but bar will have to be very long....flexy?

2 looks like best to me, but will have to determine precise diameter of seat tube.

3 might not work...because v-brake is in-the-way.

4 ought to work, but looks heavy.
#1 looks like an axiom streamliner disc, I believe it comes with the 1-beam brake-bridge attachment or the 2 beam traditional attachment that you can use with the seat collar:
https://www.amazon.com/Axiom-Streaml...dp/B004094HY2/

I'd use it with the Axiom Trekk Seat Collar With Rack Eyelets:
https://www.eriksbikeshop.com/axiom-...?skuId=8012804

The brake bridge brazeon is more work and more difficult to remove if you need to (like to replace the rear tire). The beam racks (#4) usually totally suck because they swing side to side when you turn. The one the previous posters suggested use something to stabilize it from doing this, but then it doesn't have a lot of weight capacity.

The Axiom solution I'm mentioning here gives you the same convenience and weight handling capabilities as regular brazeon's, it's only drawback after installation is that it adds an additional step to take off the rear wheel, worth it in my opinion.

That being said you should probably ask at a bike shop and make sure your bike doesn't already have rack mounts...sometimes they're just clever about hiding them.
PaulRivers is offline
Old 08-11-20, 02:35 PM
  #12
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 188
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 62 Times in 48 Posts
Originally Posted by PaulRivers View Post
... The brake bridge brazeon is more work and more difficult to remove if you need to (like to replace the rear tire) ...
I've never had to remove a rack to get the rear wheel out of the bike... Do disc-mount racks make this necessary?

--Shannon
ShannonM is online now
Old 08-11-20, 02:40 PM
  #13
Elvo
Senior Member

Join Date: Oct 2006
Location: Orange County, CA
Posts: 4,415
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Likes: 0
Liked 131 Times in 76 Posts
https://www.tailfin.cc/product/panni...-pannier-rack/
Elvo is offline
Old 08-11-20, 02:53 PM
  #14
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
OP starts a lot of threads about cheap bikes they never buy,
fietsbob is offline
Old 08-11-20, 03:30 PM
  #15
BikeLite
Senior Member

Join Date: Oct 2005
Posts: 813
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 15 Times in 13 Posts
The thing that bugs me about that axiom streamliner is..if you yank on that rack back end you can pull it right off those upper two attachment points. I know you are not supposed to do that, but it seems a weakpoint in the design.
BikeLite is offline
