Front pannier racks

Iíve fitted Blackburn Custom Lowrider front pannier racks to my Cube SL Road Pro.
The forks have only one eyelet on the mid-fork outer side so there are two fixing points - the mid-fork eyelet using the spacer between the rack bars and to the fork dropout eyelet with a clip around the diagonal bar (wrapped in insulation tape for friction).

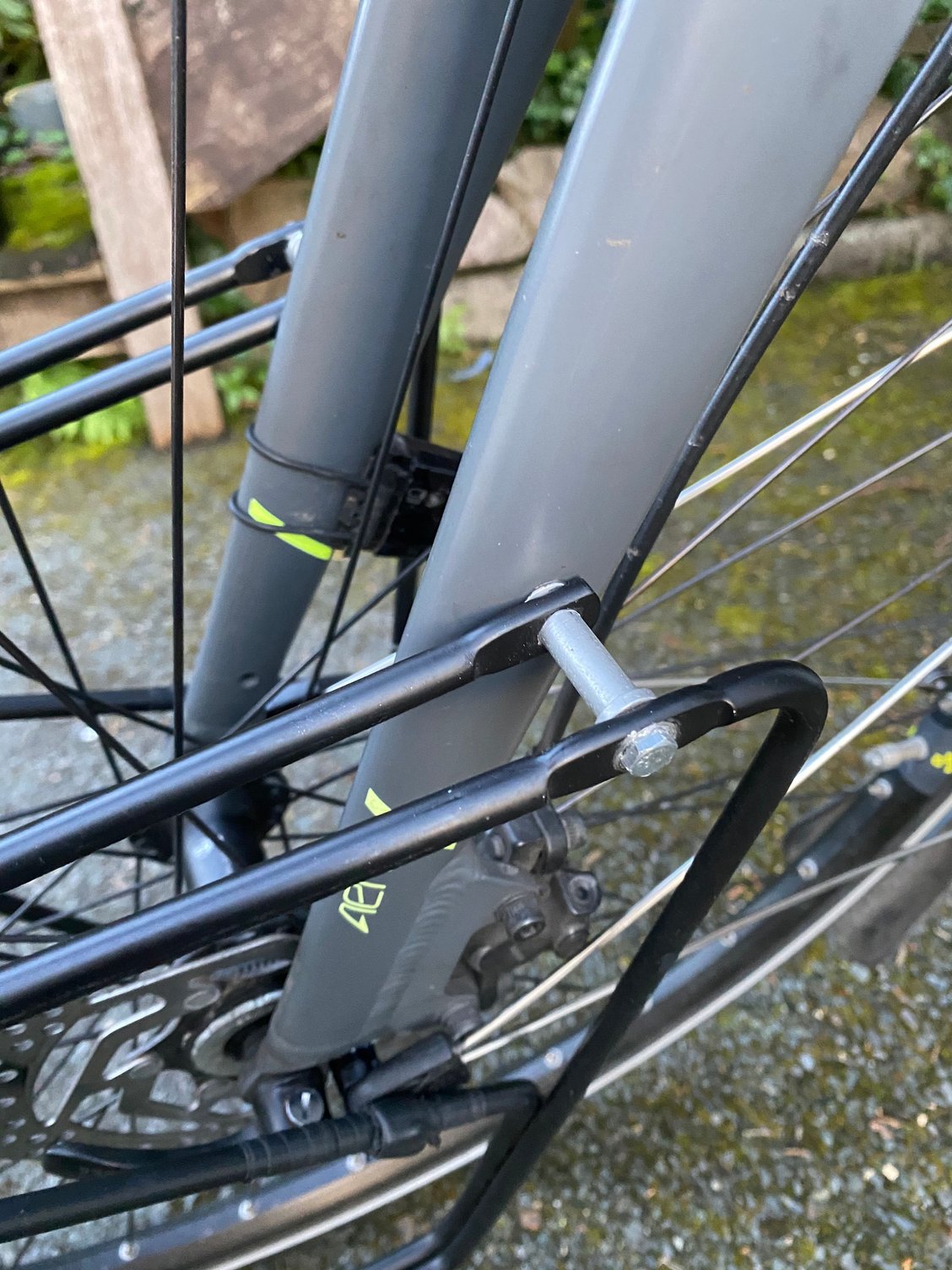

I used Ortlieb Back Roller City panniers on the racks today but was concerned about how secure the fitting is. The bolt used in the mid-fork is an M5 with thread lock applied. Iím also going to diagonally affix two cable ties as a fail safe.

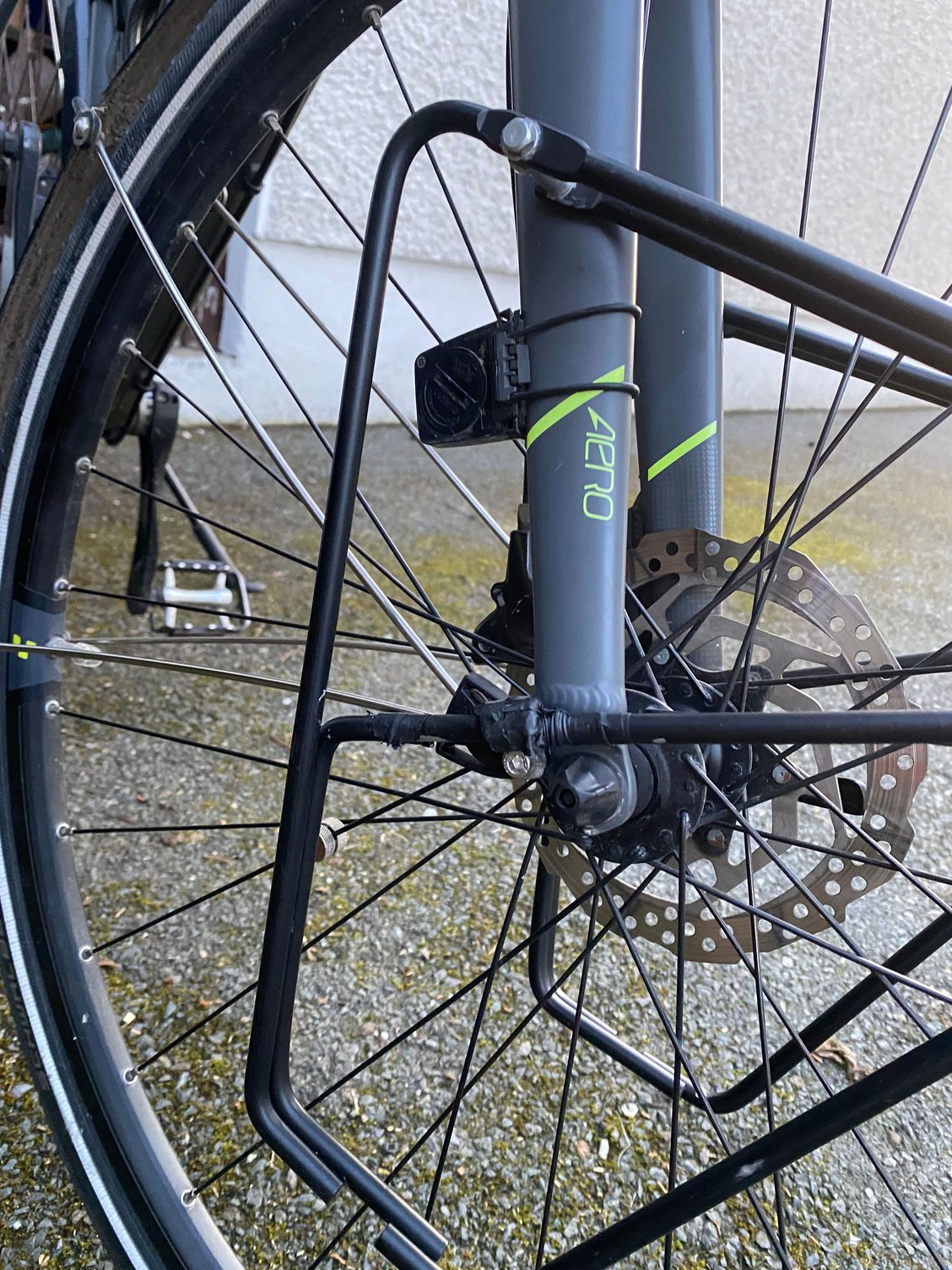

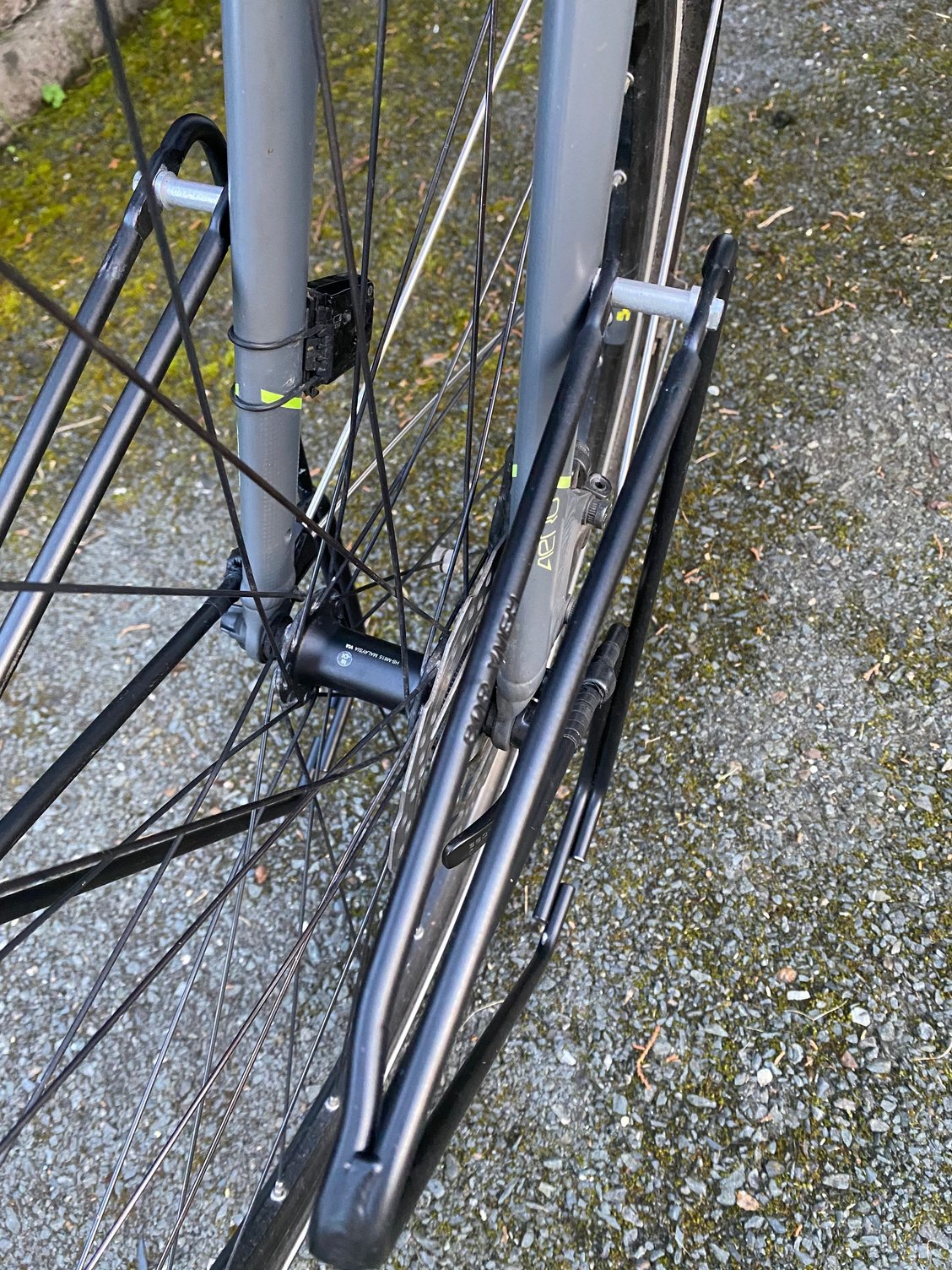

Pics attached.

Thoughts?





Carnmore is offline
Old 09-26-20, 06:53 PM
  #2
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,609

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 129 Post(s)
Tagged: 1 Thread(s)
Quoted: 4461 Post(s)
Liked 1,994 Times in 1,196 Posts
I’m not sure your set up is going to work. The arms of the on the rack are supposed to be on either side of the fork blade. That keeps it from twisting. I don’t think the way you have it now will be that stable. The regular hoop version of either the Blackburn or Tubus racks keeps the rack stable. You may need to add that hoop since you can’t clamp it on both sides of the fork.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Likes For cyccommute:
Old 09-26-20, 07:19 PM
  #3
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 2,173

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1966 Schwinn Deluxe Racer, 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 847 Times in 587 Posts
#1 : follow cyccommute's advice.

#2 : where did you come up with this installation? Were you following the manufacturers instructions?

When I was looking at front pannier racks, I downloaded the directions first. This was when I learned that a Tubus tara was the most accessible rack for my fork.
Unca_Sam is offline
Old 09-26-20, 07:31 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,053

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2771 Post(s)
Liked 1,545 Times in 955 Posts
Originally Posted by cyccommute View Post
Iím not sure your set up is going to work. The arms of the on the rack are supposed to be on either side of the fork blade. That keeps it from twisting. I donít think the way you have it now will be that stable. The regular hoop version of either the Blackburn or Tubus racks keeps the rack stable. You may need to add that hoop since you canít clamp it on both sides of the fork.
+1 this. The rack was designed to work with a mount that passes all the way through the fork blade, not standing off from the blade as in the picture. A U-bolt could be used to provide the proper mounting. Some modificatioon may be necessary.
JohnDThompson is offline
Likes For JohnDThompson:
Old 09-26-20, 07:48 PM
  #5
SalsaShark
Senior Member

SalsaShark's Avatar

Join Date: Nov 2014
Location: Eastern Iowa
Posts: 537

Bikes: 2014 Trek Allant drop bar conversion, modified Schwinn MTN commuter, 2015 Trek 520, Soma ES, Salsa Journeyman, 1980 Trek 414

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 241 Times in 121 Posts
I would not ride that with any sort of substantial load affixed to the rack. The upper mounting bolt will not be able withstand the leverage from the weight being thrown around and will want to bend, causing the rack to twist due to the play introduced. This could end quite catastrophically if the rack were to twist around the fork blade into the spokes. You will need to either modify the installation, or procure a rack designed to work with the mounting points provided on your particular fork.
SalsaShark is offline
Likes For SalsaShark:
Old 09-27-20, 05:20 AM
  #6
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,535

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6557 Post(s)
Liked 1,672 Times in 921 Posts
That upper mounting bolt will be the focus of a lot of stress, and will likely rip loose and possibly damage the mounting hole. You have created a lever to magnify force on what was supposed to be a double support minimizing force. Looks dangerous.
Maelochs is offline
Likes For Maelochs:
Old 09-27-20, 06:09 AM
  #7
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 2,173

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1966 Schwinn Deluxe Racer, 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 847 Times in 587 Posts
Originally Posted by JohnDThompson View Post
A U-bolt could be used to provide the proper mounting. Some modificatioon may be necessary.

How do you figure that? Can you show a quick diagram?
Unca_Sam is offline
Old 09-27-20, 06:36 AM
  #8
Marcus_Ti
FLIR Kitten to 0.05C

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 5,331

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 2349 Post(s)
Liked 401 Times in 251 Posts
That is the wrong rack for this bike. You want a Tara lowrider..
Marcus_Ti is offline
Old 09-27-20, 06:48 AM
  #9
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,936

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1160 Post(s)
Liked 1,099 Times in 613 Posts
Yep, rack with a wheel loop in this case...
Trevtassie is offline
Old 09-27-20, 09:53 AM
  #10
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,053

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2771 Post(s)
Liked 1,545 Times in 955 Posts
Originally Posted by Unca_Sam View Post
How do you figure that? Can you show a quick diagram?
Perhaps something like this:

But @Marcus_Ti's suggestion of a different model rack may still be better.
Attached Images
File Type: jpg
JohnDThompson is offline
Old 09-27-20, 12:43 PM
  #11
Carnmore
Junior Member
Thread Starter

Join Date: Mar 2017
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Thanks for the replies. The spacer used between the rack bars is part of the OEM fitting kit. I had a previous bike with this setup and used it for many years without a problem but this one seems less stable.
Carnmore is offline
Old 09-28-20, 03:56 AM
  #12
Carnmore
Junior Member
Thread Starter

Join Date: Mar 2017
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Can a hoop be added to the Blackburn CL-1 or is it a separate complete rack?
Carnmore is offline
Old 09-28-20, 06:48 AM
  #13
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,535

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6557 Post(s)
Liked 1,672 Times in 921 Posts
That looks like a metal fork. If it si .... could you not drill the inner side of the leg and tap it or insert a Riv-nut or whatever and use the rack as intended?
Maelochs is offline
Old 09-28-20, 07:29 AM
  #14
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,053

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2771 Post(s)
Liked 1,545 Times in 955 Posts
Originally Posted by Maelochs View Post
That looks like a metal fork. If it si .... could you not drill the inner side of the leg and tap it or insert a Riv-nut or whatever and use the rack as intended?
A RivNut is unlikely to be strong enough to support a loaded pannier. Failure of the RivNut could easily progress to failure of the fork blade at the RivNut hole, which is unlikely to be a minor concern. The OP's rack is designed to be mounted on a tube that passes entirely through the fork blade and is brazed in place at both ends.
JohnDThompson is offline
Likes For JohnDThompson:
Old 09-28-20, 10:45 AM
  #15
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,535

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6557 Post(s)
Liked 1,672 Times in 921 Posts
Originally Posted by JohnDThompson View Post
A RivNut is unlikely to be strong enough to support a loaded pannier. Failure of the RivNut could easily progress to failure of the fork blade at the RivNut hole, which is unlikely to be a minor concern. The OP's rack is designed to be mounted on a tube that passes entirely through the fork blade and is brazed in place at both ends.
If You look at the original suggested mounting method, with one rack tube on each side of the fork leg, thus splitting the force, two mounting points are obviously stronger than one, and there wouldn't be the fork-sized lever sticking out.

If a riv-nut doesn't suit you---drill a larger hole, tap it, and thread in a steel tube, which is also internally tapped.
Maelochs is offline
Old 09-28-20, 12:34 PM
  #16
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 2,173

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1966 Schwinn Deluxe Racer, 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 847 Times in 587 Posts
Originally Posted by Maelochs View Post
If You look at the original suggested mounting method, with one rack tube on each side of the fork leg, thus splitting the force, two mounting points are obviously stronger than one, and there wouldn't be the fork-sized lever sticking out.

If a riv-nut doesn't suit you---drill a larger hole, tap it, and thread in a steel tube, which is also internally tapped.
This is throwing good money after bad. Sell the unused rack you have, and buy a rack suitable for the mounting style you have.
Unca_Sam is offline
Likes For Unca_Sam:
Old 09-28-20, 12:40 PM
  #17
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 31,857
Mentioned: 201 Post(s)
Tagged: 1 Thread(s)
Quoted: 14220 Post(s)
Liked 7,372 Times in 3,719 Posts
Originally Posted by Unca_Sam View Post
This is throwing good money after bad.
Any idea what those things cost before they were discontinued? Cannot imagine it was all that much. Wouldn't risk my neck with the OP's setup.
indyfabz is offline
Old 09-28-20, 12:51 PM
  #18
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 2,173

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1966 Schwinn Deluxe Racer, 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 847 Times in 587 Posts
Originally Posted by indyfabz View Post
Any idea what those things cost before they were discontinued? Cannot imagine it was all that much. Wouldn't risk my neck with the OP's setup.
Whatchu talkin' 'bout, Fabz?

I bought my Tara Rack this past winter for (checks ebay purchases) $60. They're listed regularly for just under $90 there. I didn't look too hard at the OP rack, but if they're the Blackburn racks I think they are, a tubus tara (or similar style) costs about the same retail.
Unca_Sam is offline
Old 09-28-20, 12:58 PM
  #19
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 31,857
Mentioned: 201 Post(s)
Tagged: 1 Thread(s)
Quoted: 14220 Post(s)
Liked 7,372 Times in 3,719 Posts
Originally Posted by Unca_Sam View Post
Whatchu talkin' 'bout, Fabz?

I bought my Tara Rack this past winter for (checks ebay purchases) $60. They're listed regularly for just under $90 there. I didn't look too hard at the OP rack, but if they're the Blackburn racks I think they are, a tubus tara (or similar style) costs about the same retail.
Looks like a Blackburn CL-1, which does not seem to be made anymore. I think they were appreciably less expensive than Tubus racks.

Me? I pay top dollar for Riv racks.
indyfabz is offline
Old 09-28-20, 03:21 PM
  #20
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,535

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6557 Post(s)
Liked 1,672 Times in 921 Posts
Originally Posted by Unca_Sam View Post
This is throwing good money after bad. Sell the unused rack you have, and buy a rack suitable for the mounting style you have.
yes, that is a much better idea.
Maelochs is offline
