..lets tawk bike fitting-long torso, short legs

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

..lets tawk bike fitting-long torso, short legs

Old 12-03-20, 02:11 PM
  #1
rajbcpa
Junior Member
Thread Starter

Join Date: Dec 2020
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
..lets tawk bike fitting-long torso, short legs

I was born with a very long torso and a very short pair of legs....

Golf equipment and bikes have been hard to fit me.

I can fit on a frame that is 52cm and the balls of my feet just touch the ground..... however, when I ride, the length of the bike feels too short.

Can I buy a few extra-long handlebar stems, or a few seat post that allows the seats to go way, way back?

thx...
rajbcpa is offline
Old 12-03-20, 02:20 PM
  #2
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 450

Bikes: Sycip, Black Mountain Cycles, Kona, Fairdale, WeThePeople

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 399 Times in 192 Posts
Maybe tawk about it in the "Fitting Your Bike" subforum: https://www.bikeforums.net/fitting-your-bike/
Rolla is offline
Old 12-03-20, 06:24 PM
  #3
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,088

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 831 Post(s)
Liked 607 Times in 404 Posts
When you say the balls of you feet just touch the ground on a 52cm, you are referring to stand over and not on the saddle.

You can go with a bit longer stem to get more stretch. I’m not a fan of moving the seat back beyond what is the outside the optimal range for comfort and performance, but there is probably a little bit to be gained.

Over 30 years ago I was at a weekend event and rode a lot more miles than I usually do. When I had to drive home I had to use my left leg because the right hip was throbbing so much. It turned out my left leg was a cm shorter and I was stressing my right hip trying to fully extend while riding.

Over the years I fashioned a 1/4” shim under the left cleat that worked well enough. But then I made a DIY insole from cheap EVA flip flops from Walmart. It really works great.

The real solution is getting a frame made for you, but you may b able to add an insole to both cycling shoes, lengthen the stem a bit and find the longest ETT bike that allows you to stand over, even If you have to lean it a bit.

I have a long torso for my leg length and ride a frame that is technically too big for me but I have just gotten used to leaning the bike when I come to a stop.

John
70sSanO is offline
Old 12-03-20, 06:55 PM
  #4
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,213
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 244 Times in 145 Posts
The setback of your saddle should be independent of stem length. They accomplish different things.

I recommend that you see a fitter if you are having problems. I have long torso, short legs, but long femurs. My femur length dictates the seatpost setback and the length of my torso (and my flexibility) dictate the stem length.

If I hurt my back, I see my doctor or a physical therapist. If my neck hurts, same. If my knees hurt, I see a physical therapist. If my neck, back, and knees hurt while I ride a bike, why do we all flock to the bike shop? Seeing a doctor or physical therapist for pain while performing a physical activity is covered by insurance. My bike fit from a PT was covered 100%. If you have even halfway decent insurance, it is worth looking into.
aggiegrads is offline
Old 12-03-20, 08:25 PM
  #5
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,000
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 106 Times in 88 Posts
If your feet touch the ground when you are sitting on the saddle, you got the seat set too low. Your toes pretty much shouldn't be able to touch the ground.
Moisture is offline
Likes For Moisture:
Old 12-03-20, 08:28 PM
  #6
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,340

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5059 Post(s)
Liked 2,373 Times in 1,390 Posts
Originally Posted by rajbcpa View Post
I was born with a very long torso and a very short pair of legs....

Golf equipment and bikes have been hard to fit me.

I can fit on a frame that is 52cm and the balls of my feet just touch the ground..... however, when I ride, the length of the bike feels too short.

Can I buy a few extra-long handlebar stems, or a few seat post that allows the seats to go way, way back?

thx...
1- if you can stand while on the saddle, the saddle is too low or the bike is too small.
2- don't move the saddle around to make the bike feel longer as that isnt what saddle movement is for.

if your bike does fit for height, then measure the reach(Google how for a video) and go find a bike with the same height(stack height) but longer reach.
mstateglfr is offline
Old 12-03-20, 08:50 PM
  #7
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,000
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 106 Times in 88 Posts
Originally Posted by mstateglfr View Post
1- if you can stand while on the saddle, the saddle is too low or the bike is too small.
2- don't move the saddle around to make the bike feel longer as that isnt what saddle movement is for.

if your bike does fit for height, then measure the reach(Google how for a video) and go find a bike with the same height(stack height) but longer reach.
Whats the purpose of.moving the saddle fore or aft then?
Moisture is offline
Old 12-03-20, 09:04 PM
  #8
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,340

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5059 Post(s)
Liked 2,373 Times in 1,390 Posts
Originally Posted by Moisture View Post
Whats the purpose of.moving the saddle fore or aft then?
Let's Discuss Frame Geometry
You tell us. You are the geometry expert.
mstateglfr is offline
Likes For mstateglfr:
Old 12-04-20, 02:26 PM
  #9
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,631

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 225 Times in 135 Posts
I recommend using https://www.competitivecyclist.com/S...ulatorBike.jsp or similar to get a set of recommendations.

My torso/arms are relatively long compared to my legs. The typical square bike (54 CM ST, 54 CM ETT) feels wrong to me. I lucked into a 1973 English production frame. It was common then to vary the ST length and use a standard TT, so it's 21" X 22". With an 11 CM stem, it fits me well. That may be what you need - but it depends on your actual dimensions. I recommend the fit calculator, because I don't know ho many BF members can turn dimensions into recommended sizes.
philbob57 is offline
Old 12-04-20, 03:24 PM
  #10
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,166
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,052 Times in 769 Posts
The good news is that bikes are getting longer.

What kind of bike are you interested in?
unterhausen is offline
Old 12-04-20, 04:20 PM
  #11
Mulberry20
Senior Member

Join Date: Jun 2016
Posts: 732
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Liked 193 Times in 131 Posts
Originally Posted by rajbcpa View Post
I was born with a very long torso and a very short pair of legs....

Golf equipment and bikes have been hard to fit me.

I can fit on a frame that is 52cm and the balls of my feet just touch the ground..... however, when I ride, the length of the bike feels too short.

Can I buy a few extra-long handlebar stems, or a few seat post that allows the seats to go way, way back?

thx...
Get a custom bike. You would be surprised what a first class custom steel bike costs. Lighter than most carbon frames to boot.
Mulberry20 is offline
Old 12-04-20, 08:22 PM
  #12
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,000
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 106 Times in 88 Posts
Originally Posted by The Trolling Expert View Post
Let's Discuss Frame Geometry
(Trollol "The Grand Master of Trolling estabilishing his effortless skill" Trollololol
You've inspired me to put my thinking cap on and figure this one out myself. I like that.

Sliding the saddle back or forth has nothing to do with the reach, which is considered based on optimal weight distribution whilst pedalling out of the saddle. Provided that the ETT is a sufficient length according to the optimal seating position within the frame for comfort and power transfer, you can then make some adjustments using the saddle rails as necessary. But that would never work to compensate for an ill fitting frame.

Last edited by Moisture; 12-04-20 at 08:26 PM.
Moisture is offline
Old 12-04-20, 08:42 PM
  #13
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,340

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5059 Post(s)
Liked 2,373 Times in 1,390 Posts
Originally Posted by Mulberry20 View Post
Get a custom bike. You would be surprised what a first class custom steel bike costs. Lighter than most carbon frames to boot.
$2500-4000, and heavier than entry carbon.
I'm not saying its a bad idea, all I ride is steel, but this would be expensive and not lighter.
mstateglfr is offline
Old 12-04-20, 10:22 PM
  #14
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 5,703
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1676 Post(s)
Likes: 0
Liked 723 Times in 443 Posts
Originally Posted by rajbcpa View Post
I was born with a very long torso and a very short pair of legs....

Golf equipment and bikes have been hard to fit me.

I can fit on a frame that is 52cm and the balls of my feet just touch the ground..... however, when I ride, the length of the bike feels too short.

Can I buy a few extra-long handlebar stems, or a few seat post that allows the seats to go way, way back?

thx...


So you're saying that a 52cm frame is too small? Try a larger size. How your feet touch the ground has next to nothing to do with bike fit. I also have a long torso & short-ish legs, so end up with more saddle set-back, but also short-ish arms so not a long stem.

I don't know much about golf, but don't you basically need clubs that reach from your hands to the ground?

Also, it's likely that your body proportions developed much later than when you were born. (sorry for the nit-pick)
woodcraft is offline
Old 12-04-20, 11:13 PM
  #15
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,174

Bikes: 1992 Specialized Rockhopper Sport, 2016 Giant Liv Rove Lite, 1995 Trek Singletrack 930, 1994 Trek Multitrack 750

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 805 Post(s)
Liked 463 Times in 316 Posts
Sounds perfect for a '90s mountain bike build, with their 26" wheels and stoopid long top tubes.
Korina is offline
Old 12-04-20, 11:38 PM
  #16
Biketiger
Senior Member

Join Date: Aug 2019
Location: Albuquerque
Posts: 109

Bikes: Track bike: 1978 Speedwell titanium Road bike: 2001 Independent Fabrication

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 21 Times in 21 Posts
Originally Posted by Moisture View Post
If your feet touch the ground when you are sitting on the saddle, you got the seat set too low. Your toes pretty much shouldn't be able to touch the ground.
+ 1
Your leg should be almost fully extended when your foot is on the PEDAL at its lowest position not the ground.
Biketiger is offline
Likes For Biketiger:
Old 12-04-20, 11:56 PM
  #17
downtube42
Senior Member

downtube42's Avatar

Join Date: Oct 2008
Location: Portland, OR
Posts: 2,659

Bikes: Soma Fog Cutter, Volae Team, Priority Eight, Nimbus MUni, Trek Roscoe 6.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 396 Post(s)
Liked 715 Times in 375 Posts
French fit on a frame that already has long reach should get you a long way. You can add a long stem if needed.

If that's not enough, do the above on a sloping top tube bike. Technically you don't even have to be able to stand over the frame, but most people consider that necessary. With a sloping top tube, you can stand over a relatively huge frame.

Of course you can get a custom frame if that's in your budget, but the above can work with an off-the-shelf bike.
downtube42 is offline
Old 12-06-20, 12:10 PM
  #18
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 4,278
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1845 Post(s)
Liked 1,145 Times in 674 Posts
Originally Posted by Korina View Post
Sounds perfect for a '90s mountain bike build, with their 26" wheels and stoopid long top tubes.
90s mountain bike frames had much shorter reach and top tubes than modern ones do.
Kapusta is offline
Old 12-06-20, 01:53 PM
  #19
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,647

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 521 Post(s)
Liked 249 Times in 171 Posts
I'm (well was in my youth) 5' 8-1/2" with a 29.5" inseam, 18" neck, 34-1/2" sleeve. Yep, I'm built like a short-legged gorilla.

BITD when I was 15 or so, based on my stand-over height, they tried to fit me to a 21" (53.4cm) frame on a traditional 10-speed road bike of the era (1974). I rode it around the block, but was too cramped fore-aft, so I test rode the 23" (58cm) frame and felt that the riding position was much better, even though 'the boys' are somewhat compressed if I stand over the bike flat-footed. Against their better judgement, I have been happily been riding 57/cm/23" frames ever since.

When I'm out riding, I NEVER have put both feet on the ground at the same time at a stop. Also, I've NEVER crushed the boys. 46 years of riding a 'too-tall' frame.

Because of this thread, I just went out and actually measured my trusty old Fuji for the first time ever... 23" c-c from seatube to headtube. 21" from nose of the saddle to the back edge of the bars. (I NEVER ride on the hoods - preferring my hand placement with my palms on the 'shoulders' of the bars where they start to turn forward, or in the drops.




My other bikes are fitted the same. seat height from BB center, and nose of saddle-to-bars. 170mm cranks on all.




The stem on the Miyata is longer to compensate for the slightly smaller 57cm frame...


Just about everyone's fit will likely be different than mine!

.
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 12-06-20, 03:20 PM
  #20
Kapusta
Cyclochondriac

Join Date: Feb 2017
Posts: 4,278
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1845 Post(s)
Liked 1,145 Times in 674 Posts
Originally Posted by Cougrrcj View Post


.
I have little to add to this thread, other than to say that this Fuji is hot.
Kapusta is offline
Old 12-06-20, 04:17 PM
  #21
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,174

Bikes: 1992 Specialized Rockhopper Sport, 2016 Giant Liv Rove Lite, 1995 Trek Singletrack 930, 1994 Trek Multitrack 750

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 805 Post(s)
Liked 463 Times in 316 Posts
Originally Posted by Kapusta View Post
90s mountain bike frames had much shorter reach and top tubes than modern ones do.
That's frightening; I was bent like a paperclip the first time I got on my stock RockHopper.
Korina is offline
Old 12-06-20, 05:23 PM
  #22
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,647

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 521 Post(s)
Liked 249 Times in 171 Posts
Originally Posted by Kapusta View Post
I have little to add to this thread, other than to say that this Fuji is hot.
Thanks for that!

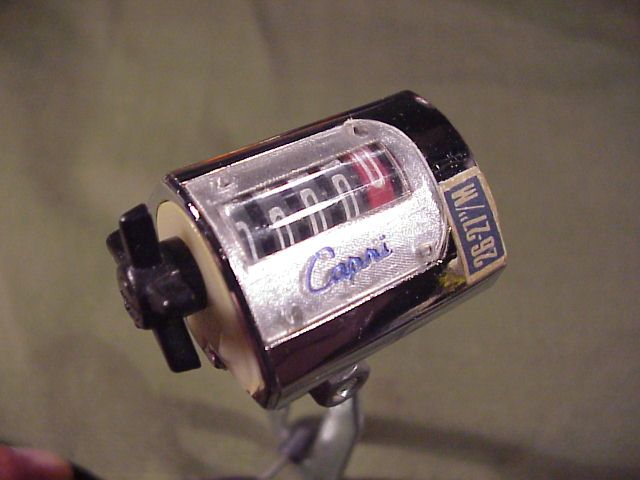

It is VERY battle-scarred after 45 years/54k+ miles of abuse I'd guess closer to 60k miles these days, but no old-school clicker' odometer any more! LOL!



Original components:
Frame/fork
Stem/Bars
Brakes/levers
Saddle

Everything else has been replaced at least once!

.
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 12-07-20, 08:59 AM
  #23
burnthesheep
Newbie racer

Join Date: Feb 2018
Posts: 2,412

Bikes: Propel, red is faster

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1094 Post(s)
Liked 880 Times in 575 Posts
Shorter legs? Maybe could gain some millimeters at least with short cranks. Most places make them these days down to 165mm in readily purchasable stock.

That doesn't resolve all of that, just one place to look.
burnthesheep is offline
Old 12-07-20, 11:11 AM
  #24
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,415

Bikes: '71 Jeunet 640, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1211 Post(s)
Liked 1,016 Times in 553 Posts
Apparently "Tawk" is a trademarked name for some kind of chat application. Who knew that?

I'm also a long torso with average leg length. Longer top tubes can help. With compact geometries and threadless stems, it's a lot easier to experiment and find the right fit.
Phil_gretz is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
