To paint or not to paint?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

To paint or not to paint?

Old 06-09-21, 09:39 AM
  #1
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
To paint or not to paint?

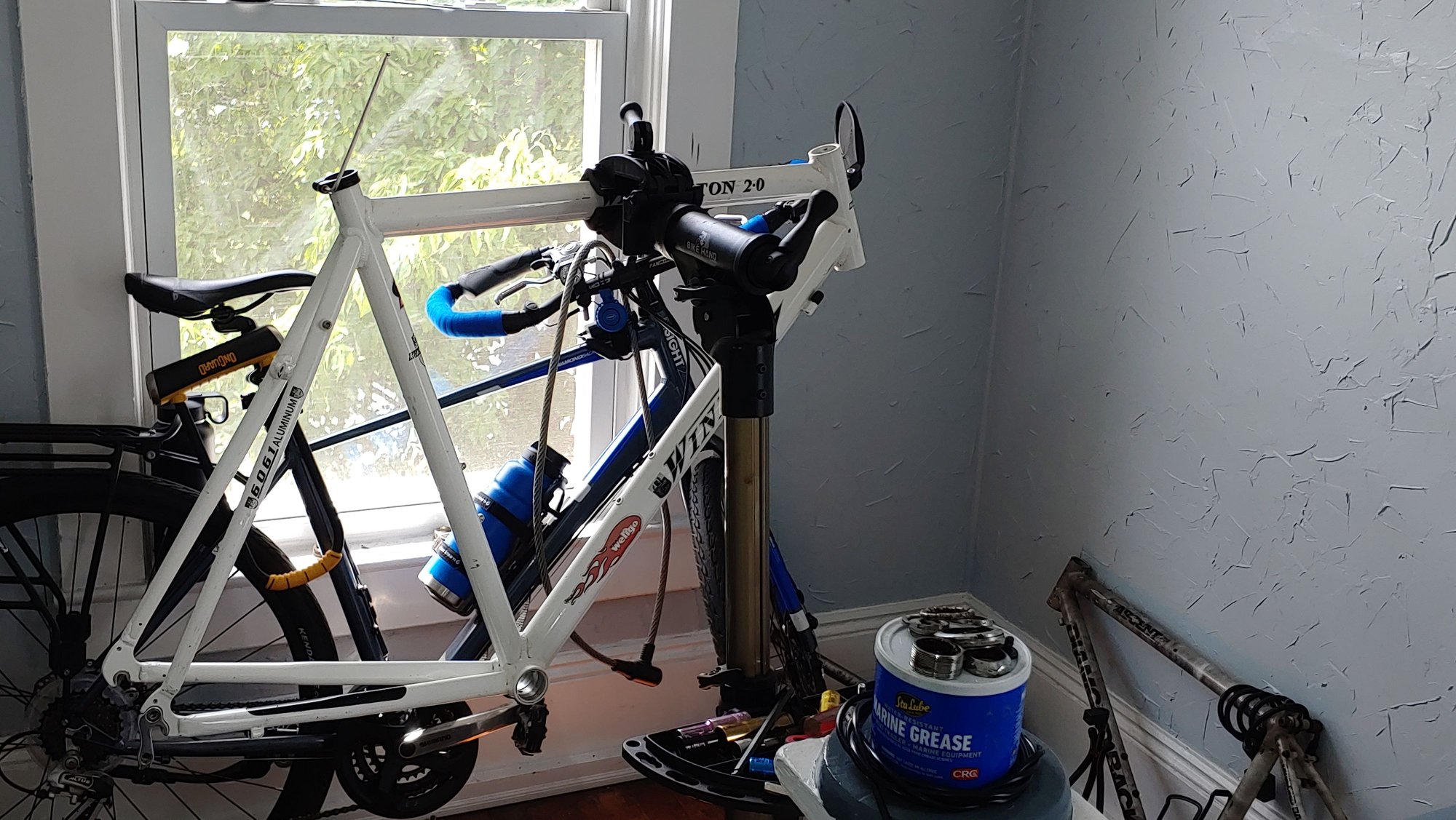

I have gotten everything off of the frame. The seat post came out smooth. It looks like the previous owner applied some anti-seize compound (though I am wondering why he didn't do that with the !@#$%^& fork.) I am thinking about taking it down to bare metal and re-painting it. I'll be doing it myself. It looks much better now that its been cleaned up. Thoughts, opinions, criticism.

PS: I know I am becoming the king of junk (some think they're junk, but I disagree.)
grizzly907la is offline
Old 06-09-21, 01:02 PM
  #2
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 822
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 891 Times in 381 Posts
I like the idea of a repaint, and Iím thinking about doing it to one of my frames.The results Iíve seen from this stuff have been great: https://spraybike.us/
Rolla is offline
Old 06-09-21, 01:04 PM
  #3
aclinjury
Senior Member

Join Date: May 2013
Posts: 624
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 461 Post(s)
Liked 157 Times in 119 Posts
is really worth the time to repaint a junk????
aclinjury is offline
Likes For aclinjury:
Old 06-09-21, 01:15 PM
  #4
Bill in VA
Senior Member

Bill in VA's Avatar

Join Date: Aug 2017
Location: Northern Virginia
Posts: 689

Bikes: Current: 2016 Bianchi Volpe; 1973 Peugeot UO-8. Past: 1974 Fuji S-10-S with custom black Imron paint by Stinsman Racing of PA.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 181 Times in 126 Posts
I am assuming it is a DIY paintjob. Aluminum can sometimes be difficult to paint if you take it to bare metal. You will need a good aluminum specific primer. I would be inclined to scuff the existing paint and feather and chips and paint over the existing paint. Try a small out of the way spot first to ensure the new paint does not react negatively with the old paint.

Actually it does not look that bad as is, but I can see your desire to paint as I hate labels like that 6061 Aluminum labels on the stays
Bill in VA is offline
Old 06-09-21, 01:49 PM
  #5
tendency
Senior Member

Join Date: Jul 2008
Posts: 219
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 40 Times in 31 Posts
Originally Posted by grizzly907la View Post
I have gotten everything off of the frame. The seat post came out smooth. It looks like the previous owner applied some anti-seize compound (though I am wondering why he didn't do that with the !@#$%^& fork.) I am thinking about taking it down to bare metal and re-painting it. I'll be doing it myself. It looks much better now that its been cleaned up. Thoughts, opinions, criticism.

PS: I know I am becoming the king of junk (some think they're junk, but I disagree.)
I've done this a number of times and now achieve results that rival the best professional paint jobs I've seen (not to toot my horn too much! ). It does take practice. You'll probably wreck the first frame (or two) you try. Great thing is you can always start over My advice is to use a system all from the same vendor - so, same vendor for prime/paint/clear. Personally I only use duplicolor which is an acrylic laquer. Nothing beats a properly done laquer finish IMO.

My process is:
1) take frame for sandblasting
2) thin coat of etching primer on bare metal. let 'flash off' for an hour or so (depending on conditions).
3) apply couple coats of sandable primer. depending on how well the primer went on ill let it flash off for a couple hours then start painting. if there are imperfections in the primer I'll let it dry 24 hours then do a light wet sand.
4) apply laquer. this takes practice. i'll typically apply 9-10 coats building up progressively thicker. sometimes more.
5) let laquer fully cure for ~10 days.
6) wet sand/polish.
7) use the best clear coat you're comfortable using. really like Duplicolor 1K which is urethane based. If you know what you're doing the best clear is a 2K but highly toxic.
8) after clear has fully cured wet sand/polish (if necessary often is not).
9) enjoy!
Tip: ALWAYS follow directions from manufacturer on how/when to use their system.

Takes practice, time and patience but it's something I really enjoy. Once you get good at it you can achieve pro level finishes. Good luck!

NOTE - I only paint steel frames. Process, as mentioned above, has some caveats for aluminum.
Double Note - get a proper respirator to save lungs.

Last edited by tendency; 06-09-21 at 02:05 PM.
tendency is offline
Likes For tendency:
Old 06-09-21, 03:03 PM
  #6
lexus1995
Junior Member

Join Date: Jun 2021
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Looks classy
lexus1995 is offline
Likes For lexus1995:
Old 06-09-21, 05:39 PM
  #7
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 30,269
Mentioned: 199 Post(s)
Tagged: 1 Thread(s)
Quoted: 13304 Post(s)
Liked 5,942 Times in 3,048 Posts
White bikes are the slowest.
indyfabz is offline
Old 06-09-21, 05:56 PM
  #8
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by aclinjury View Post
is really worth the time to repaint a junk????
One mans junk is another mans treasure. Plus I can use it as a beta test because I have some vintage steel frames I want to build up, and they do need to be repainted.
grizzly907la is offline
Old 06-09-21, 05:57 PM
  #9
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by Bill in VA View Post
I am assuming it is a DIY paintjob. Aluminum can sometimes be difficult to paint if you take it to bare metal. You will need a good aluminum specific primer. I would be inclined to scuff the existing paint and feather and chips and paint over the existing paint. Try a small out of the way spot first to ensure the new paint does not react negatively with the old paint.

Actually it does not look that bad as is, but I can see your desire to paint as I hate labels like that 6061 Aluminum labels on the stays
I could take the labels off via a heat gun. The Welligo one looks a little cheesy...the other ones don't really bother me.
grizzly907la is offline
Old 06-09-21, 05:59 PM
  #10
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by indyfabz View Post
White bikes are the slowest.
What if I paint it Cobalt blue?
grizzly907la is offline
Old 06-09-21, 06:09 PM
  #11
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,807

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 486 Times in 294 Posts
Yesterday I finished the last clear coat of an '89 Fuji Ace that I stripped to bare metal and rattle can spray painted it, probably the only one I will do. It is certainly nowhere near being a really well done paint job, but it looks pretty good. It is a lot of work and a lot of time. Not hard work per se, but tedious and messy. I did not want a high gloss, flashy finish, but more of a satin with just a bit of sheen. I am going to let it set for 10 to 14 days before I start doing any re-building on it. Also, I am still toying with the idea of some kind of decals, not Fuji Ace, but something like chevrons, shapes characters, etc.

I am pretty sure if I was to do another bike, I would get it powder coated. I have had that done to two framesets, and, IMO, it is a cost effective, work saving, durable option with thousands of color tones to choose from.





I need to do some light, wet sanding on it, and then polish it up.
delbiker1 is offline
Old 06-09-21, 07:51 PM
  #12
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 30,269
Mentioned: 199 Post(s)
Tagged: 1 Thread(s)
Quoted: 13304 Post(s)
Liked 5,942 Times in 3,048 Posts
Originally Posted by grizzly907la View Post
What if I paint it Cobalt blue?
Blue is the second slowest color, and isnít cobalt toxic?
indyfabz is offline
Old 06-09-21, 07:54 PM
  #13
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,618

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2375 Post(s)
Liked 1,377 Times in 924 Posts
The paint alone would be worth more than the frame. I personally wouldn't waste the time. Unless the paint is exceptional damaged I wouldn't bother and even then I wouldn't bother unless you have free paint and free time.

Also NEVER CLAMP A BIKE BY THE TUBES!!!!!!! Seatposts are designed to be clamped the tubes on a frame are not.
veganbikes is offline
Likes For veganbikes:
Old 06-09-21, 08:05 PM
  #14
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by indyfabz View Post
Blue is the second slowest color, and isnít cobalt toxic?
Ok I give up...what's the fastest color?
grizzly907la is offline
Old 06-09-21, 08:07 PM
  #15
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by delbiker1 View Post
Yesterday I finished the last clear coat of an '89 Fuji Ace that I stripped to bare metal and rattle can spray painted it, probably the only one I will do. It is certainly nowhere near being a really well done paint job, but it looks pretty good. It is a lot of work and a lot of time. Not hard work per se, but tedious and messy. I did not want a high gloss, flashy finish, but more of a satin with just a bit of sheen. I am going to let it set for 10 to 14 days before I start doing any re-building on it. Also, I am still toying with the idea of some kind of decals, not Fuji Ace, but something like chevrons, shapes characters, etc.

I am pretty sure if I was to do another bike, I would get it powder coated. I have had that done to two framesets, and, IMO, it is a cost effective, work saving, durable option with thousands of color tones to choose from.





I need to do some light, wet sanding on it, and then polish it up.
One of my obstacles is find a stand or something to hang it off, so I can paint it.
grizzly907la is offline
Old 06-09-21, 08:26 PM
  #16
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 2,178

Bikes: Univega, PR-10, Ted Williams,UO-8, Puch, PHLE, UO-18 Mixte

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 128 Times in 99 Posts
OP - Paint or not???

Who's got time to paint a bike during ridding weather? But, if its all apart ya may as well, cause if ya don't ya probably wont till its all apart again...
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 06-10-21, 02:00 AM
  #17
Tony Marley
Senior Member

Join Date: Jul 2011
Location: Houston area
Posts: 478

Bikes: Bike Friday Llama single; Bike Friday Tandem Tuesday; Easy Racers Ti-Rush recumbent; Catrike Expedition; Rans Seavo recumbent tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 18 Times in 16 Posts
The frame looks pretty nice as is, IMO
Tony Marley is offline
Old 06-10-21, 02:48 AM
  #18
Lazyass
Senior Member

Join Date: Jul 2008
Location: Minas Ithil
Posts: 8,758
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2201 Post(s)
Liked 309 Times in 186 Posts
Originally Posted by aclinjury View Post
is really worth the time to repaint a junk????
If you think a 6061 aluminum race frame is junk then you're definitely the new generation. And that Bikes Direct Windsor is probably a rebadged Specialized or something. Not cool to bash a man's bike. Unless it's a fixed gear with no brakes, green chain and pink rims.

I'd remove the aftermarket decals and go over the paint with some polishing compound. That will get rid of most of the little imperfections and black marks and bring the white back to life. Then touch up paint where needed and wax it. It's not in such bad condition where it needs to be painted, especially a cheap home paint job which will most likely peel pretty quickly.
Lazyass is offline
Likes For Lazyass:
Old 06-10-21, 04:34 AM
  #19
livedarklions
Certified Class A Wanker

livedarklions's Avatar

Join Date: Jun 2018
Location: New England
Posts: 9,261

Bikes: Serotta Atlanta; 1994 Specialized Allez Pro; Giant OCR A1; SOMA Double Cross Disc

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 4797 Post(s)
Liked 3,986 Times in 2,240 Posts
Originally Posted by aclinjury View Post
is really worth the time to repaint a junk????

If it's worth riding, nothing wrong with making it look good. And that's a one question mark question at best. It's op's time to allocate.
livedarklions is offline
Old 06-10-21, 04:38 AM
  #20
livedarklions
Certified Class A Wanker

livedarklions's Avatar

Join Date: Jun 2018
Location: New England
Posts: 9,261

Bikes: Serotta Atlanta; 1994 Specialized Allez Pro; Giant OCR A1; SOMA Double Cross Disc

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 4797 Post(s)
Liked 3,986 Times in 2,240 Posts
Originally Posted by Lazyass View Post
If you think a 6061 aluminum race frame is junk then you're definitely the new generation. And that Bikes Direct Windsor is probably a rebadged Specialized or something. Not cool to bash a man's bike. Unless it's a fixed gear with no brakes, green chain and pink rims.

I'd remove the aftermarket decals and go over the paint with some polishing compound. That will get rid of most of the little imperfections and black marks and bring the white back to life. Then touch up paint where needed and wax it. It's not in such bad condition where it needs to be painted, especially a cheap home paint job which will most likely peel pretty quickly.

I'd refrain from trash talking the green chain and pink rims, but no brakes is always fair game.
livedarklions is offline
Old 06-10-21, 05:10 AM
  #21
livedarklions
Certified Class A Wanker

livedarklions's Avatar

Join Date: Jun 2018
Location: New England
Posts: 9,261

Bikes: Serotta Atlanta; 1994 Specialized Allez Pro; Giant OCR A1; SOMA Double Cross Disc

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 4797 Post(s)
Liked 3,986 Times in 2,240 Posts
Originally Posted by grizzly907la View Post
One mans junk is another mans treasure. Plus I can use it as a beta test because I have some vintage steel frames I want to build up, and they do need to be repainted.

I know nothing about paint, but is an aluminum frame a good beta test for a steel frame?
livedarklions is offline
Old 06-10-21, 05:24 AM
  #22
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 30,269
Mentioned: 199 Post(s)
Tagged: 1 Thread(s)
Quoted: 13304 Post(s)
Liked 5,942 Times in 3,048 Posts
Originally Posted by grizzly907la View Post
Ok I give up...what's the fastest color?
Duh. Pink.
indyfabz is offline
Old 06-10-21, 05:51 AM
  #23
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,807

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 486 Times in 294 Posts
Originally Posted by livedarklions View Post
I know nothing about paint, but is an aluminum frame a good beta test for a steel frame?
I am a long way from being an truly experienced painter. However, in my limited experience, other than what you prime with, and how you prime, the rest of the process is the same.
delbiker1 is offline
Likes For delbiker1:
Old 06-10-21, 06:23 AM
  #24
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,645

Bikes: '71 Jeunet 640, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1301 Post(s)
Liked 1,177 Times in 634 Posts
That Windsor frame looks fine to me as is. I'd simply use rubbing compound to clean up the scuffs and a bit of white touch up and wax and you're done.

I have painted two frames in the last couple of years. Each time it was a substantial amount of work and the results were only barely up to my own rather low standards. From 10 feet away, each looks terrific. From one foot, there are flaws due to my not knowing jack squat about applying paint. I'm good at a few things, but painting definitely isn't one of them.
Phil_gretz is offline
Old 06-10-21, 08:23 AM
  #25
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,809

Bikes: Fuji Touring, Novara Randonee

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 773 Times in 477 Posts
Originally Posted by indyfabz View Post
Duh. Pink.
No! Red!

Aaaaaaahhhhh!!
pdlamb is offline
Likes For pdlamb:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
