Rear derailleur angle

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Rear derailleur angle

Old 10-01-21, 06:30 AM
  #1
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Rear derailleur angle

Hi, new to this forum so please be gentle. Im trying to fix up an old bike and have removed the back wheel, cleaned the cassette and chain and then put it back on.

however now I have the wheel on the derailleur is not looking right. When I shift to the top gear the derailleur is almost folded back on itself and the two jockey wheels are rubbing against each other

there is only one way the derailleur can fit on and I cant see any screws to adjust that angle as the limiter screws dont make any difference to moving the jockey wheels down

when I manually move the jockey wheels down to where I think they should go, the chain goes slack

the chain and derailleur are the same as was on the bike before I removed the wheel. Any ideas?
Cm69.gb is offline
Old 10-01-21, 07:13 AM
  #2
Phil_gretz
Zip tie Karen

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,997

Bikes: '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1448 Post(s)
Liked 1,509 Times in 797 Posts
My first thoughts are:
- did the rear derailleur shift properly prior to your removing the wheel, or is this your first time evaluating the shifting performance on this bike?
- if the answer is "yes", then the chain is too slack. Don't assume that the bike had the correct chain length from when you purchased it. Check:
(1) is the lower pivot spring forcing the lower pulley backward with sufficient force? The spring has a pin that is anchored in a hole on the backside of its housing. This pin can shear off or snap with fatigue.
(2) shift onto the innermost, largest cog, and then carefully onto the largest chainring up front. The chain should just barely permit this combination. How many links (2 half-links = 1 link of 1") of the chain could you conceivably remove and have the chain still reach?
(3) this rarely happens, but the angle of the derailleur mounting may be incorrect. Typically, there is a stop cast into the frame's rear dropout at about the 7 or 8 o'clock position, and there's a corresponding tab beneath the derailleur mounting (or upper pivot) bolt that engages that dropout stop. Some older bikes do not have those stops, but rely on a different way to clamp the derailleur into position. (A photo would help here) Additionally, many (but not all) derailleurs have a spring loaded within the upper pivot (mounting) bolt, and that helps to maintain the correct overall rearward tension on the derailleur (again, photo, or at least read the derailleur part number from the inner parallelogram long plate).

Those are where I'd begin. PG

Last edited by Phil_gretz; 10-01-21 at 08:14 AM.
Phil_gretz is offline
Old 10-01-21, 08:23 AM
  #3
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts
It is possible to mount a derailleur incorrectly on the hanger.
I think you need to tell us more info
Brand of bike
model of bike
year of bike
Derailleur brand and model

I picture would help, but you will need ten posts before you can post one.
you can however place a picture in your album, then we can post it for you.

Barry
Barry2 is offline
Old 10-01-21, 09:21 AM
  #4
Kapusta
Cyclochondriac

Kapusta's Avatar

Join Date: Feb 2017
Posts: 4,852
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2109 Post(s)
Liked 1,573 Times in 883 Posts
What front/rear gear combination are you in when this happens?
Kapusta is offline
Old 10-01-21, 09:36 AM
  #5
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks for the replies. I have created an album with the photos in
Cm69.gb is offline
Old 10-01-21, 09:46 AM
  #6
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 1,304

Bikes: 4 Singlespeeds, 2 Gearies

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Liked 1,374 Times in 609 Posts
Rolla is offline
Old 10-01-21, 01:22 PM
  #7
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts

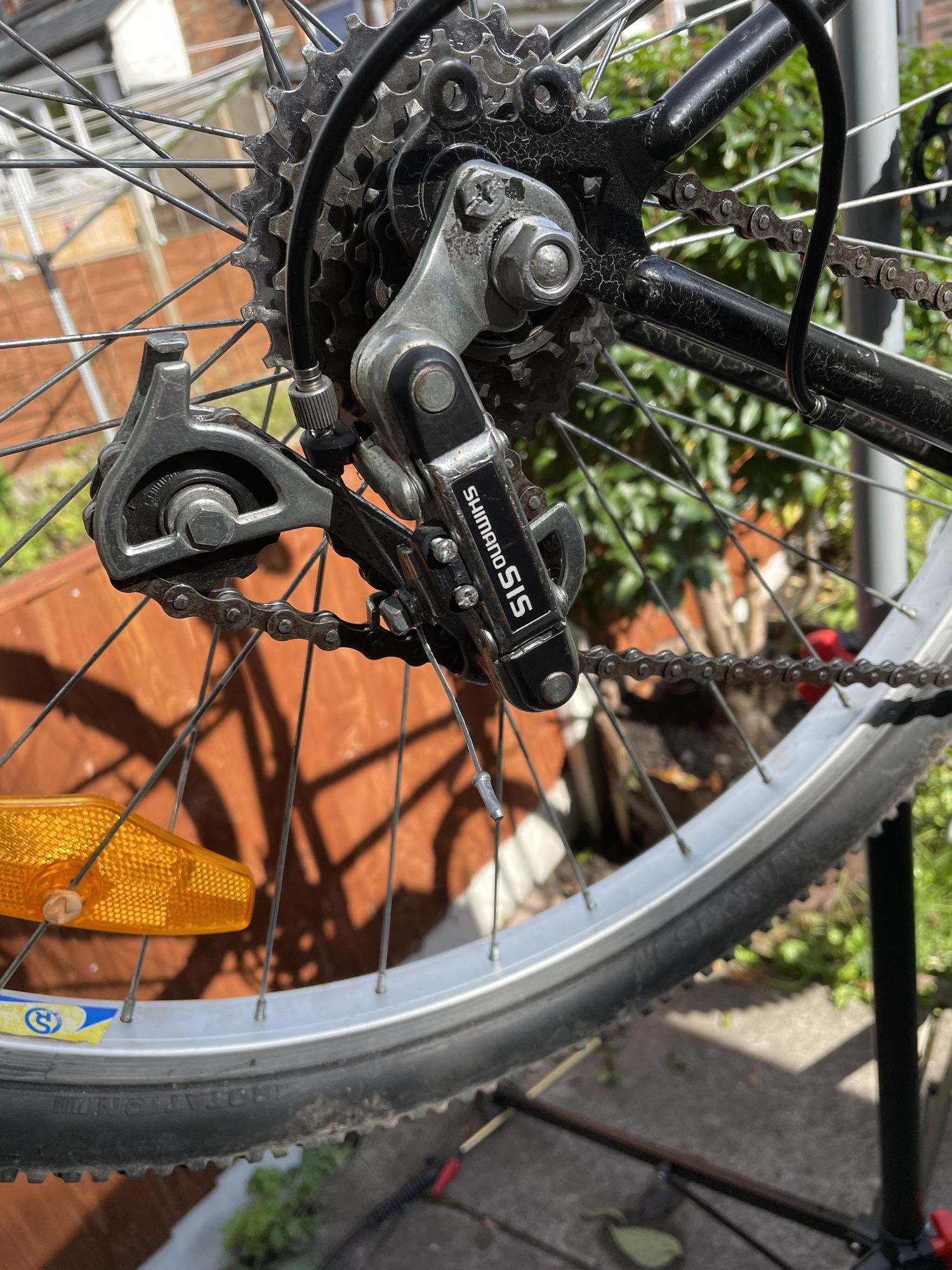

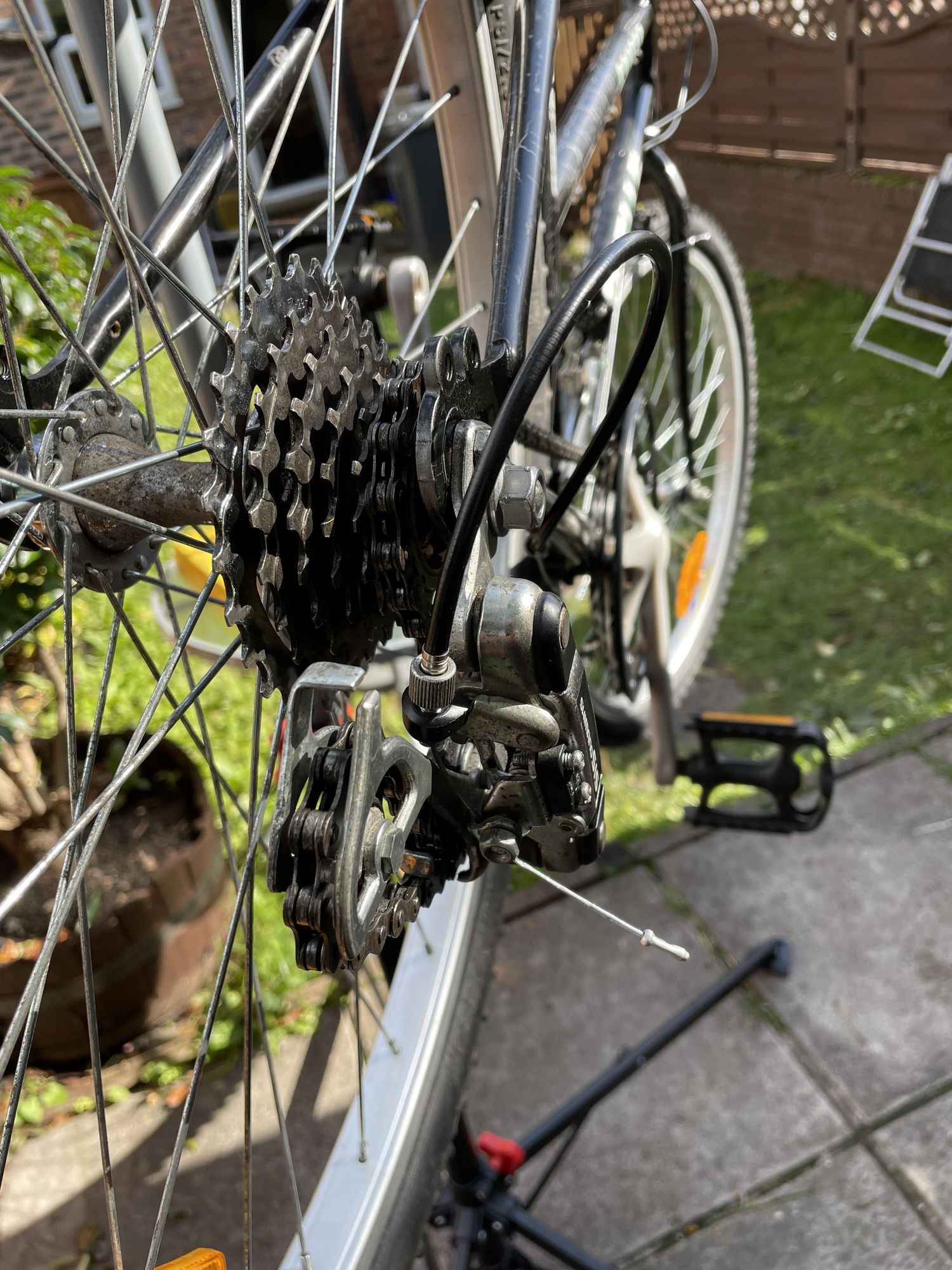

Pic's

Picture Assist...




Barry2 is offline
Old 10-01-21, 01:27 PM
  #8
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts
It looks like you cleaned the chain too long (pun intended)

I'd check the chain length. Yes I read that it's the same chain, but was it the correct length to begin with?
It also appears that the wheel is quite far forward in the dropout.
Are you sure the screw in the derailleur hanger is in the correct place. Was it maybe originally in the rearward of the two eyelets, thus allowing the wheel to be more rearward.


Last edited by Barry2; 10-01-21 at 01:31 PM.
Barry2 is offline
Old 10-01-21, 01:40 PM
  #9
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 1,304

Bikes: 4 Singlespeeds, 2 Gearies

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Liked 1,374 Times in 609 Posts
Pull the wheel further back and put the chain in a bigger chainring, just to see how the rear der behaves.
Rolla is offline
Old 10-01-21, 11:44 PM
  #10
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,833

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1987 Post(s)
Liked 2,334 Times in 1,270 Posts
1. Learn how to size a chain.
2. Never shift into the small chainring/small rear cog nor the big/big gear combinations.
SurferRosa is offline
Old 10-02-21, 09:45 AM
  #11
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Ive sized the chain and it is fine. The wheel will not go any further back and the derailleur will not fit on any other way. On the larger rings it is fine, its just the smaller one where the derailleur overlaps
Cm69.gb is offline
Old 10-02-21, 10:29 AM
  #12
frogman
Senior Member

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 695

Bikes: Wife says I have too many :-)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 166 Times in 100 Posts
Put the chain around the big chainring on the front and the smallest sprocket on the back. A line beteween the derailleur jockey wheels (guide pulley and tension pulley) should be at 90 degrees up from the floor. (straight up) Looks to me that the chain is too long. You may have to remove some links....................
frogman is offline
Old 10-02-21, 10:46 AM
  #13
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,658
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1233 Post(s)
Liked 697 Times in 448 Posts
Originally Posted by Cm69.gb View Post
Ive sized the chain and it is fine. The wheel will not go any further back and the derailleur will not fit on any other way. On the larger rings it is fine, its just the smaller one where the derailleur overlaps
Upload a picture of the chain on the large cog and on the large chainring. Then we will be able to tell if the chain is too long
alcjphil is offline
Old 10-02-21, 11:37 AM
  #14
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Ive added 2 more photos to my album. One with the small rear cog and large front cog and one with large front and rear cogs .

the problem is when I go small front and rear cogs
Cm69.gb is offline
Old 10-02-21, 12:17 PM
  #15
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,658
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1233 Post(s)
Liked 697 Times in 448 Posts
Looks very much as if your chain is too long, but it is difficult to tell due to the angle from which the photos were taken.
alcjphil is offline
Old 10-02-21, 01:36 PM
  #16
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I will try and remove some links and see what happens
Cm69.gb is offline
Old 10-03-21, 04:06 PM
  #17
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts
If you sized the chain correctly, removing links is a very bad idea.
You can break the derailleur.
Barry2 is offline
Old 10-03-21, 05:07 PM
  #18
Cm69.gb
Junior Member
Thread Starter

Join Date: Oct 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Well I removed a couple of links and it seems to have done the trick, now works fine. Ive never sized a chain before so hopefully I got the sizing wrong when I measured it!! Thanks everyone
Cm69.gb is offline
Likes For Cm69.gb:
Old 10-04-21, 04:15 PM
  #19
BlazingPedals
Senior Member

BlazingPedals's Avatar

Join Date: Dec 2004
Location: Middle of da Mitten
Posts: 11,920

Bikes: Trek 7500, RANS V-Rex, Optima Baron, Velokraft NoCom, M-5 Carbon Highracer, Catrike Speed

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Liked 448 Times in 293 Posts
Read up on how to correctly size the chain. There are a couple of methods but the end result is to make sure the derailleur can stretch far enough to allow the large/large combination. With the tight spread of the 6-speed freeewheel you have, there's no way you're pushing the limits of that derailleur. Not even close.
BlazingPedals is offline
Old 10-05-21, 12:32 PM
  #20
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 22,880

Bikes: Specialized Allez Elite, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 167 Post(s)
Liked 187 Times in 120 Posts
If the gearing is outside the capacity of the derailleur, the chain will have to be either too long or too short (or both). Some will do it anyway and just avoid the big/big and small/small combinations, but it just takes one lapse in attention to destroy the derailleur in that case.
__________________
It's like riding a bicycle
urbanknight is offline
