Pedal Adapters

Old 10-02-21, 06:18 PM
  #1
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Pedal Adapters

Do people here recommend pedal adapters? I want to use Lambda MKS pedals but they are 9/16" and my Schwinn Le Tour requires 1/2" pedals. When I talked to the bike shop guy, I told him how disappointed I was when he said I couldn't use the Lambda pedals on the Schwinn. So I"m not sure why he didn't just recommend pedal adapters. Are pedal adapters not a good idea for some reason? I found these on Amazon - https://www.amazon.com/Alta-Bicycle-...ct_top?ie=UTF8 - and it looks like they would work.

This would totally solve my problem and allow me to use the pedals I want, but I wonder if there is some reason pedal adapters would not be advisable? And how do you know if you need a 21mm or a 27mm adapter (like in the Amazon listing)?

Last edited by ciclista_pazza; 10-02-21 at 06:26 PM.
ciclista_pazza is offline
Old 10-02-21, 06:33 PM
  #2
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,039

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 812 Post(s)
Liked 316 Times in 221 Posts
Originally Posted by ciclista_pazza View Post
Do people here recommend pedal adapters? I want to use Lambda MKS pedals but they are 9/16" and my Schwinn Le Tour requires 1/2" pedals. When I talked to the bike shop guy, I told him how disappointed I was when he said I couldn't use the Lambda pedals on the Schwinn. So I"m not sure why he didn't just recommend pedal adapters. Are pedal adapters not a good idea for some reason? I found these on Amazon - https://www.amazon.com/Alta-Bicycle-...ct_top?ie=UTF8 - and it looks like they would work.

This would totally solve my problem and allow me to use the pedals I want, but I wonder if there is some reason pedal adapters would not be advisable?
They are also called pedal extenders or "knee savers". I use them on all my bikes because of my wonky knees, not just because of thread mismatch. They come in 9/16 X 9/16 as well. They work fine for me.
If you just need them for pedal adapters get the shorter ones.

Last edited by FBOATSB; 10-02-21 at 06:37 PM.
FBOATSB is offline
Likes For FBOATSB:
Old 10-02-21, 06:39 PM
  #3
frogman
Senior Member

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 850

Bikes: Wife says I have too many :-)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 228 Times in 146 Posts
They look like a good solution to me. I would go with the shorter 21mm adapters. The adapters extend the distance from the cranks to the pedal, no sense in making this distance
any more than necessary.
frogman is offline
Likes For frogman:
Old 10-02-21, 06:40 PM
  #4
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 16,137

Bikes: Bacchetta Giro A20, RANS V-Rex, RANS Screamer

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Liked 307 Times in 198 Posts
Surprised that a 1980 LeTour would have a crank requiring 1/2" pedals. Must have been replaced a time or two since new.
__________________
Bacchetta Giro A20, RANS V-Rex, RANS Screamer
JanMM is offline
Likes For JanMM:
Old 10-02-21, 06:41 PM
  #5
jaxgtr
Senior Member

jaxgtr's Avatar

Join Date: Jul 2006
Location: Jacksonville, FL
Posts: 5,792

Bikes: Trek Domane SLR 7, Trek Emonda ALR 6, Trek FX 5 Sport

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 410 Post(s)
Liked 819 Times in 498 Posts
A lot people don't like them because they create a larger q factor. When I started riding, I was much heavier and they helped me have a much smoother pedal stroke, but as I lost weight, I found I did not need them. But like FBOATSB mentions, they are fantastic for peeps with bad knees. I also believe some of the bent bikes use them as well.
__________________
Brian | 2021 Trek Domane SLR 7 | 2016 Trek Emonda ALR 6 | 2022 Trek FX Sport 5 (On Order)
Originally Posted by AEO View Post
you should learn to embrace change, and mock it's failings every step of the way.







jaxgtr is offline
Likes For jaxgtr:
Old 10-02-21, 06:48 PM
  #6
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,039

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 812 Post(s)
Liked 316 Times in 221 Posts
Originally Posted by JanMM View Post
Surprised that a 1980 LeTour would have a crank requiring 1/2" pedals. Must have been replaced a time or two since new.
I was somewhat puzzled by this as well. I'd like to see a pic of that.
FBOATSB is offline
Likes For FBOATSB:
Old 10-02-21, 08:19 PM
  #7
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by FBOATSB View Post
I was somewhat puzzled by this as well. I'd like to see a pic of that.
Below is a picture of the crank. I'm not sure if you can see enough here to tell. By the way, the serial # is SA996596. Is there any way to look this up? I saw one forum thread said the last number is the last digit of the year so now I"m curious if this is really not a 1980 model.
ciclista_pazza is offline
Old 10-02-21, 08:20 PM
  #8
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by frogman View Post
They look like a good solution to me. I would go with the shorter 21mm adapters. The adapters extend the distance from the cranks to the pedal, no sense in making this distance
any more than necessary.
Thanks! This is good to know!
ciclista_pazza is offline
Old 10-02-21, 08:29 PM
  #9
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by FBOATSB View Post
I was somewhat puzzled by this as well. I'd like to see a pic of that.
I figured out that with my serial # being SA996596, that this looks like it was made in 1979 rather than 1980, at least per what I found here https://www.schwinnbikeforum.com/SLDB/serial.htm

Last edited by ciclista_pazza; 10-02-21 at 08:38 PM.
ciclista_pazza is offline
Old 10-02-21, 09:08 PM
  #10
CrimsonEclipse
Senior Member

Join Date: Dec 2004
Posts: 338
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 51 Times in 31 Posts
Originally Posted by ciclista_pazza View Post
Below is a picture of the crank. I'm not sure if you can see enough here to tell. By the way, the serial # is SA996596. Is there any way to look this up? I saw one forum thread said the last number is the last digit of the year so now I"m curious if this is really not a 1980 model.
So adapters are fine, but why not replace the crank arms?

Or drill out the holes and tap in new threads?
CrimsonEclipse is offline
Likes For CrimsonEclipse:
Old 10-02-21, 09:11 PM
  #11
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by CrimsonEclipse View Post
So adapters are fine, but why not replace the crank arms?

Or drill out the holes and tap in new threads?
I don't know much about this. Are those the wrong cranks for the 1979 model? Is it better to have new crank arms than to just use adapters? And is something like this - https://www.amazon.com/CRANKARM-CRAN.../dp/B079YB8RQW - what you're referring to?
ciclista_pazza is offline
Old 10-02-21, 09:17 PM
  #12
ofajen
Cheerfully low end

ofajen's Avatar

Join Date: Jun 2020
Posts: 1,397
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 677 Times in 444 Posts
Personally, I prefer a narrow Q-factor, so I would replace the cranks if there are no good pedals with 1/2” threads. But a wider Q-factor is better for some, so YMMV!

Otto
ofajen is offline
Old 10-03-21, 12:40 AM
  #13
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 755

Bikes: BigBox bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 418 Post(s)
Liked 341 Times in 264 Posts
I thought only Ashtabula (1 piece) had 1/2” pedals?
SkinGriz is offline
Old 10-03-21, 05:02 AM
  #14
CrimsonEclipse
Senior Member

Join Date: Dec 2004
Posts: 338
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 51 Times in 31 Posts
Originally Posted by ciclista_pazza View Post
I don't know much about this. Are those the wrong cranks for the 1979 model? Is it better to have new crank arms than to just use adapters? And is something like this - https://www.amazon.com/CRANKARM-CRAN.../dp/B079YB8RQW - what you're referring to?
Kind of.

Depending on bike model, the threads of the crank and pedals are opposite on each side.
So facing the bike, you will need to turn the pedal shaft (to loosen) clockwise on the right side and counter clock wise on the left side.
So you would need two different taps.

There are rare exceptions to this rule so definitely check.

so:
https://www.amazon.com/20-Right-Left...75N48H1S&psc=1
CrimsonEclipse is offline
Likes For CrimsonEclipse:
Old 10-03-21, 05:13 AM
  #15
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 27,209

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 4498 Post(s)
Liked 2,101 Times in 1,438 Posts

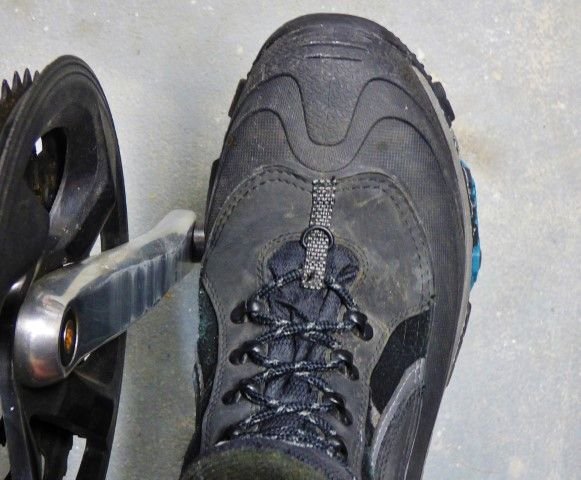

over the years & w/ several pedals, I've experimented w/ pedal extenders to accommodate my big winter boots. keeps them from hanging off the outside edge of the pedals



but I take them off for the summer. I've used them w. summer shoes & they're OK, but it's a little weird because I sometimes find myself looking for the best foot placement

I just don't need them w/ regular shoes

I think you will be happier w/o them
sounds like a better fix is changing the crank arm. btw I rode lots of old bikes & the pedals also fit my more modern bikes. so sounds like a crank arm swap is a possibility?
cpl more pics from a seasonal pedal swap (w/ some Rock Bros. MTB pedals)



always helpful to have a narrow pedal wrench

for winter, I would rather use wider pedals left>right but when cos. advertise wide pedals they boast about front>rear width, which in my mind isn't width, it's length

Last edited by rumrunn6; 10-03-21 at 01:58 PM.
rumrunn6 is online now
Likes For rumrunn6:
Old 10-03-21, 05:13 AM
  #16
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,039

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 812 Post(s)
Liked 316 Times in 221 Posts
Originally Posted by ciclista_pazza View Post
Below is a picture of the crank. I'm not sure if you can see enough here to tell. By the way, the serial # is SA996596. Is there any way to look this up? I saw one forum thread said the last number is the last digit of the year so now I"m curious if this is really not a 1980 model.
That's a Sugino Super Maxy just like on my '81 LeTour. There is also an Asian serial number decoder here: Asian Serial Number Guide in the C&V forum.
FBOATSB is offline
Likes For FBOATSB:
Old 10-03-21, 05:57 AM
  #17
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,831

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2055 Post(s)
Liked 1,998 Times in 1,243 Posts
Again, remove the existing pedals and check the threading. A 3 pc crank is normally 9/16" threaded.
​​​​​​https://velobase.com/ViewComponent.a...0-517af51c2817
dedhed is offline
Likes For dedhed:
Old 10-03-21, 06:19 AM
  #18
Chuck M
Butted Hi-Tensile

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 901

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Liked 718 Times in 371 Posts
Originally Posted by ciclista_pazza View Post
When I talked to the bike shop guy, I told him how disappointed I was when he said I couldn't use the Lambda pedals on the Schwinn.
Did the bike shop guy actually look at your bike or did he assume that because it was an old Schwinn it had a one piece crank with 1/2 threads? Because IMHO the replies here suggesting you remove the existing pedals and check the threads are better than what the shop guy gave you.
__________________
"It is the unknown around the corner that turns my wheels." -- Heinz Stücke

Chuck M is online now
Old 10-03-21, 07:50 AM
  #19
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,418

Bikes: Several, mostly not name brands.

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 2919 Post(s)
Liked 1,864 Times in 1,130 Posts
Originally Posted by ciclista_pazza View Post
Below is a picture of the crank. I'm not sure if you can see enough here to tell. By the way, the serial # is SA996596. Is there any way to look this up? I saw one forum thread said the last number is the last digit of the year so now I"m curious if this is really not a 1980 model.
That appears to be an aluminum crank arm. I'm not aware of any aluminum cranks that use 1/2" pedal thread, but it's a big world out there. If it is actually 1/2" pedal thread, check for a bushing in the pedal eye. If there is no bushing, the arm could be reamed and tapped for a standard thread pedal.

The problem with pedal adapters, besides the increased "Q-factor" mentioned by others above, is that it creates a longer lever arm for the pedal, which can increase risk of crank failure at the pedal eye. This is particularly a problem if your pedaling style tends toward "mashing" rather than spinning. That said, my wife has been using pedal extenders on her bike for years, to increase the Q-factor, and has yet to see a problem. But she's not a "masher."
JohnDThompson is offline
Likes For JohnDThompson:
Old 10-03-21, 07:55 AM
  #20
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,852
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1323 Post(s)
Liked 848 Times in 525 Posts
Originally Posted by JohnDThompson View Post
That appears to be an aluminum crank arm. I'm not aware of any aluminum cranks that use 1/2" pedal thread, but it's a big world out there. If it is actually 1/2" pedal thread, check for a bushing in the pedal eye. If there is no bushing, the arm could be reamed and tapped for a standard thread pedal.

The problem with pedal adapters, besides the increased "Q-factor" mentioned by others above, is that it creates a longer lever arm for the pedal, which can increase risk of crank failure at the pedal eye. This is particularly a problem if your pedaling style tends toward "mashing" rather than spinning. That said, my wife has been using pedal extenders on her bike for years, to increase the Q-factor, and has yet to see a problem. But she's not a "masher."
I agree with this. The chances that this crank needs a 1/2" pedal are vanishingly small
alcjphil is offline
Likes For alcjphil:
Old 10-03-21, 09:49 AM
  #21
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Thanks for the replies! I'll see what I can find out. If this will allow 1/2" pedals as it is, that would be great. If not, I'll probably get replacement crank arms as suggested rather than the adapters.
ciclista_pazza is offline
Old 10-03-21, 09:59 AM
  #22
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by FBOATSB View Post
That's a Sugino Super Maxy just like on my '81 LeTour. There is also an Asian serial number decoder here: Asian Serial Number Guide in the C&V forum.
I was really hoping my bike was made in Japan, but I read this page yesterday - https://www.schwinnbikeforum.com/SLDB/serial.htm - where it implies that if it was built in 1979 and made in Japan, there would only be one letter at the beginning of the serial #, being in either the 1st or 2nd position, but since mine has two letters at the beginning (SA996596), I'm guessing it was made in Chicago. Mine is on the left rear axle hanger.

That site says:
"The 1979 Chicago built Le Tour and Super Le Tour models had their Serial Numbers on the left rear axle hanger and began with an 'S', followed by the standard letter/number scheme. Bicycles from Japan will have Serial Numbers located on the left, rear axle hanger, on the bottom bracket shell or on the lower section of the headlug. The number will have a production month letter in either the first or second position and a production year number in the other (first or second) position. Examples: J677123 = September, 1976.

The Chicago Serial Numbers consist of a letter representing the month of manufacture, a number indicating the last digit of the year (1960 - 1964; 0=1960, 1=1961, etc.) or a letter indicating the year(1965 - 1979; A=1965, B=1966, etc.), followed by a sequential series of five or six digits (e.g. A367584 or CB77584)."
ciclista_pazza is offline
Old 10-03-21, 10:02 AM
  #23
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,852
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1323 Post(s)
Liked 848 Times in 525 Posts
Originally Posted by ciclista_pazza View Post
Thanks for the replies! I'll see what I can find out. If this will allow 1/2" pedals as it is, that would be great. If not, I'll probably get replacement crank arms as suggested rather than the adapters.
I thought that your OP indicated that you wanted to use 9/16" pedals
alcjphil is offline
Old 10-03-21, 10:03 AM
  #24
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Actually, after reading my reply above I became confused again on the serial # issue. I wish I could just type it into a database and find out more details. It's such a puzzle to figure out.
ciclista_pazza is offline
Old 10-03-21, 10:05 AM
  #25
ciclista_pazza
Senior Member
Thread Starter

ciclista_pazza's Avatar

Join Date: Nov 2017
Location: Tucson, AZ
Posts: 146

Bikes: 2018 Fuji Absolute, 1979 Schwinn Le Tour Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by alcjphil View Post
I thought that your OP indicated that you wanted to use 9/16" pedals
Yes, but I was told by the bike shop that my bike could only handle 1/2" pedals. That was the reason for my confusion. Based on replies here, I'll take it in to see if they can check to be sure what it really is.
ciclista_pazza is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
