Slipping seat clamp | carbon fiber

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Slipping seat clamp | carbon fiber

Old 11-25-21, 10:17 AM
  #1
Hypno Toad
meh
Thread Starter

Hypno Toad's Avatar

Join Date: Jul 2014
Location: Hopkins, MN
Posts: 4,556

Bikes: 21 CoMotion Java; 21 Bianchi Infinito; 17 Breezer Radar Pro; 15 Surly Pugsley; 13 Felt Z85; 11 Globe Daily; 09 Kona Dew Drop; 96 Mondonico

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 862 Times in 451 Posts
Slipping seat clamp | carbon fiber

I got my first carbon fiber bike this year, 2021 Bianchi Infinito.

The seat clamp slipped, cutting my ride short on Tuesday, I finished my ride at the LBS to have them help me with a torque wrench. Today the seat clamp slipped again .... WTF?!?

This week has been my first rides in cold temps with this bike, 13°F today. But that shouldn't effect the seat clamp, should it?!?

I'll contact the shop where I bought the bike this weekend. Just interested to know if this is a common issue, or just a personal issue.
Hypno Toad is offline
Old 11-25-21, 10:24 AM
  #2
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,244

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 911 Post(s)
Liked 273 Times in 193 Posts
You say the seat clamp slipped? Or was it the seat post that slipped? Not sure if the Bianchi Infinito uses a round post or some special cross section (such as a D shape) post. Definitely contact the shop again to let them know it is still slipping. This is one of those types of things that you just have to keep looking at until you resolve the problem. They can put carbon fiber grip past on the post and also torque the seat collar up to the torque spec. Different seat collars have different torque specs. Some factory seatposts are not of the highest quality and may be slightly undersized.

Could you post a photo of the seat collar and the seatpost?
masi61 is offline
Old 11-25-21, 10:32 AM
  #3
Airfehr
Senior Member

Join Date: Jun 2021
Posts: 84
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 79 Times in 31 Posts
Get some carbon grip from your local bike shop.
https://www.rei.com/product/801108/f...-gel-175-fl-oz
Airfehr is offline
Likes For Airfehr:
Old 11-25-21, 11:29 AM
  #4
Hypno Toad
meh
Thread Starter

Hypno Toad's Avatar

Join Date: Jul 2014
Location: Hopkins, MN
Posts: 4,556

Bikes: 21 CoMotion Java; 21 Bianchi Infinito; 17 Breezer Radar Pro; 15 Surly Pugsley; 13 Felt Z85; 11 Globe Daily; 09 Kona Dew Drop; 96 Mondonico

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 862 Times in 451 Posts
Originally Posted by masi61 View Post
You say the seat clamp slipped? Or was it the seat post that slipped? Not sure if the Bianchi Infinito uses a round post or some special cross section (such as a D shape) post. Definitely contact the shop again to let them know it is still slipping. This is one of those types of things that you just have to keep looking at until you resolve the problem. They can put carbon fiber grip past on the post and also torque the seat collar up to the torque spec. Different seat collars have different torque specs. Some factory seatposts are not of the highest quality and may be slightly undersized.

Could you post a photo of the seat collar and the seatpost?

It's an integrated seat clamp that isn't holding, letting the seat post slip down. It's a D-shaped seat post.

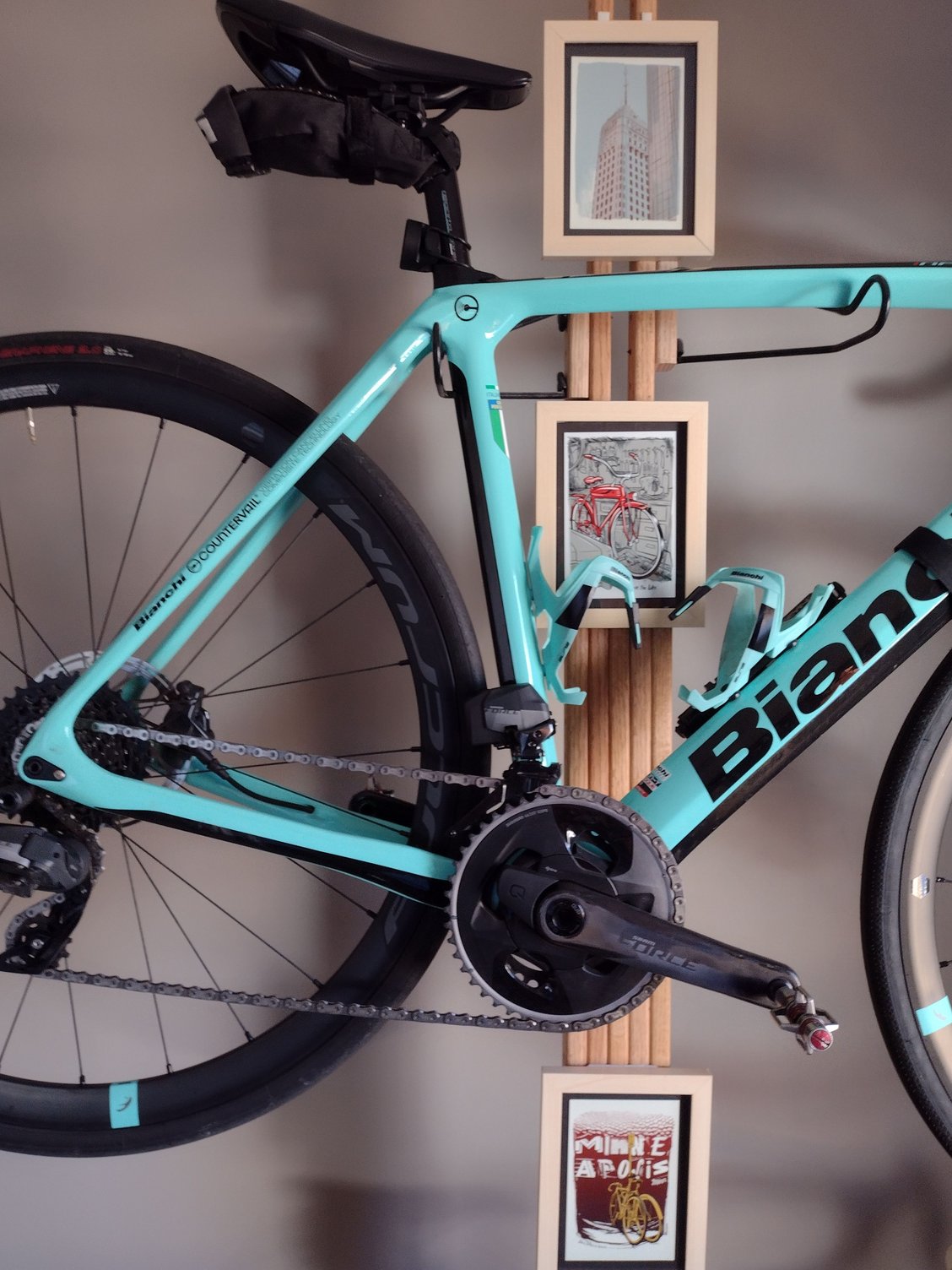

Here's the integrated seat clamp



And the strider set up
Hypno Toad is offline
Old 11-25-21, 11:30 AM
  #5
Hypno Toad
meh
Thread Starter

Hypno Toad's Avatar

Join Date: Jul 2014
Location: Hopkins, MN
Posts: 4,556

Bikes: 21 CoMotion Java; 21 Bianchi Infinito; 17 Breezer Radar Pro; 15 Surly Pugsley; 13 Felt Z85; 11 Globe Daily; 09 Kona Dew Drop; 96 Mondonico

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 862 Times in 451 Posts
Originally Posted by Airfehr View Post
Get some carbon grip from your local bike shop.
https://www.rei.com/product/801108/f...-gel-175-fl-oz
Thanks! As a n00b with carbon fiber, I didn't know this was a thing.
Hypno Toad is offline
Old 11-25-21, 11:39 AM
  #6
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,244

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 911 Post(s)
Liked 273 Times in 193 Posts
Hypno Toad - the shop will know the correct procedure to tighten up the internal wedge (or they should). You hear about slippage issues with internally wedged seat posts quite a bit.
masi61 is offline
Likes For masi61:
Old 11-25-21, 11:40 AM
  #7
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,846

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4219 Post(s)
Liked 1,194 Times in 786 Posts
Originally Posted by Hypno Toad View Post
Thanks! As a n00b with carbon fiber, I didn't know this was a thing.
recommendation:
apply the paste to inside of the frame, just about 1" depth should be fine. wrap some tape around the seatube, where the bottom edge of the tape is at where you want to install the seatpost down in in the seatpost. This will prevent going too far and having to back out. Assembly paste can scratch or mar surfaces, so this would prevent any marring in a visible area on your exposed seatpost.
Sy Reene is offline
Likes For Sy Reene:
Old 11-25-21, 09:46 PM
  #8
rsbob
Sniveling Weasel

Join Date: Sep 2020
Location: Seattle-ish
Posts: 2,442
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 872 Post(s)
Liked 1,610 Times in 924 Posts
I have that bike and have not experienced that issue, but I do torque the bolt to spec listed next to the bolt. I am guessing when your bike was assembled, they used some type of anti-seize instead of the paste recommended above so make sure all the old gunk is completely cleaned out first.
__________________
Immoderate Cyclist “No regerts”



rsbob is offline
Likes For rsbob:
Old 11-26-21, 07:34 AM
  #9
freeranger
Senior Member

freeranger's Avatar

Join Date: Jun 2005
Location: Kentucky
Posts: 2,239

Bikes: 06 Lemond Reno, 98 GT Timberline mtn.bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 310 Post(s)
Liked 485 Times in 303 Posts
Same ? popped up not too long ago: Sinking seat post Giant Revolt Advanced 2, D-fuse. - Bike Forums
freeranger is offline
Old 11-26-21, 07:47 AM
  #10
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,846

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4219 Post(s)
Liked 1,194 Times in 786 Posts
Originally Posted by freeranger View Post
It's part of progress BMC Owners . . . any solution for the dreaded seatpost slippage?
Sy Reene is offline
Old 11-26-21, 09:02 AM
  #11
Hypno Toad
meh
Thread Starter

Hypno Toad's Avatar

Join Date: Jul 2014
Location: Hopkins, MN
Posts: 4,556

Bikes: 21 CoMotion Java; 21 Bianchi Infinito; 17 Breezer Radar Pro; 15 Surly Pugsley; 13 Felt Z85; 11 Globe Daily; 09 Kona Dew Drop; 96 Mondonico

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 862 Times in 451 Posts
Ok ... So I didn't work very hard to search for other threads on the subject ... ... meh
Hypno Toad is offline
Old 11-26-21, 09:31 AM
  #12
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,846

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4219 Post(s)
Liked 1,194 Times in 786 Posts
Originally Posted by Hypno Toad View Post
Ok ... So I didn't work very hard to search for other threads on the subject ... ... meh
That's not so much the point. I think the point is that if you read both of the linked threads (and there could be more for all I know), sometimes the solutions don't work (such as the CF paste). Before messing with paste yourself, you may want the shop to suggest and do this in case it were (god forbid) to become a warranty issue.

EDIT: for sake of convenience, this post in one of the threads seems to outline what worked in this particular instance. May be worth considering if applicable to your circumstance BMC Owners . . . any solution for the dreaded seatpost slippage?

Last edited by Sy Reene; 11-26-21 at 09:34 AM.
Sy Reene is offline
Likes For Sy Reene:
