Fluid 2 Trainer Cylinder Wear

Old 12-08-21, 11:50 AM
  #1
Chris O
Senior Member
Thread Starter

Join Date: Feb 2017
Posts: 54

Bikes: Wilier Triestina GTR SL '16; Basso Gap '93

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 19 Times in 8 Posts
Fluid 2 Trainer Cylinder Wear

Hi All,

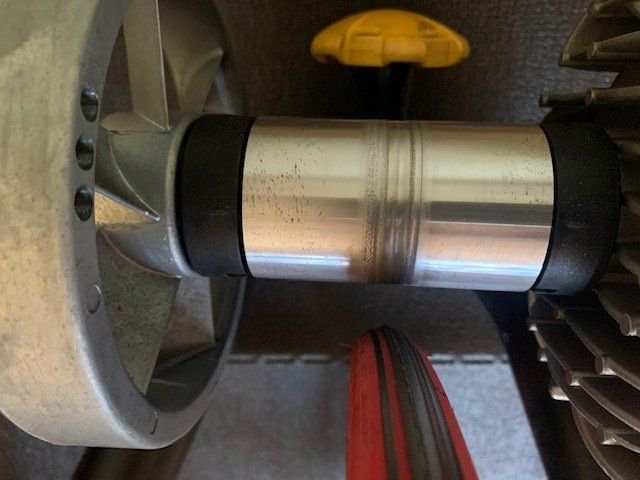

I have a Saris Fluid 2 indoor trainer with which I use a 700X23c Vittoria trainer tire inflated to 120 PSI. I noticed the steel cylinder that contacts the tire is developing severe wear patterns and pitting. Saris says this is due to slippage of the tire. They sent me a new yellow clutch knob that I installed and tighten it until it clicks (about 3 full turns after contact) indicating proper resistance. Also, I cleaned the tire and cylinder with isopropyl alcohol. I was hoping these two things would stop the tire slippage and wear of the cylinder. But I noticed the tire starting to get black again indicating more wear of the steel.

Funny thing is, this didn't happen at all last winter. The only difference this year is a brand new Vittoria trainer tire of the exact same make. Saris says some wear is normal, but my unit is not particularly high mileage, and as I mentioned, it only just started this year. Anybody have an idea of the problem or solution?

Chris O is offline
Old 12-08-21, 01:25 PM
  #2
hayden52
Junior Member

Join Date: Oct 2011
Location: Dallas, TX
Posts: 94
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 27 Times in 14 Posts
Maybe you could try sanding the cylinder with some 320 grit sandpaper to get rid of the shinny smooth surface and give it a little bite.
hayden52 is offline
Old 12-08-21, 01:38 PM
  #3
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,225

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5007 Post(s)
Liked 3,514 Times in 2,439 Posts
Have you rode that tire outdoors any and maybe it has some grit embedded in the tire?

Do you check your tire pressure often? The click on the yellow knob is only good for that one day. Tires can loose pressure in a very short time depending on how thick the tube is and some other things.

My son has a cycleops trainer that appears to be pretty much the same model as what you have pictured. He also uses a Zaffiro Pro tire. The person he got the trainer from probably put over 10000 miles on it and the cylinder has very little wear.
Iride01 is offline
Old 12-08-21, 05:13 PM
  #4
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,948
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1487 Post(s)
Liked 973 Times in 508 Posts
Assuming all things are constant from this year to last year except the tire, then it seems obvious to investigate the tire as it is the only thing that has changed.
TiHabanero is offline
Old 12-08-21, 06:08 PM
  #5
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 40,823

Bikes: Specialized Tarmac, Canyon Exceed, Specialized Transition, Ellsworth Roots, Ridley Excalibur

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 2937 Post(s)
Liked 3,037 Times in 1,389 Posts
I had a 20 year old Nashbar fluid trainer that had a noticeable trough worn into the cylinder. Never affected the performance of the trainer. It was loud and rusty and the knob broke off so I had to use a vise-grip to tighten up the skewer, but I never worried about the cylinder wear since it was several inches thick.
caloso is offline
Old 12-10-21, 09:11 AM
  #6
Chris O
Senior Member
Thread Starter

Join Date: Feb 2017
Posts: 54

Bikes: Wilier Triestina GTR SL '16; Basso Gap '93

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 19 Times in 8 Posts
Originally Posted by Iride01 View Post
Have you rode that tire outdoors any and maybe it has some grit embedded in the tire?

Do you check your tire pressure often? The click on the yellow knob is only good for that one day. Tires can loose pressure in a very short time depending on how thick the tube is and some other things.

My son has a cycleops trainer that appears to be pretty much the same model as what you have pictured. He also uses a Zaffiro Pro tire. The person he got the trainer from probably put over 10000 miles on it and the cylinder has very little wear.
It's a new trainer tire. Never used outside. I pump up the tire each time and set the tension knob each time. Seem to be doing everything right. Maybe Vittoria changed their compound?
Chris O is offline
Old 12-10-21, 09:25 AM
  #7
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,225

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5007 Post(s)
Liked 3,514 Times in 2,439 Posts
Could it possibly be that overspray from something getting on the tire and/or drum? Maybe some Pledge furniture polish that is used on a nearby table or the ArmorAll that you might use to keep the tires and saddle looking nice?

Are there actual groves being worn in the drum or just mostly the black crud from aluminum oxide and something it's mixing with?
Iride01 is offline
Old 12-10-21, 10:57 AM
  #8
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 11,763

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T-Lab X3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2216 Post(s)
Liked 1,292 Times in 791 Posts
Interesting case, and I’ll speculate that a reduction in tire pressure might reduce wear by transferring some of the contact force away from the tire-to-drum contact patch and into tire casing flex.


That said, I dunno what pressure the OP was using last year when this was not an issue, nor whether or not any possible change in tire contruction (incl. tread compound) could be at play here, either. However, if rubber resists wear by being springy, and the microstructure of the rubber is harder than the drum and thusly causing wear, it seems to follow that reducing the compression pressure on the contact patch by allowing the casing to deform more might help to reduce wear.

I’m neither a materials scientist nor an engineer, so shoot holes in that theory as needed…
chaadster is offline
