What if you could 3D print a thumb shifter for any derailleur?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

What if you could 3D print a thumb shifter for any derailleur?

Old 12-19-21, 10:10 PM
  #1
tyrion
Senior Member
Thread Starter

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,710

Bikes: Breezer Radar

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1989 Post(s)
Liked 1,494 Times in 719 Posts
What if you could 3D print a thumb shifter for any derailleur?

I mean rear derailleur. Indexed. Make it out of polyester or alloy, just make it nice and clickey and precise. A system where you just plug in the numbers of the RD and you can get a good thumb shifter printed locally.

Does this make sense?
tyrion is offline
Likes For tyrion:
Old 12-19-21, 10:25 PM
  #2
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
I’m waiting for programmable electronic shifting.

Buy one RD and swap out pulleys for different chain widths, and run whatever you want.

Can’t be that tough.

John
70sSanO is offline
Old 12-20-21, 06:16 AM
  #3
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,711

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 484 Times in 299 Posts
Trying to figure out what problem that you guys are trying to solve?
Thereís a lot of cross-compatibility between 7-8, 8-9, 9-10, that unless youíre after an 11-so thumbie, or a one-off system like Tiagra 4700,they probably already exist.
Iíd venture to say that Paulís or VO probably has you covered.


Same goes for an Omni-speed electronic RD. What kind of benefits would it offer over a mechanical RD on a 7/8/9-speed system, especially for the cost?
I imagine the list of people who are looking for 7-9sp Di2 is pretty short.
Ironfish653 is offline
Likes For Ironfish653:
Old 12-20-21, 06:33 AM
  #4
Germany_chris
Iím a little Surly

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,786

Bikes: Two Cross Checks and a Karate Monkey

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 741 Times in 375 Posts
Originally Posted by 70sSanO View Post
Iím waiting for programmable electronic shifting.

Buy one RD and swap out pulleys for different chain widths, and run whatever you want.

Canít be that tough.

John

https://archercomponents.com

there ya go
Germany_chris is offline
Likes For Germany_chris:
Old 12-20-21, 08:48 AM
  #5
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
Originally Posted by Germany_chris View Post
1x only.

John
70sSanO is offline
Old 12-20-21, 08:53 AM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
Didn’t mean to hijack.

I’m not well versed on 3D printing to understand the advantages. Especially cost and design; unless someone uses a company’s intellectual property to replicate the item.

John
70sSanO is offline
Old 12-20-21, 09:18 AM
  #7
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,259
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Liked 647 Times in 379 Posts
Campagnolo used to sell convertible shifters, back in the early days of indexing. IIRC they sold a replacement plate for the inside of the shifter that had the detents spaced for the desired drivetrain config. Also, they didn't work to well.

A simpler solution would be a single shift index mechanism with a replaceable outer cable spool to change the nominal mm/shift. Another idea is custom cassette spacers to more closely match the whatever shift spacing happens from your shifter and derailleur.
ClydeClydeson is offline
Old 12-20-21, 09:34 AM
  #8
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
I’ve done plenty of re-spacing cassettes and it is primitive at best. It also requires heavier full cogs instead of lighter spidered/carrier cassettes.

John

Edit added: It does allow for customizing a cassette as far as cogs and gapping. I have one 8 speed 14-36 cassette with a 14t junior 1st position cog.

Last edited by 70sSanO; 12-20-21 at 09:37 AM.
70sSanO is offline
Old 12-20-21, 12:46 PM
  #9
tyrion
Senior Member
Thread Starter

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,710

Bikes: Breezer Radar

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1989 Post(s)
Liked 1,494 Times in 719 Posts
Originally Posted by 70sSanO View Post
Didnít mean to hijack.

Iím not well versed on 3D printing to understand the advantages. Especially cost and design; unless someone uses a companyís intellectual property to replicate the item.

John
I don't know much about 3D printing but the flexibility is what interests me. There are 2 components to this: a smooth, "clickey", satisfying mechanical design that can take whatever cable pull numbers the derailleur wants.

You could choose the the mechanical design that works best for you and your hands, and just plug in the numbers dictated by the RD, and click "print me one of those".
tyrion is offline
Likes For tyrion:
Old 12-20-21, 01:33 PM
  #10
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
I’m sure someone with real knowledge can chime in, but I would think functional assemblies that require differing material properties, such as springs, might be tough to 3D print as a complete functional assembly.

I would also think that there would need to be some design parameters (CAD?) that precedes any printing.

John
70sSanO is offline
Old 12-20-21, 01:56 PM
  #11
Germany_chris
Iím a little Surly

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,786

Bikes: Two Cross Checks and a Karate Monkey

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 741 Times in 375 Posts
Originally Posted by 70sSanO View Post
1x only.

John
True and flat bar only..

TBF front derailleurs donít much care about mixing brands. Since that shift system is open source and fairly recent Iíd bet a front shifting system is coming. The larger question is whether theyíll build a drop bar version since ďgravelĒ is all the rage.
Germany_chris is offline
Old 12-20-21, 02:05 PM
  #12
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,743

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1534 Post(s)
Liked 1,490 Times in 940 Posts
Archer has a drop bar shifter system: DBR remote.

John
70sSanO is offline
Likes For 70sSanO:
Old 12-20-21, 03:27 PM
  #13
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,018

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 587 Times in 402 Posts
A 3D printed Thumb Shifter would be nice. Even if just a friction shifter. I see the only problem being the 3D print material. For little home printers using PLA the material would be to soft and temperature sensitive to used over a prolonged time. Professional printers that use Resins and other materials are expensive. As far as the design... Hey... It's just an engineering problem... Fun Fun Fun...
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Likes For zandoval:
Old 12-20-21, 04:36 PM
  #14
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,711

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 484 Times in 299 Posts
Originally Posted by tyrion View Post
I don't know much about 3D printing but the flexibility is what interests me. There are 2 components to this: a smooth, "clickey", satisfying mechanical design that can take whatever cable pull numbers the derailleur wants.

You could choose the the mechanical design that works best for you and your hands, and just plug in the numbers dictated by the RD, and click "print me one of those".
Originally Posted by 70sSanO View Post
Iím sure someone with real knowledge can chime in, but I would think functional assemblies that require differing material properties, such as springs, might be tough to 3D print as a complete functional assembly.

I would also think that there would need to be some design parameters (CAD?) that precedes any printing.

John
You'd really have a separate 'model' stored in the software for each variety of speeds and cable pull; like "Shimano-11" or "SRAM-10". You might be able to have it incorporated into the design software, but it wouldn't be native to the .stl files that actually run the printers.

Most 'hobby-grade' printers really can't get the resolution to print a complete, functional assembly in one shot; at least not with the kind of tolerances you'd need to make an indexed shifter work. You'd need to do each component separately, then assemble. Then you have an all-plastic shifter. Just like on the cheapest of BSO's
Microshift makes thumbies for Shimano 7sp-9sp, and 10-sp/11-sp (MTB) that are pretty nice, and reasonably priced. If you really want to go full-zoot, you can put 10- or 11-sp Dura-Ace barcons on Paul's Thumbie mounts. Doesn't get much nicer than that.
Ironfish653 is offline
Likes For Ironfish653:
Old 12-20-21, 04:37 PM
  #15
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 5,054
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1885 Post(s)
Liked 391 Times in 281 Posts
Probably easier to force standardization around a single pull and spacing parameter across all manufacturers. Either one standard for Road and another for Mountain, or just one for anything that shifts chain on a bicycle.
Leisesturm is offline
Old 12-20-21, 09:12 PM
  #16
tyrion
Senior Member
Thread Starter

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,710

Bikes: Breezer Radar

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1989 Post(s)
Liked 1,494 Times in 719 Posts
I see this as a function with 2 params: first param is the structure of the shifter (bar end, thumbie, etc.) and second param is an array of numbers that specify the cable pull.
tyrion is offline
Old 12-20-21, 11:14 PM
  #17
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,018

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 587 Times in 402 Posts
There are more than a few parts I have considered working into 3D printing but there is a big limitation with the durability of the materials you print with. Now if we could get an affordable table top CNC... Wow...

Please Santa... I'll Be A Good Boy...
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Likes For zandoval:
Old 12-24-21, 05:13 AM
  #18
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 2,062

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Liked 770 Times in 406 Posts
Thumbshifters are very basic; indexed ones have a piece of metal, called an index plate. with holes in it that a ball bearing drops into, which give it the "clicks." BITD some used to make custom index plates. Microshift makes these available so the user can swap the number of clicks. Microshift has two types of shifters: big barrelled for dynasys and small barrelled for 1:1. Both have index plates for different indexing. Additionally, the shifter mounts can be swapped for bar end or flat bar. Some more info.

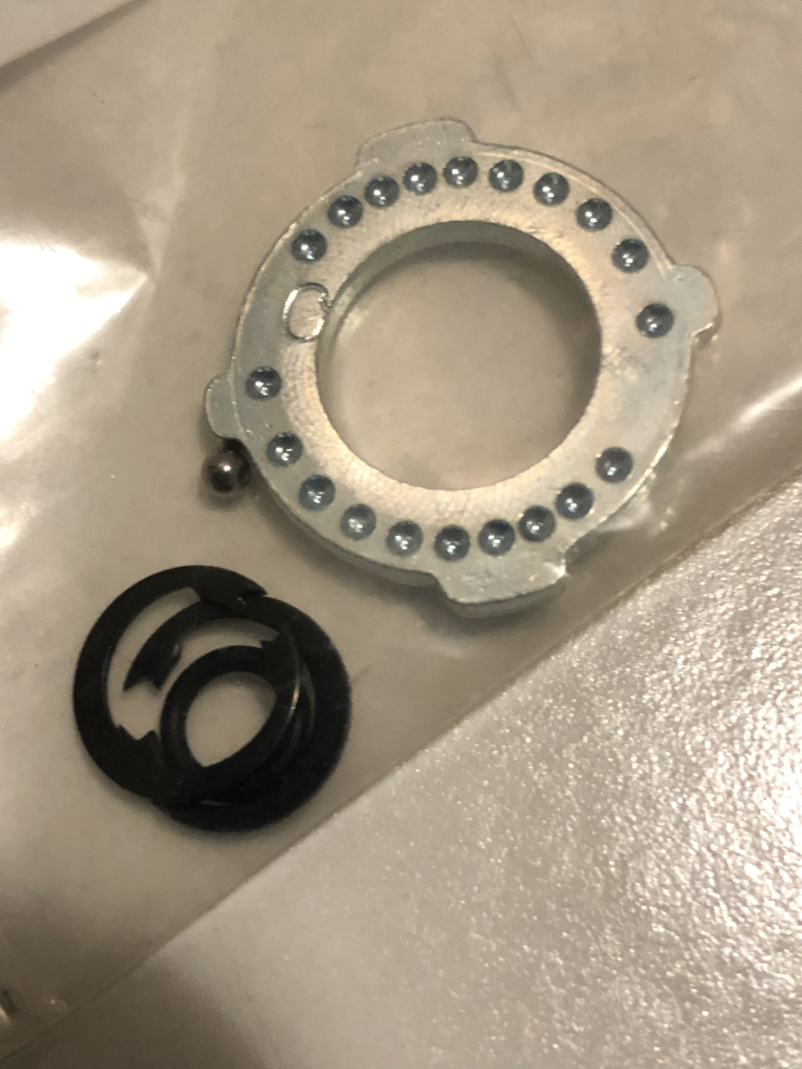

index plate for 9sp 1:1 shifter to 10sp road
DorkDisk is offline
Likes For DorkDisk:
Old 12-29-21, 11:35 PM
  #19
UniChris
Senior Member

UniChris's Avatar

Join Date: May 2017
Location: Northampton, MA
Posts: 1,768

Bikes: 36" Unicycle, winter knock-around hybrid bike

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 354 Times in 257 Posts
Originally Posted by tyrion View Post
I don't know much about 3D printing
a smooth, "clickey", satisfying mechanical design
That's what 3D printing is bad at, and conventional manufacturing technologies are good at.

You could choose the the mechanical design that works best for you and your hands
Probably better a selection from stock conventionally manufactured parts, at most 3D printing some hand-specific aspects. But the cheap 3D printing technologies (for parts that aren't tiny) are pretty weak compared to injection molding, too.

Also turning "preferences" into CAD data isn't necessarily simple. Or reliable in capturing what they users actually want/need. You'd almost do better letting people mold some kind of epoxy putty or something.

and just plug in the numbers dictated by the RD, and click "print me one of those".
Probably better done with a range of insertable stock mechanical parts.

Or at the outside, having a special purpose machine that cuts just one aspect of them on demand. Kind of like cutting keys from a data input moving the cutting wheel in and out, rather than a probe moving along the original.
UniChris is offline
Old 12-29-21, 11:42 PM
  #20
UniChris
Senior Member

UniChris's Avatar

Join Date: May 2017
Location: Northampton, MA
Posts: 1,768

Bikes: 36" Unicycle, winter knock-around hybrid bike

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 354 Times in 257 Posts
Originally Posted by 70sSanO View Post
I’m waiting for programmable electronic shifting.
That actually makes sense.

If it actuator were built like a better version of an RC hobby servo, it would be a simple matter of software to effectively give each sprocket its own dedicated barrel adjuster type control.

You could even support a chainline angle trim that would alter the position for a sprocket very slightly depending on which ring you were in.

And could tune an initial "overshift" on change that would then back off to a "run" position.
UniChris is offline
Old 12-30-21, 08:57 AM
  #21
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,980
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 776 Post(s)
Liked 506 Times in 296 Posts
Originally Posted by 70sSanO View Post
Archer has a drop bar shifter system: DBR remote.

John

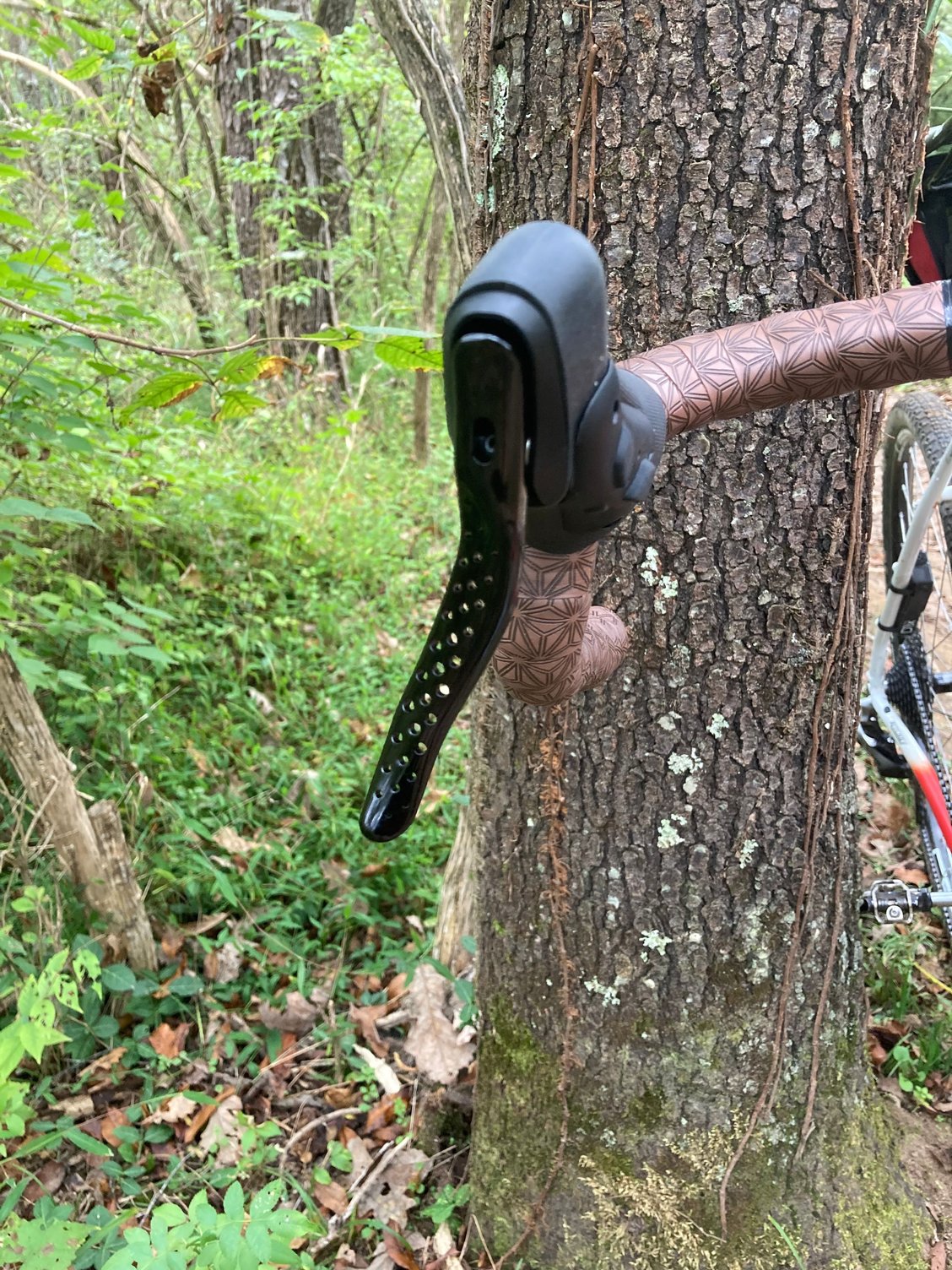

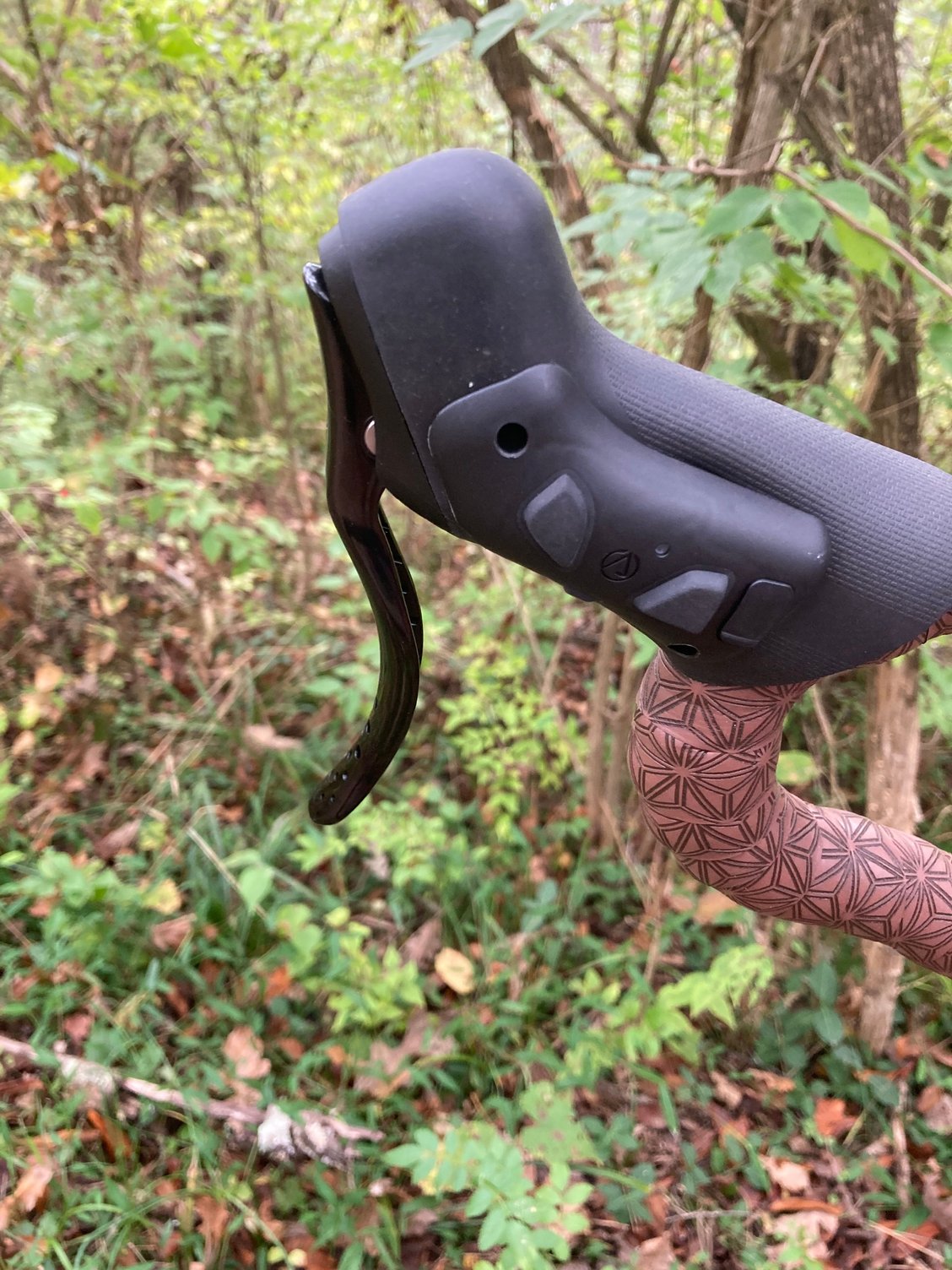

I know because I have it.

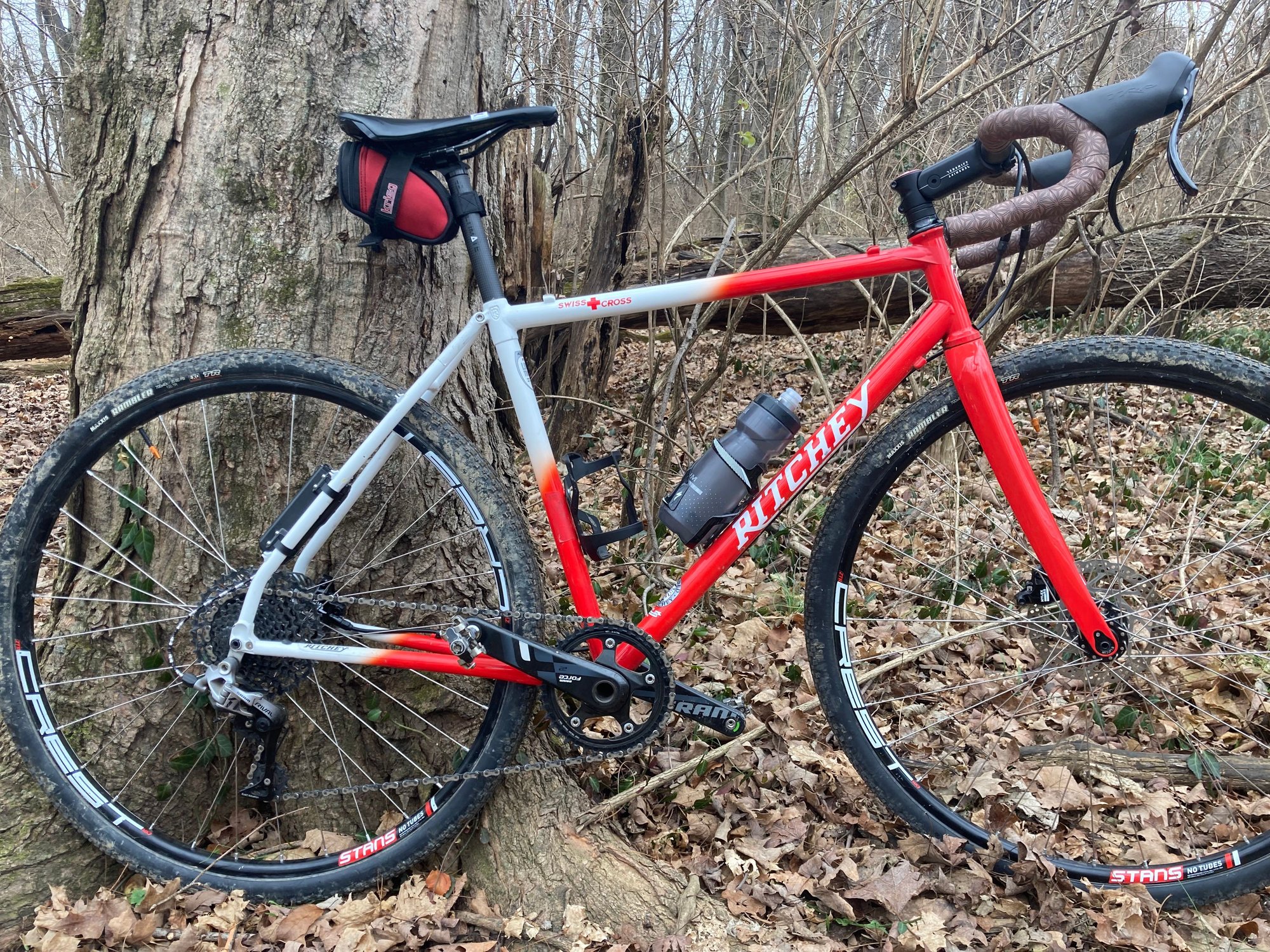

I run mine 1x because Iíd go 1x on my bike regardless of shifting mechanics.

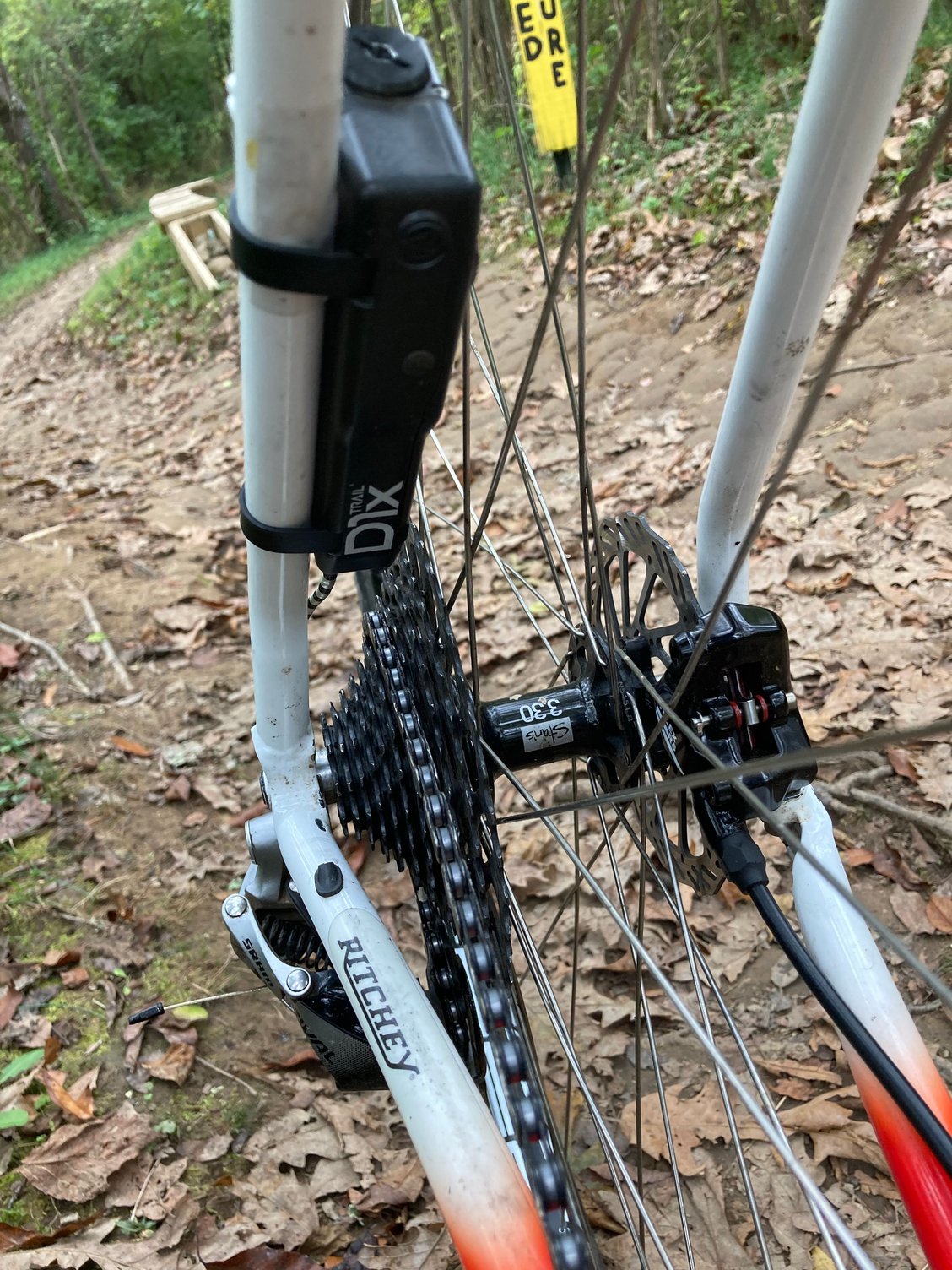

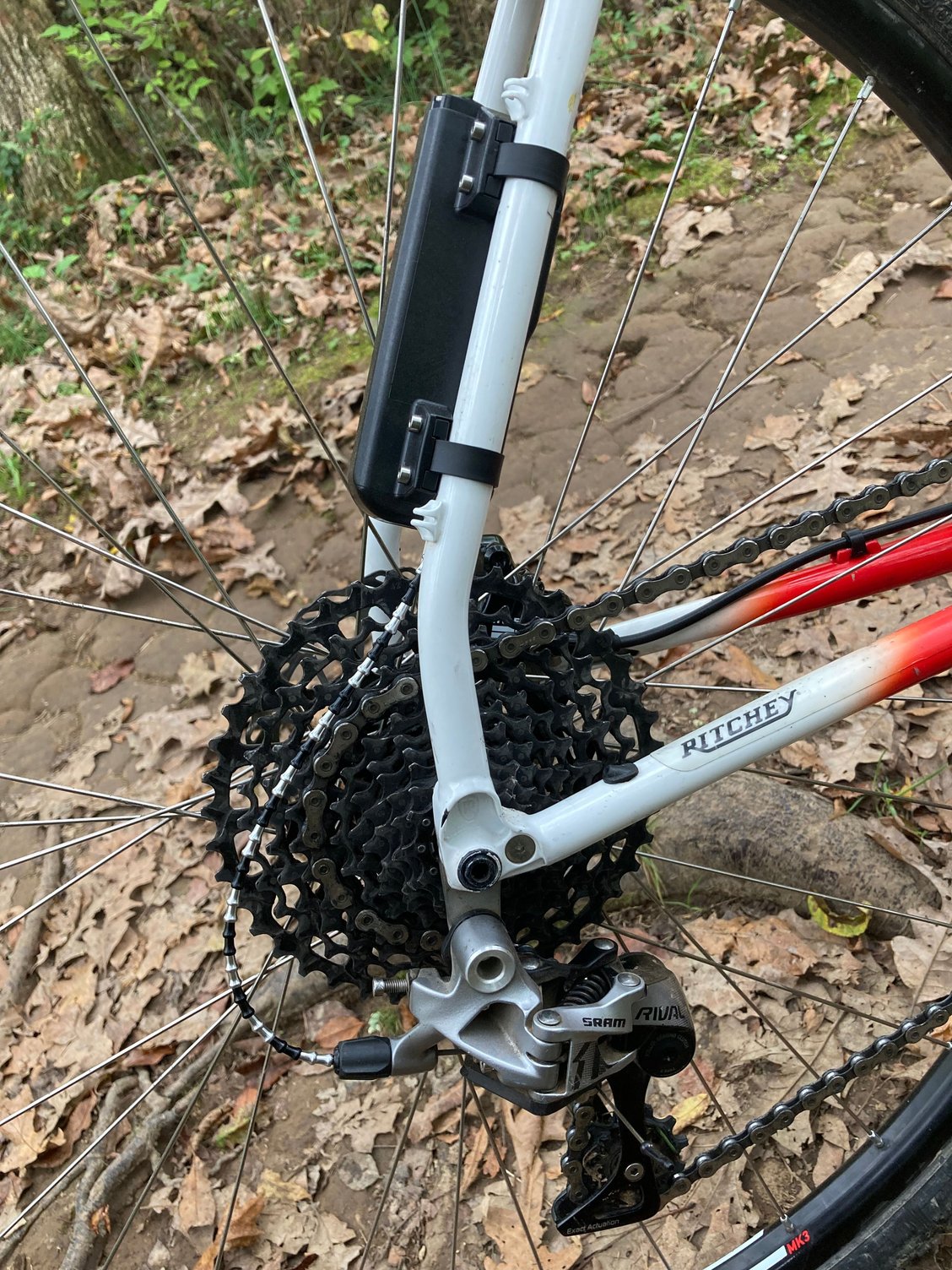

I think Archer is compatible with putting two motors/batteries on the bike, one up front and one in the rear. I read about it somewhere on their website when I was purchasing my system. Iím not sure if they integrate all speeds into one shifter or if they make a left side.





rosefarts is offline
Likes For rosefarts:
Old 12-30-21, 09:08 AM
  #22
Germany_chris
Iím a little Surly

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,786

Bikes: Two Cross Checks and a Karate Monkey

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 741 Times in 375 Posts
Originally Posted by rosefarts View Post
I know because I have it.

I run mine 1x because Iíd go 1x on my bike regardless of shifting mechanics.

I think Archer is compatible with putting two motors/batteries on the bike, one up front and one in the rear. I read about it somewhere on their website when I was purchasing my system. Iím not sure if they integrate all speeds into one shifter or if they make a left side.





Those really do look integrated
Germany_chris is offline
Old 12-30-21, 09:11 AM
  #23
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,980
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 776 Post(s)
Liked 506 Times in 296 Posts
To the original question. How strong or durable is 3d printed poly or whatever they use?

Seems like a program could easily be made, a single shifter shape and a database of what pull for each brand. Not unlike what you can do with microshift but without a complete product.

Seems like theyíd break and wear too easily though.

Edited to add,
I run 1x11 thumbies on my MTB and like it so much I might get thumbies x12 on the next bike. Microshift holds up to wrecks. Will a plastic one?

Last edited by rosefarts; 12-30-21 at 09:53 AM.
rosefarts is offline
Old 03-31-22, 08:50 AM
  #24
Cyclist0239879842
Banned.

Join Date: Nov 2021
Location: DFW
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 5 Times in 3 Posts
They exist!

I had hoped I'd find others that were interested in 3d printed shifters on this forum. Part of the reason why I joined, actually. I just open-sourced a 3d printed bar-end shifter design a couple of weeks ago that is, indeed, equation driven. Not quite what OP was asking for (thumbies) but pretty darn close! I'd consider making thumb shifters sometime in the future.

My design goals were: 3d printed, durable, indexed, easy to install/uninstall, and equation-driven. As others have mentioned, PLA (the plastic material in most household FDM printers) is not an ideal material for long term durability. But it seems to be holding up really well. I have a little over 500 miles on them installed on a touring bike. I'll add another 2k by the end of the summer. I really had to rethink how detenting is traditionally done in these shifters.

The files were built in Solidworks and the detent-spacing / cable-pull variables are stored in an external text file. I've printed one for my 9 speed shimano RD and one for my 10 speed campagnolo RD. I'm still low on the post count but happy to link to the files for anyone that's interested. I also did a write up on my site that covers the design process. For those wondering, it took about 60 hours of CAD time, 50+ prototype prints, and many hours of riding to dial in the fits...particularly the detents. I'm proud of them.
Cyclist0239879842 is offline
Likes For Cyclist0239879842:
Old 03-31-22, 07:16 PM
  #25
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 304

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 168 Times in 117 Posts
Originally Posted by 70sSanO View Post
Didnít mean to hijack.
Iím not well versed on 3D printing to understand the advantages. Especially cost and design; unless someone uses a companyís intellectual property to replicate the item.
John
if one doesn't make big profit out of them, what would be the problem ?
holytrousers is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
