What did I buy?

Old 08-29-22, 03:09 PM
  #1
Lbxpdx
Full Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 325
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 237 Times in 87 Posts
What did I buy?

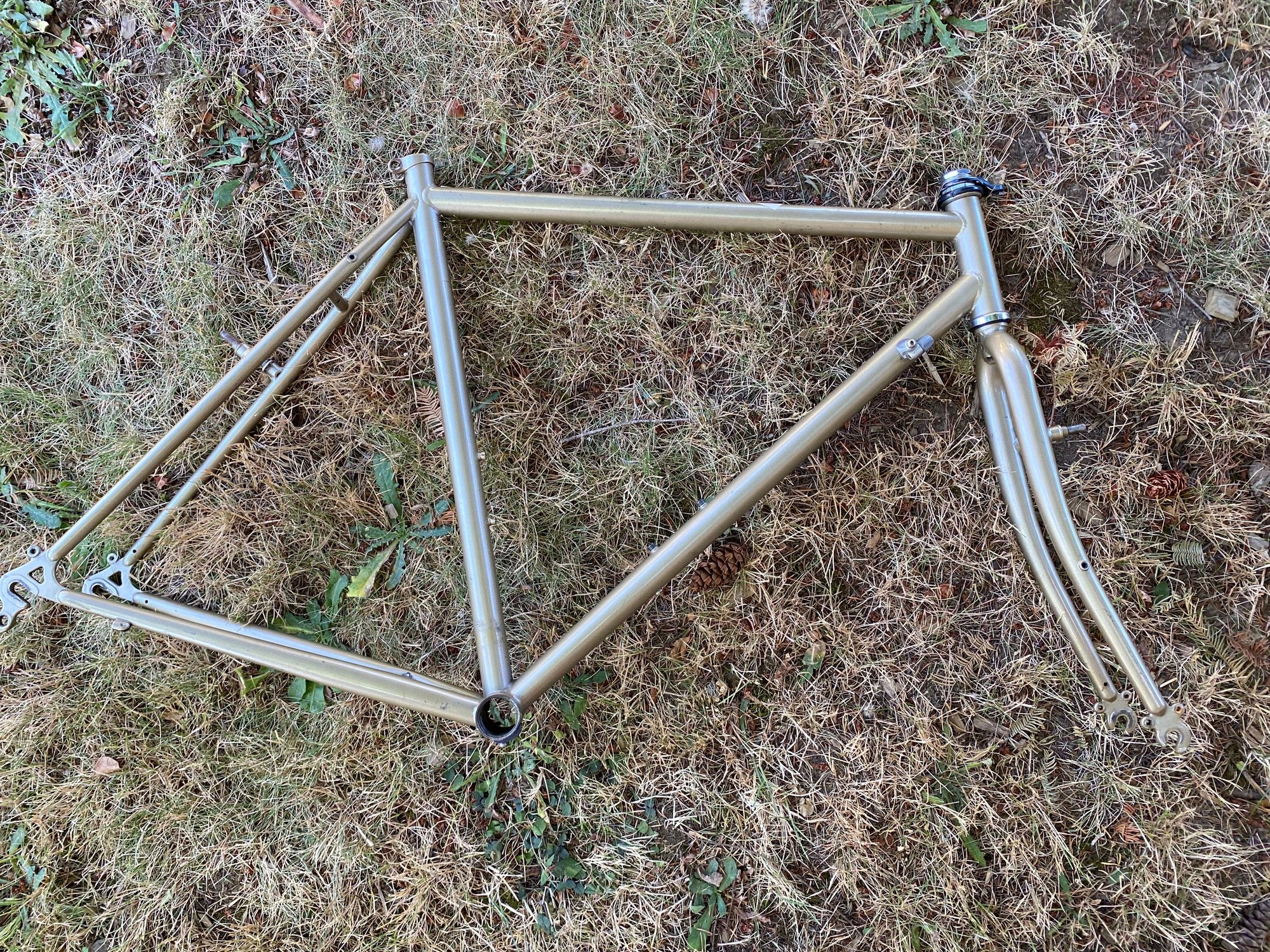

picked this up super cheap, but I have no idea what it is

what I do know:
tig welded
steel
triple cage mounts
down tube shifter bosses
mid fork mount
700c

fork says “spinner 1998 cm/cm”

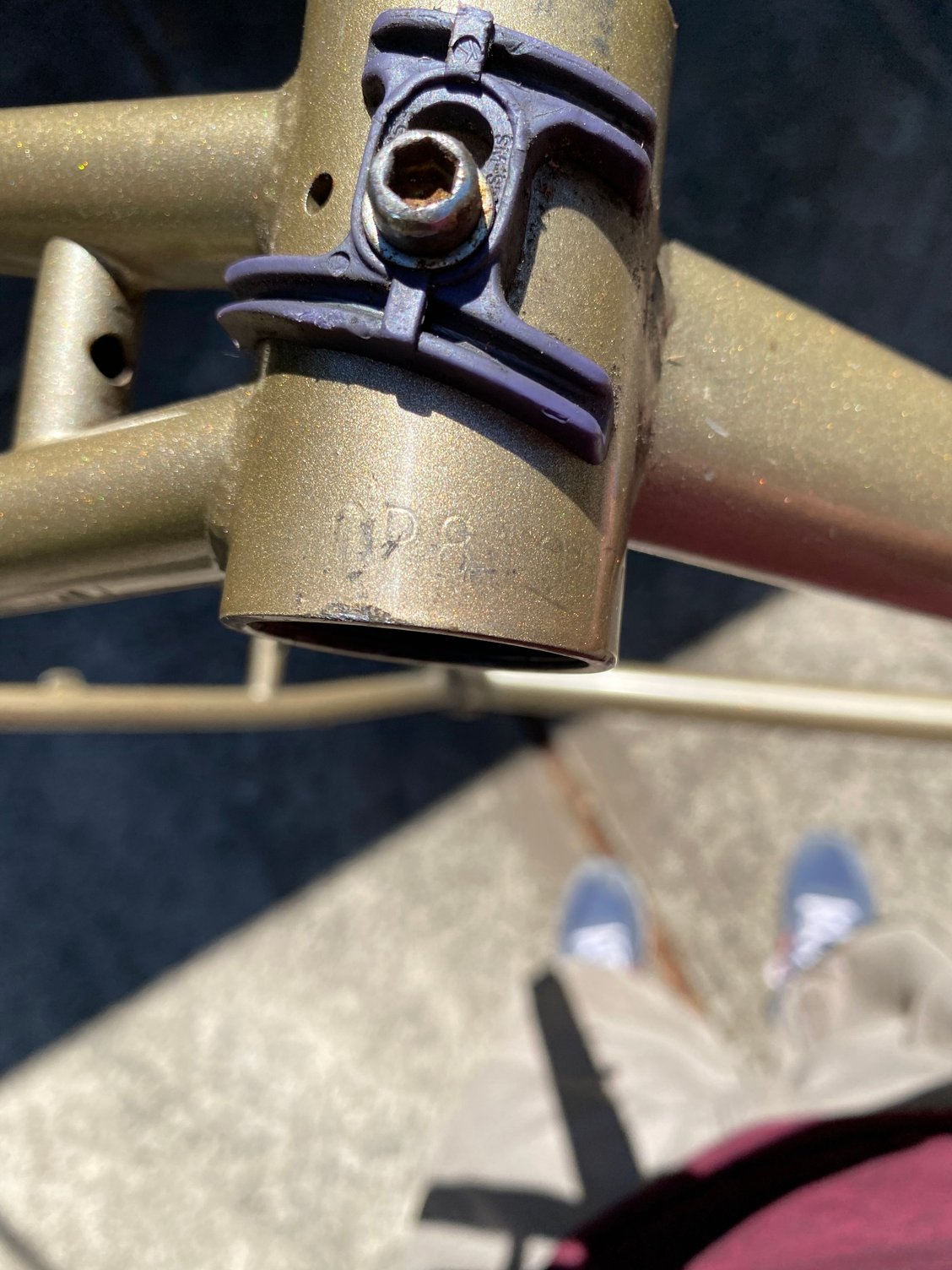

I can’t make out the serial number. I figured it was some sort of touring bike from the triple cage mount, cantis and the mid fork mount







Last edited by Lbxpdx; 08-29-22 at 10:56 PM.
Lbxpdx is offline
Old 08-29-22, 03:34 PM
  #2
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,206

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5001 Post(s)
Liked 3,508 Times in 2,435 Posts
You bought a project. But are there any goals you wish to achieve that this frame will address or will it cause you to fall short of your goals?
Iride01 is offline
Old 08-29-22, 03:38 PM
  #3
necx
Newbie

Join Date: Aug 2022
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 2 Times in 2 Posts
Okay
necx is offline
Old 08-29-22, 04:21 PM
  #4
Lbxpdx
Full Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 325
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 237 Times in 87 Posts
Originally Posted by Iride01 View Post
You bought a project. But are there any goals you wish to achieve that this frame will address or will it cause you to fall short of your goals?
have you been talking to my girlfriend?
Lbxpdx is offline
Old 08-29-22, 04:26 PM
  #5
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,206

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5001 Post(s)
Liked 3,508 Times in 2,435 Posts
Originally Posted by Lbxpdx View Post
have you been talking to my girlfriend?
No but I have a wife that is very detail oriented and I have to pass muster on things I want to buy and bring home. <grin>
Iride01 is offline
Old 08-29-22, 04:33 PM
  #6
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 36,006
Mentioned: 204 Post(s)
Tagged: 1 Thread(s)
Quoted: 16560 Post(s)
Liked 11,476 Times in 5,544 Posts
Judging from the rear triangle, looks to be a touring frame of some sort. That’s all I got.

Just noticed the rack bosses and canti brake mounts.

Last edited by indyfabz; 08-29-22 at 04:50 PM.
indyfabz is offline
Old 08-29-22, 04:38 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,626

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,645 Times in 1,612 Posts
The cable tube at the seat post clamp is a design tell tale, but can't remember whose.
dedhed is offline
Old 08-29-22, 04:50 PM
  #8
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,626

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,645 Times in 1,612 Posts
Why are some cable guides underneath BB plastic and some integrated?

​​​​​​Asian Serial Number Guide
dedhed is offline
Old 08-29-22, 05:36 PM
  #9
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,986

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6816 Post(s)
Liked 2,120 Times in 1,149 Posts
If you could run over the serial number with a crayon or marker we could possibly read it .... whatever, it is a touring frame, and probably 130-mm dropouts---first thing I'd check. Otherwise, throw parts at it until nothing else sticks, and ride it.

I have a 50-40-30 crankset, and I could through a 9-speed on the back and .... have one more bike I didn't ride enough, but if i got the frame cheap enough I probably would ..... have to hide it from the wife for a while though.
Maelochs is offline
Likes For Maelochs:
Old 08-29-22, 05:42 PM
  #10
jfouellette
Full Member

Join Date: Aug 2021
Location: Montreal
Posts: 242

Bikes: Lombardo Power 2000 Minivelo (2014?), Raleigh mtb (1984), Schwinn Loop for winter, 1999 Bike friday NWT

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 122 Times in 81 Posts
Originally Posted by Iride01 View Post
You bought a project. But are there any goals you wish to achieve that this frame will address or will it cause you to fall short of your goals?
To be a project or not to be a project. That is the question…
jfouellette is offline
Old 08-29-22, 08:11 PM
  #11
csport
Senior Member

Join Date: Sep 2015
Location: /dev/null
Posts: 600

Bikes: Soma Double Cross Disc (2017), red Hardrock FS (circa 1996)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 107 Times in 72 Posts
Originally Posted by dedhed View Post
The cable tube at the seat post clamp is a design tell tale, but can't remember whose.
1996 HardRock has it. My current project.
csport is offline
Old 08-30-22, 07:11 AM
  #12
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 15,102

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 9425 Post(s)
Liked 5,787 Times in 3,348 Posts
This has stumped me and I really want to know what it is.

- Spinner is just a fork manufacturer from the 80s/90s based in Taiwan. They made forks for all sorts of brands and had offerings that were great, mid-range, and entry.
- The horizontal dropouts on this frame throw me for a loop since in '98 it just wasnt super common to have them on bikes, even touring bikes.
- The frame was made for V-brakes and not cantis, based on the rear brake cable routing. V-brakes dont work great with drop bar cable pull so there were either Travel Agents installed to account for the cable pull or this was a flat bar bike with long pull brake levers.
- The cable routing around the seat tube is something Ive seen on Trek 9XX MTBs and Specialized MTBs, but this frame is 700c so those arent options. Also, the seatpost collar isnt something I recognize from Trek's 7XX hybrid line.
- The seatpost collar is something Ive seen on older Specialized and Jamis bikes, but not the rear brake routing thru the tube.
- The ears for the seatpost binder bolt look low end and not something I would expect from a major brand in the late 90s.
mstateglfr is offline
Old 08-30-22, 07:30 AM
  #13
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,986

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6816 Post(s)
Liked 2,120 Times in 1,149 Posts
I took the serial number photo over to photoshop, but there is no easy way to pick out the number and am not about to spend much time. The glare in the middle obscures those digits, and the rest are still hard to see. However, you could fill in the numbers with a sharpie or something .... at least as much of them as there is .... and serial numbers are often pretty helpful for identifying items with serial numbers. Unless there is some other mark on the frame ... i don't see what else you have got.
Maelochs is offline
Old 08-30-22, 07:34 AM
  #14
Koyote
Senior Member

Join Date: Sep 2017
Posts: 6,539
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 5952 Post(s)
Liked 9,020 Times in 3,901 Posts
Those welds look like they were done by a blind six-year old, but I'm sure it'll hold up just fine.
Koyote is online now
Likes For Koyote:
Old 08-30-22, 08:36 AM
  #15
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,626

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,645 Times in 1,612 Posts
Originally Posted by mstateglfr View Post
This has stumped me and I really want to know what it is.

- Spinner is just a fork manufacturer from the 80s/90s based in Taiwan. They made forks for all sorts of brands and had offerings that were great, mid-range, and entry.
- The horizontal dropouts on this frame throw me for a loop since in '98 it just wasnt super common to have them on bikes, even touring bikes.
- The frame was made for V-brakes and not cantis, based on the rear brake cable routing. V-brakes dont work great with drop bar cable pull so there were either Travel Agents installed to account for the cable pull or this was a flat bar bike with long pull brake levers.
- The cable routing around the seat tube is something Ive seen on Trek 9XX MTBs and Specialized MTBs, but this frame is 700c so those arent options. Also, the seatpost collar isnt something I recognize from Trek's 7XX hybrid line.
- The seatpost collar is something Ive seen on older Specialized and Jamis bikes, but not the rear brake routing thru the tube.
- The ears for the seatpost binder bolt look low end and not something I would expect from a major brand in the late 90s.

My thoughts
That cable routing works just fine with cantis. see post mentioning hardrock
Were v brakes a common thing yet then ('98 if the fork is original)? Had it trickled down from XT XTR level?
When did threadless headsets become more common as this is a threaded one?
Given the adjusters on the down tube I'd gues it may have been set up with bar end shifters and cantis
dedhed is offline
Likes For dedhed:
Old 08-30-22, 08:48 AM
  #16
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,206

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5001 Post(s)
Liked 3,508 Times in 2,435 Posts
What do the frame and fork together weigh? Add 15.5 pounds to it and that is probably what it'll weigh after building it out. Unless you want to go to Ultegra or better and a expensive wheelset.

It's not a bad thing to let old frames go to the scrap yard. Just don't let them go to the landfill.
Iride01 is offline
Old 08-30-22, 08:56 AM
  #17
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 15,102

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 9425 Post(s)
Liked 5,787 Times in 3,348 Posts
Originally Posted by dedhed View Post
My thoughts
That cable routing works just fine with cantis. see post mentioning hardrock
Were v brakes a common thing yet then ('98 if the fork is original)? Had it trickled down from XT XTR level?
When did threadless headsets become more common as this is a threaded one?
Given the adjusters on the down tube I'd gues it may have been set up with bar end shifters and cantis
I dont see a cable stop on the seatstays which is why i figured its made for Vbrakes. A cable stop could be added to the seatpost bolt, but its much more common for a cable stop to be attached to the stays.

Threadless headsets hit the market in '92/93, but that was mostly MTB and higher end. It was common for quality road bikes to still have quills in the late 90s.

This frame, based on the welds, doesnt seem high end.

Vbrakes were '95ish. My '98, even Trek 820 rigid mtbs had Vbrakes.
mstateglfr is offline
Likes For mstateglfr:
Old 08-30-22, 09:34 AM
  #18
Lbxpdx
Full Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 325
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 237 Times in 87 Posts
Originally Posted by Iride01 View Post

It's not a bad thing to let old frames go to the scrap yard. Just don't let them go to the landfill.
my buddy swing by for a BBQ with his kids and I may build it up for the boy. He is 14, 5’10” and will need something to get to high school.
Lbxpdx is offline
Likes For Lbxpdx:
Old 08-30-22, 10:09 AM
  #19
GamblerGORD53
Senior Member

Join Date: Apr 2010
Location: Elevation 666m Edmonton Canada
Posts: 2,107

Bikes: 2013 Custom SA5w / Rohloff Tourster

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1024 Post(s)
Liked 206 Times in 163 Posts
It looks like a frame for a 5'8" guy. For a growing tall kid, forget it. It is a good frame strong tho IMO.
GamblerGORD53 is offline
Likes For GamblerGORD53:
Old 08-30-22, 10:16 AM
  #20
skidder
Bipsycorider

Join Date: Sep 2012
Location: Orange County, California
Posts: 1,583

Bikes: Why yes, I do have a few! Thank you for asking!

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 878 Times in 601 Posts
That looks really, really close to an old Nashbar frame, probably the touring frame. The only things different are the welds don't look as 'substantial' as mine and the Nashbar touring frame (and touring fork) was painted a dark green color. Similarities are the integrated deurallier hanger, bottom bracket cable guide, canti and rack mount points. Great for a light touring bicycle or a 'workout roadie' bicycle for grinding out miles. Mine is long gone, I snapped the rear hanger off the frame in a solo fall.
skidder is offline
Old 08-30-22, 11:44 AM
  #21
Murray Missile
Senior Member

Murray Missile's Avatar

Join Date: Jun 2013
Location: 700 Ft. above sea level.
Posts: 3,002

Bikes: Not as many as there were awhile ago.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 948 Times in 471 Posts
If you already had a pile of spare parts it would make a decent urban commuter or campus bike for someone but I sure wouldn't spend any money on it other than the normal consumables and not much at that. With what I currently have in leftovers and takeoffs I could have that on the road in an afternoon and not spend a dime. Not bragging, just the sad truth LOL.
__________________
".....distasteful and easily triggered."
Murray Missile is offline
Likes For Murray Missile:
Old 08-30-22, 11:42 PM
  #22
csport
Senior Member

Join Date: Sep 2015
Location: /dev/null
Posts: 600

Bikes: Soma Double Cross Disc (2017), red Hardrock FS (circa 1996)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 107 Times in 72 Posts
Originally Posted by dedhed View Post
My thoughts
That cable routing works just fine with cantis. see post mentioning hardrock
Originally Posted by mstateglfr View Post
I dont see a cable stop on the seatstays which is why i figured its made for Vbrakes. A cable stop could be added to the seatpost bolt, but its much more common for a cable stop to be attached to the stays.
My vote is for cantis as well. This thread has a photo of a HardRock similar to mine. The frame has a cable stop near the front of the top tube, the housing runs from the brake lever to this cable stop. After that the bare cable runs along the top tube, through the cable guide (with optional liner) in the rear and to the yoke of the canti brakes.
It is possible to run the V-brakes with the full length housing, but then the cable guide is not needed.
I installed an Origin 8 clamp-on cable stop on the rear of the top tube to make conversion to V-brakes possible.

I think I have seen threads mentioning similar cable guides on 90's Konas, but Kona is probably not low end.
csport is offline
Likes For csport:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
