Most important fit measurements?

Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Most important fit measurements?

Old 02-01-23, 05:38 PM
  #26
Lombard
Sock Puppet

Lombard's Avatar

Join Date: Oct 2022
Location: Planet Earth
Posts: 1,687

Bikes: 2014 Cannondale Synapse Carbon, 2017 Jamis Renegade Exploit and too many others to mention.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1026 Post(s)
Liked 851 Times in 565 Posts
Originally Posted by squirtdad
That is not correct, road bike sizing is by seat tube length a 56 cm bike has a seat tube of 56 cm
Originally Posted by smd4
Wow. Just…wow.
If you scroll down to geometry specs, you will see Cannondale and Trek don't agree with you:

https://www.cannondale.com/en-us/bik...napse-carbon-4

https://www.trekbikes.com/us/en_US/b...ode=white_grey

Look carefully how long the seat tube is on both of these size 56 bikes. Hint: It's not 56cm.

Last edited by Lombard; 02-01-23 at 05:43 PM.
Lombard is offline
Old 02-01-23, 06:02 PM
  #27
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 4,456

Bikes: 1989 Cinelli Supercorsa

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 2667 Post(s)
Liked 2,202 Times in 1,335 Posts
Originally Posted by Lombard
If you scroll down to geometry specs, you will see Cannondale and Trek don't agree with you:

https://www.cannondale.com/en-us/bik...napse-carbon-4

https://www.trekbikes.com/us/en_US/b...ode=white_grey

Look carefully how long the seat tube is on both of these size 56 bikes. Hint: It's not 56cm.
Modern bikes with sloping top tubes would be misleading if they used the actual seat tube measurement. My 58 cm Cinelli (seat tube, c to c) has a 56 cm top tube (c to c). If that was the size of my bike it would be way too small.

If you donít get that a bike is primarily sized using a riderís height and inseam to determine a size based on seat tube length, rather than torso/arm length and top tube, then I really have no words.
smd4 is online now
Old 02-01-23, 06:26 PM
  #28
tomato coupe
Senior Member

Join Date: Jul 2009
Posts: 5,191

Bikes: Colnago, Van Dessel, Factor, Cervelo, Ritchey

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 3431 Post(s)
Liked 6,218 Times in 2,513 Posts
Originally Posted by squirtdad
That is not correct, road bike sizing is by seat tube length a 56 cm bike has a seat tube of 56 cm
I think it's more accurate to say sizing is roughly based on the effective seat tube length, which is measured to where a hypothetical horizontal top tube would intersect the seat tube.
tomato coupe is offline
Likes For tomato coupe:
Old 02-01-23, 06:27 PM
  #29
Lombard
Sock Puppet

Lombard's Avatar

Join Date: Oct 2022
Location: Planet Earth
Posts: 1,687

Bikes: 2014 Cannondale Synapse Carbon, 2017 Jamis Renegade Exploit and too many others to mention.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1026 Post(s)
Liked 851 Times in 565 Posts
Originally Posted by smd4
Modern bikes with sloping top tubes would be misleading if they used the actual seat tube measurement. My 58 cm Cinelli (seat tube, c to c) has a 56 cm top tube (c to c). If that was the size of my bike it would be way too small.

If you donít get that a bike is primarily sized using a riderís height and inseam to determine a size based on seat tube length, rather than torso/arm length and top tube, then I really have no words.
It sounds like Cinelli and I'm sure others size their bikes different than Cannondale or Trek do. Look again and you will see the top tube length is very close to the stated sizes, though that number skews quite a bit on the smallest sizes.
Lombard is offline
Old 02-01-23, 06:30 PM
  #30
Lombard
Sock Puppet

Lombard's Avatar

Join Date: Oct 2022
Location: Planet Earth
Posts: 1,687

Bikes: 2014 Cannondale Synapse Carbon, 2017 Jamis Renegade Exploit and too many others to mention.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1026 Post(s)
Liked 851 Times in 565 Posts
Originally Posted by tomato coupe
I think it's more accurate to say sizing is roughly based on the effective seat tube length, which is measured to where a hypothetical horizontal top tube would intersect the seat tube.
Possibly. Though interestingly, while you see effective top tube length posted, you never see effective seat tube.
Lombard is offline
Old 02-01-23, 06:31 PM
  #31
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 9,539

Bikes: Kirk Custom JK Special, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 2150 Post(s)
Liked 2,418 Times in 1,339 Posts
Originally Posted by Lombard
If you scroll down to geometry specs, you will see Cannondale and Trek don't agree with you:

https://www.cannondale.com/en-us/bik...napse-carbon-4

https://www.trekbikes.com/us/en_US/b...ode=white_grey

Look carefully how long the seat tube is on both of these size 56 bikes. Hint: It's not 56cm.
modern bike bikes use the equivalent sizing.... ie a sloping seat tube bike of 58 will fit like a classic bike of 58 cm
see the size chart for cervelo, it links height to size https://www.cervelo.com/en-US/bikes/caledonia

in fact the size chart for trek that you listed does the same thing , size is equivalent to classic frame size and most direct comparison is height

so to repeat, size is based on seat tube length, either actual lengths in classic designs or effective length in sloping tube designs.....

The effective seat tube length is the distance between the bottom bracket and the point at which a virtual horizontal top tube would intersect the seat tube.
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)



squirtdad is offline
Likes For squirtdad:
Old 02-01-23, 06:32 PM
  #32
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 9,539

Bikes: Kirk Custom JK Special, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 2150 Post(s)
Liked 2,418 Times in 1,339 Posts
Originally Posted by tomato coupe
I think it's more accurate to say sizing is roughly based on the effective seat tube length, which is measured to where a hypothetical horizontal top tube would intersect the seat tube.
agree
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)



squirtdad is offline
Old 02-01-23, 09:41 PM
  #33
rsbob
Grupetto Bob

rsbob's Avatar

Join Date: Sep 2020
Location: Seattle-ish
Posts: 4,986

Bikes: Bikey McBike Face

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2006 Post(s)
Liked 4,058 Times in 2,199 Posts
“Remember darling, don’t be a snook. it’s not how you feel, but how you look marvelous”. SNL
__________________
Road 🚴🏾‍♂️ & Mountain 🚵🏾‍♂️








rsbob is offline
Old 02-02-23, 08:33 AM
  #34
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 7,091

Bikes: Cinelli superstar disc, two Yoeleo R12

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 996 Post(s)
Liked 520 Times in 418 Posts
Once you understand stack and reach, frame size numbers become meaningless. A lot of brands use the length of a short seat tube on a sloping TT frame as the size. It doesn't mean a thing. I do pay attention to the seat tube angle on the smaller sizes. A 75 degree STA with a proprietary 15mm setback post we be a no go for me. I'd want 32mm of setback.
DaveSSS is offline
Likes For DaveSSS:
Old 02-02-23, 08:43 AM
  #35
Lombard
Sock Puppet

Lombard's Avatar

Join Date: Oct 2022
Location: Planet Earth
Posts: 1,687

Bikes: 2014 Cannondale Synapse Carbon, 2017 Jamis Renegade Exploit and too many others to mention.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1026 Post(s)
Liked 851 Times in 565 Posts
Originally Posted by squirtdad
modern bike bikes use the equivalent sizing.... ie a sloping seat tube bike of 58 will fit like a classic bike of 58 cm
see the size chart for cervelo, it links height to size https://www.cervelo.com/en-US/bikes/caledonia
Well, OK. But a person's height also includes their torso length. Arm length is meaningful too.

Originally Posted by squirtdad
in fact the size chart for trek that you listed does the same thing , size is equivalent to classic frame size and most direct comparison is height
Where do you see this on the Trek site?

Originally Posted by squirtdad
so to repeat, size is based on seat tube length, either actual lengths in classic designs or effective length in sloping tube designs.....

The effective seat tube length is the distance between the bottom bracket and the point at which a virtual horizontal top tube would intersect the seat tube.
OK, this makes some sense now. I guess I could verify this by taking a level from the front of the top tube and measuring effective seat tube from BB. What I would like to know is why you never see "effective seat tube" listed in specs?

Originally Posted by DaveSSS
Once you understand stack and reach, frame size numbers become meaningless.
I would agree with this. As we all know too well, a size 56 bike from one brand can be quite different from a size 56 bike from another brand.
Lombard is offline
Old 02-02-23, 10:33 AM
  #36
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 7,091

Bikes: Cinelli superstar disc, two Yoeleo R12

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 996 Post(s)
Liked 520 Times in 418 Posts
Effective seat tube length was common in the early days of sloping top tube frames, before stack and reach. You don't see that much today. Stack and reach makes selecting the right size so much easier.
DaveSSS is offline
Likes For DaveSSS:
Old 02-02-23, 10:36 AM
  #37
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 4,456

Bikes: 1989 Cinelli Supercorsa

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 2667 Post(s)
Liked 2,202 Times in 1,335 Posts
Originally Posted by DaveSSS
Effective seat tube length was common in the early days of sloping top tube frames, before stack and reach. You don't see that much today. Stack and reach makes selecting the right size so much easier.
Man, glad I don't have to deal with any of that nonsense!
smd4 is online now
Old 02-02-23, 11:58 AM
  #38
Jrasero
Full Member

Join Date: Feb 2014
Location: Westchester, NY
Posts: 371

Bikes: Scott Foil RC, Specialized Aethos

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 115 Times in 72 Posts
Originally Posted by spelger
Looking to buy a new ride and am happy with the fit of my current ride so i'd like to keep the fit as similar as possible. in comparing the geometry of my current ride i find that naturally i am one of those in betweeners. i have this unfounded impression that the two most important measurements would be stack and reach. would that be a correct assessment? or are there other considerations i should also add emphasis to like tube angles or tube lengths?

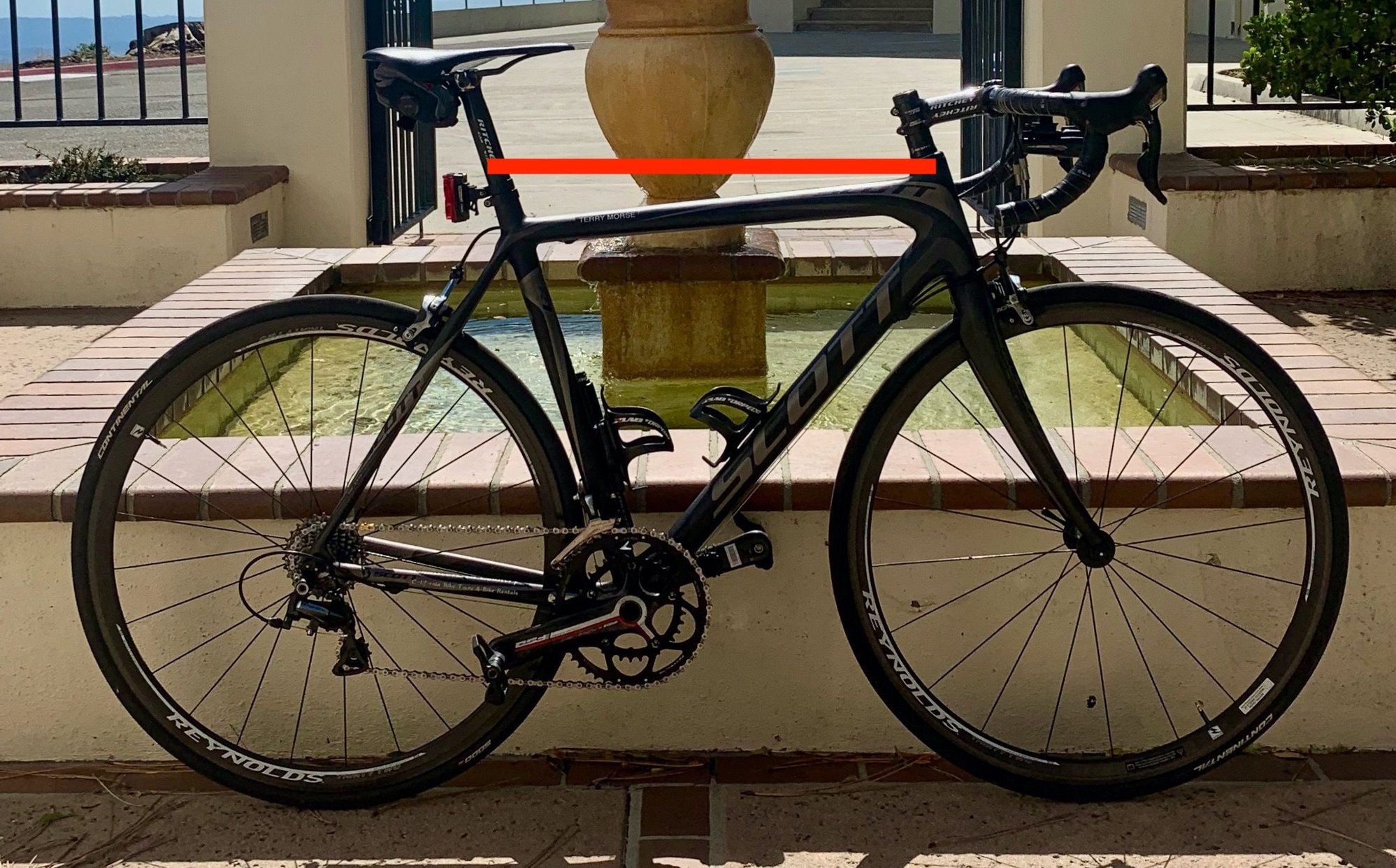

For smaller riders like myself 5'5", it's simply stand over height, granted SOH doesn't dictate overall fit but if I can't clear the bike then usually the bike's reach and other elements are too big for me either way. For normal sized or taller riders reach probably
Jrasero is offline
Old 02-02-23, 12:40 PM
  #39
Calsun
Banned

Join Date: Mar 2021
Posts: 1,114
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 315 Times in 242 Posts
My first consideration is the amount of fork rake with a bike. Chainstay length is also important for climbing. Bikes like the Trek Domane and Specialized Roubaix are excellent in this regard and provide a lot more control at speed on steep down hill roads. After deciding on the bike then I evaluate the size overall. For touring I would go with the larger frame but for general riding the smaller frame if on the fence.
Calsun is offline
Old 02-02-23, 12:56 PM
  #40
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 24,182

Bikes: Giant Defy, Giant Revolt

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 922 Post(s)
Liked 1,060 Times in 618 Posts
It's my opinion that the most crucial measurements are whichever ones you are close to the limits of. For example, my long femur and religious following of KOPS has me with a saddle slammed almost all the way back on a 25mm setback post and a 73.5 STA, so I simply won't buy a bike with a 74 or greater STA. Others may want a shorter reach to avoid needing a super short stem, or a low stack height for a super aero position. If you are really an in betweener on all those measurements, you're golden and have a lot of wiggle room. At that point you can focus on other aspects, like how the various dimensions affect handling or comfort
__________________
It's like riding a bicycle
urbanknight is offline
Old 02-02-23, 01:00 PM
  #41
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 7,091

Bikes: Cinelli superstar disc, two Yoeleo R12

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 996 Post(s)
Liked 520 Times in 418 Posts
Fork rake (offset) doesn't mean anything without a head tube angle to go with it and a calculation of the resulting trail. You could have 40 or 50mm of offset and the same trail.
DaveSSS is offline
Old 02-02-23, 05:16 PM
  #42
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 24,182

Bikes: Giant Defy, Giant Revolt

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 922 Post(s)
Liked 1,060 Times in 618 Posts
Originally Posted by tomato coupe
I think it's more accurate to say sizing is roughly based on the effective seat tube length, which is measured to where a hypothetical horizontal top tube would intersect the seat tube.
In other words, the sizing is nominal.
__________________
It's like riding a bicycle
urbanknight is offline
Old 02-02-23, 06:42 PM
  #43
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 5,733
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 335 Times in 244 Posts
Stack and Reach worked for me when I got a new road bike. I wanted a similar fit to my older bike.

Got an older bike without stack and reach measurements? Here's an easy method -- see this 2017 post.

Using simple measurements with the rear tire against a wall:

rm -rf is offline
Old 02-02-23, 09:32 PM
  #44
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 6,036

Bikes: Soma Fog Cutter, Surly Wednesday, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 2,421 Times in 1,365 Posts
For fit? Stack and Reach.
Kapusta is offline
Old 02-03-23, 08:17 AM
  #45
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 4,456

Bikes: 1989 Cinelli Supercorsa

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 2667 Post(s)
Liked 2,202 Times in 1,335 Posts
Originally Posted by rm -rf
Stack and Reach worked for me when I got a new road bike. I wanted a similar fit to my older bike.

Got an older bike without stack and reach measurements? Here's an easy method -- see this 2017 post.

Using simple measurements with the rear tire against a wall:

There used to be a time when sizing a bike wasn't a pain in the ass.

Last edited by smd4; 02-03-23 at 08:23 AM.
smd4 is online now
Likes For smd4:
Old 02-03-23, 10:18 AM
  #46
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 6,036

Bikes: Soma Fog Cutter, Surly Wednesday, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 2,421 Times in 1,365 Posts
Originally Posted by smd4
There used to be a time when sizing a bike wasn't a pain in the ass.
If you want to use the old "X number of inches of standover" or "handful of exposed seatpost" you are still welcome to do that.

Last edited by Kapusta; 02-03-23 at 10:23 AM.
Kapusta is offline
Old 02-03-23, 10:24 AM
  #47
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 4,456

Bikes: 1989 Cinelli Supercorsa

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 2667 Post(s)
Liked 2,202 Times in 1,335 Posts
Originally Posted by Kapusta
If you want to use the old "X number of inches of standover" or "handful of exposed seatpost" you are still welcome to do that.
Oh. Thanks.
smd4 is online now
Old 02-03-23, 11:07 AM
  #48
terrymorse
climber has-been

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 5,940

Bikes: Scott Addict R1

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 2395 Post(s)
Liked 2,400 Times in 1,215 Posts
Originally Posted by Kapusta
If you want to use the old "X number of inches of standover" or "handful of exposed seatpost" you are still welcome to do that.
If you add an imaginary horizontal top tube to the frame, that old "fist full of seatpost" method still works pretty well. My bike (56cm), fit to me (5'11"), with a fat fist full of seatpost above the imaginary top tube:


__________________
Ride, Rest, Repeat

terrymorse is offline
Old 02-03-23, 11:13 AM
  #49
GhostRider62
Senior Member

Join Date: Apr 2021
Posts: 4,083
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 2329 Post(s)
Liked 2,079 Times in 1,303 Posts
will 30mm gp5000 fit with 4mm clearance is key
GhostRider62 is offline
Old 02-03-23, 11:27 AM
  #50
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 6,036

Bikes: Soma Fog Cutter, Surly Wednesday, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 2,421 Times in 1,365 Posts
Originally Posted by terrymorse
If you add an imaginary horizontal top tube to the frame, that old "fist full of seatpost" method still works pretty well. My bike (56cm), fit to me (5'11"), with a fat fist full of seatpost above the imaginary top tube:


Well if it works on one person for one bike then it must be reliable
Kapusta is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
