What pedals are these?
06-19-13, 09:02 PM
#1
Member
Thread Starter
Join Date: Jun 2013
Location: Bradenton, FL
Posts: 48
Bikes: 1998 Cannondale R200
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts

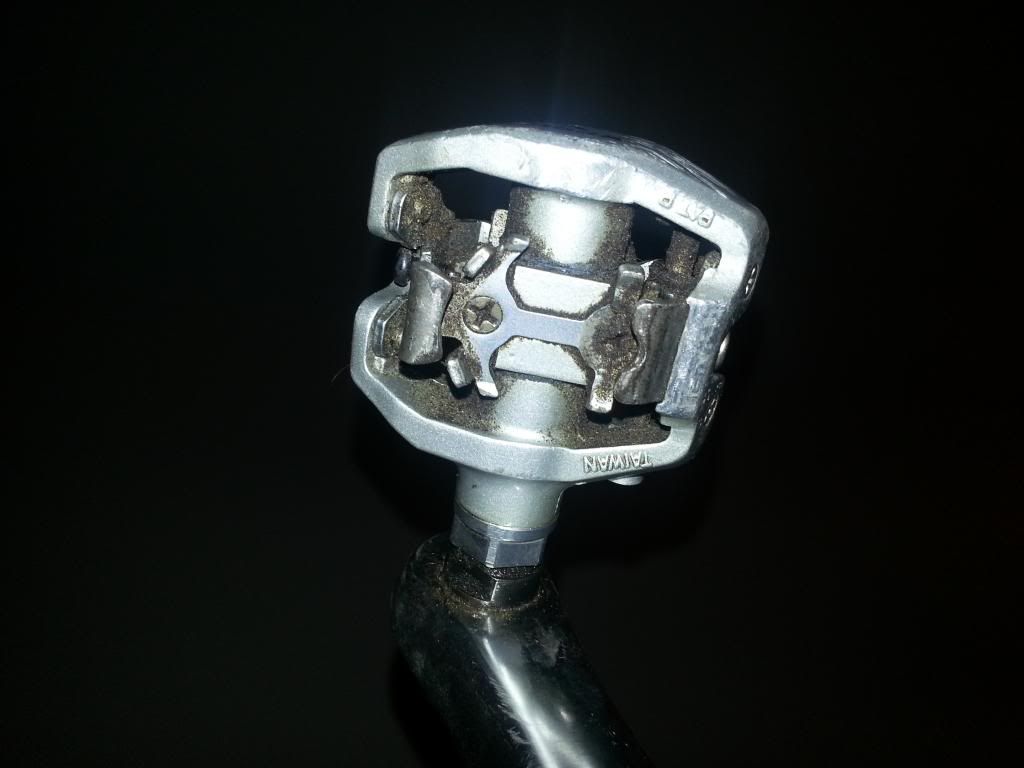

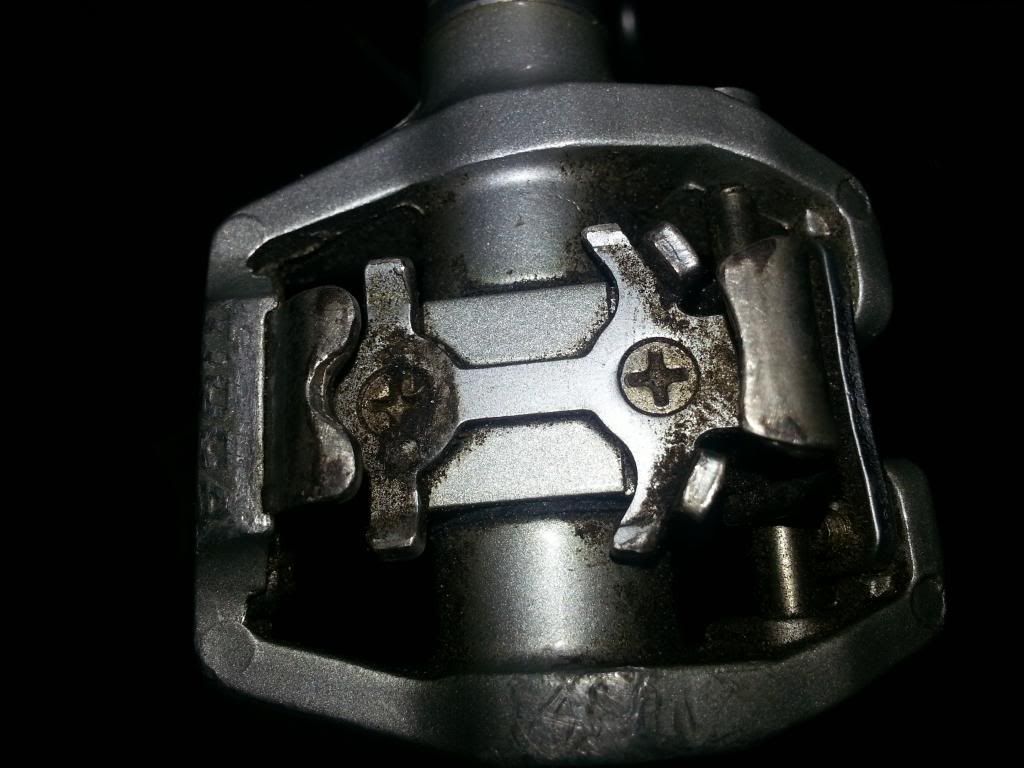

What pedals are these?
So, to start off, couldn't find anything that really fit this. Anyway, I bought a bike off of Craigslist, and the previous owner never told me it had clipless pedals. So, needless to say, when I got there, he was out at work, and the wife sold me the bike (she was the one who listed it, but knew nothing about bikes), and being me, I didn't ask if he still had his old cycling shoes and cleats so that I could take the cleats. So, now I have these pedals on this bike, and for the life of me, I can't get them off! So, I was hoping maybe someone could identify them so that I can acquire the right set of cleats and use them.
06-19-13, 09:29 PM
#2
Senior Member
Join Date: Aug 2010
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Those are "tioga clipless pedals" the reviews for them on other forums do not paint them in a very pretty picture, except for the price. Do you have a pedal wrench? And are you turning the wrench the right way? And do you have enough leverage? If they are seized, try and spray some WD40 into the threads.
06-19-13, 09:32 PM
#3
Member
Thread Starter
Join Date: Jun 2013
Location: Bradenton, FL
Posts: 48
Bikes: 1998 Cannondale R200
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Well, that sucks that they have bad reviews. As for a specific pedal wrench, no, but I do have metric wrenches that I am using. 16 seems to fit, but it won't budge. As for WD40, surprisingly don't have any in the apartment. Guess it's back to brute forcing them off.
06-19-13, 09:35 PM
#4
Senior Member
Join Date: Aug 2010
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
I would buy a can of WD-40, and a pedal wrench, sometimes brute force is not enough.
06-19-13, 09:44 PM
#5
Other Worldly Member
Join Date: May 2012
Location: The old Northwest Coast.
Posts: 1,540
Bikes: 1973 Motobecane Grand Jubilee, 1981 Centurion Super LeMans, 2010 Gary Fisher Wahoo, 2003 Colnago Dream Lux, 2014 Giant Defy 1, 2015 Framed Bikes Minnesota 3.0, several older family Treks
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 135 Times
in
52 Posts
Wrap the crank arm in hot towels. Ice the pedal. Use lots of penetrating lube. Pray the steel axle (pedal) threads haven't rusted. Use a long arm pedal wrench and make sure your loosening direction is correct. The purpose of heat and cold is to allow micro space for the penetrating lube to seep into. Using direct heat (propane torch) on crank arms (to warm but not over heat) or ice/dry ice axle shaft is last ditch next level dangerous territory. Rust on steel threads can form on a layer of aluminum, an aluminum oxide that is so hard (think aluminum oxide sandpaper) that it binds the steel to aluminum with a physical joint at the threads that can't be twisted. Look at the end of pedal axle shaft in the crank arm, if there is no rust...you should be fine.
__________________
Make ******* Grate Cheese Again
Make ******* Grate Cheese Again
06-20-13, 09:01 AM
#7
Senior Member
Join Date: Aug 2009
Posts: 8,552
Bikes: Wilier Izoard XP (Record);Cinelli Xperience (Force);Specialized Allez (Rival);Bianchi Via Nirone 7 (Centaur); Colnago AC-R Disc;Colnago V1r Limited Edition;De Rosa King 3 Limited(Force 22);DeRosa Merak(Red):Pinarello Dogma 65.1 Hydro(Di2)
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 276 Times
in
144 Posts
Make sure you are turning the wrench in the correct direction.
06-20-13, 09:21 AM
#8
Senior Member
Join Date: Jul 2009
Location: Singapore
Posts: 348
Bikes: Litespeed Ti Mtb, BikeE Recumbent, Cannondale H600 Hybrid,
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
If I'm not mistaken, most of these older clipless can use the Shimano SPD cleats.
06-20-13, 01:33 PM
#9
Senior Member
Join Date: Feb 2013
Location: Mesa, AZ
Posts: 561
Bikes: 1992 Trek 800 Antelope, 1971 Triumph
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
06-20-13, 08:43 PM
#10
rebmeM roineS
Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 16,194
Bikes: Bacchetta Giro A20, RANS V-Rex, RANS Screamer
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 646 Post(s)
Liked 333 Times
in
218 Posts
15 mm should fit better. A pedal wrench would give you more leverage.
__________________
Bacchetta Giro A20, RANS V-Rex, RANS Screamer
Bacchetta Giro A20, RANS V-Rex, RANS Screamer
06-21-13, 05:32 AM
#11
Membership Not Required
Join Date: Jan 2005
Location: On the road-USA
Posts: 16,855
Bikes: Giant Excursion, Raleigh Sports, Raleigh R.S.W. Compact, Motobecane? and about 20 more! OMG
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 10 Times
in
9 Posts
PB Blaster is my preference for loosening stuck threads, the hot/cold is a good idea too. I am prone to use a torch, but most of my bikes have steel cranks on them...
Aaron
Aaron
__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(
ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.
"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"_Nicodemus
"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"_krazygluon
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(
ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.
"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"_Nicodemus
"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"_krazygluon
06-21-13, 10:47 AM
#13
Insane Bicycle Mechanic
Wellgo cleats: https://www.niagaracycle.com/categori...teel-cleat-kit
__________________
Jeff Wills
Comcast nuked my web page. It will return soon..
Jeff Wills
Comcast nuked my web page. It will return soon..
06-22-13, 08:16 PM
#14
Senior Member
Join Date: Apr 2007
Posts: 6,229
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 881 Post(s)
Liked 871 Times
in
555 Posts
Many of the non-Shimano "SPD" pedals were made by Wellgo and use a slightly different cleat. The Shimano cleat will work, but release may be tougher.
Wellgo cleats: https://www.niagaracycle.com/categori...teel-cleat-kit
Wellgo cleats: https://www.niagaracycle.com/categori...teel-cleat-kit
