Suggestions with hybrid/comfort bike frame-up build

Old 11-02-19, 02:10 PM
  #1
smurfy
Senior Member
Thread Starter

smurfy's Avatar

Join Date: Jun 2003
Location: SW Ohio
Posts: 1,200

Bikes: Classic lugged-steel road, touring, shopping, semi-recumbent, gravel

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 7 Times in 7 Posts
Suggestions with hybrid/comfort bike frame-up build

Wow! It's been a few years since I've been active here on BF although I've still been riding regularly.


Recently I scored a Marin Bridgeway frame off the Bay real cheap with the intention of building up a comfortable "fast" bike mainly for more spirited club rides and, since I'm pushing sixty, I didn't want the extreme lean down position of a road bike. I hardly ever use the drops on my drop-handlebar bikes, anyway.


Although I'm no stranger to bike builds having built up a dozen or so bikes and at least a few dozen wheels I am perplexed by all the newfangled stuff out there. I haven't paid much attention to all the latest trends but I want to educate myself on all the latest and greatest components and accessories.


I actually don't know where to start with this project but I guess I'll have to start with the drivetrain. Has anybody here familiar with or has built up a bike with the mountain bike 1x drivetrain? I'm aware the frame itself is not compatible with a front derailler so it looks like I'm stuck with that. What would be that best way to go with it? Dropout spacing is 135mm, by the way.
smurfy is offline
Old 11-03-19, 07:46 AM
  #2
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 1,525

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Hiawatha 3sp | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 296 Times in 172 Posts
Originally Posted by smurfy View Post
Wow! It's been a few years since I've been active here on BF although I've still been riding regularly.


Recently I scored a Marin Bridgeway frame off the Bay real cheap with the intention of building up a comfortable "fast" bike mainly for more spirited club rides and, since I'm pushing sixty, I didn't want the extreme lean down position of a road bike. I hardly ever use the drops on my drop-handlebar bikes, anyway.


Although I'm no stranger to bike builds having built up a dozen or so bikes and at least a few dozen wheels I am perplexed by all the newfangled stuff out there. I haven't paid much attention to all the latest trends but I want to educate myself on all the latest and greatest components and accessories.


I actually don't know where to start with this project but I guess I'll have to start with the drivetrain. Has anybody here familiar with or has built up a bike with the mountain bike 1x drivetrain? I'm aware the frame itself is not compatible with a front derailler so it looks like I'm stuck with that. What would be that best way to go with it? Dropout spacing is 135mm, by the way.
I'd suggest starting with the fork+headset, and then the wheels. Fork must have the proper steerer diameter, axle to crown, rake, and brake type. This will get your correct stance. Tires will indicate desired riding terrain and speed.

At this point, its not a bad idea to work on seatpost, saddle, stem, and bar to get a basic fit going. Bar choice might affect shifter selection and cabling so its important to figure that out. Its also a good idea to leave the steerer uncut for now.

When you pick your hub, it must be compatible with the drivetrain you choose and the frame. Your tires, intended position, and knowing your body will give you an indication of gearing range required, Starting with cranks, pick a chainring suitable for your intended riding, then pick a cassette for the range you need.The range of the cassette will dictate the length of the R derailleur cage. Pick the shifters you need; there are other options such as Microshift thumbies that are worth exploring.

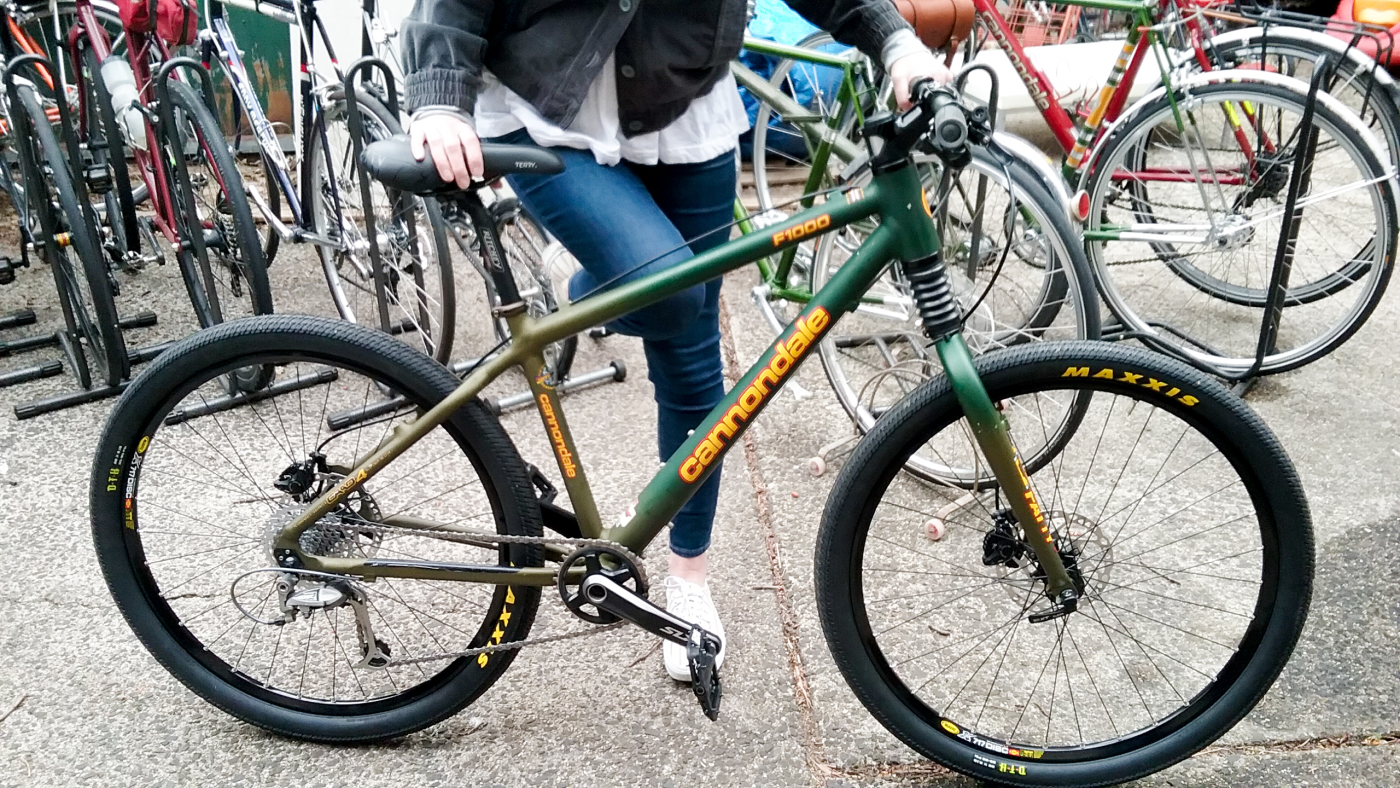

Mixing and matching is always possible (1xX). Here is a 1x9 (32t, 11-34) conversion for the wife, with extra long hoses in case I need to change the cockpit.

Last edited by DorkDisk; 12-13-19 at 09:31 AM.
DorkDisk is offline
Old 11-05-19, 11:40 AM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,036

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1126 Post(s)
Liked 304 Times in 239 Posts
I don't do club rides & such, but I'd be leery of a 1X anything for this purpose.

You're going to have wider spaced gears whereas your fellow riders with 2 or 3X are going to have closer spaced (and more appropriate for the conditions AT THE MOMENT) gears.
You'll be finding yourself spinning too fast or mashing too much trying to keep up because you don't quite have the best gear, while they are in their "comfort zone".
Bill Kapaun is offline
Old 12-10-19, 04:41 PM
  #4
02Giant
Home School Valedictorian

02Giant's Avatar

Join Date: Jan 2011
Location: Iowa
Posts: 2,940

Bikes: 13 Orbea Orca 02 Giant Cypress 88 Mongoose ATB 79 frame-built to 80 spec. Schwinn Traveller

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Liked 220 Times in 161 Posts
Isn't a Marin Bridgeway a comfort bike?
__________________
Elect a clown, you get a circus

I ain't broke and I ain't hungry but I'm close enough to care
tp


02Giant is offline
Old 12-11-19, 07:54 PM
  #5
violini
Member

Join Date: May 2012
Location: Winnipeg, MB
Posts: 44

Bikes: Modern steel frame road bike, titanium cruzbikes

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I bought two frames from Random Bike Parts in Cross Lake, MN. The first one is a modern Marin steel frame made in Italy. I assemble it using Shimano 105 drive train. The 2nd frame is Sausalito hybrid frame. In September 2019, I purchased a Marin Terra Linda in good used condition. The 17" frame fits me just right, although it's a women specific bike. The bike has a carbon fork, 52/42/30 chain rings, 12-24 cassette sprocket, and the rear axle is 130 mm. Therefore, its specifications are more close to road bike. I will use this bike for group ride on the bike path around town.
