Vintage WTB/Raleigh composite frame anybody??

Notices
Mountain Biking Mountain biking is one of the fastest growing sports in the world. Check out this forum to discuss the latest tips, tricks, gear and equipment in the world of mountain biking.

Vintage WTB/Raleigh composite frame anybody??

Old 12-01-19, 07:16 AM
  #1
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Vintage WTB/Raleigh composite frame anybody??

Just found this US made WTB/Raleigh frame & forks in UK!
So I ask here on BF first!




Ebay pics here, not mine. It's got alloy main tubes with steel lugs & ends.
Looks interesting to me anyway: )
Bicyclz is offline
Old 12-07-19, 07:47 AM
  #2
freeranger
Senior Member

freeranger's Avatar

Join Date: Jun 2005
Location: Kentucky
Posts: 1,645

Bikes: 06 Lemond Reno, 96 GT Timberline mtn.bike

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 180 Times in 123 Posts
A good friend of mine had a Raleigh mtn bike with an aluminum/chromoly frame back in the day. I remember it as a nice bike, and it was one he wishes he would have kept. He never had any problems with it--was only ridden on rail-trails.
freeranger is offline
Old 12-10-19, 07:04 AM
  #3
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 906

Bikes: Madone 5.0, Black Beta (Nashbar frame)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 33 Times in 25 Posts
Mid eighties to early nineties. Technium series bikes. I had an Obsession like that but blue. Had a lifetime warranty. I went through 5 frames. Still ride the spirit of the old Obsession but none of the parts are original.
biker128pedal is offline
Old 12-10-19, 12:11 PM
  #4
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Thanks for the info guys.
Be good to see one built up: )

I start knowing nothing. (Except Raleigh did some of this composite stuff at a certain time on road bikes, etc. here in UK)
That's why I bought it. Looked interesting: )

WTB = cool MTBs at a certain time? That's what I get right now.
I'm a leisurely Tourer myself & I'm unlikely to use it, but this one just stands out to me.

Annoyingly I still haven't actually got it yet!!! Stupid shippers & all that.
But I'll keep updating the project as I can.
Bicyclz is offline
Old 12-10-19, 12:18 PM
  #5
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Originally Posted by biker128pedal View Post
Mid eighties to early nineties. Technium series bikes. I had an Obsession like that but blue. Had a lifetime warranty. I went through 5 frames. Still ride the spirit of the old Obsession but none of the parts are original.
Thanks. Good to have a dateline. Technium makes sense now you say it: )
These are not my 'normal' area, but fascinating anyway.
Bicyclz is offline
Old 12-13-19, 06:45 PM
  #6
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 906

Bikes: Madone 5.0, Black Beta (Nashbar frame)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by Bicyclz View Post
Thanks. Good to have a dateline. Technium makes sense now you say it: )
These are not my 'normal' area, but fascinating anyway.
Mine is now a Nashbar frame with a Beta Motorcycle sticker on the head tube. Your frame will hold up for the riding you plan. I weigh 200 pounds and pounded mine off road.
biker128pedal is offline
Old 12-17-19, 11:40 AM
  #7
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Originally Posted by biker128pedal View Post
Your frame will hold up for the riding you plan. I weigh 200 pounds and pounded mine off road.
Well, me 6' 1" so it's not for me anyway: )


I finally got my hands on it yesterday.
Had a closer look & took a few pics this morning in daylight...






I was previously thinking it to be early MTB, but this has rack & guard mounts both ends. Some research needed here...
Be nice to see one built up. Looking currently: )

Very pleased with its condition though, paint is excellent with a few minor chips. Couple of minor dinks in the chain-stays. Not sure about the BB though...
Ritchey Logic headset looks good. Frame is 20 1/2" & way too small for me, so it'll be built up for a neice.

I'm interested in its history & I am assuming this is Kent built, &, with the slit D/T cable stops (one broken during transit, shown here above for the eagle eyed: ) dates it from a certain point. 1990/91?

I'm also wondering how a Kent built Raleigh would have a WTB Head Tube decal?
Could they (WTB) just buy the frames from Kent & add their own Monicker, particular parts, etc.?

Whatever, I think it's a suitable case for treatment!

Last edited by Bicyclz; 12-20-19 at 04:44 PM. Reason: Typo
Bicyclz is offline
Old 12-17-19, 11:47 AM
  #8
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 11,426
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1986 Post(s)
Liked 456 Times in 269 Posts
Interesting design.
himespau is online now
Old 12-20-19, 11:43 AM
  #9
Squeeze
High Plains Luddite

Join Date: Jul 2013
Location: Colorado
Posts: 583

Bikes: 1990s MTBs

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Liked 13 Times in 9 Posts

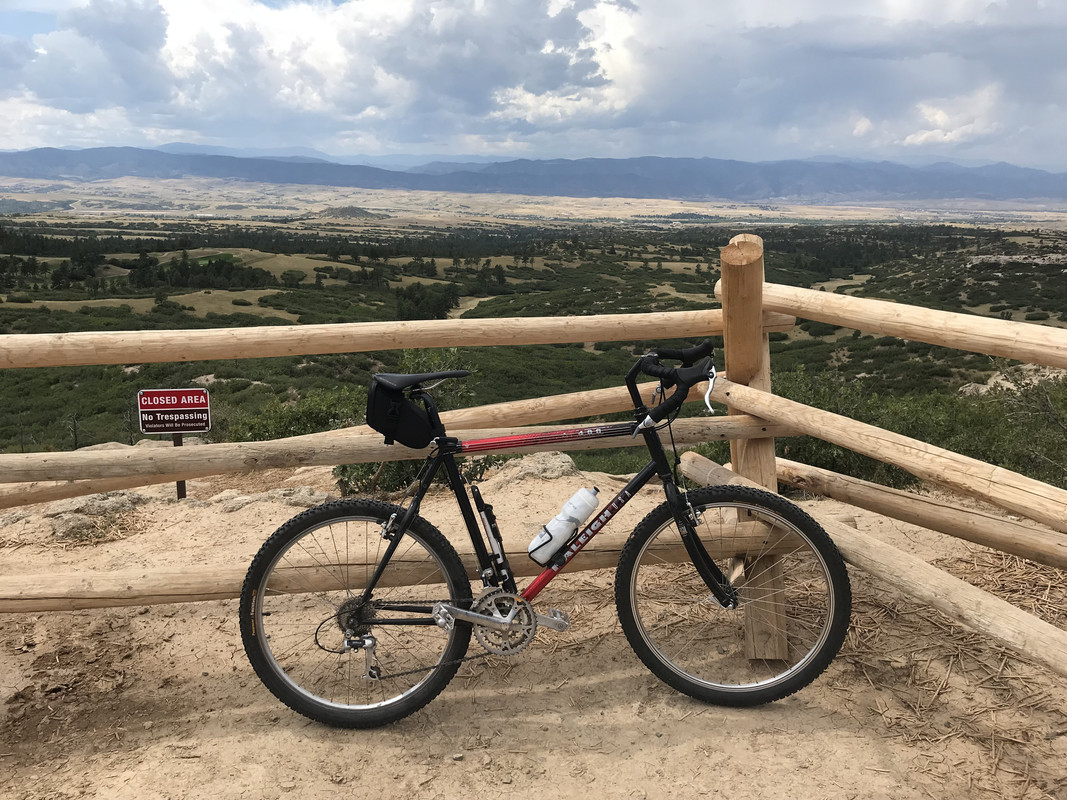

If it helps any, here's mine. I realize this isn't the best picture for seeing frame detail, but it's the best one I have online at the moment.

I think this is a 1993 or 1994, based on internet searches when I bought it five or six years ago.

I would like to find an all-steel frame such as a Trek 930/950, Rockhopper/Stumpjumper, or similar and keep the best parts from this build but I haven't found one I like in my size after literally years of watching craigslist.

Squeeze is offline
Old 12-20-19, 11:46 AM
  #10
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 906

Bikes: Madone 5.0, Black Beta (Nashbar frame)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by Bicyclz View Post
Well, me 6' 1" so it's not for me anyway: )


I finally got my hands on it yesterday.
Had a closer look & took a few pics this morning in daylight...






I was previously thinking it to be early MTB, but this has rack & guard mounts both ends. Some research needed here...
Be nice to see one built up. Looking currently: )

Very pleased with its condition though, paint is excellent with a few minor chips. Couple of minor dinks in the chain-stays. Not sure about the BB though...
Richey Logic headset looks good. Frame is 20 1/2" & way too small for me, so it'll be built up for a neice.

I'm interested in its history & I am assuming this is Kent built, &, with the slit D/T cable stops (one broken during transit, shown here above for the eagle eyed: ) dates it from a certain point. 1990/91?

I'm also wondering how a Kent built Raleigh would have a WTB Head Tube decal?
Could they (WTB) just buy the frames from Kent & add their own Monicker, particular parts, etc.?

Whatever, I think it's a suitable case for treatment!
Mountain bikes back then had means for racks and finders. I ran Rhodes gear rack with removable child seat. Wish my frame now had the mounts. Your purple frame was a higher end bike. Head decals can be changed.

Um. Internal cables. A good clue.
biker128pedal is offline
Old 12-21-19, 05:24 AM
  #11
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Originally Posted by Squeeze View Post
If it helps any, here's mine. I realize this isn't the best picture for seeing frame detail, but it's the best one I have online at the moment.

I think this is a 1993 or 1994, based on internet searches when I bought it five or six years ago.

I would like to find an all-steel frame such as a Trek 930/950, Rockhopper/Stumpjumper, or similar and keep the best parts from this build but I haven't found one I like in my size after literally years of watching craigslist.

That's very neat! First one I've seen built up.
Mines looking to be April 1989 from the SN, so yours is one of the last of the series I guess.
Are the forks original?
Bicyclz is offline
Old 12-21-19, 06:54 AM
  #12
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Originally Posted by biker128pedal View Post
Mountain bikes back then had means for racks and finders. I ran Rhodes gear rack with removable child seat. Wish my frame now had the mounts. Your purple frame was a higher end bike. Head decals can be changed.

Um. Internal cables. A good clue.
Points taken: )
Well, I've never had a modern MTB, let alone an early one! But I know it's a good quality item, unusual & very interesting: )

The SN is now exposed, R810990045, which I believe translates as April 20th? (109th day) 1989.
(Thanks T-Mar for the key: )
0045 being the actual sequential frame number. That looks quite early.

My current theory is that it's the 6061 T8 Aluminum, (as opposed to the Easton tubing) with the CrMo stays & forks.
As with the Obsession & Heat frames. But, this one has these braze-ons for racks that I've not seen on other standard Raleigh examples.

The WTB head decal may not be original, but there is no evidence of another badge/decal (Raleigh?) under it...

A guess might be that early on in the production of these frames, some were sold to smaller retailers with their own detailed build specs?
And put their own 'Stamp' on it? Common practice at that time here in UK.
Pure speculation that one: )

I'm still wondering how it arrived in UK?
Bicyclz is offline
Old 12-21-19, 07:25 AM
  #13
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Here is the quite ornate rear rack fixing. I've not seen it on the standard Raleigh models. Was it an extra maybe?





Serial Number is clear. Day 109 (19)89.

The head decal looks??
As per the photo! Does look a little basic...
Right now I only know what I see: )
Bicyclz is offline
Old 12-30-19, 07:53 AM
  #14
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 906

Bikes: Madone 5.0, Black Beta (Nashbar frame)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 33 Times in 25 Posts
Head decal looks original or someone did a good job and went to a lot of trouble. Raleigh marking was an emblem and not a decal on mine. But yours is olders.
biker128pedal is offline
Old 01-05-20, 12:41 PM
  #15
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
It is still fascinating me. Those WTB decals look to be very well done to me also: )
But, no decals on the bare aluminum tubes make me wonder!?

Learnt a little along the way, and today I took some pics of it in its current rebuild state.
I'm intending a low maintenance, useful, town bike for a small adult/larger child.

Spent a good part of my Xmas holiday dealing with this...



Plan is proceeding as above, with Nexus 7 speed rear hub, twist grip changer, with rack, guards/fenders. Check the front double mounts!! Front rack option is a very cool extra, isn't it?: )
Waiting for new brake pads here, plus a chain tensioner that doesn't interfere with the chain: ) Look closely... Potential problem there.
All good fun though!

I also used an Ahead converter to use the stem & bars I already had, shown above. Also using V brakes, rather than the original cantis.
Looks like a (potentially) very cool, usable, vintage bike to me: )



Could be problem here...
To be overcome: )
Bicyclz is offline
Likes For Bicyclz:
Old 01-24-20, 06:32 AM
  #16
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts

That yellow Shimano non-turn washer was not the best.
But this black one is more like it!
Doesn't even need a chain tensioner to get good tension, amazingly: )
Using a 38 tooth chain-wheel & 21 tooth rear cog.
Serendipity?

I'm still puzzling over the WTB connection. If there is one: )
Bicyclz is offline
Likes For Bicyclz:
Old 01-24-20, 09:36 AM
  #17
qclabrat
Senior Member

qclabrat's Avatar

Join Date: Dec 2007
Posts: 1,353
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 251 Post(s)
Liked 67 Times in 60 Posts
Originally Posted by Bicyclz View Post

That yellow Shimano non-turn washer was not the best.
But this black one is more like it!
Doesn't even need a chain tensioner to get good tension, amazingly: )
Using a 38 tooth chain-wheel & 21 tooth rear cog.
Serendipity?

I'm still puzzling over the WTB connection. If there is one: )
Nice work, the WTB decal looks like it's aftermarket. Is the Raleigh a decal or painted or clear coated over?
Also get some clips for the shift cable and it will clean up nicely...
qclabrat is offline
Old 01-24-20, 09:56 AM
  #18
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
The Raleigh decals on the downtube are just 'stick-ons'. The LH side not even aligned properly.
Then the WTB head decal is just that. A decal.
Nothing on the alloy tubes either... Why would anyone do that??
Which is what puzzles me more than a little: )

A very cool frame otherwise though. I'm not complaining, just curious.
One of my neices will love it, I'm sure.
Bicyclz is offline
Old 01-25-20, 07:27 AM
  #19
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Originally Posted by qclabrat View Post
Nice work, the WTB decal looks like it's aftermarket. Is the Raleigh a decal or painted or clear coated over?
Also get some clips for the shift cable and it will clean up nicely...
Point taken: )
So, here's a pic of it ready for the road, taken 10 mins ago, with new brake pads & the shift cable looking neater!

Weighs 30.8lbs as seen, so the heavy Nexus hub isn't too much I think. I removed the redundant Roller Brake, which saved a little.
Saddle will be replaced, along with the seat-post sometime soon, & I'd love to find a suitable front rack for it.
Got some guards/fenders not yet fitted. Pedals also will be replaced with more suitable items. (These were borrowed off my Raleigh Merlin: )


I found some nail varnish that closely matches the reddy Ultramarine paint to fix/disguise the small visible chips.
The original paint finish is excellent quality, & lasted well for a 30 year old: )

Meanwhile it can be ridden: )

Last edited by Bicyclz; 01-25-20 at 07:36 AM. Reason: Tpyo...
Bicyclz is offline
Likes For Bicyclz:
Old 05-01-20, 08:53 AM
  #20
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Cannot reply to my own thread after logging in.

Originally Posted by Bicyclz View Post
Point taken: )
So, here's a pic of it ready for the road, taken 10 mins ago, with new brake pads & the shift cable looking neater!

Weighs 30.8lbs as seen, so the heavy Nexus hub isn't too much I think. I removed the redundant Roller Brake, which saved a little.
Saddle will be replaced, along with the seat-post sometime soon, & I'd love to find a suitable front rack for it.
Got some guards/fenders not yet fitted. Pedals also will be replaced with more suitable items. (These were borrowed off my Raleigh Merlin: )


I found some nail varnish that closely matches the reddy Ultramarine paint to fix/disguise the small visible chips.
The original paint finish is excellent quality, & lasted well for a 30 year old: )

Meanwhile it can be ridden: )
Tried to reply to my own thread & cannot do it.
But BF is not doing what it should.
Something wrong here...
Bicyclz is offline
Old 05-01-20, 08:57 AM
  #21
Bicyclz
Senior Member
Thread Starter

Bicyclz's Avatar

Join Date: Dec 2011
Posts: 219
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 27 Times in 14 Posts
Errors, errors.

I give up with BF.
Admin kindly delete my account.
The virus is infecting everthing it seems.
Bicyclz is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
