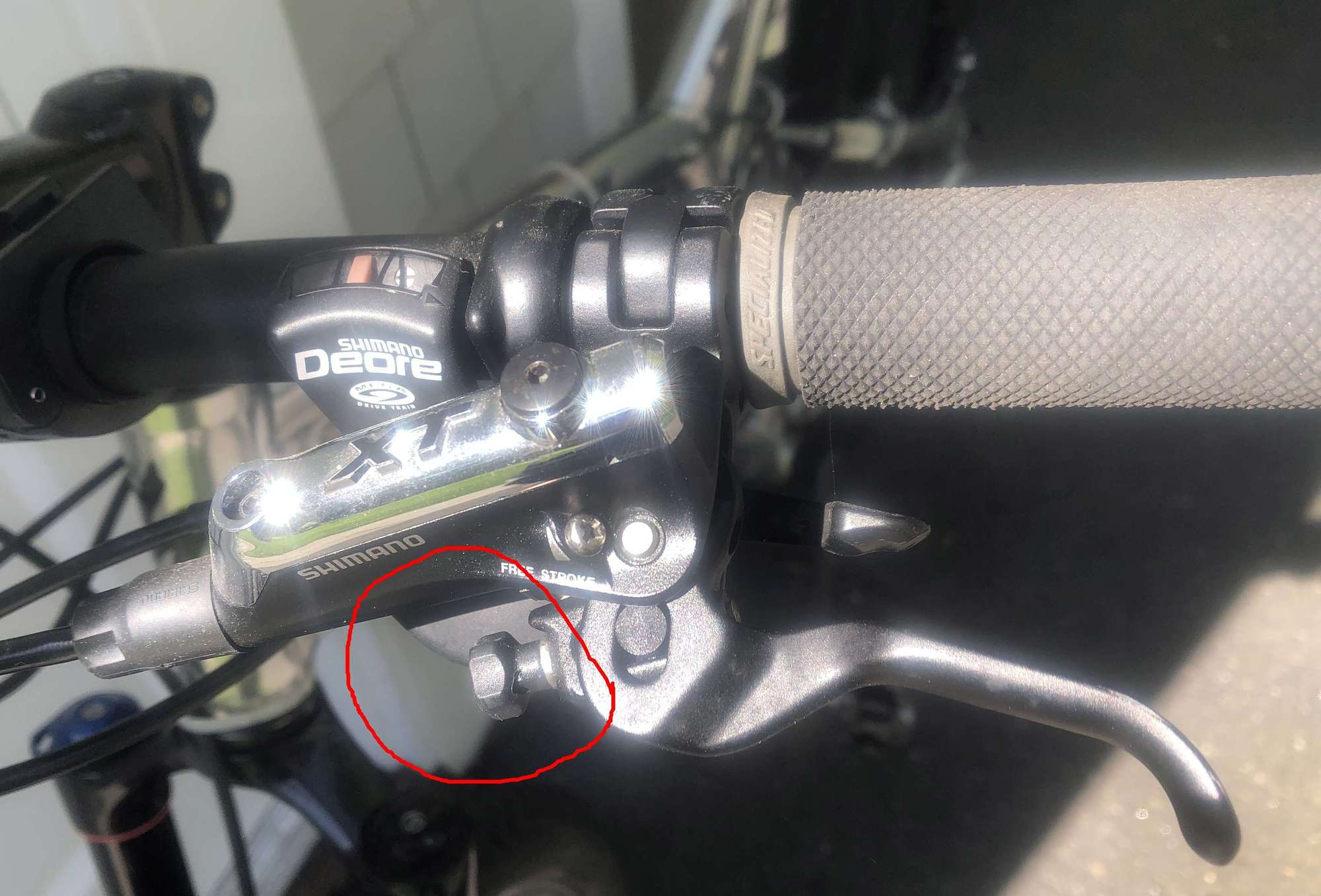

What Does This Knob Do? Deore XT M785 Brakes

Several years ago, I put these Deore XT M785 hydraulic disc brakes on my MTN bike, but I haven't used it much since then - I'm mostly road riding instead.

Anyway, I don't seem to have the manual that came with them.

With my road bike, it seems i can always easily find shimano literature online to help with adjusting and so on - but with these brakes, i have found nothing that identifies this knob...

I know the little screw is the free stroke adjustment - if i understand correctly, it just changes the position of the lever, and how far it travels before the hydraulic brake is activated. I can use it to lessen the "throw", at the cost of moving the lever closer.

I want the brakes to activate sooner.., but keep the levers where they are. I think I need to do something with the hydraulic fluid - add more? - and I am prepared to do that, but first I would like to understand the brakes a bit better.

What does the knob do?

thanks


jgf310 is offline
Old 05-14-20, 08:48 AM
  #2
PJay120
Senior Member

Join Date: Jun 2019
Location: Gulf Coast, where it is flat as a pancake.
Posts: 81

Bikes: Lemond Etape, Motobecane Super Mirage

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 22 Times in 13 Posts
It is sort of a dismount button. They were first developed by Astin Martin.
PJay120 is offline
Likes For PJay120:
Old 05-14-20, 09:01 AM
  #3
100bikes
Industry guy

Join Date: Nov 2007
Location: Minnesota
Posts: 319

Bikes: To many to name - I ride a custom built steel frame.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 51 Times in 34 Posts
I believe this allows the lever distance from the bar to be changed - smaller hands, less pull etc.
100bikes is offline
Old 05-14-20, 09:08 AM
  #4
jgf310
Senior Member
Thread Starter

Join Date: Apr 2009
Location: Connecticut
Posts: 210

Bikes: Roubaix and StumpJumper

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by 100bikes View Post
I believe this allows the lever distance from the bar to be changed - smaller hands, less pull etc.
my understanding is that's what the little screw does..., so if that's true, then this knob must do something else...
jgf310 is offline
Old 05-14-20, 11:41 AM
  #5
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,910
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4694 Post(s)
Liked 1,860 Times in 991 Posts
Originally Posted by jgf310 View Post
my understanding is that's what the little screw does..., so if that's true, then this knob must do something else...
the little screw adjusts the free stroke of the lever before the brakes engage. The knob adjusts the reach to the lever.
noodle soup is offline
Likes For noodle soup:
Old 05-14-20, 02:58 PM
  #6
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,709

Bikes: Soma Fog Cutter, Surly Wednesday, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2546 Post(s)
Liked 2,218 Times in 1,249 Posts
The screw changes how far you need to pull the lever (distance from fully release lever to brake engagement).

The knob changes WHERE that range of motion takes place (closer of further from the bar.)

The latter (knob) can easily be messed with and as long as the lever does not hit the bar, just go with what feels good.

The former (free throw) is going to be limited by pads dragging. The shorter the free-throw, the less the pads retract from the rotor, and the more prefect everything needs to be for the pads not to drag.
