Hairline crack in my head tube - Aluminum Frame - Pics

Mountain Biking Mountain biking is one of the fastest growing sports in the world. Check out this forum to discuss the latest tips, tricks, gear and equipment in the world of mountain biking.

Hairline crack in my head tube - Aluminum Frame - Pics

Reply

Old 04-23-08, 08:56 PM
  #1
renlopez
Member
Thread Starter

Join Date: Feb 2008
Location: Mission Viejo, CA
Posts: 33

Bikes: 2008 Trek Madone 4.5

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Hairline crack in my head tube - Aluminum Frame - Pics

I posted the same thread in the mechanics forum.

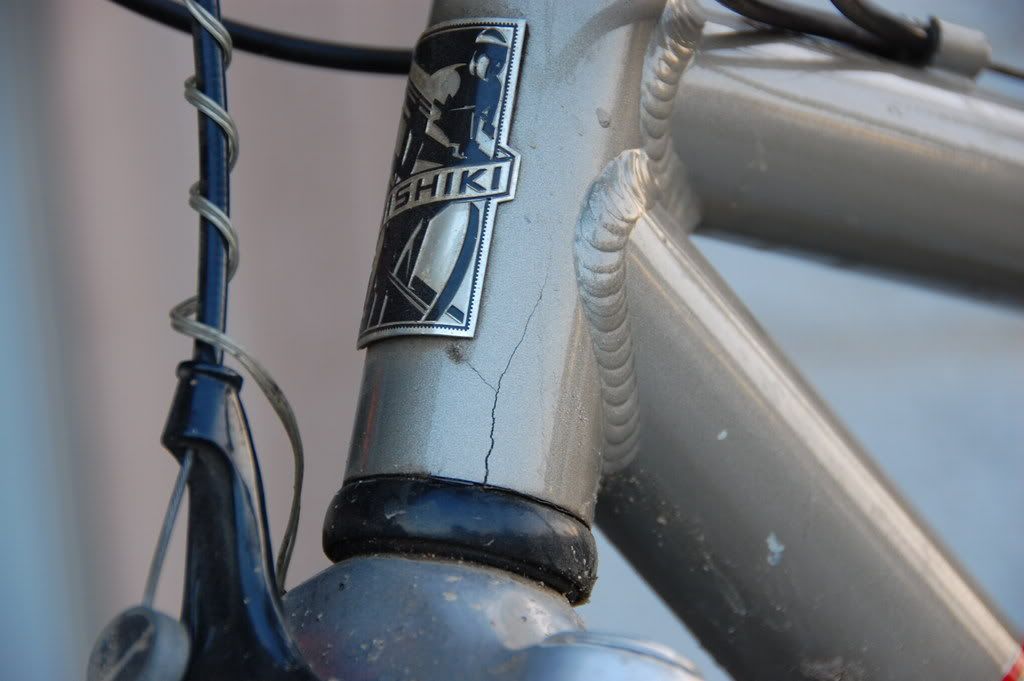

I took my mountain bike offroad for the first time in about 7 years. I noticed this crack in the head tube. I don't notice a difference in the ride or the steering. It's a 1996 Nishiki Backroads 7075 aluminum frame.

Is this something I should be worried about? If so, how worried?

renlopez is offline
Reply With Quote
Old 04-23-08, 09:04 PM
  #2
free_pizza
later

free_pizza's Avatar

Join Date: Sep 2004
Posts: 2,471
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by renlopez View Post
Is this something I should be worried about?
yes
Originally Posted by renlopez View Post
If so, how worried?
very
free_pizza is offline
Reply With Quote
Old 04-23-08, 09:27 PM
  #3
mcoine
Senior Member

Join Date: Dec 2005
Location: southern oregon
Posts: 2,631
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
You shouldn't be worried at all since you will never be riding that bike again. And.. thats not a "hairline crack"
mcoine is offline
Reply With Quote
Old 04-23-08, 09:33 PM
  #4
ghettocruiser
Senior Member

Join Date: Feb 2005
Location: Toronto
Posts: 4,062
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Word.

Time to start afresh.
ghettocruiser is offline
Reply With Quote
Old 04-23-08, 09:58 PM
  #5
Siu Blue Wind
BACK2ME

Siu Blue Wind's Avatar

Join Date: Apr 2005
Posts: 12,793
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1449 Post(s)
You might find your answer here.
__________________
"Foolish, selfish people are always thinking of themselves and the result is always negative. Wise persons think of others, helping them as much as they can and the result is happiness. Love and compassion are beneficial both to you and others. Through your kindness to others, your mind and heart will open to peace. " ~ Dalai Lama

Originally Posted by making View Post
Please dont outsmart the censor. That is a very expensive censor and every time one of you guys outsmart it it makes someone at the home office feel bad. We dont wanna do that. So dont cleverly disguise bad words.
Siu Blue Wind is offline
Reply With Quote
Old 04-23-08, 10:13 PM
  #6
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,646
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
It can be repaired, but it might be hard to find someone that can do the repairs and it would probably cheaper to get a new frame.
Have a look at these before and after photos of repairs to head tubes:
http://www.gripsport.com.au/main.php?part=gallery&galID=16

Last edited by cobba; 04-24-08 at 10:04 AM.
cobba is offline
Reply With Quote
Old 04-23-08, 10:32 PM
  #7
troie
:\ ping of death

troie's Avatar

Join Date: May 2003
Location: La$ Vega$
Posts: 1,381
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
That crack = FAIL
troie is offline
Reply With Quote
Old 04-24-08, 07:31 AM
  #8
Chris_F
World's slowest cyclist.

Join Date: Oct 2007
Location: Londonderry, NH
Posts: 1,353

Bikes: Cannondale CAAD5 and Cannondale Rush

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Before you go and ride that thing please make sure I'm listed as a beneficiary on your life insurance.
Chris_F is offline
Reply With Quote
Old 04-24-08, 07:47 AM
  #9
kenhill3
use your best eye

kenhill3's Avatar

Join Date: Mar 2006
Location: Olympia, Washington
Posts: 3,058

Bikes: '75 Bertin, '93 Parkpre Team 925, '04 Kona King Kikapu, '05 Bianchi Vigorelli

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Frame is done.
__________________
"I tell you, We are here on earth to fart around, and don't let anybody tell you any different." - Kurt Vonnegut jr.
kenhill3 is offline
Reply With Quote
Old 04-24-08, 09:00 AM
  #10
Fat Boy
Wheelsuck

Fat Boy's Avatar

Join Date: Jun 2007
Posts: 6,158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
DO NOT RIDE THIS BIKE. It's got one foot in the grave and the other on a banana peel. You will seriously F yourself up on the next jump or 2.
Fat Boy is offline
Reply With Quote
Old 04-24-08, 10:13 AM
  #11
imcrushingyerhd
Shot Caller

imcrushingyerhd's Avatar

Join Date: Feb 2008
Location: ATX
Posts: 117

Bikes: '01 Fisher Joshua F3. '89 Master... I don't let go of bikes easily.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
7075 al is used because it is more easily machinable, because it is more brittle. The tensile strength is higher but for aluminum it's still easily machinable compared to steel. This means that the chip breaks quickly so you can hog more material off at a time, especially when boring a hole, which is great for making stuff. Brittleness, however, is not great for the end user. 7075 actually costs more pound for pound than 6061- twice as much, but the cycle times are reduced so much that manufacturing is cheaper in the end.

Because of the severe brittleness of your frame, you won't get much warning when it decides to break all the way. In fact I'm surprised (Godly intervention?) that it cracked like it did and didn't crack all the way through. I can tell by the photo, just from being a machinist and mechanical designer for so many years, that the head tube is WAY to thin for 7075 T6 by design.

It most likely chose to break when it did because while it was sitting you probably got some corrosion on your bearings or races making them ever-so-slightly uneven, which applied an uneven force to the head tube, which is real bad for brittle material. They probably tested the head tube with direct pressure in a lab, since if any indirect pressure from bad bearings would defer liability onto the bike owner.

So here's the easy answer: If you ride it you will die.

BTW Don't try to weld it. It cannot be fixed. The bottom of the head tube needs to be dead-flat or the bearings won't be under even pressure and you'll get another crack. You'll also lose the annealing (T6 most likely) the material was given once you apply the heat from welding, making it completely vulnerable to cracking. Even if you took all of that into consideration, you have to strip the paint to weld it . JB weld wont hold something like that together so don't try.

So you on the Darwin Award's page.....

Last edited by imcrushingyerhd; 04-24-08 at 10:19 AM.
imcrushingyerhd is offline
Reply With Quote
Old 04-24-08, 10:17 AM
  #12
renlopez
Member
Thread Starter

Join Date: Feb 2008
Location: Mission Viejo, CA
Posts: 33

Bikes: 2008 Trek Madone 4.5

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Wow. I get the message. Thanks.
renlopez is offline
Reply With Quote
Old 04-24-08, 10:44 AM
  #13
BFG
Just say no to brakes.

BFG's Avatar

Join Date: Mar 2007
Location: Perth...Western Australia
Posts: 1,693

Bikes: All the TGMBG mums

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I think it's lucky you noticed this.....
BFG is offline
Reply With Quote
Old 04-24-08, 10:50 AM
  #14
junkyard
Fourth Degree Legend

junkyard's Avatar

Join Date: Jun 2005
Location: American Gardens Building
Posts: 3,826

Bikes: 2005 Kona Cinder Cone & 2010 Cannondale SuperSix

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Boom, son. Yah done.
junkyard is offline
Reply With Quote
Old 04-24-08, 11:49 AM
  #15
mcoine
Senior Member

Join Date: Dec 2005
Location: southern oregon
Posts: 2,631
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
This belongs in that ghetto thread about cracked pipes..
mcoine is offline
Reply With Quote
