DIY Full Metal Jacket Brake Cables

So I was inspired. Only the cost drove me away. Sooo, I made my own.

Don't mind the dates..

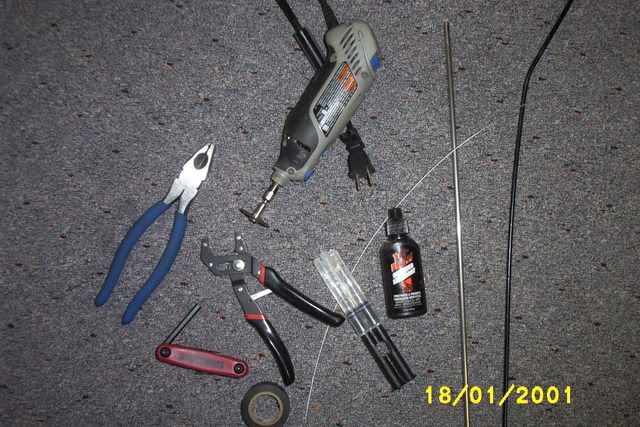

Supplies:


Use your dremel and cut your stainless pipe to the proper length, wrap some electrical tape around the end and slide it in:

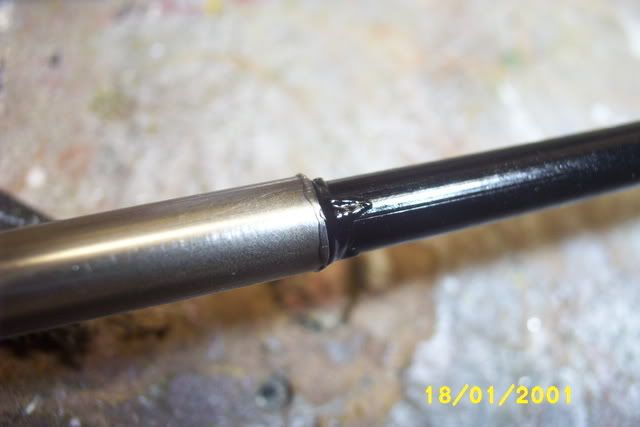

Put the epoxy around the edge and let it dry. Super glue might also work, but I never have any luck with it:

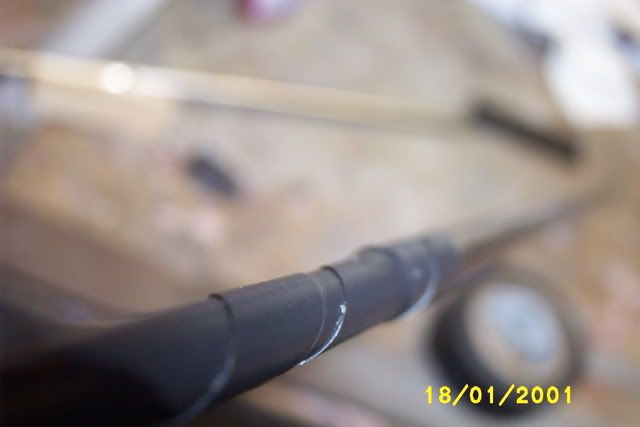

Neatly wrap some more electrical tape around the join, making it as tight as possible:


Fit on your mounting piece. Mine came off the fork with a small allen wrench screw:


Run your wire through the cable and fit it on your brakes:


Adjust everything and your good to go:



I was utterly amazed at how responsive this is. I Shortened the cable so there isn't so much bend, and it is just insane. I like this better than any other cable I have ever had. My friend has the gore ride ons, full enclosed, and this is more responsive than his 50 dollar cable. So for a 2 dollar cable and a 3 dollar pipe, you can have an insanely responsive front brake system
__________________
Merton Enthusiast
Ted Danson is offline
Old 05-03-08, 12:15 PM
  #2
pyroguy_3
Senior Member

pyroguy_3's Avatar

Join Date: Oct 2005
Location: Blo-no, IL
Posts: 556

Bikes: 2005 Specialized Hardrock Sport, 1970's Miyata Liberty ala fixed gear

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Can we have the specs of the pipe?

Also, when you say "Use your dremel and cut your stainless pipe to the proper length, wrap some electrical tape around the end and slide it in:" you're putting electrical tape around what, and putting it in where?
pyroguy_3 is offline
Old 05-03-08, 12:54 PM
  #3
Chris_F
World's slowest cyclist.

Join Date: Oct 2007
Location: Londonderry, NH
Posts: 1,353

Bikes: Cannondale CAAD5 and Cannondale Rush

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Very cool idea. Where did you score the pipe? An industrial supply place like McMaster Carr or MSC?
Chris_F is offline
Old 05-03-08, 01:58 PM
  #4
mx_599
Lost in the Black Hills

mx_599's Avatar

Join Date: May 2005
Posts: 5,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
i don't know what to say? have you ever tried hydraulic line instead?


jk. good job

mx
mx_599 is offline
Old 05-03-08, 01:59 PM
  #5
mx_599
Lost in the Black Hills

mx_599's Avatar

Join Date: May 2005
Posts: 5,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Chris_F View Post
Very cool idea. Where did you score the pipe? An industrial supply place like McMaster Carr or MSC?
i've seen stuff like that at ACE or hobby stores
mx_599 is offline
Old 05-03-08, 02:19 PM
  #6
Ted Danson
Senior Member
Thread Starter

Ted Danson's Avatar

Join Date: Jul 2006
Location: Wisconsin
Posts: 377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by pyroguy_3 View Post
Can we have the specs of the pipe?
I will get the specs on the pipe later and I will edit it into my original post. My father got it for me from this catalog at his work.

Also, when you say "Use your dremel and cut your stainless pipe to the proper length, wrap some electrical tape around the end and slide it in:" you're putting electrical tape around what, and putting it in where?
You are putting electrical tape around the joint where the cable goes inside of the pipe.
1.) Because it makes it even more water proof
2.) It looks better than some blobbed up epoxy around the pipe
3.) It is more secure and doesn't budge when it is snapped inside the plastic holding piece.

You are putting it in a cable guide somewhere near the top of your fork. Your fork might already have a metal one, It might have a removable plastic one like mine did, or it just might not have one at all.
This is a zip tie type

Mine is simply that, but it was screw on.
__________________
Merton Enthusiast
Ted Danson is offline
Old 05-03-08, 02:26 PM
  #7
never
Custom User

never's Avatar

Join Date: Jul 2005
Location: T0L0K0
Posts: 3,739
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by XC Froot Loops View Post
You are putting electrical tape around the joint where the cable goes inside of the pipe.
1.) Because it makes it even more water proof
2.) It looks better than some blobbed up epoxy around the pipe
3.) It is more secure and doesn't budge when it is snapped inside the plastic holding piece.
Heat shrink would look and work better than electrical tape.
never is offline
Old 05-03-08, 02:28 PM
  #8
Ted Danson
Senior Member
Thread Starter

Ted Danson's Avatar

Join Date: Jul 2006
Location: Wisconsin
Posts: 377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by never View Post
Heat shrink would look and work better than electrical tape.
I suppose this is true. I didn't even think of that. The only kind I have that size is blue though
__________________
Merton Enthusiast
Ted Danson is offline
Old 05-03-08, 02:32 PM
  #9
idcruiserman
Mmmmm potatoes

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Heat shrink or silicone vulcanizing tape (Nashua Stretch-N-Seal tape @ Home Depot) would work great.
idcruiserman is offline
Old 05-03-08, 02:42 PM
  #10
Ted Danson
Senior Member
Thread Starter

Ted Danson's Avatar

Join Date: Jul 2006
Location: Wisconsin
Posts: 377
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just used what I had on hand. Theres not a huge need for anything considering the epoxy is waterproof.
__________________
Merton Enthusiast
Ted Danson is offline
Old 05-03-08, 02:49 PM
  #11
scrublover
Te mortuo heres tibi sim?

scrublover's Avatar

Join Date: Aug 2004
Location: East coast
Posts: 3,486

Bikes: hardtail, squishy, fixed roadie, fixed crosser

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I used heat shrink when I was running Avid mechanicals/FMJ housing. Worked very well to seal things up. Good job on the home brew setup.
