Help me choose a carbon seatpost

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Help me choose a carbon seatpost

Old 06-03-18, 11:19 AM
  #1
nadimk
Senior Member
Thread Starter

Join Date: Oct 2007
Posts: 84
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Help me choose a carbon seatpost

I love carbon seatposts for the way they feel. I have the old Enve single bolt and it is starting to slip and now will not stay level despite torqueing and carbon paste. The question I have is what carbon posts do people like for their clamping mechanism? Is single bolt universally bad? Has anyone used the Zipp SL speed carbon post? Thanks!
nadimk is offline
Old 06-03-18, 01:28 PM
  #2
king_solom0n
Senior Member

king_solom0n's Avatar

Join Date: Mar 2015
Posts: 62

Bikes: Fuji SL 25, Giant TCR Advanced SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 0 Times in 0 Posts
I have the Deda Superleggero RS seatpost. Only had it for a few months but no issues so far.
king_solom0n is offline
Old 06-04-18, 09:12 AM
  #3
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,878
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4667 Post(s)
Liked 1,795 Times in 972 Posts
I've had good luck with this style of post.

https://www.ebay.com/itm/Full-Carbon...lmUFkolerp_D_w
noodle soup is offline
Old 06-04-18, 09:53 AM
  #4
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts
Fizik R1
Sy Reene is offline
Likes For Sy Reene:
Old 06-04-18, 09:58 AM
  #5
evan326
Senior Member

Join Date: Sep 2016
Location: RVA
Posts: 514

Bikes: 2013 Cannondale Synapse 6 Tiagra + 2016 Cannondale CAAD 12 Dura Ace

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 231 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've got one similar to what @noodle soup posted, never slips.
evan326 is offline
Old 06-04-18, 10:59 AM
  #6
NILS14
Senior Member

NILS14's Avatar

Join Date: Mar 2015
Location: Quebec, Canada
Posts: 84

Bikes: Specialized Secteur Sport 2015, Vitus Zenium VRS 2014

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Fizik's clamping system is wonderful to use. I also like the FSA K-Force and it's available in a 32mm setback as well.
NILS14 is offline
Old 06-04-18, 02:51 PM
  #7
Jazzguitar
Senior Member

Join Date: Mar 2016
Location: Boston
Posts: 149
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 15 Times in 9 Posts
Add me to the list of Fizik R1 fans. Great design, only downside is that it’s slightly heavier than some other posts but I don’t care about that since it works so well.
Jazzguitar is offline
Old 06-05-18, 08:52 AM
  #8
JohnJ80
Senior Member

Join Date: Feb 2011
Location: Minnesota
Posts: 4,388

Bikes: N+1=5

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 738 Post(s)
Liked 124 Times in 96 Posts
Originally Posted by Jazzguitar View Post
Add me to the list of Fizik R1 fans. Great design, only downside is that it’s slightly heavier than some other posts but I don’t care about that since it works so well.
Me too. The Cyrano 00 is a brilliant seatpost. I just got one to replace a problematic Ritchey Flexlogix post that was slightly undersized and insisted on slipping (it goes egg shaped as it flexes fore and aft and then slipped). I had been a Fizik Cyrano fan for years (in Al) because their clamp is probably one of the easiest to adjust and one of the best out there. What really surprised me is that the 00 has such great vertical compliance - better than the Ritchey! So it's my new goto seatpost. The tilt adjustment is terrific (red arrow). You can easily dial it in and then move it tiny amounts from there.

Recommendation if you decide to get one - disassemble the seat post and lubricate/grease the bolt mounts indicated by the blue arrows. They can creak or squeak as the post flexes if you don't. Don't know why Fizik doesn't do it at the factory. I put some PTFE lube in there and it worked great.
JohnJ80 is offline
Likes For JohnJ80:
Old 06-05-18, 08:58 AM
  #9
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,553

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 4899 Post(s)
Liked 1,698 Times in 946 Posts
FSA SL-K SB20 ITC. Can be found for around 50 bucks, and uses a three bolt clamp-- one bolt for each rail, and one bolt to set the saddle tilt. That's right, you can change setback without messing with tilt, and vice versa. Fits round or oval rails.
__________________
DrIsotope is offline
Likes For DrIsotope:
Old 06-05-18, 04:38 PM
  #10
chaadster
Thread Killer

Join Date: Aug 2008
Location: Ann Arbor, MI
Posts: 10,259

Bikes: '15 Kinesis Racelight 4S, '76 Motebecane Gran Jubilée, '17 Dedacciai Gladiatore2, '12 Breezer Venturi, '09 Dahon Mariner, '12 Mercier Nano, '95 DeKerf Team SL, '19 Tern Rally, ‘21 Breezer Doppler Cafe+, ‘19 T Lab X3

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1447 Post(s)
Liked 463 Times in 291 Posts
Good reccos above, and I'll +1 the Deda Superleggero and FSA SL-K (though I use a 2-bolt variant). I use both, and actually have two of the SL-Ks in service. If I want to save weight, Deda, and if I want to save money, FSA!
chaadster is offline
Old 04-02-20, 09:26 PM
  #11
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Fizik Cyrano loosens during every ride so far

My new Fizik Cyrano seatpost loosens at the seat clamp during 3 of 3 rides so far. I am fortunate to not have been on a group ride. To make matters worse, I thought the bolts were No. 3 hex size but just found out tonight they are 1/8 inch hex...who uses a 1/8 inch sized hex?!? Who carries one on their bike, duh, I do now! Found owners with similar problems over at The Paceline forum and it seems they are using Loctite - sheesh! Shouldn't pay 2+ bills for a seatpost and then have to tighten it every ride. Have Tompsons on 3 other bikes and never realized one could have problems with a stupid seatpost.

mitch2 is offline
Old 04-03-20, 06:15 AM
  #12
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts
Originally Posted by mitch2 View Post
My new Fizik Cyrano seatpost loosens at the seat clamp during 3 of 3 rides so far. I am fortunate to not have been on a group ride. To make matters worse, I thought the bolts were No. 3 hex size but just found out tonight they are 1/8 inch hex...who uses a 1/8 inch sized hex?!? Who carries one on their bike, duh, I do now! Found owners with similar problems over at The Paceline forum and it seems they are using Loctite - sheesh! Shouldn't pay 2+ bills for a seatpost and then have to tighten it every ride. Have Tompsons on 3 other bikes and never realized one could have problems with a stupid seatpost.
Never heard of this issue with Cyranos. Found one person on Paceline who mentioned this, nobody else. R1 specifies 8nm torque though I've been fine at 6nm. This may be higher than other brands' clamps since the clamping surface area is larger than most (ie. a more spread out distribution of the clamping force).

My R1 uses a 4mm hex. I believe the 00 model uses a torx T25 head. No idea how/where you determined a 1/8" size?

Routine maintenance -- dissasembly and regreasing can help if there are creaks.
Sy Reene is offline
Old 04-03-20, 07:40 AM
  #13
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,379

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 297 Times in 237 Posts
No seat post should use a 3mm or 1/8 hex wrench. That would usually go with 4mm bolts, not the normal 5mm. Maybe new bolts will cure the problem. I've used nothing but the FSA k-force for many years, on many different bikes. Always works perfectly.
DaveSSS is online now
Old 04-03-20, 08:10 AM
  #14
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Sy Reene View Post
Never heard of this issue with Cyranos. Found one person on Paceline who mentioned this, nobody else. R1 specifies 8nm torque though I've been fine at 6nm. This may be higher than other brands' clamps since the clamping surface area is larger than most (ie. a more spread out distribution of the clamping force).

My R1 uses a 4mm hex. I believe the 00 model uses a torx T25 head. No idea how/where you determined a 1/8" size?

Routine maintenance -- dissasembly and regreasing can help if there are creaks.
It is a new CYRANO SEATPOST 00 in the 31.6 mm size. My experience is related to the saddle rail clamp and NOT the seat post clamp to the frame. Both djg21 and JohnH posted on paceline about having the same loosening problem. I don't want a problem, but three times in three rides (with two different saddles) is a bit much. Creaking has not been an issue for me. I am not sure about the Torx T25, which would be too large for the saddle rail clamp bolts. Interestingly, I cannot find these sizes listed on Fizik's website so I started by trying my normal metric Allen keys (that work on almost everything else on my 4 bikes) and was initially able to use a 3 mm (0.118 inches) but it was loose. I found that a 1/8 inch (0.125 inches) Allen key fits much tighter and works fine. I believe the bolt heads may be set up to use either Torx or Allen but at T25 (0.173 inches) you must be referring to the seatpost to frame clamp bolt because that would be much too large for the seat rail clamp, which must use a T15 (0.128 inches). BTW, both saddles I tried have carbon rails, if that makes any difference. I have really liked the feel of the post for the miles I have successfully put on it but during each ride the saddle started wobbling around causing me to stop and find that the saddle rail clamp had loosened. Interestingly, after I tightened it last night I found there is a small amount of side-to-side movement and so I wonder if that is causing loosening of the bolts. I plan to ride again today and will first adjust the tilt and then use some loctite as posted by JohnH.
mitch2 is offline
Old 04-03-20, 08:12 AM
  #15
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DaveSSS View Post
No seat post should use a 3mm or 1/8 hex wrench. That would usually go with 4mm bolts, not the normal 5mm. Maybe new bolts will cure the problem. I've used nothing but the FSA k-force for many years, on many different bikes. Always works perfectly.
I agree DaveSSS but a 4mm hex is for sure too large. Sy Reene is correct, it is not a 3mm, but it is also not a T25, which would be too big. It is either a T15 (0.128 inches) or a 1/8 inch (0.125 inches). My guess is that either will work.
mitch2 is offline
Old 04-03-20, 08:34 AM
  #16
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts
Originally Posted by mitch2 View Post
It is a new CYRANO SEATPOST 00 in the 31.6 mm size. My experience is related to the saddle rail clamp and NOT the seat post clamp to the frame. Both djg21 and JohnH posted on paceline about having the same loosening problem. I don't want a problem, but three times in three rides (with two different saddles) is a bit much. Creaking has not been an issue for me. I am not sure about the Torx T25, which would be too large for the saddle rail clamp bolts. Interestingly, I cannot find these sizes listed on Fizik's website so I started by trying my normal metric Allen keys (that work on almost everything else on my 4 bikes) and was initially able to use a 3 mm (0.118 inches) but it was loose. I found that a 1/8 inch (0.125 inches) Allen key fits much tighter and works fine. I believe the bolt heads may be set up to use either Torx or Allen but at T25 (0.173 inches) you must be referring to the seatpost to frame clamp bolt because that would be much too large for the seat rail clamp, which must use a T15 (0.128 inches). BTW, both saddles I tried have carbon rails, if that makes any difference. I have really liked the feel of the post for the miles I have successfully put on it but during each ride the saddle started wobbling around causing me to stop and find that the saddle rail clamp had loosened. Interestingly, after I tightened it last night I found there is a small amount of side-to-side movement and so I wonder if that is causing loosening of the bolts. I plan to ride again today and will first adjust the tilt and then use some loctite as posted by JohnH.
No.. I'm referring to the saddle rail clamp. A 00 Cyrano supposedly uses at T25 torx bolt. You also refer to 'bolts' -- there's really only I think one bolt that you typically tighten with a tool. It sounds like you're sticking a 1/8" allen key into a T25 head -- which fits somewhat, but is not a good idea at all; getting the right torque (up to 7nM for 00 I think is recommended) without rounding out the hole in the bolt is unlikely. A T25 driver is star shaped .173 measurement is from point of one star to end of the opposing star, not measured the same as an allen head. See pic below

Here's quick link to product description, which includes T25 mention:
https://www.biketiresdirect.com/prod...arbon-seatpost


Sy Reene is offline
Old 04-03-20, 08:55 AM
  #17
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts

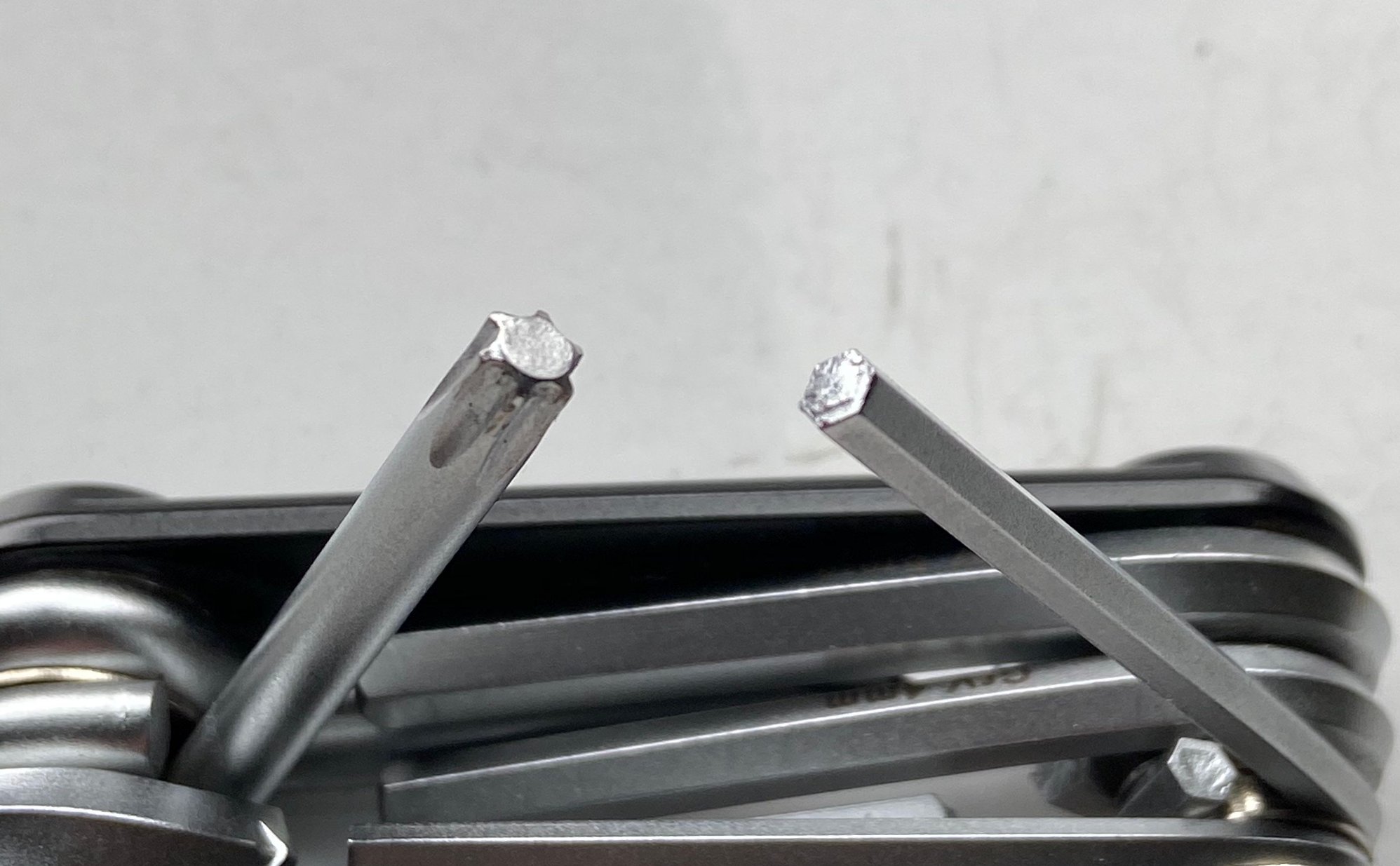

for comparison, here's what a 3mm vs T25 head looks like from my mini-tool. Sorry I don't have a 1/8" allen, but 3mm is close enough to give you an idea. You can see how you might get an allen about this size into the center of a T25's cutout, but not good.

Sy Reene is offline
Old 04-03-20, 10:16 AM
  #18
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,379

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 297 Times in 237 Posts
A T25 head is quite common with an M5 bolt. That's what my Zipp stems use. They come with the T25 torx wrench.
DaveSSS is online now
Old 04-03-20, 10:34 AM
  #19
RiceAWay
Senior Member

Join Date: Dec 2018
Posts: 392
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 251 Post(s)
Liked 98 Times in 70 Posts
Originally Posted by nadimk View Post
I love carbon seatposts for the way they feel. I have the old Enve single bolt and it is starting to slip and now will not stay level despite torqueing and carbon paste. The question I have is what carbon posts do people like for their clamping mechanism? Is single bolt universally bad? Has anyone used the Zipp SL speed carbon post? Thanks!
I have absolutely no idea how you can tell the difference in an Al and a CF seatpost through a saddle with any padding at all. Al seatposts such at Cannondale or Specialized are often lighter than a CF seatpost and they usually have much better clamping mechanisms than CF.

https://www.competitivecyclist.com/t...NjQ2F0MTAwMDg1
RiceAWay is offline
Old 04-03-20, 10:35 AM
  #20
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts
Originally Posted by RiceAWay View Post
I have absolutely no idea how you can tell the difference in an Al and a CF seatpost through a saddle with any padding at all. Al seatposts such at Cannondale or Specialized are often lighter than a CF seatpost and they usually have much better clamping mechanisms than CF.

https://www.competitivecyclist.com/t...NjQ2F0MTAwMDg1
Nobody's talking about the clamping of the seatpost in the frame. The discussion is now about the clamping of the saddle in the seatpost's clamp.
Sy Reene is offline
Old 04-03-20, 10:41 AM
  #21
Atlas Shrugged
Senior Member

Join Date: Mar 2010
Posts: 514
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 314 Times in 167 Posts
Canyon VCLS Carbon Post. Super comfortable post, defiantly will not regret it.

https://www.canyon.com/en-at/gear/co...st/148289.html
Atlas Shrugged is offline
Old 04-03-20, 10:51 AM
  #22
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
test
mitch2 is offline
Old 04-03-20, 11:16 AM
  #23
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Sy Reene, you are indeed correct, this appears to be a T25 torx head. I tried a T15 which was too small and a T20, which "worked" but seemed a bit loose. I do not have a T25 torx here but I will get one. It seems in the Torx world, the dimension given (at least in the source I accessed) is the overall outside dimension of the hex stock prior to cutting the torx shape of the end. So while the T15 and 1/8 inch hex have almost identical overall outside dimensions, after shaping/cutting the head the T15 is actually much smaller and the T25 is the correct size. The 1/8 inch hex seems to work well to tighten the bolt but I will get the T25 because it will probably reduce wear on the bolt compared to using the hex key. Not sure why they wouldn't just use a standard metric sized hex like everyone else since those are the tools most of us carry to fix stuff when we are on the road far from home.

None of that has anything to do with why this connection keeps loosening up when I ride. I have ridden Thomson posts and stems for many years on all 4 of my bikes and have NEVER had one loosen up during a ride. I will if the loctite solves the problem but it will be difficult for me to ever fully trust this post. I do a long unsupported ride each summer and unfortunately, I will probably have a hard time trusting this post for something like that. I like things as simple as possible and carrying an extra (torx) key plus loctite in my saddlebags is not making things easier.
I tried to post a picture showing the "bolt" that came with my seatpost, but since I am new with less than 10 posts I was unable to either post it or send it to you by private email.
mitch2 is offline
Old 04-03-20, 11:48 AM
  #24
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,968

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3673 Post(s)
Liked 818 Times in 547 Posts
Originally Posted by mitch2 View Post
None of that has anything to do with why this connection keeps loosening up when I ride. .
Many mini-tools come now with a T25.. maybe time to get a new one :-) Search on Amazon for a "SKS Tom 7" for a minimalist one.

Is the actual bolt coming loose, or it stays tightened but the saddle is slipping? If the latter, try a little assembly paste on the clamping surface.

Otherwise, all I can surmise, is that one of only a few things is going on:
1. The bolt has never been able to be tightened enough (6-7Nm) using the allen key so it's just naturally jiggling loose. Getting a T25 tool may help. or
2. The bolt or the receiving 'nut' is stripped
3. It's possible you have a saddle rail shape that isn't supported by the fizik clamp so the rails are shifting and causing clamp to loosen. But this should be unlikely, I've used mine with round and 7x9 carbon rails without issue.

Basically there's nothing special about a bolt and the 'nut' it threads into, so there's not a design flaw as far as I can imagine -- so thinking there must be something else going on.
Sy Reene is offline
Likes For Sy Reene:
Old 04-03-20, 12:10 PM
  #25
mitch2
Junior Member

Join Date: Mar 2020
Location: West Michigan
Posts: 10

Bikes: Litespeed Solano, Cannondale Super Six Evo, Kona Big Kahuna, Trek Farley 9.6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I hear you and understand what you are saying, which is what makes this so frustrating. It is one or both bolts that are actually loosening up, and not the saddle shifting. The bolt was tight to begin with (to 7N-m as recommended) and the saddle was solid on the clamp with no shifting whatsoever. The shifting seems to begin after about 10-15 miles of riding (on paved roads - nothing unusual). The saddles used so far were a Brooks C13 with carbon rails and a Selle Anatomica with carbon rails. It happened with both. The back bolt has a washer that is beveled on one side so that it fits into a slightly countersunk opening on the little cylinder that extends through the back end of the post. There is no lock nut. The torx vs. hex thing is not the issue here but rather that the clamping mechanism will not keep the saddle secure. This will either resolve with loctite or I will sell it to somebody who likes these, put a Thomson back on, and move on. Too bad since it is a brand new post.
mitch2 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
