Old 11-23-20, 12:47 PM
  #1301
sean.hwy
Senior Member

Join Date: Jan 2020
Location: San Jose
Posts: 343

Bikes: Giant Revolt Advance 2 / SystemSix Carbon Ultegra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 74 Times in 54 Posts
https://www.lightbicycle.com/

:-)

sean.hwy is offline
Old 11-25-20, 09:19 AM
  #1302
cuevélo
Senior Member

Join Date: Jun 2007
Location: Maine
Posts: 194

Bikes: '20 Scott Addict RC 30, '13 Trek Soho Deluxe, '91 Greg Lemond Maillot Jaune, Mid '70s Cuevas

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 14 Posts
Does anyone have insights to decide between these two options? I currently run my OEM wheels with Schwalbe One TLE 28 tubless, which measure about 28.4mm inflated. I ride decent pavement for the most part, but could put my OEM wheels on if I was planning on going over extensive dirt/smooth gravel. I'm looking for the faster wheel at ~20mph on decent quality pavement.

WR50 (32mm external width) rim, run 28mm tires tubeless, which would measure 31.2mm according to LB
AR45 (28mm external width) rim, run 25mm tires tubeless, measure 28.6mm
cuevélo is offline
Old 11-25-20, 12:41 PM
  #1303
smashndash
Senior Member

Join Date: Feb 2018
Posts: 1,169

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 240 Times in 170 Posts
Originally Posted by cuevélo View Post
Does anyone have insights to decide between these two options? I currently run my OEM wheels with Schwalbe One TLE 28 tubless, which measure about 28.4mm inflated. I ride decent pavement for the most part, but could put my OEM wheels on if I was planning on going over extensive dirt/smooth gravel. I'm looking for the faster wheel at ~20mph on decent quality pavement.

WR50 (32mm external width) rim, run 28mm tires tubeless, which would measure 31.2mm according to LB
AR45 (28mm external width) rim, run 25mm tires tubeless, measure 28.6mm
I would say, unless you're racing, you should stay away from ultra wide rims with relatively skinny tires. I use 25mm tires on AR56s (30mm) and my friend uses 25mm tires on AR46s (28mm). We both have suffered chips to the edges of our rims from random rocks.

Riding in actual dirt/gravel with such a setup would be a bad, bad idea. My friend ordered a new rim after just one chip, to be on the safe side.

A less serious effect is that, with ultra wide rims, the contact patch gets wider. This is a good thing, but most tires are not optimized for wide rims and low pressures. So, if you actually try to lean on such a setup, you'll run out of tread very quickly and end up riding on sidewall. There are 4 solutions:

1) use a tire with a wider tread like the Corsa Control
2) use a narrower rim
3) use higher pressures to reduce the size of the contact patch
4) use a bigger tire

If you're a light person, I would recommend going with a 28 on the AR45. If you're heavy, I'd recommend going with 30 or 32 on the WR50.

FWIW I have had absolutely no issues with stability on my AR56. And I'm quite light (145lbs). Regularly hit 50mph. I'd recommend the AR55 over the AR45.
smashndash is offline
Old 11-25-20, 01:16 PM
  #1304
cuevélo
Senior Member

Join Date: Jun 2007
Location: Maine
Posts: 194

Bikes: '20 Scott Addict RC 30, '13 Trek Soho Deluxe, '91 Greg Lemond Maillot Jaune, Mid '70s Cuevas

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 14 Posts
Originally Posted by smashndash View Post
If you're a light person, I would recommend going with a 28 on the AR45. If you're heavy, I'd recommend going with 30 or 32 on the WR50.

FWIW I have had absolutely no issues with stability on my AR56. And I'm quite light (145lbs). Regularly hit 50mph. I'd recommend the AR55 over the AR45.
How do yours do in crosswinds? I'm 135-140lbs, 5'9-5'10
cuevélo is offline
Old 11-28-20, 01:14 PM
  #1305
smashndash
Senior Member

Join Date: Feb 2018
Posts: 1,169

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 240 Times in 170 Posts
Originally Posted by cuevélo View Post
How do yours do in crosswinds? I'm 135-140lbs, 5'9-5'10
That's what I meant with no issues with stability. I can't ride over 22ish mph with no hands because of the danger of sudden gusts, but as long as I have 2 hands on the bars, it's not an issue.

Expect to have to actively counter crosswinds, but it's nothing you can't handle.
smashndash is offline
Old 03-16-21, 06:56 AM
  #1306
Rides4Beer
Senior Member

Join Date: Oct 2018
Location: SC
Posts: 1,393

Bikes: SuperSix Evo | Revolt

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 697 Post(s)
Liked 743 Times in 388 Posts

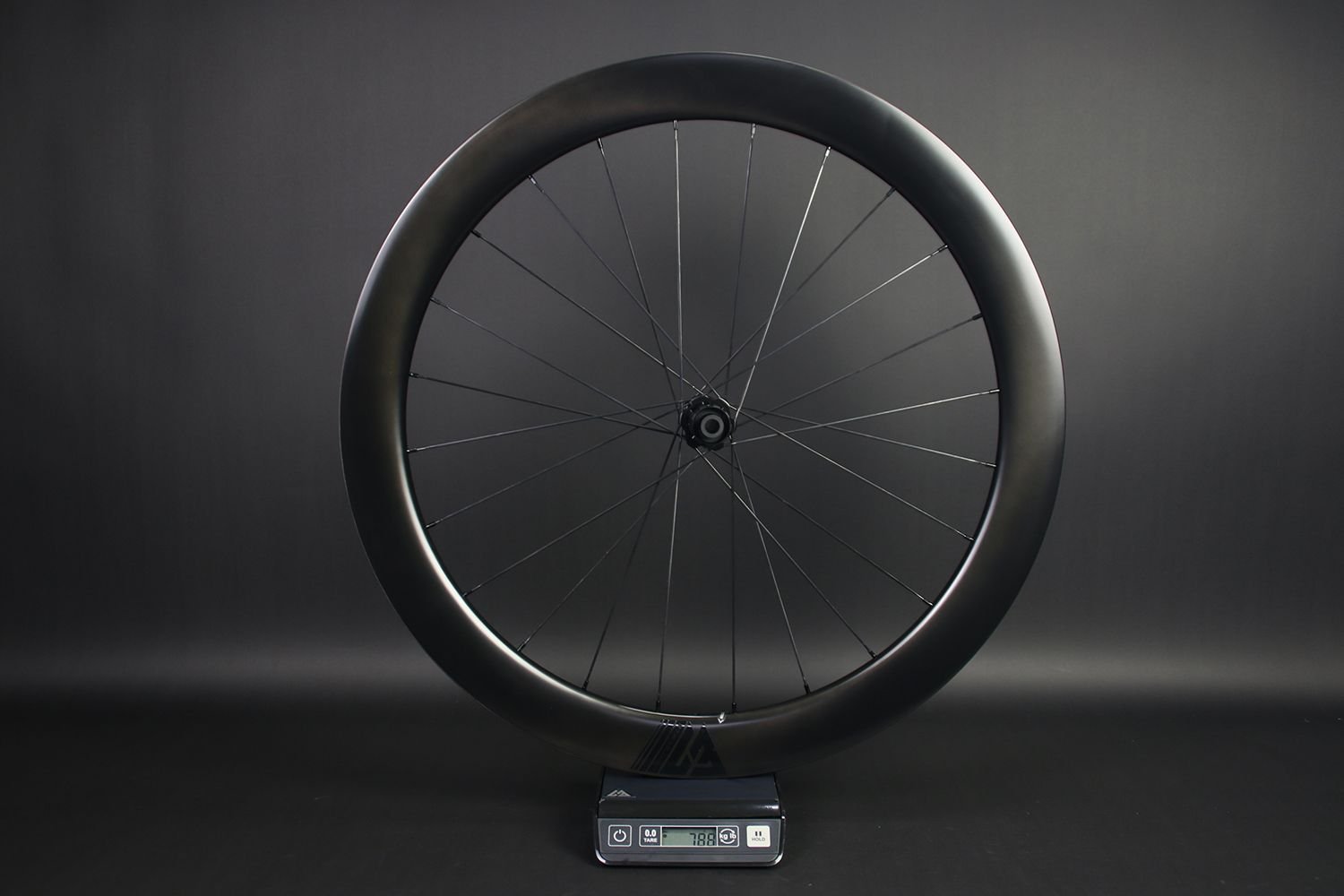

New wheels are finished, just have to wait for them to get here.

AR56, DT240 EXP, satin finish w/Pro decals, no holes, CX-Ray/CX-Sprint rear, CX-Ray front, 1462g.





Rides4Beer is offline
Likes For Rides4Beer:
Old 03-19-21, 02:36 PM
  #1307
cuevélo
Senior Member

Join Date: Jun 2007
Location: Maine
Posts: 194

Bikes: '20 Scott Addict RC 30, '13 Trek Soho Deluxe, '91 Greg Lemond Maillot Jaune, Mid '70s Cuevas

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 14 Posts
Ar45

Another wheelset just came in!

AR45, flyweight, hookless, paintless UD, without rim bed holes, with water drain holes. Carbon-Ti X-Hub SP Centerlock. Sapim CX Ray spokes with brass Polyax Secure Lock nipples.

Quoted weight: 1318.38 ±25 g
Actual weight: 618 front + 715 rear = 1333 g, without valves, lockrings, or tape (not needed)

Schwalbe ONE TLE 25mm tires measure just about 27mm wide.

The valves are very nice. Someone said you won't find any nicer ones for a better price and they're definitely right about that.

I may be able to get outside and use them next week!

Also, for anyone who might be waiting on an MTS delivery, mine took 18 days from when they shipped to when they "Arrived at port - Import," and 26 more days to when they were actually in UPS's hands.

cuevélo is offline
Likes For cuevélo:
Old 03-21-21, 07:55 AM
  #1308
cybirr
Beer & Bikes

cybirr's Avatar

Join Date: May 2008
Location: USA
Posts: 99

Bikes: '07 Specialized Roubaix Expert, '20 Specialized Roubaix Expert, '20 Specialized Shiv Elite

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 76 Times in 33 Posts
Originally Posted by cuevélo View Post

Also, for anyone who might be waiting on an MTS delivery, mine took 18 days from when they shipped to when they "Arrived at port - Import," and 26 more days to when they were actually in UPS's hands.
Yes, the MTS shipping slows wayyyyy down once it reaches the US port of Los Angeles, CA. These are Light Bicycle Falcon 65s with DTSwiss 350 hubs. And I am impressed with the speed. Cross wind have been up to about 7 mph and not a serious problem, yet. Mounting the Continental GP5000 TL 25mm were an absolute pain but doable. I am trying a TT series this year and will give a post-ride and post-season report.

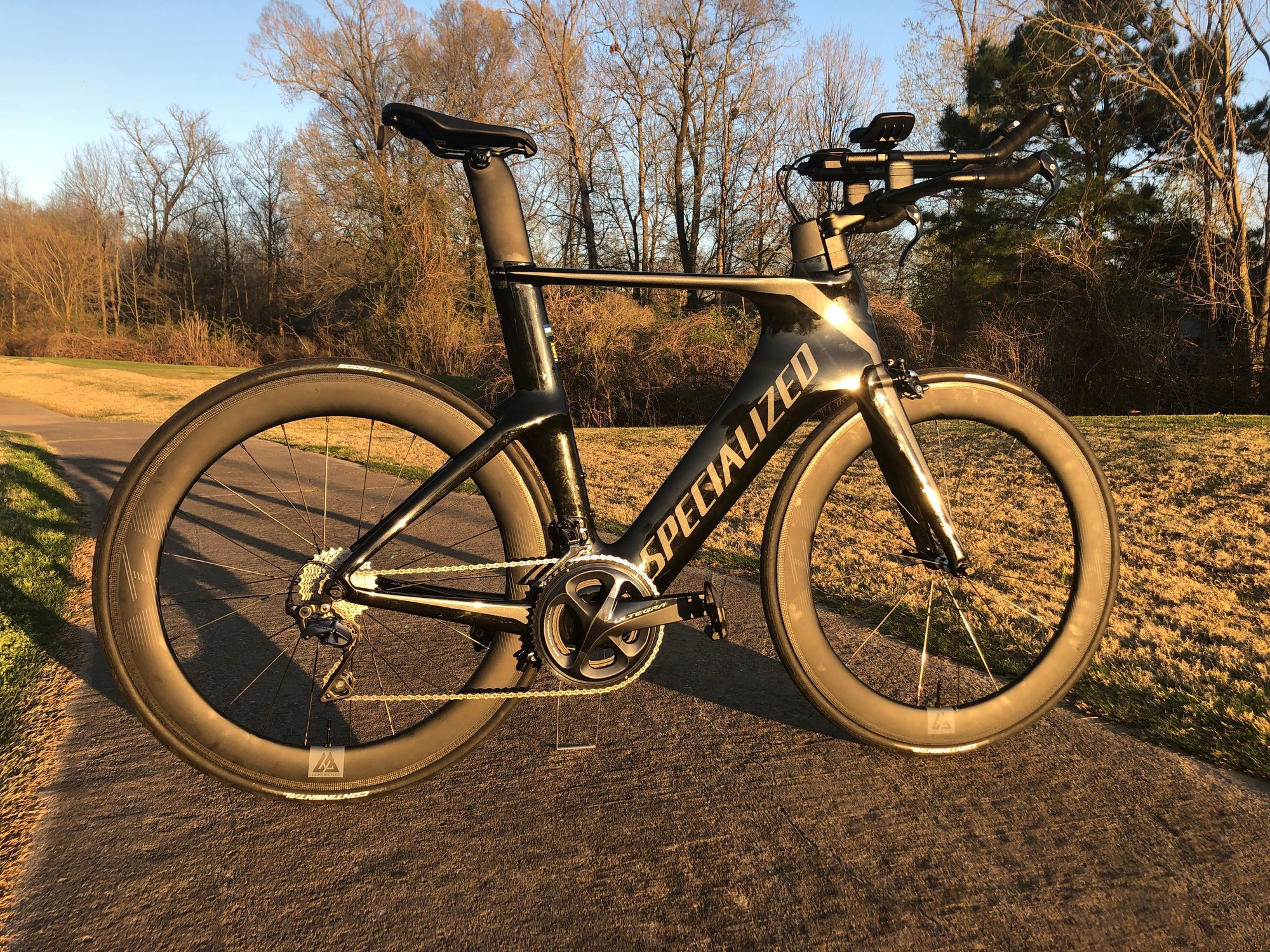

Specialized Shiv Elite with upgraded drive train and wheel set.
cybirr is offline
Likes For cybirr:
Old 03-21-21, 05:44 PM
  #1309
illdrag0n
Senior Member

illdrag0n's Avatar

Join Date: Mar 2015
Posts: 315

Bikes: 2014 Focus Mares AX 2.0, 2019 Cube Litening C:62 Race Disc Teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Likes: 0
Liked 137 Times in 65 Posts
Just checking in. 8000kms on my AR46. I'm 120kg and 0 issues so far with strength and still run true.

illdrag0n is offline
Old 04-20-21, 11:12 PM
  #1310
BlueRaspberry
Gravelist

BlueRaspberry's Avatar

Join Date: Apr 2021
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 3 Posts
Has anyone seen, have additional info, or an opinion on these new "X-Flow" rims from LightBicycle? Introducing Falcon Pro AR375 & AR465 (lightbicycle.com)
(They're apparently launching a WR40 variant as well)
BlueRaspberry is offline
Old 04-21-21, 12:23 AM
  #1311
smashndash
Senior Member

Join Date: Feb 2018
Posts: 1,169

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 240 Times in 170 Posts
Originally Posted by BlueRaspberry View Post
Has anyone seen, have additional info, or an opinion on these new "X-Flow" rims from LightBicycle? Introducing Falcon Pro AR375 & AR465 (lightbicycle.com)
(They're apparently launching a WR40 variant as well)
Nothing intelligent to say besides take those claims with a grain of salt - don't go telling your friends your wheels are 37% faster than theirs. I'd also like to see a 55-60mm version. Kinda leaving the aero weenies high and dry here. Now you have to pick between a proven source of aero gains (deep rims) and an unproven one that might be faster. It would be nice to not have to pick.
smashndash is offline
Old 04-21-21, 01:30 AM
  #1312
BlueRaspberry
Gravelist

BlueRaspberry's Avatar

Join Date: Apr 2021
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 3 Times in 3 Posts
It's probably something akin to the new Zipp 353 - trying to combine the aero gains of deeper rims with the better crosswind handling (and lighter weight) of shallower rims.
Zipp 353 NSW info - Bike Forums
BlueRaspberry is offline
Old 04-21-21, 08:03 PM
  #1313
Rides4Beer
Senior Member

Join Date: Oct 2018
Location: SC
Posts: 1,393

Bikes: SuperSix Evo | Revolt

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 697 Post(s)
Liked 743 Times in 388 Posts

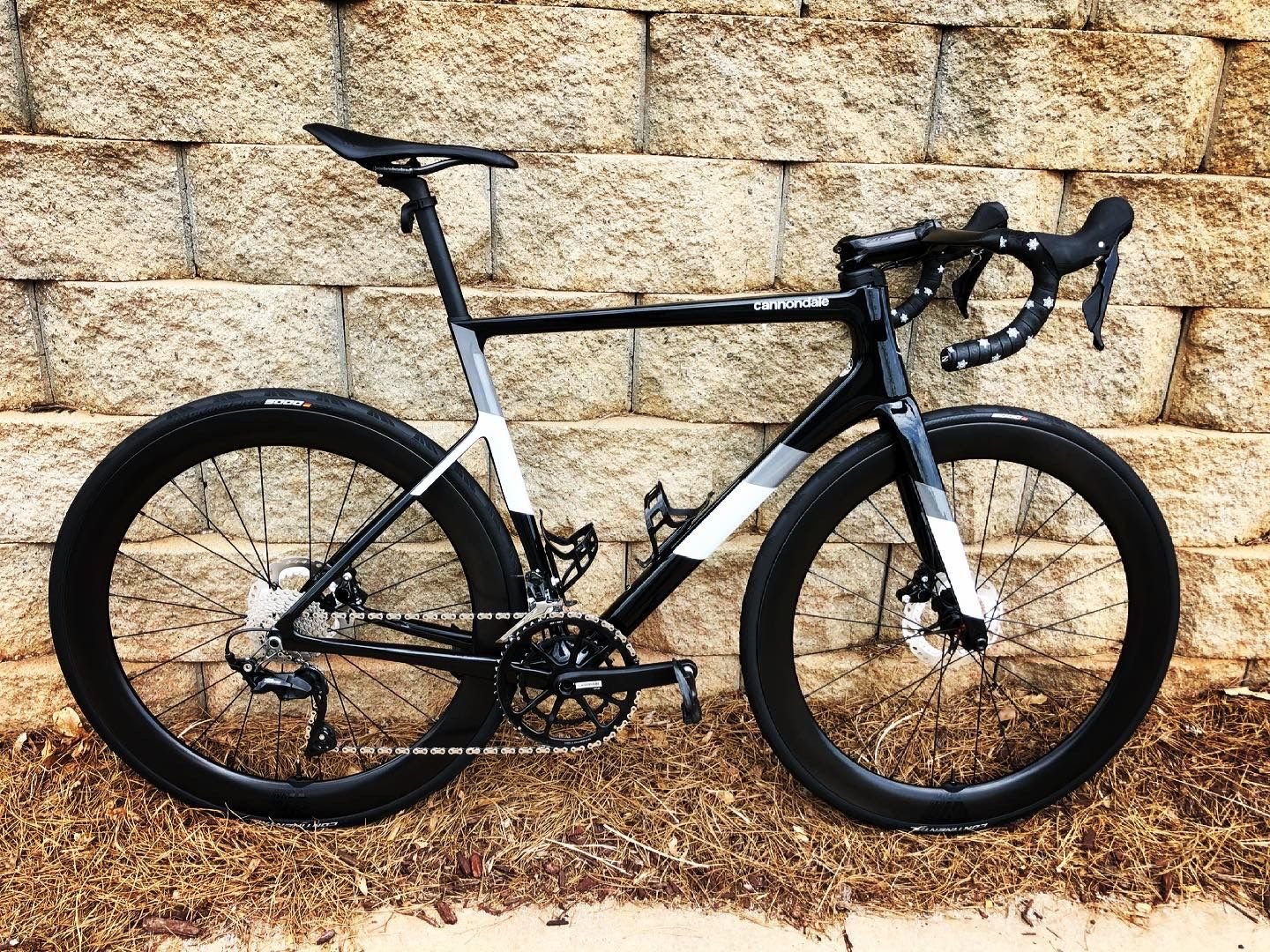

Love these wheels. Pic is with a 28mm GP5K on the rear and a 25mm up front, I have since switched to a 28mm up front, with no perceptible loss in speed, and wind handling is still good. I'm 84kg, and the roads here are crappy, so even if I'm giving up a few watts, it's worth it for the extra comfort. They are light and stiff and ride great.

AR56s, satin finish, no holes, DT240EXP hubs, 1455g.


Rides4Beer is offline
Likes For Rides4Beer:
Old 04-22-21, 07:02 AM
  #1314
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 34,056

Bikes: R3 Disc, Haanjo

Mentioned: 343 Post(s)
Tagged: 1 Thread(s)
Quoted: 16286 Post(s)
Liked 5,008 Times in 2,623 Posts
Originally Posted by smashndash View Post
Nothing intelligent to say besides take those claims with a grain of salt - don't go telling your friends your wheels are 37% faster than theirs.
Not fer nuthin', but saying that a wheel has 37% less aero drag != wheel is 37% faster.

Also not fer nuthin', but running these comparisons at ~37mph is kind of... interesting.
WhyFi is offline
Likes For WhyFi:
Old 05-04-21, 10:08 PM
  #1315
MinnMan
Senior Member

MinnMan's Avatar

Join Date: Aug 2009
Location: Minneapolis
Posts: 3,743

Bikes: 2020 Salsa Warbird GRX 600, 2020 Canyon Ultimate CF SLX disc 9.0 Di2, 2020 Catrike Eola, 2016 Masi cxgr, 2011, Felt F3 Ltd, 2010 Trek 2.1, 2009 KHS Flite 220

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2792 Post(s)
Liked 1,673 Times in 1,010 Posts
Has anybody purchased the "flyweight" version of Lightbicycle wheels? They provide nice weight savings at the expense of some strength. For example, for the Falcon WR35s with Novatecc hubs, the Flyweight wheelset comes in at about 1345 grams instead of 1445. Lightbicycle says that they are good for rider weights up to 90 kg.


https://www.lightbicycle.com/newslet...Duty-Rims.html

Very tempting, particularly as the wheelset cost is around $600. But I hesitate - particularly because these would be for a gravel bike, where a little heavier and stronger would be wise.

Just wondering if anybody has gone with flyweights, and if so, for what kind of riding, rider weight, et.
MinnMan is offline
Old 05-04-21, 10:34 PM
  #1316
terrymorse
climber has-been

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 3,579

Bikes: Scott Addict R1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 208 Times in 146 Posts
Originally Posted by sean.hwy View Post

Looks like we're neighbors.



Terry's cycling heat map
__________________
Ride, Rest, Repeat
terrymorse is offline
Likes For terrymorse:
Old 05-04-21, 11:05 PM
  #1317
Badger6
Obsessed with Eddington

Badger6's Avatar

Join Date: Jun 2013
Location: Brussels (BE) 🇧🇪
Posts: 564

Bikes: '15 Spesh Diverge, '14 Spesh Fatboy, '18 Spesh Epic, '18 Spesh SL6, '21 Spesh SL7, '21 Spesh Diverge...and maybe n+1?

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 168 Times in 119 Posts
Originally Posted by MinnMan View Post
Has anybody purchased the "flyweight" version of Lightbicycle wheels? They provide nice weight savings at the expense of some strength. For example, for the Falcon WR35s with Novatecc hubs, the Flyweight wheelset comes in at about 1345 grams instead of 1445. Lightbicycle says that they are good for rider weights up to 90 kg.


https://www.lightbicycle.com/newslet...Duty-Rims.html

Very tempting, particularly as the wheelset cost is around $600. But I hesitate - particularly because these would be for a gravel bike, where a little heavier and stronger would be wise.

Just wondering if anybody has gone with flyweights, and if so, for what kind of riding, rider weight, et.
I have no experience using this specific rim...but, knowing enough about wheel building (which isn't a lot, but I have built wheels that are still going strong), I suspect that in practice (real world application) there is likely no discernible difference to the rider between the rims in terms of strength or durability, or even ability of the rider to feel the weight...especially on gravel. On a test bench, the flyweights probably fail earlier than the standard rims, but under what conditions and/or test method?

A couple of random thoughts...90kg rider weight? or, is it really 90kg rider + bike weight? Also, what kind of gravel? Hard packed, yet generally not rutted or potholed fire roads? or, chunky gravel and ruts and potholes? or, non-technical single track?

I'd also consider if the weight savings is really that important? 100g is 3.5 oz...across the whole wheelset. Will it make a difference on a gravel bike? I think no, but YMMV. Additionally, Light Bicycle publishes the weights of the rims with a +/-15g, which means in theory, your weight savings may be much less than 100g. I am definitely not taking a position, but before I decided which rim to buy for a build, I would (and have) wrestle(d) with some of these questions. And, there is nothing wrong with seeking the lightest possible wheel build.
Badger6 is online now
Old 05-05-21, 07:29 AM
  #1318
MinnMan
Senior Member

MinnMan's Avatar

Join Date: Aug 2009
Location: Minneapolis
Posts: 3,743

Bikes: 2020 Salsa Warbird GRX 600, 2020 Canyon Ultimate CF SLX disc 9.0 Di2, 2020 Catrike Eola, 2016 Masi cxgr, 2011, Felt F3 Ltd, 2010 Trek 2.1, 2009 KHS Flite 220

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2792 Post(s)
Liked 1,673 Times in 1,010 Posts
Originally Posted by Badger6 View Post
I have no experience using this specific rim...but, knowing enough about wheel building (which isn't a lot, but I have built wheels that are still going strong), I suspect that in practice (real world application) there is likely no discernible difference to the rider between the rims in terms of strength or durability, or even ability of the rider to feel the weight...especially on gravel. On a test bench, the flyweights probably fail earlier than the standard rims, but under what conditions and/or test method?

A couple of random thoughts...90kg rider weight? or, is it really 90kg rider + bike weight? Also, what kind of gravel? Hard packed, yet generally not rutted or potholed fire roads? or, chunky gravel and ruts and potholes? or, non-technical single track?

I'd also consider if the weight savings is really that important? 100g is 3.5 oz...across the whole wheelset. Will it make a difference on a gravel bike? I think no, but YMMV. Additionally, Light Bicycle publishes the weights of the rims with a +/-15g, which means in theory, your weight savings may be much less than 100g. I am definitely not taking a position, but before I decided which rim to buy for a build, I would (and have) wrestle(d) with some of these questions. And, there is nothing wrong with seeking the lightest possible wheel build.
As indicated in the link from lightbicycles that I included in the post, the 90 kg is rider weight, not rider+bike weight.

btw, for an otherwise identical build, the "flyweight" option that shaves ~100 grams adds just $12 to the cost.

Still curious to hear from anybody who might have actually bought their flyweight builds.
MinnMan is offline
Old 05-05-21, 07:26 PM
  #1319
SapInMyBlood
Enthusiastic Sufferer

SapInMyBlood's Avatar

Join Date: Nov 2017
Location: Perth, Australia
Posts: 101

Bikes: 2015 Specialized Roubaix, 2014 Salsa Fargo, 2013 Trek Remedy, 2014 Cannondale Synapse

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 39 Times in 27 Posts
Originally Posted by MinnMan View Post
As indicated in the link from lightbicycles that I included in the post, the 90 kg is rider weight, not rider+bike weight.

btw, for an otherwise identical build, the "flyweight" option that shaves ~100 grams adds just $12 to the cost.

Still curious to hear from anybody who might have actually bought their flyweight builds.
For $12, I would send it 👍
SapInMyBlood is offline
Old 05-06-21, 02:50 AM
  #1320
Badger6
Obsessed with Eddington

Badger6's Avatar

Join Date: Jun 2013
Location: Brussels (BE) 🇧🇪
Posts: 564

Bikes: '15 Spesh Diverge, '14 Spesh Fatboy, '18 Spesh Epic, '18 Spesh SL6, '21 Spesh SL7, '21 Spesh Diverge...and maybe n+1?

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 168 Times in 119 Posts
Originally Posted by MinnMan View Post
As indicated in the link from lightbicycles that I included in the post, the 90 kg is rider weight, not rider+bike weight.
That link says that…but when you go to a wheel building page, it lists “total weight” as 90kg.
Badger6 is online now
Old 05-06-21, 07:53 AM
  #1321
cuevélo
Senior Member

Join Date: Jun 2007
Location: Maine
Posts: 194

Bikes: '20 Scott Addict RC 30, '13 Trek Soho Deluxe, '91 Greg Lemond Maillot Jaune, Mid '70s Cuevas

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 14 Posts
Originally Posted by MinnMan View Post
Still curious to hear from anybody who might have actually bought their flyweight builds.
My wheels are the flyweight version, though I only have 1000km on them at this point. My maximum system weight is about 75kg, so I felt confident getting them instead of the standard version. I haven't had any problems so far.
cuevélo is offline
Old 05-06-21, 03:36 PM
  #1322
scottfsmith
Senior Member

Join Date: Feb 2021
Location: Merry Land USA
Posts: 154

Bikes: Roubaix Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 46 Times in 31 Posts
I ordered flyweight but they emailed me saying it would add a couple months wait. So I nixed it.

Hey I think they still owe me $12..
scottfsmith is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Kimmo
Road Cycling
34
09-01-19 08:02 PM
snookanglr
Road Cycling
3
07-25-16 10:40 PM
dvdslw
Road Cycling
36
12-30-15 10:59 AM
chaadster
Road Cycling
24
08-04-14 04:55 AM
robncircus
Road Cycling
31
03-08-10 09:34 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
