Ever see something like this?
You guys ever seen something like this?

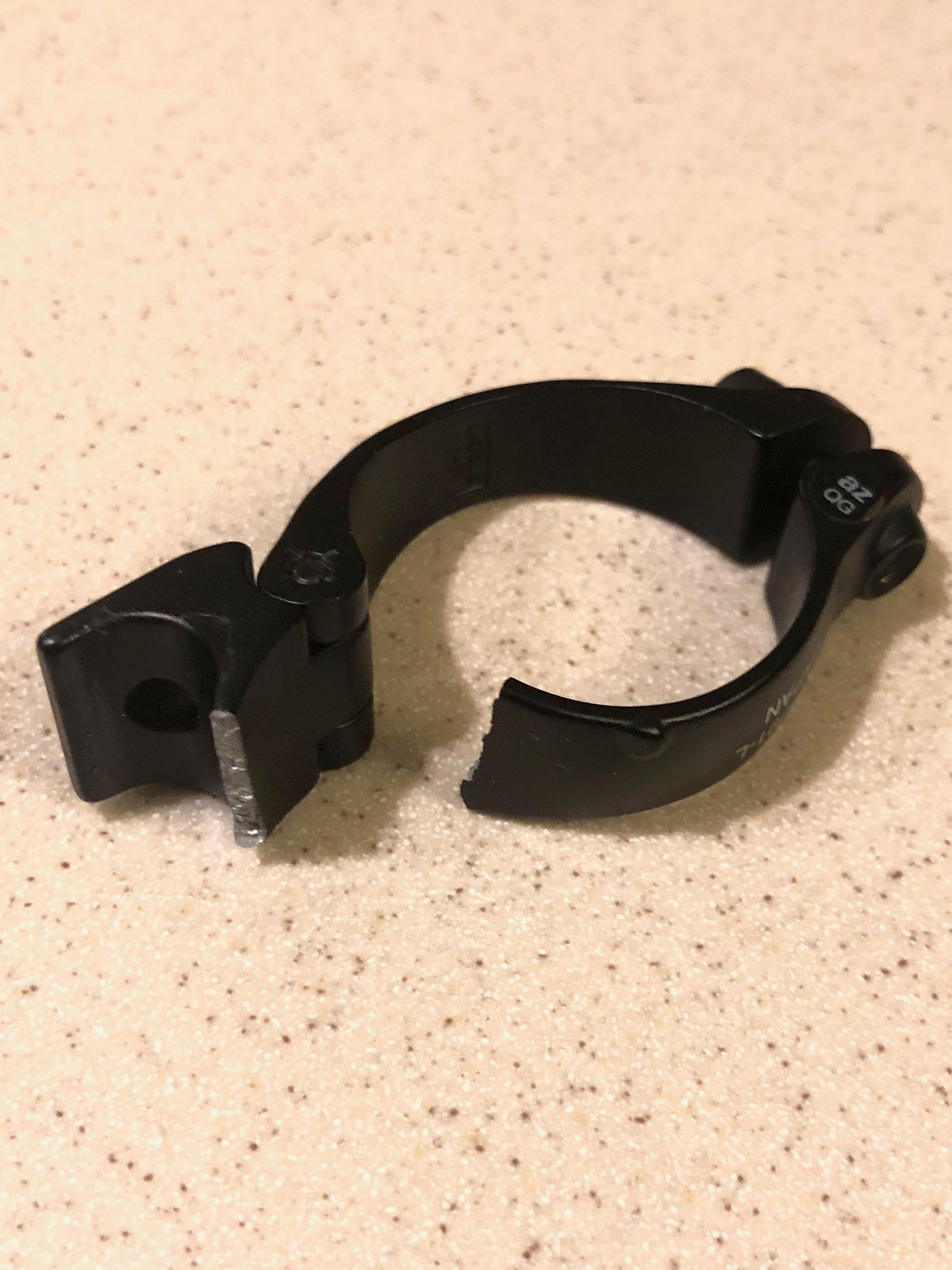

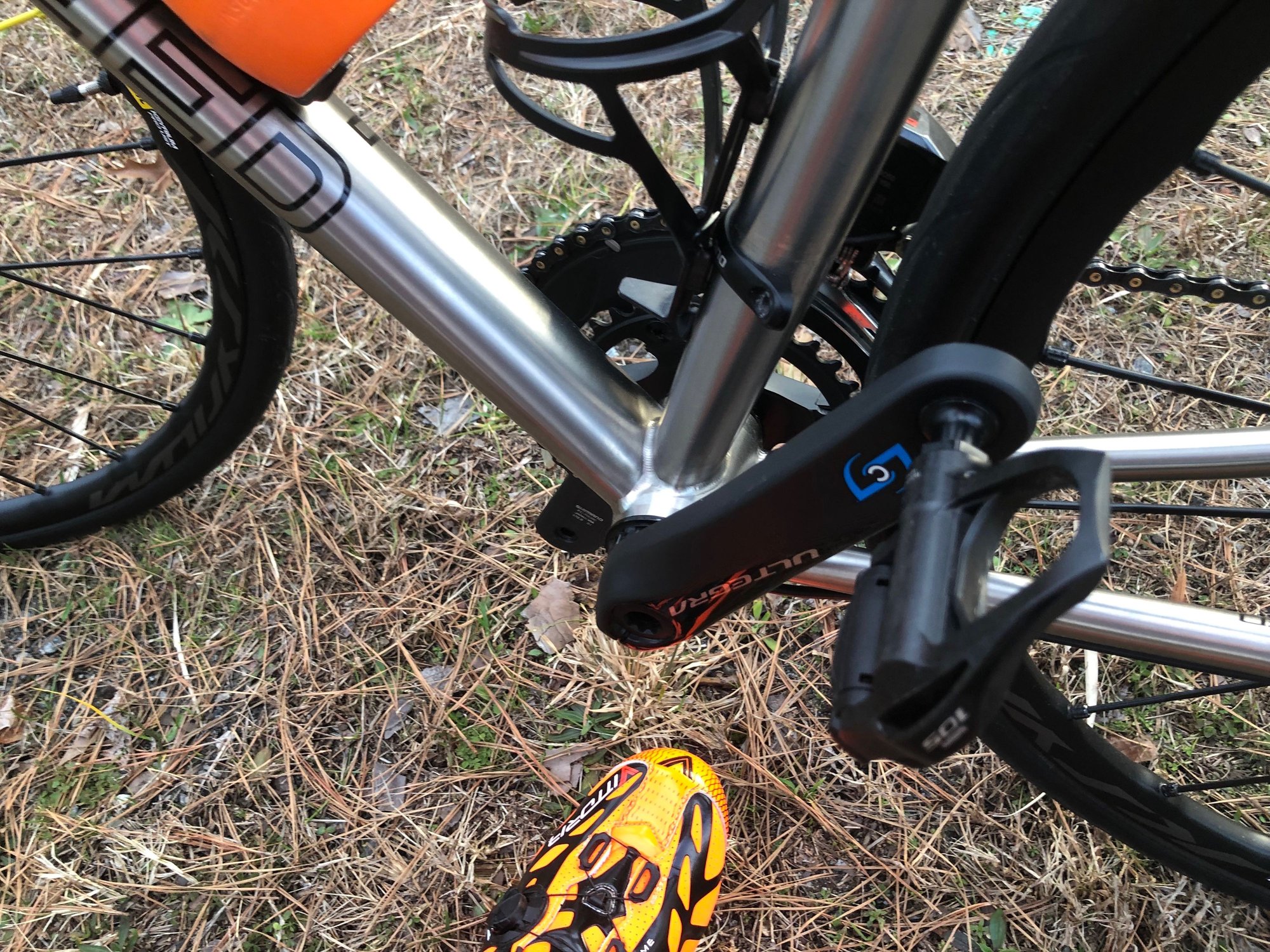

Was in the process of starting a sprint and the front derailleur adapter just snapped in half. (less than 4 months old).
This is a Dura Ace FD-R9150 SM-AD91-L adapter (34.9mm). I was already in the big ring (no front shift) and had just shifted the rear before stomping on it. I ended up ordering a replacement off Amazon and sent Shimano a message to see what they have to say.

Was in the process of starting a sprint and the front derailleur adapter just snapped in half. (less than 4 months old).
This is a Dura Ace FD-R9150 SM-AD91-L adapter (34.9mm). I was already in the big ring (no front shift) and had just shifted the rear before stomping on it. I ended up ordering a replacement off Amazon and sent Shimano a message to see what they have to say.



#2
Senior Member
Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,634
Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 621 Post(s)
Liked 731 Times
in
412 Posts
Looks like pot metal, the MDF of metals. Turns up everywhere these days
#3
Senior Member
Join Date: Dec 2007
Location: NWNJ
Posts: 3,663
Bikes: Road bike is a Carbon Bianchi C2C & Grandis (1980's), Gary Fisher Mt Bike, Trek Tandem & Mongoose SS MTB circa 1992.
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked 322 Times
in
210 Posts
You must have huge powerful quads
Likes For thehammerdog:
#5
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
Yeah, I've been searching and haven't found much info. I can't speak to torque as it came assembled from the manufacturer. I think it does look like pot metal, like Litespud mentioned. I only put out 817 watts before it snapped. I can only imagine it being some kind of defect.
#6
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
Well, Shimano said they would warrantee it, but I would have to bring the bike to an authorized dealer and have them look it over, order the part and install it.
#7
Senior Member
Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,571
Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2297 Post(s)
Liked 1,063 Times
in
618 Posts
Titanium bike with cast aluminum clamp using a steel bolt ?.
The aluminum gives first when over tightened, so likely at whomever assembled.
I can't say I've ever read of this.
The aluminum gives first when over tightened, so likely at whomever assembled.
I can't say I've ever read of this.
#8
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
I agree Steve, I wish I could say that it was overtightened, but can't. I do know both bolts have the same torque specifications 6-7nm.....and the bolt that secured the derailleur to the adapter did not feel overtightened when I took it off.
#11
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
New adapter clamp is installed. I know the torque is spot on as I did it myself. Will see if this was just a fluke occurrence.
#12
Sophomore Member
Join Date: Jan 2019
Posts: 2,690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
Liked 1,051 Times
in
627 Posts
Maybe it was already broken from a previous front shift made under heavy torque, and was just barely hanging together. The rear shift was enough to knock it loose.
That's a possibility I suppose.
That's a possibility I suppose.
#13
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 23,489
Bikes: Several, mostly not name brands.
Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2943 Post(s)
Liked 1,957 Times
in
1,170 Posts
#14
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
I could see that being a possibility, but the sound was impressive. Guy that I was chasing heard it and thought someone crashed, that's how loud it was. I made the rear shift just as he was passing on my left and it popped when he was in front of me.
#16
Advocatus Diaboli
Interesting about the too-much-torque theory.. aren't folks always warning against clamping a seatube when putting bike in a stand for fear of crushing the seat tube (ie. always use the seatpost). I can't imagine those workstands with the rubberised clamps would ever exert more psi on the tube than a 1/2" wide metal FD clamp.
#17
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
Interesting about the too-much-torque theory.. aren't folks always warning against clamping a seatube when putting bike in a stand for fear of crushing the seat tube (ie. always use the seatpost). I can't imagine those workstands with the rubberised clamps would ever exert more psi on the tube than a 1/2" wide metal FD clamp.
With regard to the FD adapter, even in the dealers manual, they warn you to check with manufacturers specifications with regard to torque because the stated 5-7 n.m. may be too much depending on the material used on the frame (I assume they are talking about carbon fiber frames), but I could be wrong.
#18
I eat carbide.
Join Date: Jan 2006
Location: Elgin, IL
Posts: 21,575
Bikes: Lots. Van Dessel and Squid Dealer
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Liked 1,238 Times
in
527 Posts
Yeah, I've been searching and haven't found much info. I can't speak to torque as it came assembled from the manufacturer. I think it does look like pot metal, like Litespud mentioned. I only put out 817 watts before it snapped. I can only imagine it being some kind of defect.
Pay a couple of bucks and grab a new bracket and be done with it.
__________________
PSIMET Wheels, PSIMET Racing, PSIMET Neutral Race Support, and 11 Jackson Coffee
Podcast - YouTube Channel
Video about PSIMET Wheels
Podcast - YouTube Channel
Video about PSIMET Wheels
#19
I eat carbide.
Join Date: Jan 2006
Location: Elgin, IL
Posts: 21,575
Bikes: Lots. Van Dessel and Squid Dealer
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Liked 1,238 Times
in
527 Posts
Interesting about the too-much-torque theory.. aren't folks always warning against clamping a seatube when putting bike in a stand for fear of crushing the seat tube (ie. always use the seatpost). I can't imagine those workstands with the rubberised clamps would ever exert more psi on the tube than a 1/2" wide metal FD clamp.
__________________
PSIMET Wheels, PSIMET Racing, PSIMET Neutral Race Support, and 11 Jackson Coffee
Podcast - YouTube Channel
Video about PSIMET Wheels
Podcast - YouTube Channel
Video about PSIMET Wheels
Likes For redlude97:
#21
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
800W won't break anything. Definitely a flaw in the material. Could have been exasperated by how tight it was on the frame and if you were/are heavy and putting that 800W in while yanking on the bars for leverage. Tubes flex and *POP*.
Pay a couple of bucks and grab a new bracket and be done with it.
Pay a couple of bucks and grab a new bracket and be done with it.
Yes, the support bolt was engaged. I also double checked it when I re-installed the FD onto the adapter...it's tight and the chain guide outer plate is aligned perfectly.
#22
- Soli Deo Gloria -
Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,782
Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix
Mentioned: 235 Post(s)
Tagged: 0 Thread(s)
Quoted: 6839 Post(s)
Liked 718 Times
in
453 Posts
I think @redlude97 is onto something.
It broke exactly where the 2mm support bolt contacts the band clamp.
See page 28 at https://si.shimano.com/pdfs/dm/DM-DA0001-10-ENG.pdf

My guess is that the support bolt was never tightened properly or tightened too much. It only has to be just barely touching the band clamp.
Odd that it snapped when shifting the rear and not when shifting the front. I would have liked to have heard it blow.
Glad nobody was hurt! I'm going to the garage to check the 2mm support bolt on my Di2 bike right now. Its been about 2 years since I touched it.
-Tim-
It broke exactly where the 2mm support bolt contacts the band clamp.
See page 28 at https://si.shimano.com/pdfs/dm/DM-DA0001-10-ENG.pdf

My guess is that the support bolt was never tightened properly or tightened too much. It only has to be just barely touching the band clamp.
Odd that it snapped when shifting the rear and not when shifting the front. I would have liked to have heard it blow.
Glad nobody was hurt! I'm going to the garage to check the 2mm support bolt on my Di2 bike right now. Its been about 2 years since I touched it.
-Tim-
Last edited by TimothyH; 03-15-19 at 06:23 PM.
#23
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
I think @redlude97 is onto something.
It broke exactly where the 2mm support bolt contacts the band clamp.
See page 28 at https://si.shimano.com/pdfs/dm/DM-DA0001-10-ENG.pdf

My guess is that the support bolt was never tightened properly or tightened too much. It only has to be just barely touching the band clamp.
Odd that it snapped when shifting the rear and not when shifting the front. I would have liked to have heard it blow.
Glad nobody was hurt! I'm going to the garage to check the 2mm support bolt on my Di2 bike right now. Its been about 2 years since I touched it.
-Tim-
It broke exactly where the 2mm support bolt contacts the band clamp.
See page 28 at https://si.shimano.com/pdfs/dm/DM-DA0001-10-ENG.pdf

My guess is that the support bolt was never tightened properly or tightened too much. It only has to be just barely touching the band clamp.
Odd that it snapped when shifting the rear and not when shifting the front. I would have liked to have heard it blow.
Glad nobody was hurt! I'm going to the garage to check the 2mm support bolt on my Di2 bike right now. Its been about 2 years since I touched it.
-Tim-
#24
Senior Member
Thread Starter
Join Date: Jul 2018
Location: USA
Posts: 2,192
Bikes: Ti, Mn Cr Ni Mo Nb, Al, C
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 523 Times
in
347 Posts
So I backed it out, then turned it back in until I felt it touch, re-checked the torque and made some fine adjustments on the adjusting bolt and trim.
#25
I eat carbide.
Join Date: Jan 2006
Location: Elgin, IL
Posts: 21,575
Bikes: Lots. Van Dessel and Squid Dealer
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Liked 1,238 Times
in
527 Posts
True on the support bolt. In which case it was most likely over-tightened (my guess).
__________________
PSIMET Wheels, PSIMET Racing, PSIMET Neutral Race Support, and 11 Jackson Coffee
Podcast - YouTube Channel
Video about PSIMET Wheels
Podcast - YouTube Channel
Video about PSIMET Wheels
