Merlin Agilis Geometry Questions

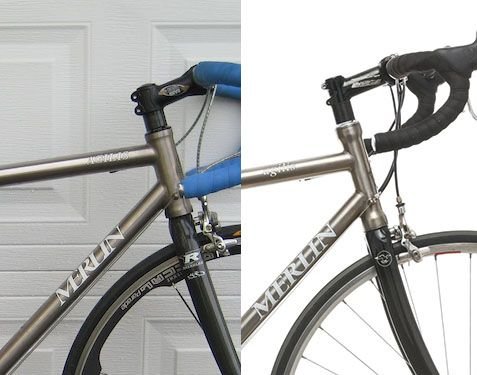

Hi All, hopefully folks with a Merlin Agilis can help. I'm trying to figure out the sizing on a M vs M/L...Seems like the 2002 and later Agilis' had the hourglass head tube, but the 2001 had a less dramatic shape. See pic below:



I found the 2002 catalog with geometry from retrobike, but is the earlier (pic on left) have the same geometry? I'm thinking no as the head tube is longer. Also, does Merlin use "Actual" or "Effective" top tube measurements?

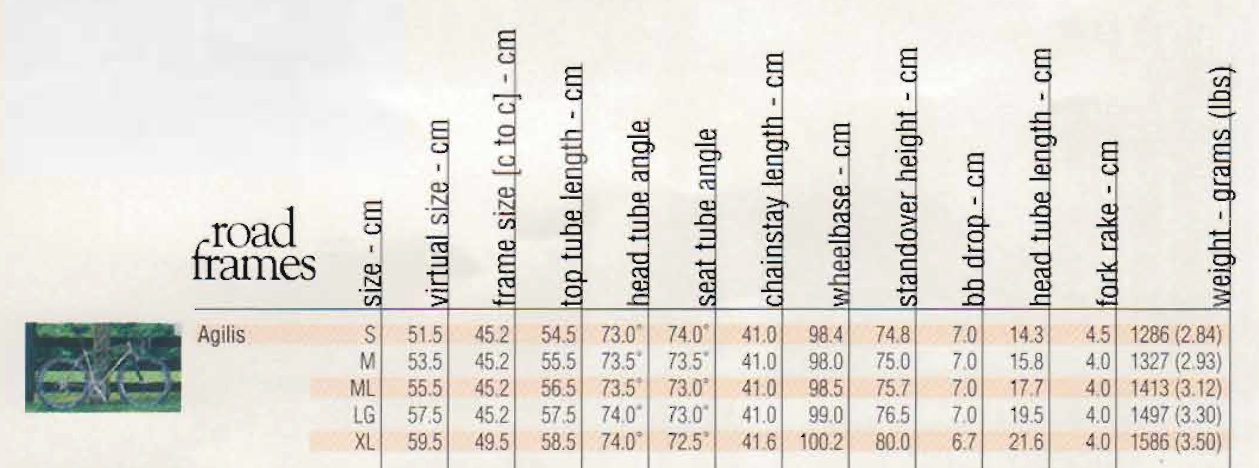

The 2002 catalog lists:

virtual size = Virtual Seatpost??? or is this Effective TT???
frame size (c to c) = Seatpost
top tube length = Actual???

Anyone have the 2001 Catalog?

amerikaner is offline
Old 11-11-19, 01:20 PM
  #2
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,767

Bikes: Two Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 415 Times in 337 Posts
With only one TT length posted, it will be a horizontal measurement. The headset is integrated and the HT length is listed. That's no different than any other modern frame.

It is odd that so many seat tubes are the same length.
DaveSSS is offline
Old 11-11-19, 02:58 PM
  #3
amerikaner
Senior Member
Thread Starter

Join Date: Jul 2018
Location: SoCal
Posts: 79

Bikes: Bikes: 1979 Trek 930, 1979 Trek 710, 1996 Trek 970, 2000 Merlin Extralight, 2005 Merlin Agilis Framesets: 1980 Trek 410, 1981 Trek 610, 1984 Trek 400, (2x) 1985 Trek 600

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 23 Times in 7 Posts
Ok, thanks...I agree it's interesting the seat posts are the same, definitely a factor of the angles. I wonder how much of an impact the hourglass headtube has on the geometry...still searching for a geometry chart from 2000 or 2001.
amerikaner is offline
Old 11-11-19, 03:42 PM
  #4
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,749

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3555 Post(s)
Liked 2,352 Times in 1,541 Posts
Originally Posted by DaveSSS View Post
With only one TT length posted, it will be a horizontal measurement. The headset is integrated and the HT length is listed. That's no different than any other modern frame.

It is odd that so many seat tubes are the same length.
I never thought about this before but it means that the rear triangle doesn't change with frame size. So Merlin only needs to build one rear triangle for all frame sizes. If this works riding-wise, smart! Manufacturers have been building one steel fork with a long steerer and cutting it to size before threading a long time. They'd use different head angles to get the desired riding characteristics for the different frame sizes with that one fork and rake.

Ben
79pmooney is offline
Old 11-11-19, 04:00 PM
  #5
amerikaner
Senior Member
Thread Starter

Join Date: Jul 2018
Location: SoCal
Posts: 79

Bikes: Bikes: 1979 Trek 930, 1979 Trek 710, 1996 Trek 970, 2000 Merlin Extralight, 2005 Merlin Agilis Framesets: 1980 Trek 410, 1981 Trek 610, 1984 Trek 400, (2x) 1985 Trek 600

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 23 Times in 7 Posts
So if the chainstay, seat tube are the same but the angle changes by .5 degrees would the seat stays very in length?
amerikaner is offline
Old 11-11-19, 04:53 PM
  #6
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,767

Bikes: Two Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 415 Times in 337 Posts
Only the chain stays and the seat tube would remain the same. The seat stays would change with the STA.

The bell shape has nothing to do with the fit. Just like a carbon bike the head tube length is listed and the headset sits inside. The pictures show a very low headset top, probably 5mm. Most are 15mm these days, but that can be changed as desired.
DaveSSS is offline
